Default Internal wastegate actuator...

So I have a SR20 T25 and want to have the compresser shot down rather then up. Sounds like all I have to do is loosen the bolts and turn the housing. I also hear that there is some drilling and tapping required. Then is it a DSM T25 waste actuator that I bend to fit. Anyone had any issues with the wastegate not closing all the way seeing as the rod is bent?
Strider is offline   Reply With Quote
Old 05-17-2007, 12:21 AM   #2
Senior Member

Join Date: Dec 2005
Posts: 865
Total Cats: 0
Default

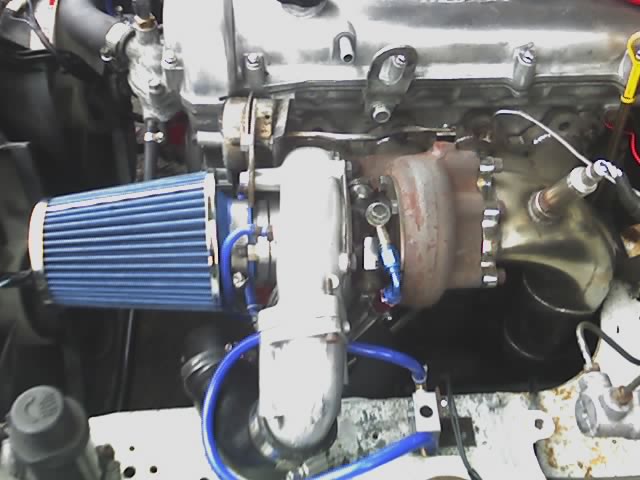

on my t2560 i had to rig up a internal,but i just got a 300zx t25 actuator that allmost bolts up.im going to drill a hole bigger and weld a lilttle on it to make it work.and im going to buy a adjustable end to make it realy tight.and eliminate the need to cut and weld the rod.

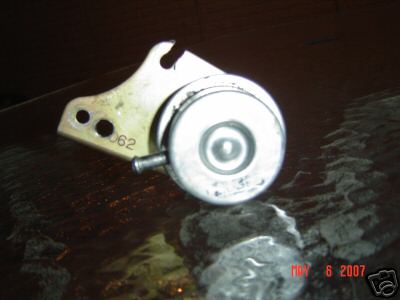

one picture is of the hks actuator that is sold to clock sr t25 turbos.
Attached Thumbnails
Internal wastegate actuator...-014b_1.jpg   Internal wastegate actuator...-mymiata4.jpg
turbopezz is offline   Reply With Quote
Old 05-17-2007, 11:18 AM   #3
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2007
Location: St Louis Park MN
Posts: 163
Total Cats: 0
Default

I wonder if it would be bad to just clock this bitch and then weld the actuator mount right to the turbo.......
Strider is offline   Reply With Quote
Old 05-17-2007, 08:06 PM   #4
Senior Member

Join Date: Dec 2005
Posts: 865
Total Cats: 0
Default

if you can weld aluminum,go for it.
begi does it.
turbopezz is offline   Reply With Quote
Old 05-17-2007, 08:22 PM   #5
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2007
Location: St Louis Park MN
Posts: 163
Total Cats: 0
Default

Hmm maybe I will give them a shout and see what they think....
Strider is offline   Reply With Quote
Old 05-17-2007, 08:42 PM   #6
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

They can do it. Drilling and tapping that turbo takes 10 minutes though and you customize it to how you want it. Hardest part would be driving to the store and buying a tap with bolts to match lol. Getting an adjustable end would keep you from having to mess with the rod and drilling it yourself would allow you to position the bracket/actuator the way you need it.
cjernigan is offline   Reply With Quote
Old 05-17-2007, 09:07 PM   #7
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2007
Location: St Louis Park MN
Posts: 163
Total Cats: 0
Default

Damnit Chad when the hell are you gunna be back on AIM HEH

Drilling and **** on a turbo makes me scared HEH. I have never tapped anything either (wow that sounds really REALLY bad :gay: ) I guess no one has an pics of this or how 2's.......
