Default Its beginning to look a lot like a down pipe

sing it along with me folks

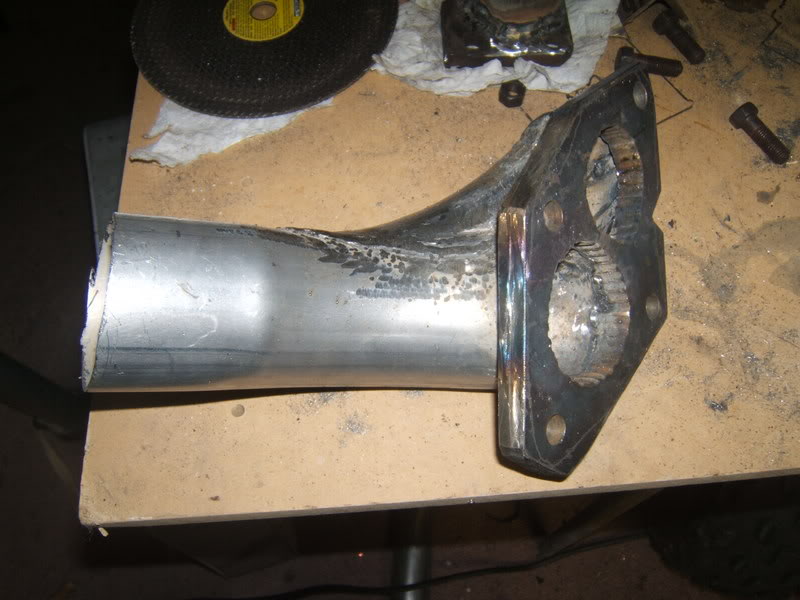

Name:  DSCF4656.jpg
Views: 1
Size:  69.4 KB

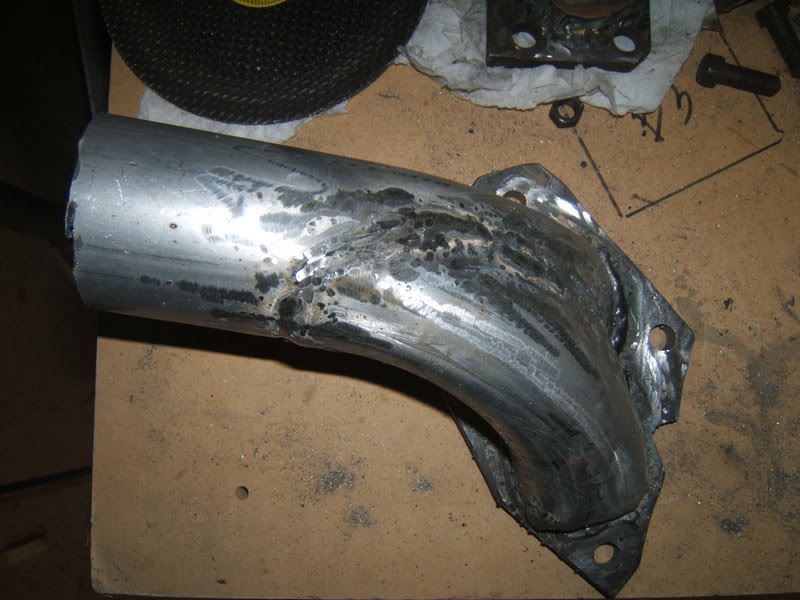

Name:  DSCF4657.jpg
Views: 1
Size:  73.4 KB


Welding is fun, to bad i suck at it!

Must get bottle of argon/co2
adbradley is offline   Reply With Quote
Old 12-17-2006, 08:53 PM   #2
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

Looks like a good start. Keep workin on the welding and it will get better.That looks alot like FM's cast elbow. If you are working with galvanized or aluminized (looks like you are), be very careful as the fumes can cause serious health problems and in some cases death. I have heard if you start feeling bad milk is somewhat of a cure.
-Michael-
TheBandit is offline   Reply With Quote
Old 12-17-2006, 09:59 PM   #3
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

to quote a "tv star" fabricator, "you don't have to be a good welder, just a good grinder" Looks like a good start to me. Only two things count- you have fun and it works.
m2cupcar is offline   Reply With Quote
Old 12-17-2006, 10:02 PM   #4
Senior Member

Join Date: May 2005
Location: San Francisco
Posts: 547
Total Cats: 0
Default

everywhere you go!
turbored is offline   Reply With Quote
Old 12-17-2006, 10:51 PM   #5
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

ive welded galvanized, and yes this is aluminized pipe (free scrap from the exhaust shop) and i just make sure i have very good ventalation, and dont weld for long periods of time.
adbradley is offline   Reply With Quote
Old 12-17-2006, 10:53 PM   #6
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

How'd you get free scrap? Just go in and ask?
Atlanta93LE is offline   Reply With Quote
Old 12-17-2006, 11:05 PM   #7
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

yeah, the guy was there all by his self, it was at a midas in the getto, i was tellin the guy what i was doin, and he was like "here just grab what ever you want.. i rummaged through and picked some pieces that i guess they had fucked up, but it was all 2 and a half 16 guage. after i crabbed all i could hold in 2 hands, i slipped the guy a ten and got the hell out of there before my wheels got stolen.
adbradley is offline   Reply With Quote
Old 12-17-2006, 11:17 PM   #8
Junior Member
iTrader: (1)

Join Date: Nov 2006
Location: Hartville, OH
Posts: 174
Total Cats: 0
Default

as long as those welds are stong, it doesn't matter how pretty it is.
left field is offline   Reply With Quote
Old 12-17-2006, 11:24 PM   #9
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

what do you guys think of my flange that i made by drilling lots of small holes next to each other in a large circle pattern, then punching out the center... Gotta go what you can with what few tools you have i guess.. im gonna go in and smooth them out more with my die grinder before installation.
adbradley is offline   Reply With Quote
Old 12-17-2006, 11:35 PM   #10
Junior Member
iTrader: (1)

Join Date: Nov 2006
Location: Hartville, OH
Posts: 174
Total Cats: 0
Default

i have done the lots of holes thing before on a manifold. a lot of work . with a lot of grinding and more grinding and more grinding. i was pulling steel spliters from various parts of my body for weeks
left field is offline   Reply With Quote
Old 12-17-2006, 11:43 PM   #11
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

Yeah, im in the process of that right now, a drum sander with a good 40 grit paper is a bit easier in the splinter department, but those carbide burr cutter sure do a quick job of it!
adbradley is offline   Reply With Quote
Old 12-18-2006, 12:13 AM   #12
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

I'd screw the sander and hit it with a bit, looks very labour involved though..
dc2696 is offline   Reply With Quote
Old 12-18-2006, 12:22 AM   #13
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

na, sander works good
adbradley is offline   Reply With Quote
