Default I've searched but can't find... using stock intake tube on NA turbo?

I could have sworn I saw somebody with a simple turbo setup, retaining the stock intake tube, mounting a BPV where the "resonator" goes on the side of the throttle body, and the factory intake pipe went to the turbo..

But now I can't find the pic/setup... Is this something people do? I've got a stock SR turbo laying around with o2 housing, some braided oil lines from past projects, and the wife wants the miata to have more pep...

So I'm thinking about doing a simple 5psi homebrew, but I was curious if I can just reuse that pipe...
nperkins is offline   Reply With Quote
Old 04-27-2012, 03:50 PM   #2
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

The black plastic accordion? That breaks/blows up/does all sorts of bad things under boost man.
blaen99 is offline   Reply With Quote
Old 04-27-2012, 03:53 PM   #3
Junior Member
Thread Starter

Join Date: Apr 2012
Posts: 182
Total Cats: -3
Default

Yup thats the tube I'm talking about... I could have SWORN I saw somebody using it on here... Maybe I was drunk...
nperkins is offline   Reply With Quote
Old 04-27-2012, 04:22 PM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

cxracer is, and I have. I think that's his name. Dunno if he's doing the BOV thing, but I did. Worked great with some zip ties in the accordion piece to help with the expansion. 5psi is great, although above that is too much.

Here ya go. It's mainly about the rattle, but the first video shows the zip tie thing. Unfortunately I don't think I have pics of my setup when I had the BOV in place of the resonater.

Quote:
Originally Posted by Cxracer View Post
I took a couple quick videos with my iPhone of before and after the adjustment
Before: I also ended with a shot of Curly's trick of zip-tying the intake tube

After adjustment: Not that much of a change. I tried to show how I can flex the arm and get the rattle but it's a little hard to hear.
curly is offline   Reply With Quote
Old 04-27-2012, 04:28 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,576
Default

Or you could just spend like 50 bux and get some aluminum piping on ebay and a couple couplers and do it RIGHT.
18psi is offline   Reply With Quote
Old 04-27-2012, 04:37 PM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Well, if you're doing it RIGHT, it'll be around $150. Seriously, the first "miata intercooler kit", buy it now, that includes pipes, clamps, and an intercooler, is from cxracing and costs $143.

A used DSM plastic BOV costs $20.
curly is offline   Reply With Quote
Old 05-01-2012, 09:55 AM   #7
Junior Member
Thread Starter

Join Date: Apr 2012
Posts: 182
Total Cats: -3
Default

Thanks Curly... What BOV were you running in that resonator location? Was it a DSM BOV with a custom mount? Because if thats the case i'll use the evo8 BOV i have laying around lol
nperkins is offline   Reply With Quote
Old 05-01-2012, 12:34 PM   #8
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Just a standard Bosch valve...
http://www.ebay.com/itm/Bosch-Bypass...9abec0&vxp=mtr

As the add says, comes with a lot of Saabs, Porsches, Audis, etc. Basically any turbo car from the 80's and 90's, that had a BOV.

no custom mount, I just clamped it where I removed the resonator chamber. I believe I clamped a piece of hose between the two, lightly of course because the intake side is fairly thin plastic.
curly is offline   Reply With Quote
Old 05-01-2012, 12:39 PM   #9
Junior Member

Join Date: Mar 2011
Location: Indianapolis
Posts: 78
Total Cats: 1
Default

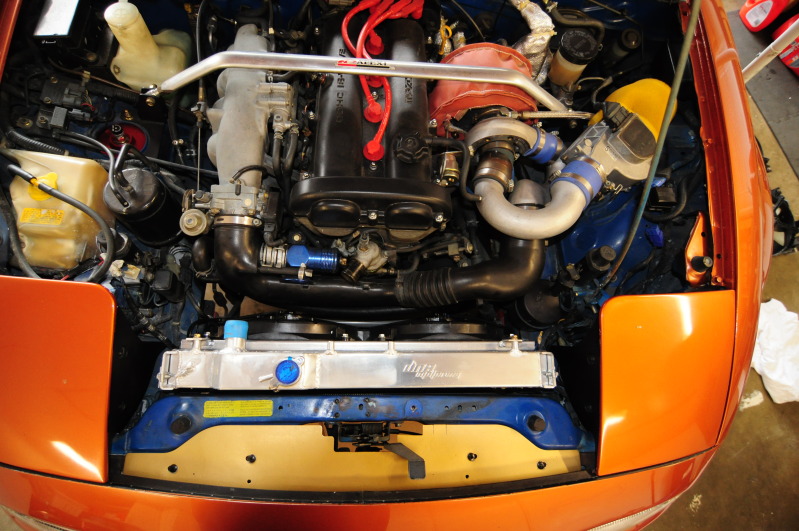

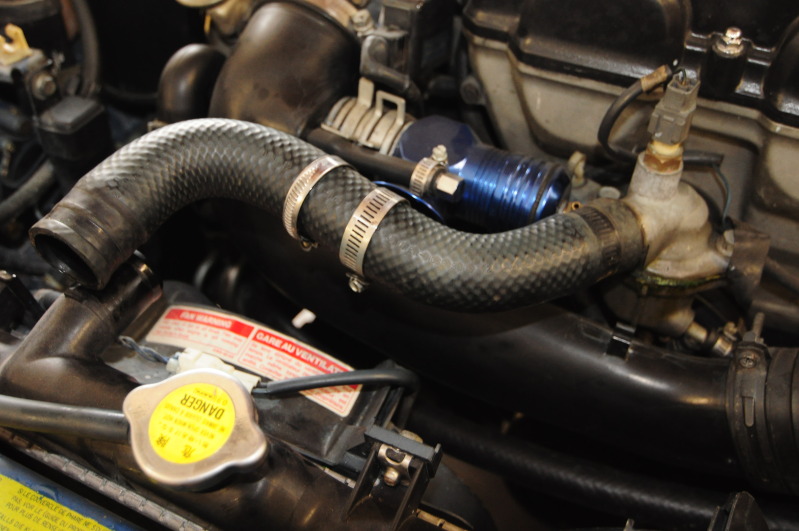

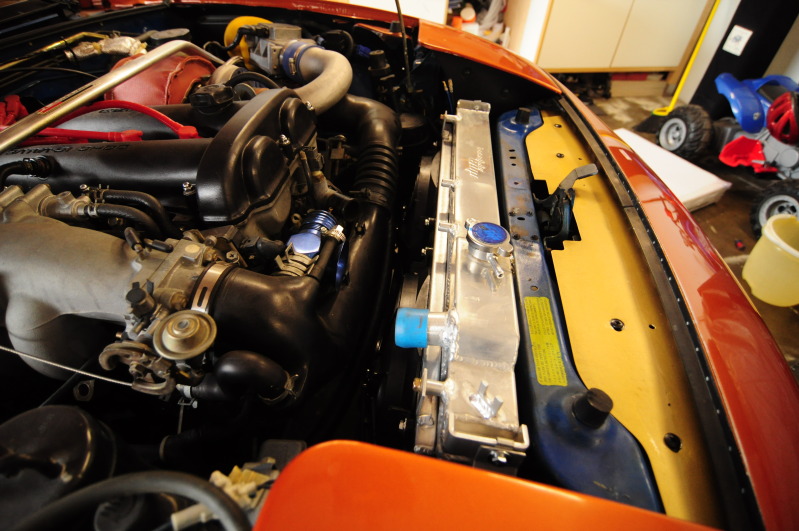

Attached Thumbnails
I've searched but can't find... using stock intake tube on NA turbo?-031.jpg   I've searched but can't find... using stock intake tube on NA turbo?-011-6.jpg   I've searched but can't find... using stock intake tube on NA turbo?-029.jpg
adamvanxxx is offline   Reply With Quote
Old 05-01-2012, 12:46 PM   #10
Junior Member
Thread Starter

Join Date: Apr 2012
Posts: 182
Total Cats: -3
Default

Quote:
Originally Posted by adamvanxxx View Post


Yeah... Those pics are too detailed/accurate/perfectly answer my questions... Can you do me a favor and leave this thread, and not come back unless you have something pointless and irrelevant to add? Kthxbye..





I really hope you sense my sarcasm and I truly thank you for your awesome help answering my question PERFECTLY
nperkins is offline   Reply With Quote
Old 05-01-2012, 12:51 PM   #11
Junior Member

Join Date: Mar 2011
Location: Indianapolis
Posts: 78
Total Cats: 1
Default

Sure uh the crossover tube is plastic bro most of us use metal.

Edit: Not my car BTW

Here is his photobucket if you need more pictures. http://s129.photobucket.com/albums/p204/flyineunos/
adamvanxxx is offline   Reply With Quote
Old 05-01-2012, 01:18 PM   #12
Junior Member
Thread Starter

Join Date: Apr 2012
Posts: 182
Total Cats: -3
Default

Thanks for the help... I need to buy a new bosch valve for my saab 9-5 anyways... So maybe i'll just order two bosch valves...
