Default just another intercooler install

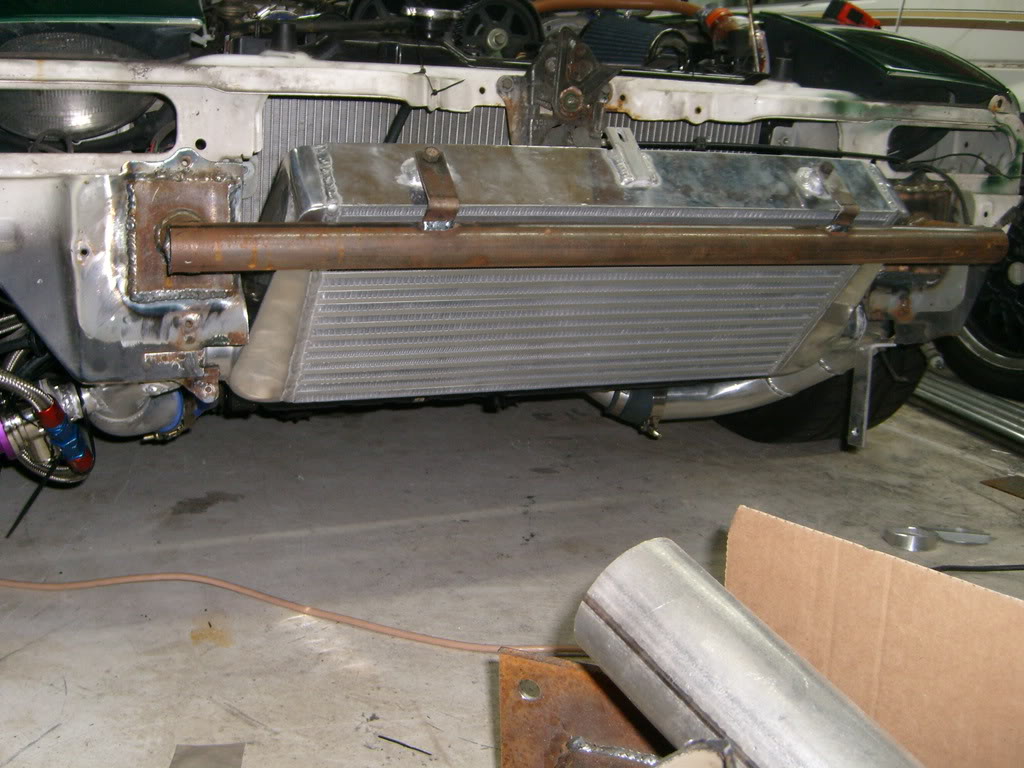

I saw the other thread and thought I would share my own. the core is 23x11x3 and 28" at the tanks, I thought I would beef up the front of my frame while making a mounting location for the new cooler, and just thought mounting it at an angle would be cool. I cut out the stock sheet metal crush zone and made my own tubular section that is much stronger and should reduce front end flex. Name:  IC3.jpg
Views: 3

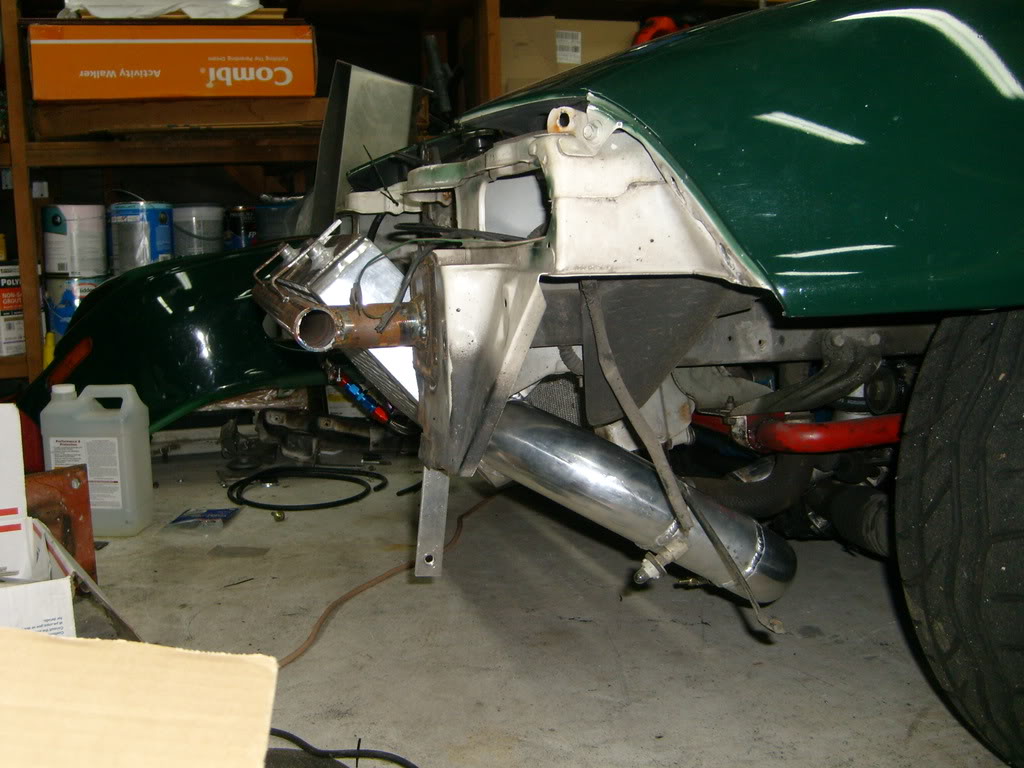

Size:  163.4 KB Name:  IC1.jpg
Views: 4

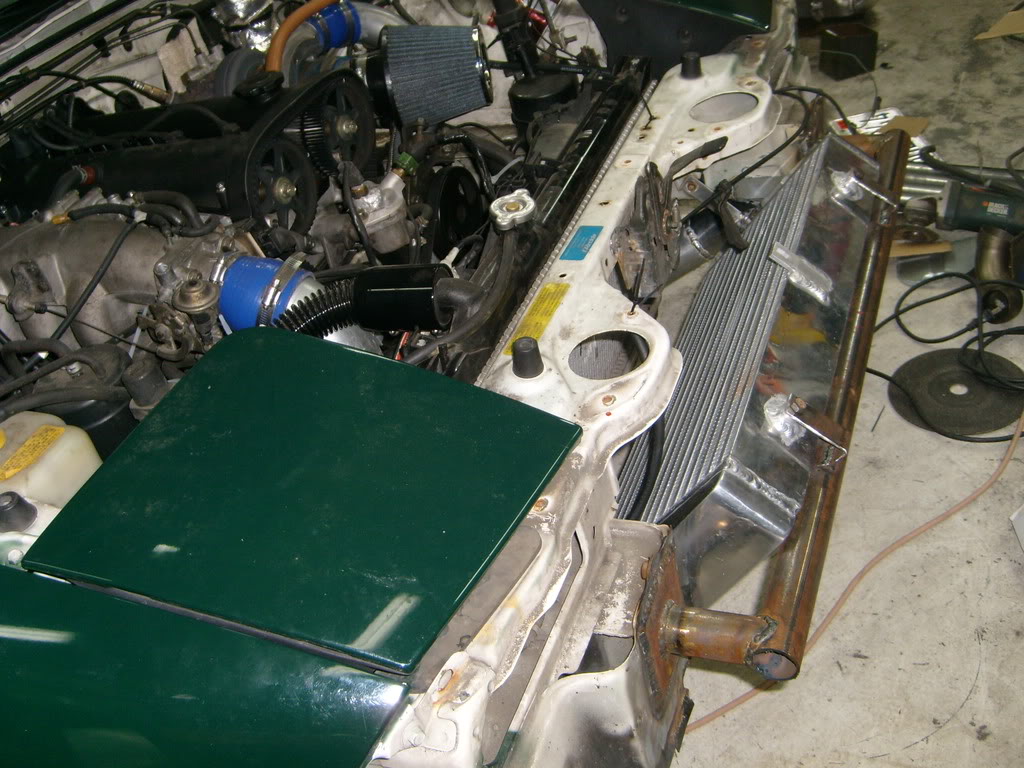

Size:  150.7 KB Name:  IC2.jpg
Views: 3
Size:  183.0 KB
Gotpsi? is offline   Reply With Quote
Old 03-06-2009, 12:04 AM   #2
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Will you be able to put the bumper reinforcement on?
SKMetalworks is offline   Reply With Quote
Old 03-06-2009, 12:07 AM   #3
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

yup with plenty of clearance its already done, I just took it back off to mount the oil cooler back in there and to paint it now that is done for the most part, and I'm debating welding caps over the end of my tubes.
Gotpsi? is offline   Reply With Quote
Old 03-06-2009, 12:42 AM   #4
Junior Member

Join Date: Mar 2009
Location: Venice, FL
Posts: 179
Total Cats: 9
Default

Wow, nice job. Thats a pretty serious setup you have there. Are you going to try to max out the 15G?
Orion ZyGarian is offline   Reply With Quote
Old 03-06-2009, 05:05 AM   #5
I'm Miserable!
iTrader: (33)

Join Date: Jan 2009
Location: San Jose, CA
Posts: 1,066
Total Cats: -3
Default

the piping on the driver side looks awfully low, like it would hit if you went over a speedbump?

any better side pics? looks interesting!
railz is offline   Reply With Quote
Old 03-06-2009, 06:12 AM   #6
Junior Member
iTrader: (-1)

Join Date: Aug 2006
Location: NJ
Posts: 148
Total Cats: 0
Default

Notice a difference in cooling? dimensions on pipes, in case someone else has courage to try this?
SOL General is offline   Reply With Quote
Old 03-06-2009, 08:54 AM   #7
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

The tubing is much higher than you think, I changed to this around the radiator set up becuase my old set up went under, and even then I never had a problem with a speed bump, just parking blocks. The tube dimention is 2.75. I have not run the car hard enouph yet to let you know IAT temp differences between the new cooler and my old one however I don't think Ill have a problem with heat soke anymore.

Sorry for any miss spelling I'm typing from a phone.
Gotpsi? is offline   Reply With Quote
Old 03-06-2009, 09:55 AM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I'd rather lean the FMIC back to let air go over the IC, into the radiator.


brg crew fo life.
hustler is offline   Reply With Quote
Old 03-06-2009, 10:23 AM   #9
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

Quote:
Originally Posted by Gotpsi? View Post
...just thought mounting it at an angle would be cool...
be cool, or look cool? Agreed ^ I'd put it back at the rad vertically and stick a fat/wide oil cooler up there in that spot.
m2cupcar is offline   Reply With Quote
Old 03-06-2009, 10:50 AM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by m2cupcar View Post
be cool, or look cool? Agreed ^ I'd put it back at the rad vertically and stick a fat/wide oil cooler up there in that spot.
nguyener
hustler is offline   Reply With Quote
Old 03-06-2009, 10:51 AM   #11
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

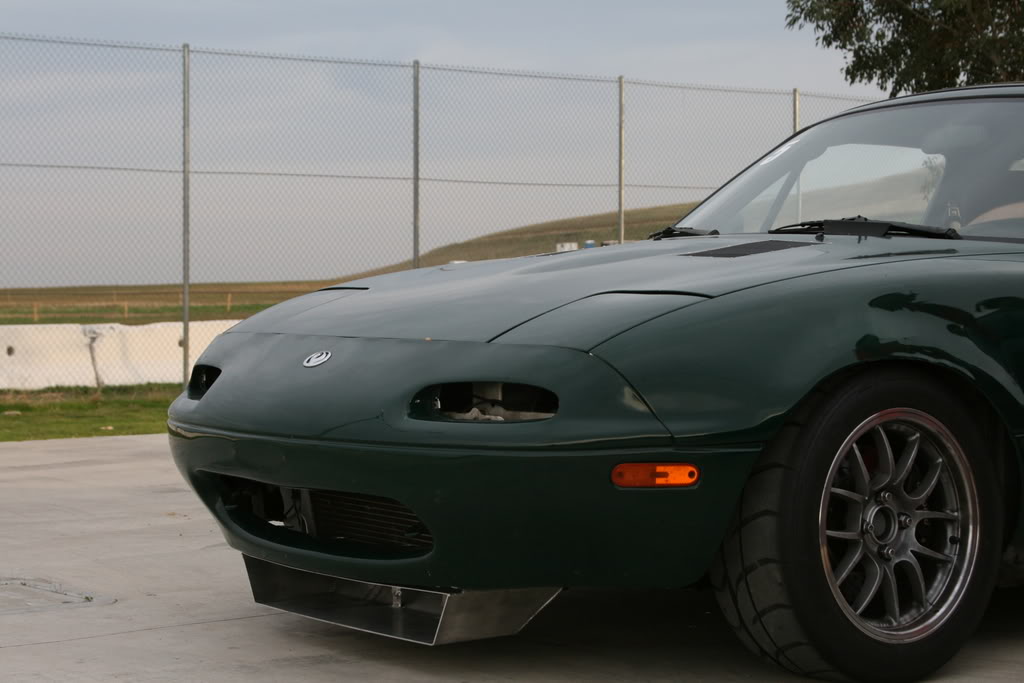

Actually I have a large scoop underneath the bumper and intercooler that blocks the air from going under and causes the air to flow up through the cooler and into my oil cooler and the scoop supplies air for the rad. My old cooler is in this pic but you get the idea. also the air has to flow up through the fins in this set up, if you mounted it the other way its possible that it could create lift at high speeds and I wouldn't want that. Name:  IMG_1566.jpg
Views: 3
Size:  75.7 KB
Gotpsi? is offline   Reply With Quote
Old 03-06-2009, 10:59 AM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

brg 6ul crew is ftw!

is that like 2" of clearance? My pooper scooper isn't that big. You need a splitter.
hustler is offline   Reply With Quote
Old 03-06-2009, 11:02 AM   #13
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Its almost 3", works awesome at the track no heat issues at all I am using a stock rad, oil cooler and my own custom reroute and the car stays cool as idle. I'm running 16psi falling off to 15 before I shift. I need a bigger turbo.
Gotpsi? is offline   Reply With Quote
Old 03-06-2009, 11:11 AM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Gotpsi? View Post
Its almost 3", works awesome at the track no heat issues at all I am using a stock rad, oil cooler and my own custom reroute and the car stays cool as idle. I'm running 16psi falling off to 15 before I shift. I need a bigger turbo.
shrowing on the front side of the heat exchangers? Which fans and shroud?

I'm going to run a shorter scooper integrated into the scary-big splitter, shroud everything and hope for the best.
hustler is offline   Reply With Quote
Old 03-06-2009, 11:23 AM   #15
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,051
Total Cats: 7
Default

holy scooper batman!
Efini~FC3S is offline   Reply With Quote
Old 03-06-2009, 11:24 AM   #16
Junior Member
iTrader: (3)

Join Date: Mar 2009
Location: Birmingham, AL
Posts: 254
Total Cats: 3
Default

nice intercooler setup any new data on iat and what kind of power are you making with your setup
kww502 is offline   Reply With Quote
Old 03-06-2009, 11:46 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

I'd rather run a large splitter and cut the bottom section of my mouth off and put some holes between the turn signals...
Braineack is offline   Reply With Quote
Old 03-06-2009, 12:04 PM   #18
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

I think the problem with the two entries is what happens on the other side of the exchangers. IOW if you've got more pressure on the other side of the IC (from the larger entry) it makes it harder for air to come through the oil cooler. And this also makes more difficult to push air through the radiator. Of course this all speaks towards optimal efficiency for each exchanger. Generally there are two accepted approaches - One opening that feeds multiple exchangers, OR an entry and exit per exchanger, no shared exits.

That said, if you've given the car beating on the track in worst of conditions and had no problems, good job.
m2cupcar is offline   Reply With Quote
Old 03-06-2009, 12:13 PM   #19
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

The bottom of the mouth is blocked off by the scoop and the IC and the radiator have there own exits and entry for the air so there should be no presure problems
Gotpsi? is offline   Reply With Quote
Old 03-06-2009, 12:14 PM   #20
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by m2cupcar View Post
I think the problem with the two entries is what happens on the other side of the exchangers. IOW if you've got more pressure on the other side of the IC (from the larger entry) it makes it harder for air to come through the oil cooler. And this also makes more difficult to push air through the radiator. Of course this all speaks towards optimal efficiency for each exchanger. Generally there are two accepted approaches - One opening that feeds multiple exchangers, OR an entry and exit per exchanger, no shared exits.

That said, if you've given the car beating on the track in worst of conditions and had no problems, good job.
the crystal ball just told me:
ducting ducting ducting ducting ducting ducting ducting ducting ducting
