DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 01-22-2008, 08:59 PM   #1
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default Last minute check.

turbo bolted on.. lock tite all the bolts.. check
turbo lines all tightly fitted... check
all lines and hoses are tight....check
fresh oil in motor...check


Q's.
poured some oil through the oil feed into the turbo?
Anything i'm forgetting before turning her on?



PaKMaN is offline   Reply With Quote
Old 01-22-2008, 09:00 PM   #2
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Did you refill the radiator?
How about reconecting the battery?
samnavy is offline   Reply With Quote
Old 01-22-2008, 09:01 PM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Check. on the battery...



regarding the radiator.. how do I burp the system? Also should I go with distilled water + coolant 70/30?
PaKMaN is offline   Reply With Quote
Old 01-22-2008, 09:02 PM   #4
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

sounds like you're ready but list the details of your setup maybe someone will think of something. maybe have someone ready with a fire extinguisher
Mach929 is offline   Reply With Quote
Old 01-22-2008, 09:03 PM   #5
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

LC1
Emanage Blue
T25 (Sr20)
HKS mani
Custom over the rad FMIC
Custom 3" DP
310 cc's
godspeed rad
umm dno what else i'm missing.
PaKMaN is offline   Reply With Quote
Old 01-22-2008, 09:06 PM   #6
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

turn key so accesories are on and fuel pump running and check for leaks around the injectors
Mach929 is offline   Reply With Quote
Old 01-22-2008, 09:06 PM   #7
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Check. I'm at work making a list to hopefully get her going 2nite. Still gotta finish up the Intake and finish the rad mounts.
PaKMaN is offline   Reply With Quote
Old 01-22-2008, 09:16 PM   #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,925
Default

There's not much science to burping the system. Everyone seems to have a slightly different procedure.

Personally, I just give the upper hose a few good, solid squeezes while I'm filling the radiator, then cap the system and make sure the overflow tank is full up to the "full" line. Then drive the car for a while (enough to cycle the thermostat) and let 'er cool down. Repeat once or twice, and the system will pretty much purge itself, drawing coolant out of the overflow tank each time it cools down.


So, EMB & 310cc injectors, no AFPR, but a 3" DP and a serious FMIC. How much power / boost are we planning on, here? (and BTW, what are the specs on an SR20's turbo? I've never seen one.)
Joe Perez is offline   Reply With Quote
Old 01-22-2008, 09:21 PM   #9
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
There's not much science to burping the system. Everyone seems to have a slightly different procedure.

Personally, I just give the upper hose a few good, solid squeezes while I'm filling the radiator, then cap the system and make sure the overflow tank is full up to the "full" line. Then drive the car for a while (enough to cycle the thermostat) and let 'er cool down. Repeat once or twice, and the system will pretty much purge itself, drawing coolant out of the overflow tank each time it cools down.


So, EMB & 310cc injectors, no AFPR, but a 3" DP and a serious FMIC. How much power / boost are we planning on, here? (and BTW, what are the specs on an SR20's turbo? I've never seen one.)
Power wise.. i'm not shooting for anything big anywhere from 200-250whp if possible. I just want something with some tq to get me through the twisties. IIRC my turbo is .80 A/R intake.. .64 A/R in the exhuast. Also known as T25g or .. GT2554R I believe.
PaKMaN is offline   Reply With Quote
Old 01-22-2008, 09:24 PM   #10
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

your turbo is a good choice for those goals but your fueling setup is not, with 310cc injectors i wouldn't suggest more than 7-8 psi. btw your turbo isn't BB like a gt2554r
Mach929 is offline   Reply With Quote
Old 01-22-2008, 09:27 PM   #11
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Right..it is a journal bearing.. but the specs line up with that. And regarding the fuel.. I just don't know about this fuel. Would a FPR + 190 LHP help?
PaKMaN is offline   Reply With Quote
Old 01-22-2008, 09:33 PM   #12
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

yes an afpr so raise your fuel pressure should get you enough fuel. i came from a band-aided emb setup with an afpr and 305cc injectors to a mspnp and really crappy tune and picked up 50whp at the same boost.
Mach929 is offline   Reply With Quote
Old 01-22-2008, 09:58 PM   #13
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Flushed the oil pan for shavings from drilling/tapping?

Tightened clamps/couplers etc...
TonyV is offline   Reply With Quote
Old 01-22-2008, 10:03 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

ignition timing
correct octane fuel
Braineack is offline   Reply With Quote
Old 01-22-2008, 10:59 PM   #15
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Quote:
Originally Posted by tvalenziano View Post
Flushed the oil pan for shavings from drilling/tapping?

Tightened clamps/couplers etc...
This i've been having a problem with. I'm not quite sure how to flush it correctly. Any advice guys/scott?
PaKMaN is offline   Reply With Quote
Old 01-22-2008, 11:13 PM   #16
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Hey Pakman, are you using a restrictor on your oil feed line?
Saml01 is offline   Reply With Quote
Old 01-22-2008, 11:18 PM   #17
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

I don't believe so.

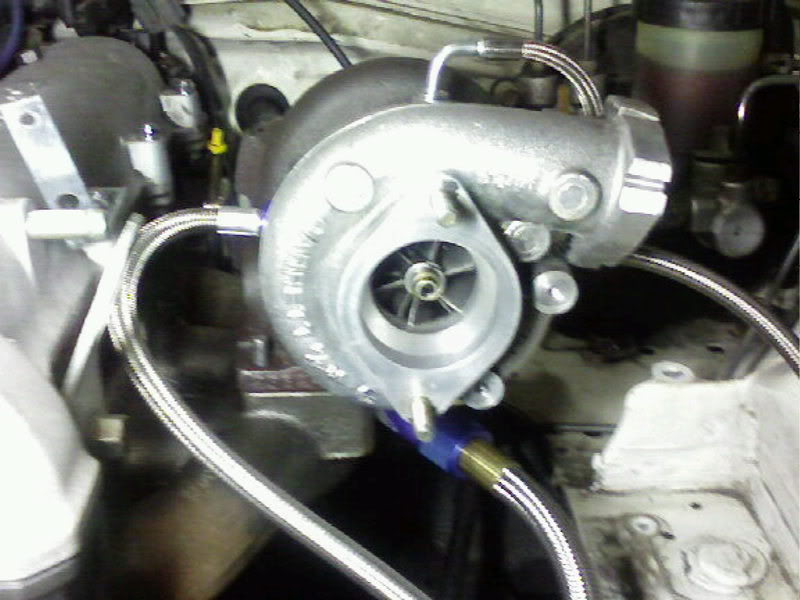

Name:  miata3.jpg
Views: 1
Size:  65.3 KB
PaKMaN is offline   Reply With Quote
Old 01-22-2008, 11:20 PM   #18
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Is that -5AN line?
cjernigan is offline   Reply With Quote
Old 01-22-2008, 11:21 PM   #19
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

when you first fire it up have someone hold the compressor wheel still for about a minute...i forget why this is important but i assume it has to do with oil getting throught the cartridge and bearing before the wheel starts spinning, it wont hurt anything, just dont rev the motor, but you wouldnt do that anyways right? lol
Zabac is offline   Reply With Quote
Old 01-22-2008, 11:24 PM   #20
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

I've got a fitting that goes into the block where the SS line screws onto
PaKMaN is offline   Reply With Quote
