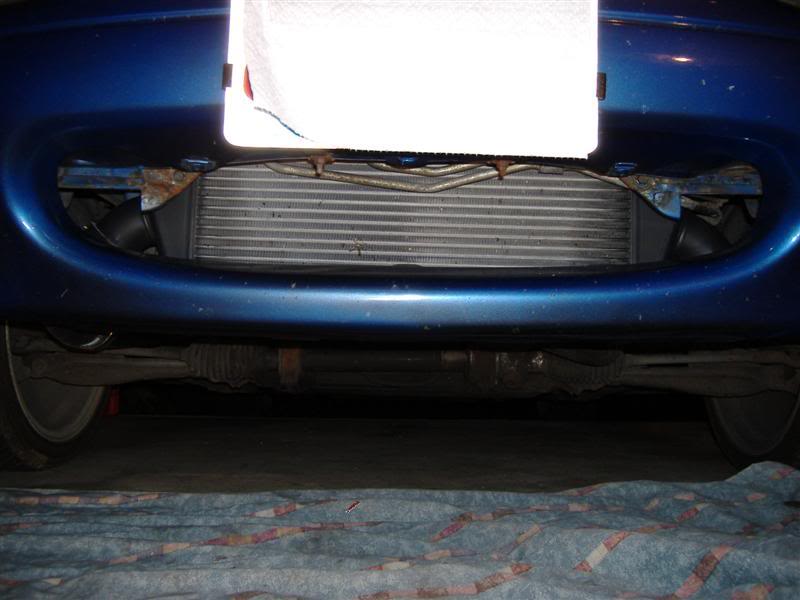

MONEY SHOT! How's this for sleeper?
Name:  Sleeper_look_FMICMedium.jpg
Views: 1
Size:  46.3 KB
lazzer408 is offline   Reply With Quote
Old 07-27-2007, 04:58 AM   #22
Senior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

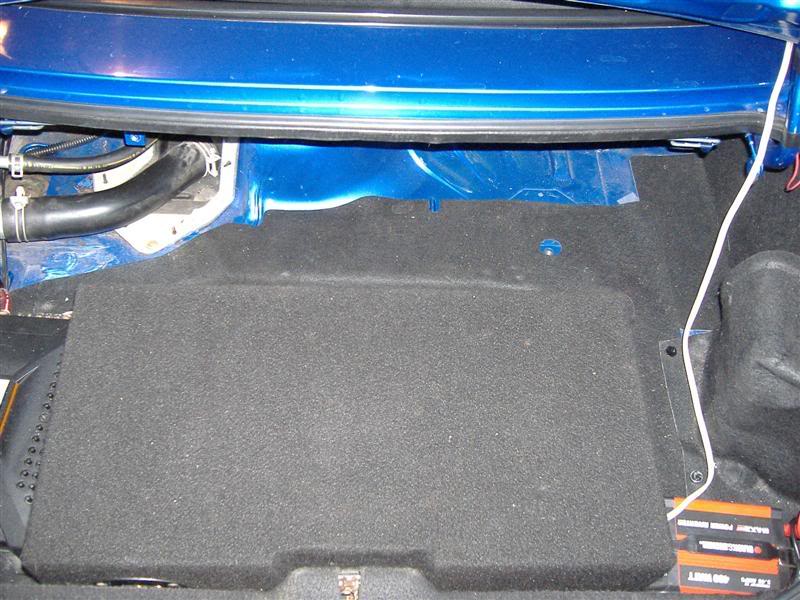

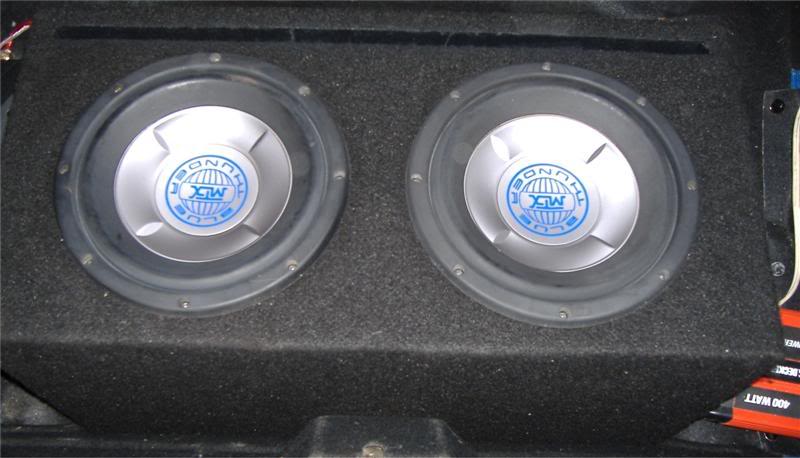

I fooled with subs from 8" to 12". The best one out of 6 configurations I tried was my own little diy slot-port mini-box for some old MTX 8s I had laying around. That box hits 25hz-125hz no problem. The 6.5s and seat speakers take over from 125hz up.
Name:  MTX_subs_2Medium.jpg
Views: 1
Size:  89.7 KB
Name:  MTX_subs_3Medium.jpg
Views: 1
Size:  49.4 KB
lazzer408 is offline   Reply With Quote
Old 07-27-2007, 05:04 AM   #23
Senior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

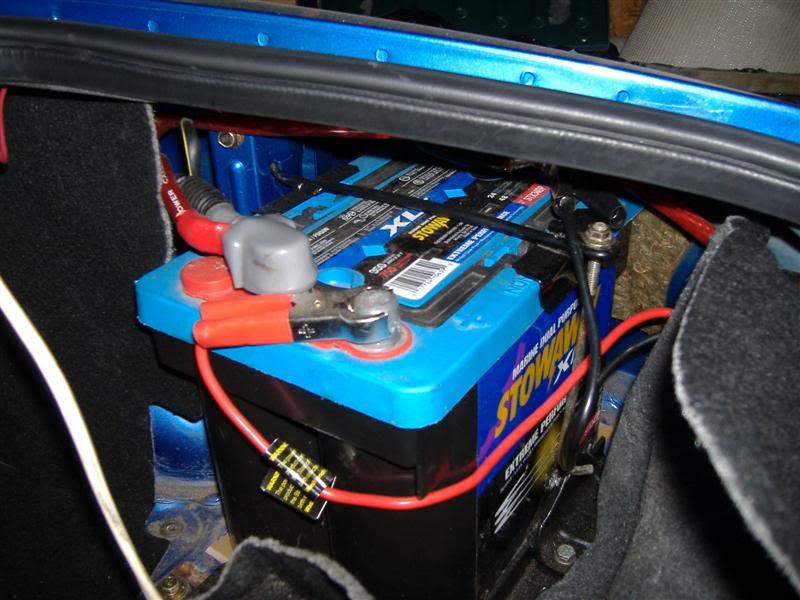

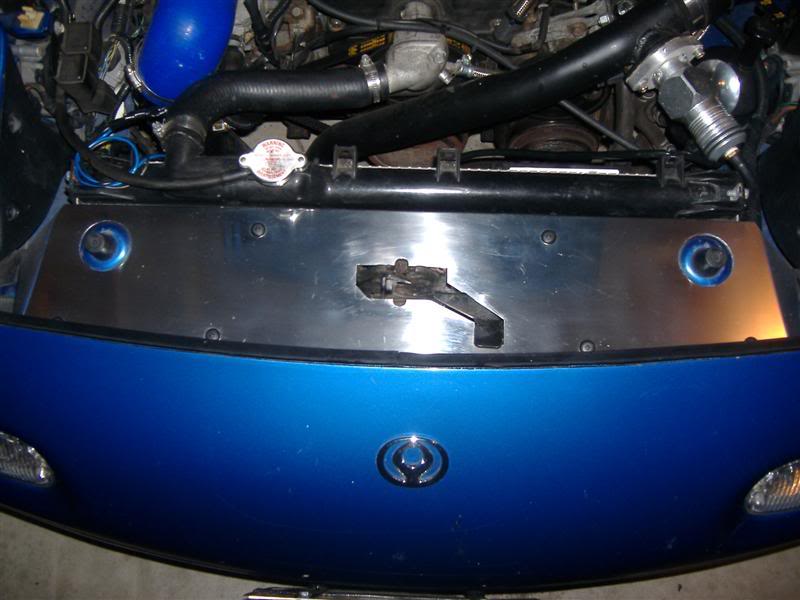

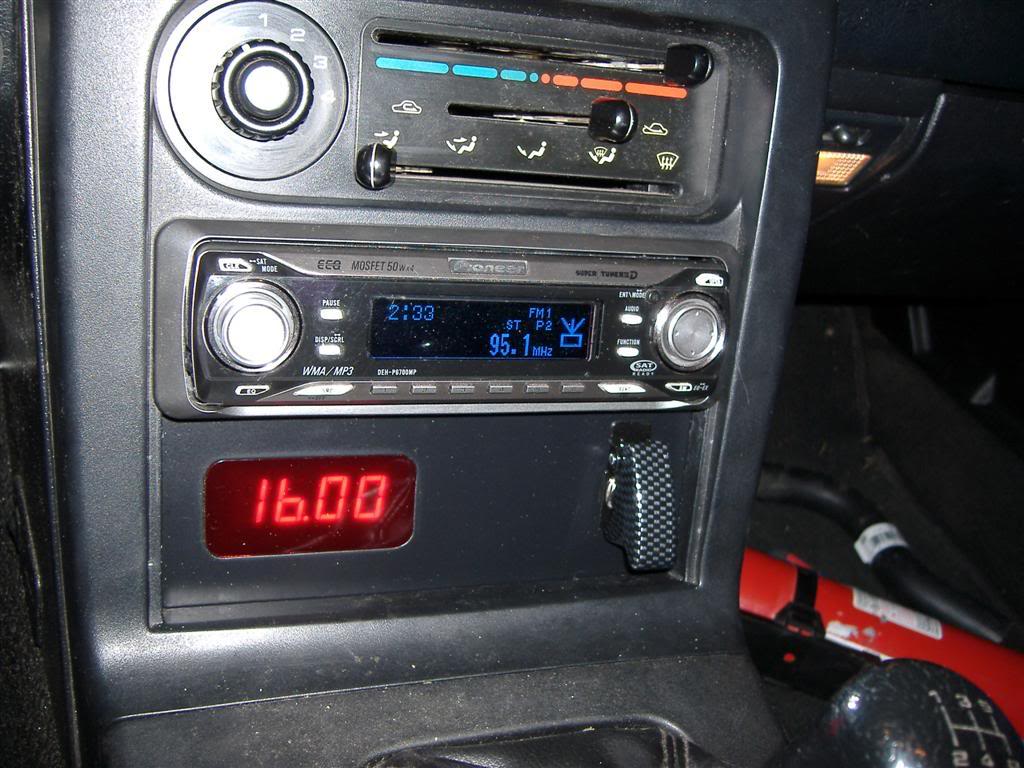

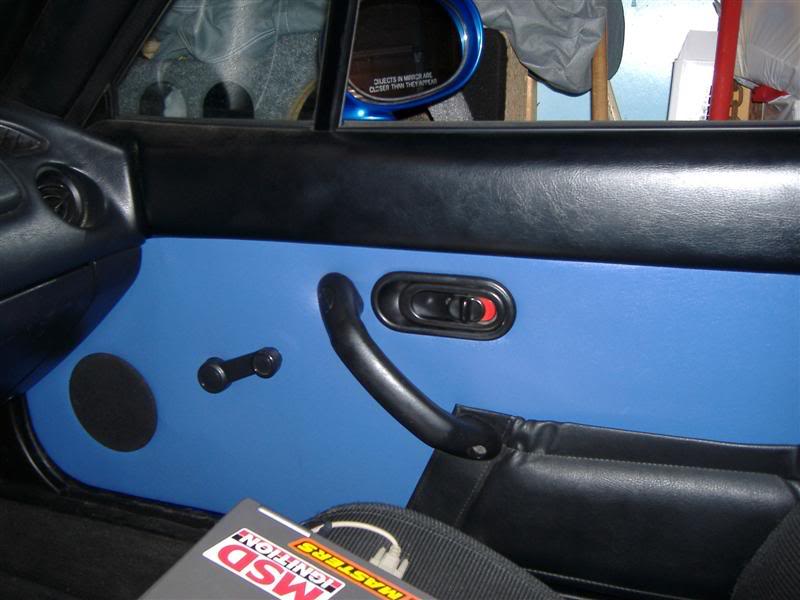

Last, a few odds and ends things I did to the car. I'm still working on the 2 tone interior but I'm doing it right. That's vinyl on the door not paint. How about a big battery? A must have for b-b-b-bass. Also is the radiator shield I made to keep the air from flowing over the rad. A nice touch. =)
Name:  Wideband_2Large.jpg
Views: 1
Size:  119.3 KB
Name:  Door_panalMedium.jpg
Views: 1
Size:  50.8 KB
Name:  Sprial_cellMedium.jpg
Views: 1
Size:  71.7 KB
Name:  DSCF0993Medium.jpg
Views: 1
Size:  53.1 KB
lazzer408 is offline   Reply With Quote
Old 07-27-2007, 05:11 AM   #24
Senior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Hope you like it. It's been a long project making/modding/adding/upgrading little things here and there. Oh and if anyone saw any zipties, Braineak did it! :gay:
lazzer408 is offline   Reply With Quote
Old 07-27-2007, 09:26 AM   #25
I'm Miserable!
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default

damn. Nice thread. Lots of pics. Looks like it's come a long way
SloS13 is offline   Reply With Quote
Old 07-27-2007, 12:59 PM   #26
Junior Member

Join Date: Mar 2007
Location: Whales Vagina, CA
Posts: 99
Total Cats: 0
Default

Lazzer, great build thread. COP and heat shild are very impressive. The route im going with my build is very similar to yours, sans some of the nicer items such as ems, cop, and that pretty tubular mani.

Quick question, since im running a saab turbo, what would I have to do to be able to convince you to fab up another one of those dp flanges. Pm me if youre interested.

great work, good thread

-dan
dirtyboost is offline   Reply With Quote
Old 07-27-2007, 01:07 PM   #27
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by lazzer408 View Post
Hope you like it. It's been a long project making/modding/adding/upgrading little things here and there. Oh and if anyone saw any zipties, Braineak did it! :gay:

I dont understand why I'm the ziptie ****. I use them religously.
Braineack is offline   Reply With Quote
Old 07-27-2007, 02:16 PM   #28
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Outside of the Loop-ATL
Posts: 754
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
I dont understand why I'm the ziptie ****. I use them religously.
Philip is the ziptie **** your just our little scapegoat....
wildfire0310 is offline   Reply With Quote
Old 07-27-2007, 03:42 PM   #29
Senior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by dirtyboost View Post
Lazzer, great build thread. COP and heat shild are very impressive. The route im going with my build is very similar to yours, sans some of the nicer items such as ems, cop, and that pretty tubular mani.

Quick question, since im running a saab turbo, what would I have to do to be able to convince you to fab up another one of those dp flanges. Pm me if youre interested.

great work, good thread

-dan
When I have a shop and access to every Miata configuration (manifold,turbo,ect.) I'll manufacture them. Untill then every setup is alittle different. It wasn't easy cramming a 2.5" downpipe in the car. It's made out of 7 wedges cut from a J-bend to snake it around things. It's one of the nicer pieces of fab work that went into the project. Shame it's burried.
lazzer408 is offline   Reply With Quote
Old 07-27-2007, 03:43 PM   #30
Senior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by Braineack View Post
I dont understand why I'm the ziptie ****. I use them religously.
I do too. Just having some fun with you Braineack.
lazzer408 is offline   Reply With Quote
Old 08-25-2007, 03:33 PM   #31
Senior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

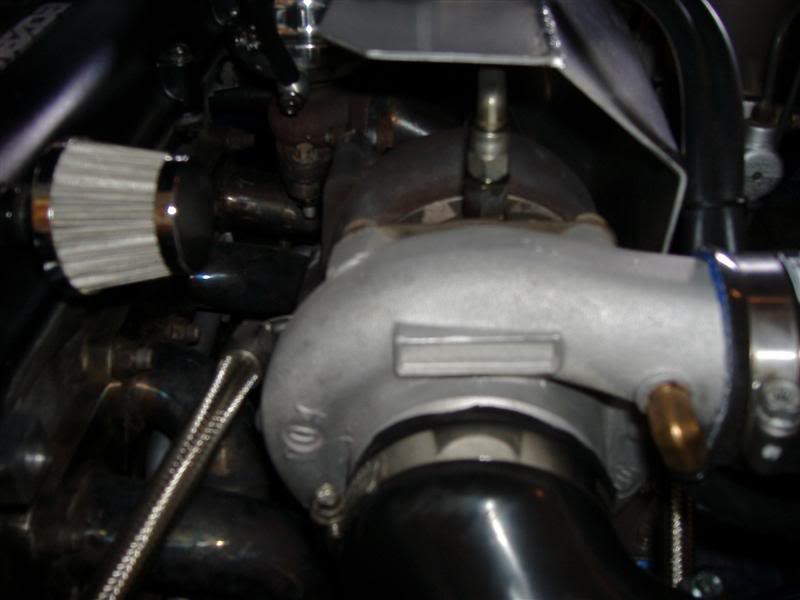

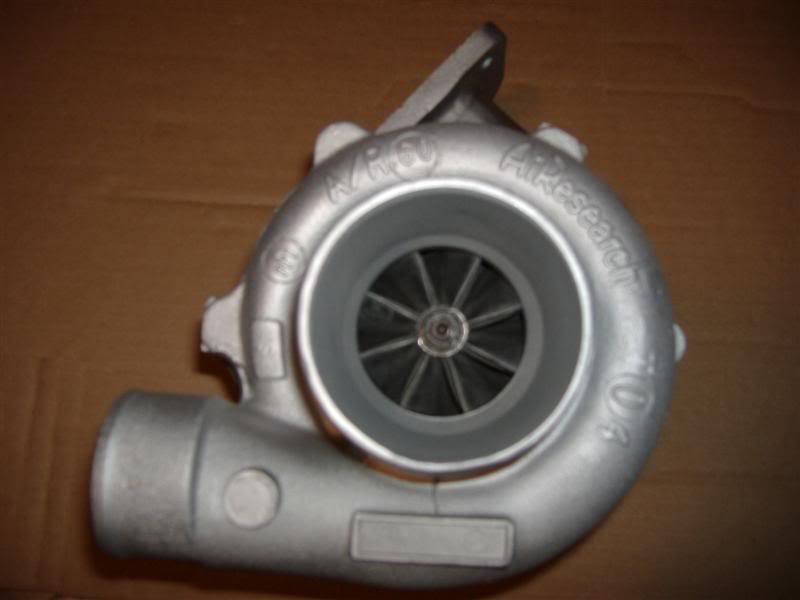

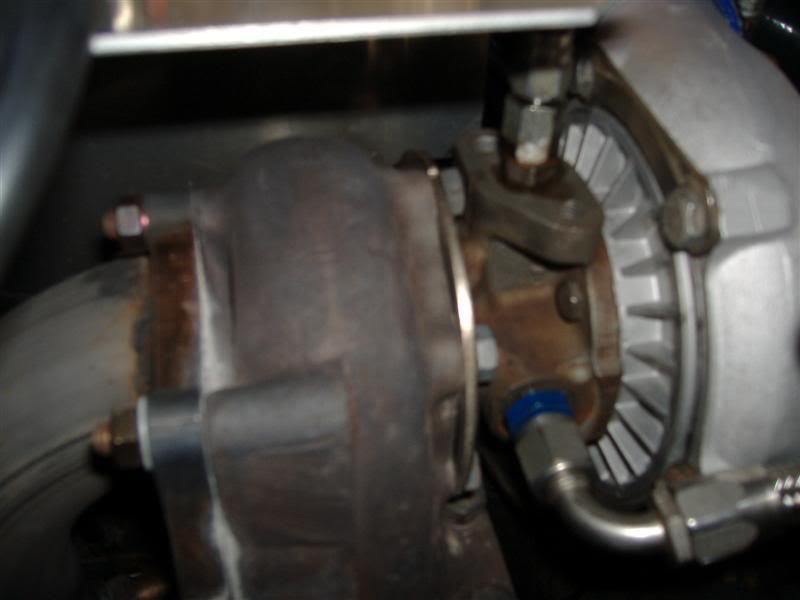

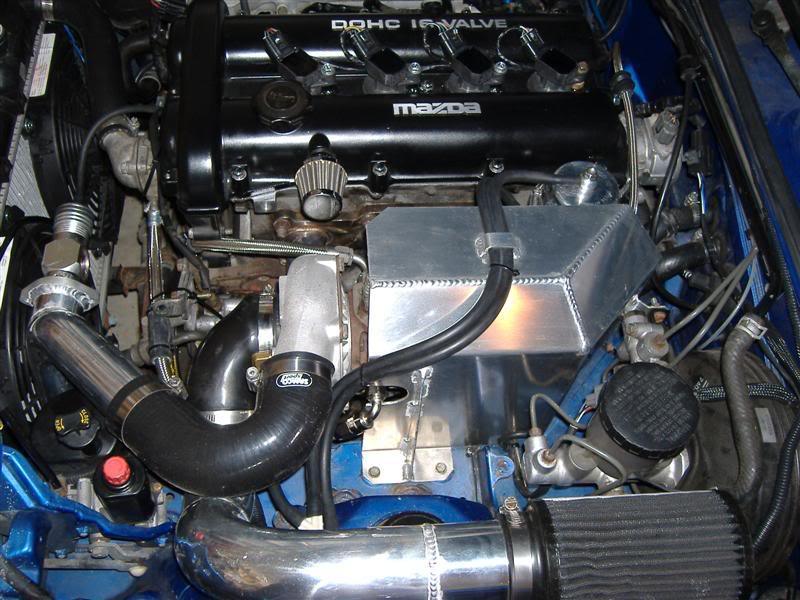

T3/T4 hybrid upgrade. I've added a T4 compressor housing off an Internation Harvester truck turbo. It's a .60 ar with a 60 trim wheel. It sounds 100x better then the T3. The T3 .42 that was on there made an aweful sucking air sound that got anoying.
Name:  DSCF1078Medium.jpg
Views: 1
Size:  29.1 KB
Name:  DSCF1117Medium.jpg
Views: 1
Size:  31.0 KB
Name:  DSCF1116Medium.jpg
Views: 1
Size:  36.3 KB
Name:  T3_T4_hybridMedium.jpg
Views: 1
Size:  88.9 KB
lazzer408 is offline   Reply With Quote
Old 08-25-2007, 03:56 PM   #32
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Wow first time ive gone through all of this thread. They saved me from reading thousands of words to explain the same thing. You really went from super hardcore ghetto (like the worst Id seen with that pvc pipe) to clean and well put together. Pat yourself on the back cuz it looks like a good setup you got now. I bet that old manifold was really ******* up your spoolup and overall power. I am curious as to why you ditched locating the filter in the cowl?
akaryrye is offline   Reply With Quote
Old 08-25-2007, 04:04 PM   #33
Senior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

I have a section of pipe I can clamp in anytime. I made it sectional like this because it's louder when it's in the cowl. Remember the bottom line "goal" of the ghetto setup was to see how cheap I could boost a Miata. $250 As simple as that log manifold was, it worked great. I'm still upgrading as time goes on.
lazzer408 is offline   Reply With Quote
Old 08-25-2007, 05:27 PM   #34
Junior Member
iTrader: (1)

Join Date: Oct 2006
Location: Cincinnati, OH
Posts: 375
Total Cats: 0
Default

Do you have to move the can to fit that IC in there or could you shove the intercooler to the side like a lot of guys are doing?
StankCheeze is offline   Reply With Quote
Old 08-25-2007, 06:09 PM   #35
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

curious to know what kind of intake temps you get with the filter in the firewall like that. might be beneficial-and easy-to go ahead and punch a hole in the firewall and build a cold air isolation box. think 'randall intake for turbos'.
Ben is offline   Reply With Quote
Old 08-25-2007, 06:35 PM   #36
Senior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by StankCheeze View Post
Do you have to move the can to fit that IC in there or could you shove the intercooler to the side like a lot of guys are doing?
See post 20
https://www.miataturbo.net/showpost....8&postcount=20
lazzer408 is offline   Reply With Quote
Old 08-25-2007, 06:40 PM   #37
Junior Member
iTrader: (1)

Join Date: Oct 2006
Location: Cincinnati, OH
Posts: 375
Total Cats: 0
Default

Quote:
Originally Posted by lazzer408 View Post
I saw that, but you didn't specify if it was necessary or if you just did it so you could center the cooler
StankCheeze is offline   Reply With Quote
Old 08-25-2007, 06:42 PM   #38
Senior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by Ben View Post
curious to know what kind of intake temps you get with the filter in the firewall like that. might be beneficial-and easy-to go ahead and punch a hole in the firewall and build a cold air isolation box. think 'randall intake for turbos'.
Taken off my iat sensor on a +/-78deg day I tried it both ways. Under the hood = 104deg. In the cowl = 85deg. Almost 20deg improvement was well worth it. I'm having issues with my iat at the moment. When I replace it and recalibrate it I'll have the digital temp probe installed. I'll take some measurements again and post the numbers. There was a huge improvement with idling in traffic. I can damn near idle forever with minimal increase in intake temps.
