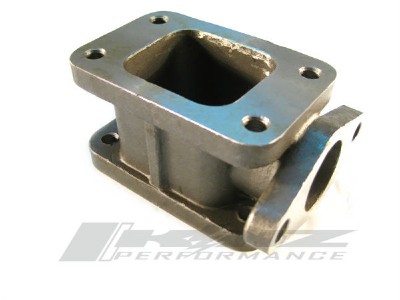

Anyone ever run this with much success. Im a little scared of introducing more possible failure points. Id imagine someone would run nice locking hardware like stage 8 on both sides and possible brace the turbo for double reassurance. On the other hand I think its a chunk of **** and is asking for leaks and cracks as it causes the turbo to have more leverage. I wanted to use this on a cheap shitty type build in the mist. Ive also considered making my own for more strength.

Attached Thumbnails
Lets talk turbo spacer with EWG-253946524_tp.jpg
ScottyP3821 is offline   Reply With Quote
Old 02-12-2014, 03:41 PM   #2
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

I thought about doing it at one point but it seemed like a recipe for disaster, plus I bet it would make even small turbos have clearance issues.
Full_Tilt_Boogie is offline   Reply With Quote
Old 02-12-2014, 03:48 PM   #3
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Yeah thats what puts me on the fence. They have them in different angles for clearance. Id just rather weld this POS as far as bracing than try and weld an EWG on a BEGI manifold I have.
ScottyP3821 is offline   Reply With Quote
Old 02-12-2014, 03:54 PM   #4
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

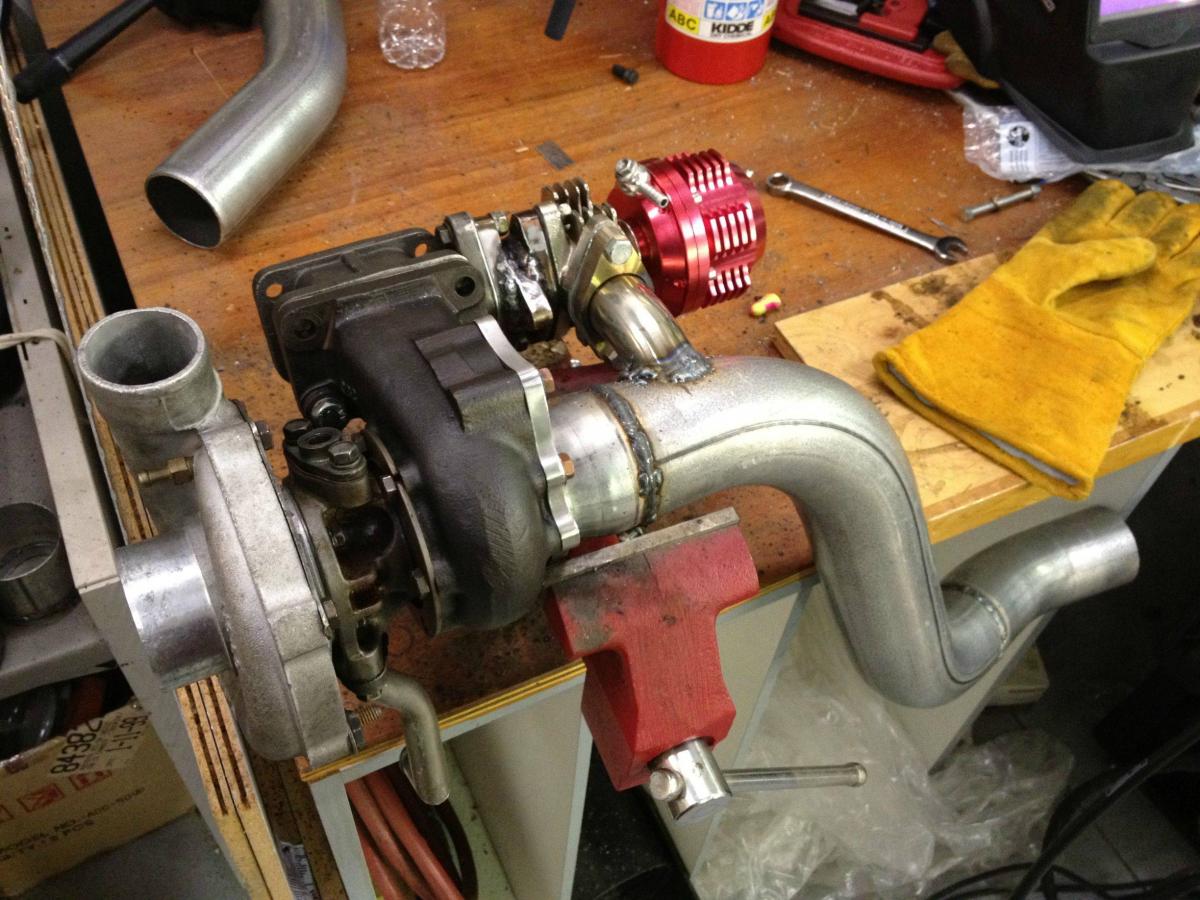

This guy ran one on his 280z no issues so far. Thats what got me considering it.

http://community.ratsun.net/topic/44...70-240z/page-2

Attached Thumbnails
Lets talk turbo spacer with EWG-6ttcw.jpg
ScottyP3821 is offline   Reply With Quote
Old 02-12-2014, 04:18 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,177
Total Cats: 2,579
Default

we stretch our studs as is, this thing is just begging for problems.
also you'll hit the frame rail
and even if you clock the turbo the downpipe routing is going to suck.
18psi is offline   Reply With Quote
Old 02-12-2014, 04:25 PM   #6
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by 18psi View Post
we stretch our studs as is, this thing is just begging for problems.
also you'll hit the frame rail
and even if you clock the turbo the downpipe routing is going to suck.
True true. Oh well I'll just sell the BEGi log and drop some money on the EWG log BEGi sells
ScottyP3821 is offline   Reply With Quote
Old 02-12-2014, 04:30 PM   #7
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

You'd be better off getting an externally gated exhaust housing I believe for it to fit properly.
Preluding is offline   Reply With Quote
Old 02-12-2014, 05:05 PM   #8
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

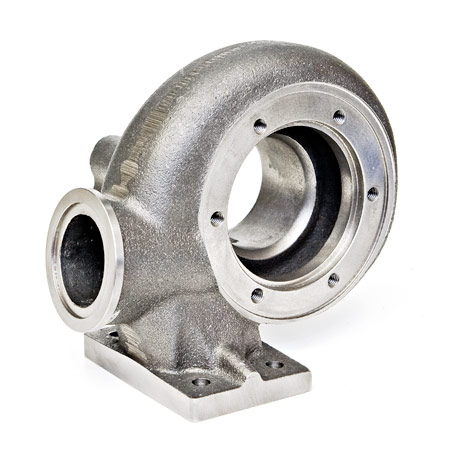

If I was crazy enough to try this, I would buy a new exhaust housing.

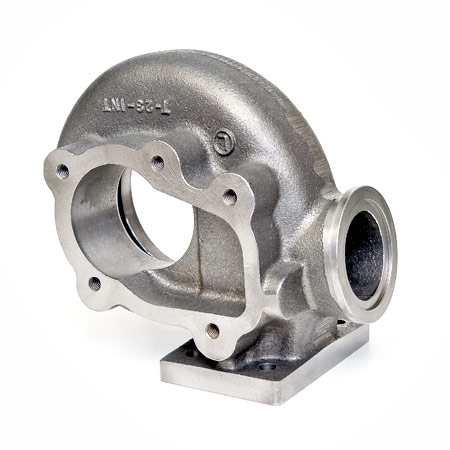

Special Turbine Housing T25-EWG-44 : atpturbo.com

T25 inlet flange and standard Garrett 5 bolt so it'll fit most OTS Miata Garrett kits out there. Only available in .72 A/R and its 44mm VBand for a Tial EWG. It would stick out the top so no framerail issues, and the dump would be fairly easy to mate back into the downpipe, provided you don't have the FM cast elbow or something.

I'd be tempted to try this if I got a hold of a cheap 2860RS or a 2871 as the smallest thing it will fit is a potato. I'm not sure why you would want an EWG on a GT2560R or smaller?
Attached Thumbnails
Lets talk turbo spacer with EWG-atp-hsg-043_450-1.jpg   Lets talk turbo spacer with EWG-atp-hsg-043_450-2.jpg
EO2K is offline   Reply With Quote
Old 02-12-2014, 05:41 PM   #9
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

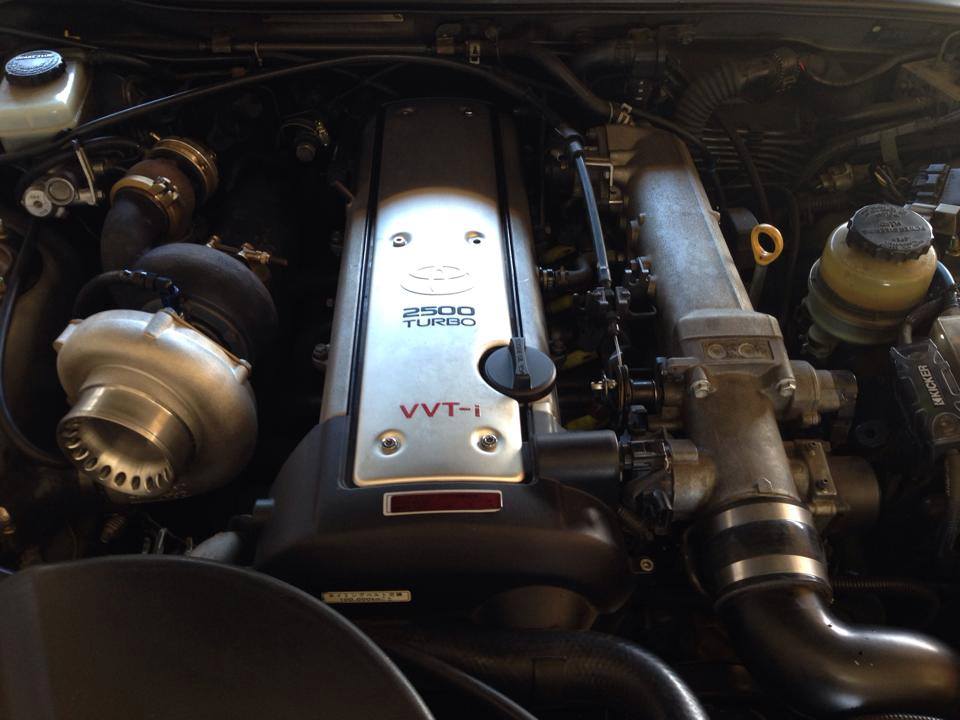

Ive welded a bunch of external gates to exhaust housings.



Dann
Attached Thumbnails
Lets talk turbo spacer with EWG-1425744_223909024453124_262718058_n.jpg
nitrodann is offline   Reply With Quote
Old 02-12-2014, 07:09 PM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

I've been told that sticking an EWG on the housing like that is highly disruptive to turbine inlet flow.
Savington is offline   Reply With Quote
Old 02-12-2014, 07:33 PM   #11
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

All of the modeling I have seen shows otherwise.

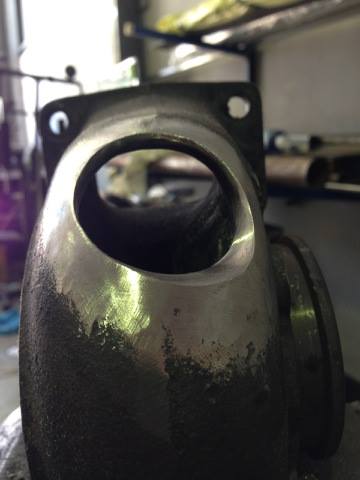

Real life results shows not loss in spool, or hp at the same boost and really really amazingly stable boost control.

With a 17psi spring on that particular one we never saw anything further from 17psi than 16.8psi. I have done a few all with excellent results.

(same car)


Dann
Attached Thumbnails
Lets talk turbo spacer with EWG-1464620_223363081174385_1521861961_n.jpg
nitrodann is offline   Reply With Quote
Old 02-12-2014, 09:06 PM   #12
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

You have an FM log manifold? Aren't you able to mill the FM logo off and bolt a EWG right onto the manifold?
curly is online now   Reply With Quote
Old 02-12-2014, 11:03 PM   #13
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,664
Total Cats: 1,560
Default

There is no room for that spacer with a FM mani.
sixshooter is online now   Reply With Quote
Old 02-13-2014, 09:54 AM   #14
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by curly View Post
You have an FM log manifold? Aren't you able to mill the FM logo off and bolt a EWG right onto the manifold?
I got a spare BEGi one and a FM one on the car in my sig. The EWG won't fit on the logo area. viperormiata tried it with a 38mm and it hanged of a little on both sides. If I could trade for an older fmII manifold I could mount it in the bottom. I would also be willing to purchase one but they seem to be hard to find. A on craigslist has one right now but he wants a lot more than I want to pay.

UPDATE LINK to relevant thread.

https://www.miataturbo.net/diy-turbo...anifold-71282/

Last edited by ScottyP3821; 02-13-2014 at 11:54 AM.
ScottyP3821 is offline   Reply With Quote
Old 02-13-2014, 11:16 AM   #15
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

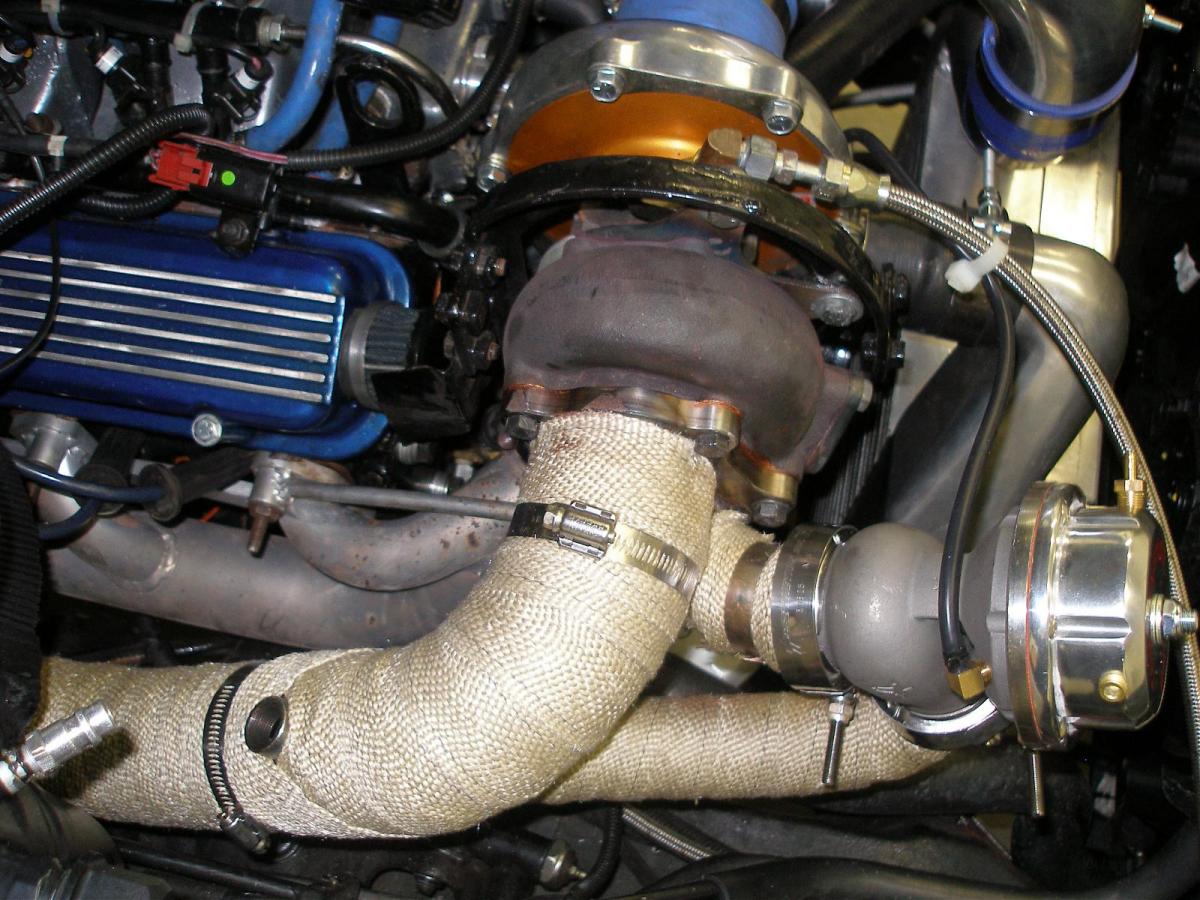

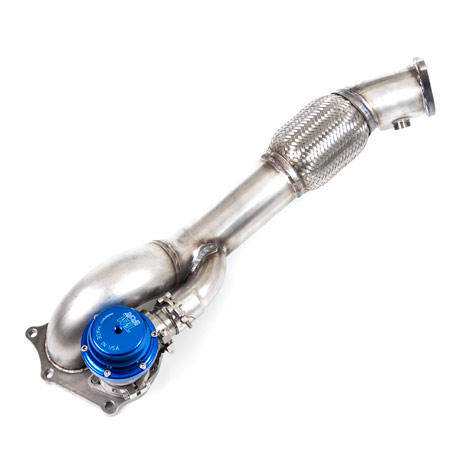

Whats the deal with putting one on the DP? I know a lot of guys do it on Grand Nationals as well as some DSM guys. What if I did something like this. I guess I would just leave my internal flap open or removed and this way I wouldnt have to run a screamer pipe.






EDIT: Nevermind I dont think that will work

Attached Thumbnails
Lets talk turbo spacer with EWG-34192d1217556334-my-turbonectics-waste-gate-install-p7310082.jpg   Lets talk turbo spacer with EWG-atp-vevo-023_450-1.jpg

Last edited by ScottyP3821; 02-13-2014 at 11:28 AM.
ScottyP3821 is offline   Reply With Quote
Old 02-13-2014, 11:34 AM   #16
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Its apparently crap anyway.
Full_Tilt_Boogie is offline   Reply With Quote
Old 02-13-2014, 12:09 PM   #17
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,177
Total Cats: 2,579
Default

I think its junk.

However,
a buddy of mine is running a setup like that on his BP and it has held up and worked great for like 5 years now. he completely gutted the iwg, hogged out the port as large as he could, and running a tial 38 vband ewg on there. it still has the divider in there, without one it wouldn't work at all. this is on a evo 16g

I still don't like that setup though.

why not just sell your manifold and have abe make you a proper one? you'd be surprised at how reasonable his prices are. he can do a "fm/begi style" tubular for only like 100 bux more than the basic log
18psi is offline   Reply With Quote
Old 02-13-2014, 12:26 PM   #18
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by 18psi View Post
I think its junk.

However,
a buddy of mine is running a setup like that on his BP and it has held up and worked great for like 5 years now. he completely gutted the iwg, hogged out the port as large as he could, and running a tial 38 vband ewg on there. it still has the divider in there, without one it wouldn't work at all. this is on a evo 16g

I still don't like that setup though.

why not just sell your manifold and have abe make you a proper one? you'd be surprised at how reasonable his prices are. he can do a "fm/begi style" tubular for only like 100 bux more than the basic log
Thats what it looks like Im gonna do. Not worth the risk involved jeopardizing the current equity I have in my current manifold.


Edit

Probably ask for something like this

http://smg.photobucket.com/user/TurboedGSR/media/Manifolds/Basic%20Log%20Style/109_0074.jpg.html"]http://smg.photobucket.com/user/Turb..._0074.jpg.html[/URL]
ScottyP3821 is offline   Reply With Quote
Old 02-13-2014, 01:38 PM   #19
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,237
Total Cats: 290
Default

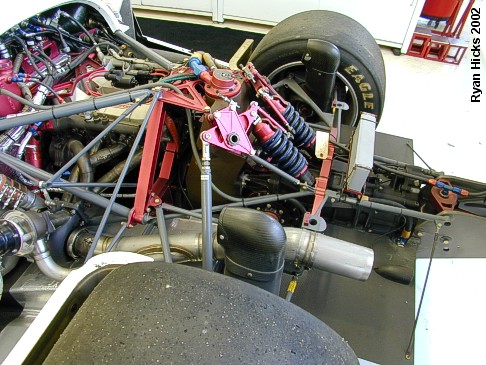

Cast manifold? Cast HKS solution. Too bad the image from the Gurney Eagle MKIII is dead since it used the EWG-turbine-mount solution. Best I could find is this:
Attached Thumbnails
Lets talk turbo spacer with EWG-toymkiii-rh-20.jpg
m2cupcar is offline   Reply With Quote
Old 02-13-2014, 02:03 PM   #20
Junior Member
iTrader: (1)

Meeners's Avatar

Join Date: Jul 2008
Posts: 194
Total Cats: 0
Default

The most frugal way to go about it is to Just get your manifold customized to support a wg flange. Weld or bracket the wg flap shut. Port polish the exit area if you are worried about flow or boost creep... This has been done countless times over in the fwd Sr20 community... And those cars have more constraint issues than a miata for turbo. IMO go with a vband if you can. I can't ell you how many times I've removed my wastegate to swap springs.

There's nothing wrong with that adaptor, but there are too many bolts, nuts, etc and that just screams frustration IMO. Unless it's a bottom mount setup I wouldn't bother.

If you want external gate, do it right and you'll thank yourself later.
Meeners is offline   Reply With Quote
