Default A little bit of turbo action install action

Asked lots of questions, but here's my first action post.....

lots of hard work so far to get it to what's above from its 'pre-state':

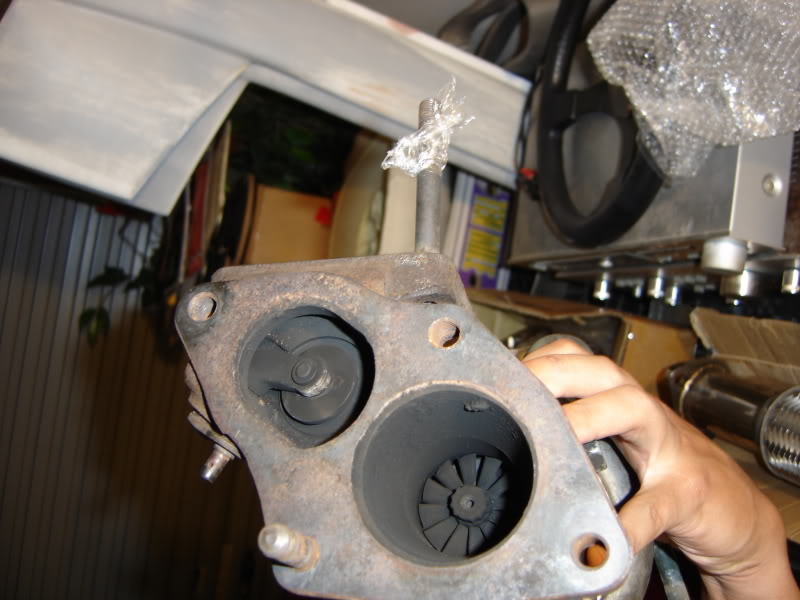

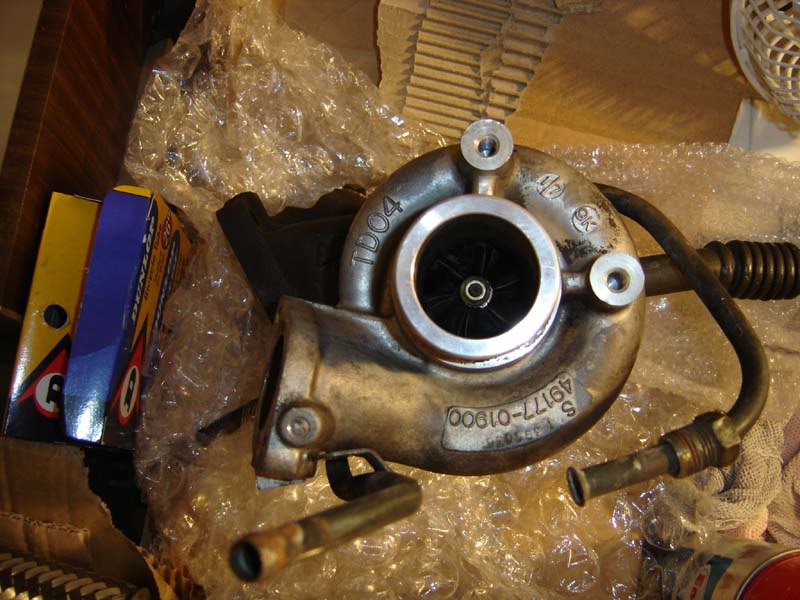

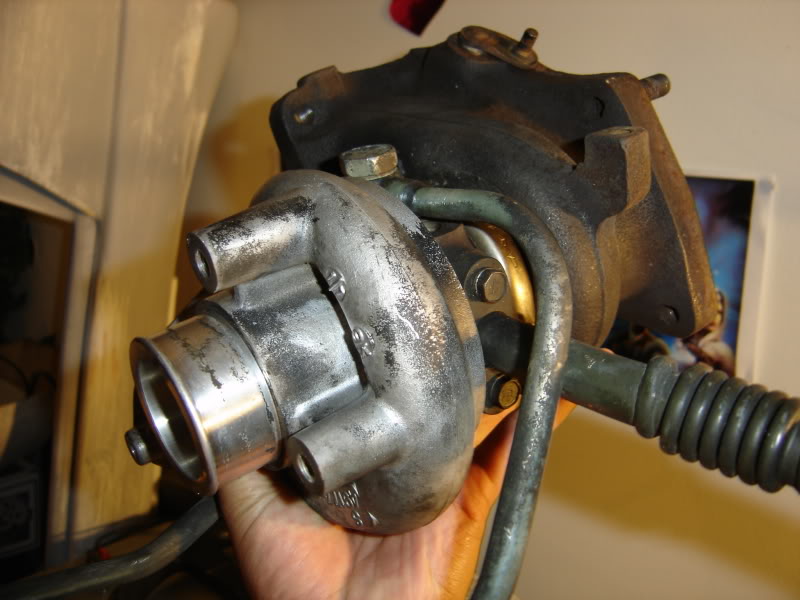

These are the before.....

Name:  DSC02234.jpg
Views: 2
Size:  70.0 KB
Name:  DSC02228.jpg
Views: 2
Size:  71.7 KB
Name:  DSC02235.jpg
Views: 2
Size:  64.7 KB

These are the 'after'

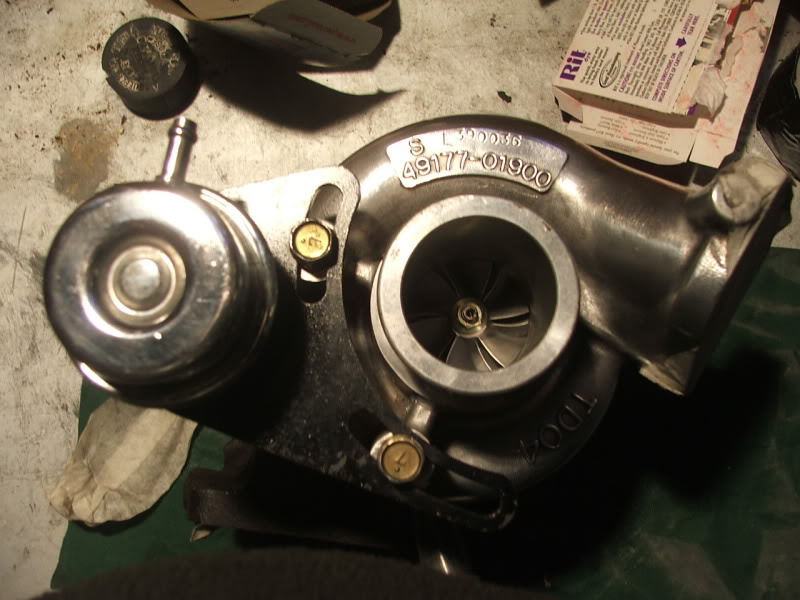

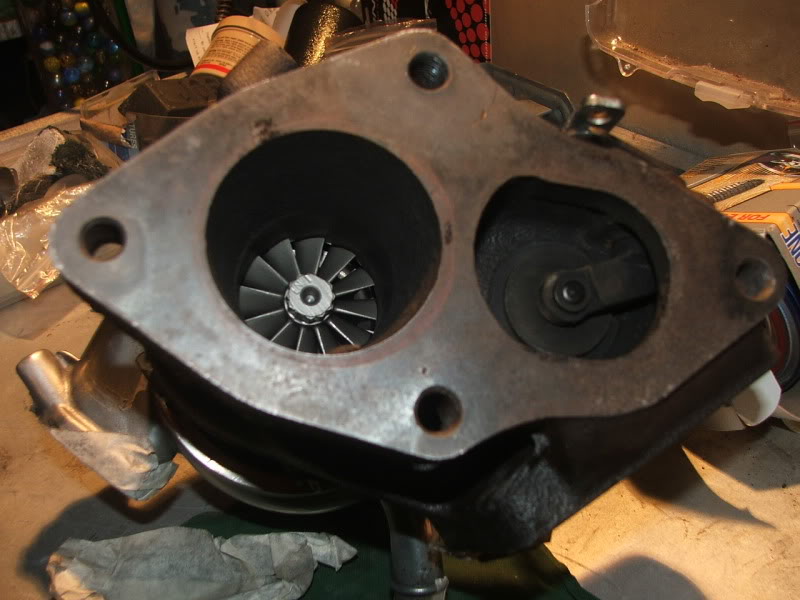

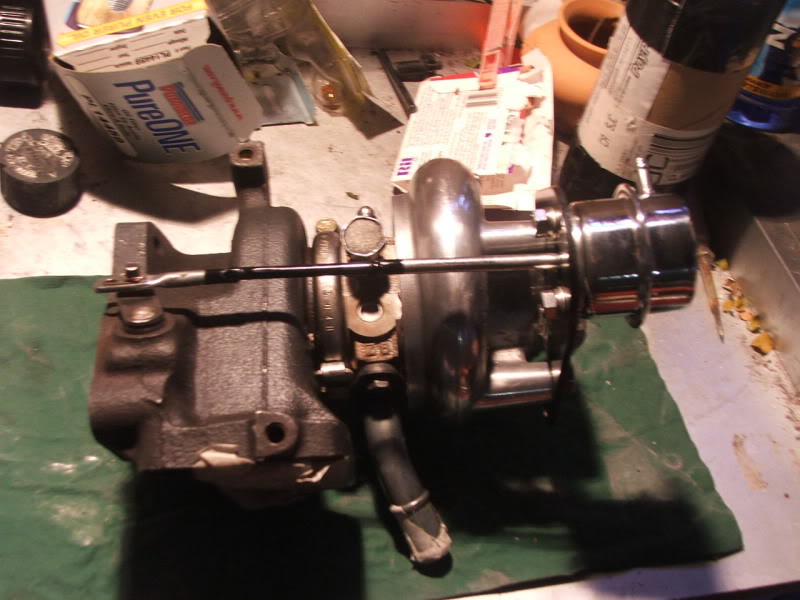

The shiny turbo (now fully rebuilt - you can see the nice clean turbine and compressor wheels)
Name:  DSCF1835.jpg
Views: 2
Size:  78.9 KB
Name:  DSCF1829.jpg
Views: 2
Size:  71.5 KB
Name:  DSCF1836.jpg
Views: 2
Size:  68.6 KB

And additional blinginess associated with my turbo project includes:

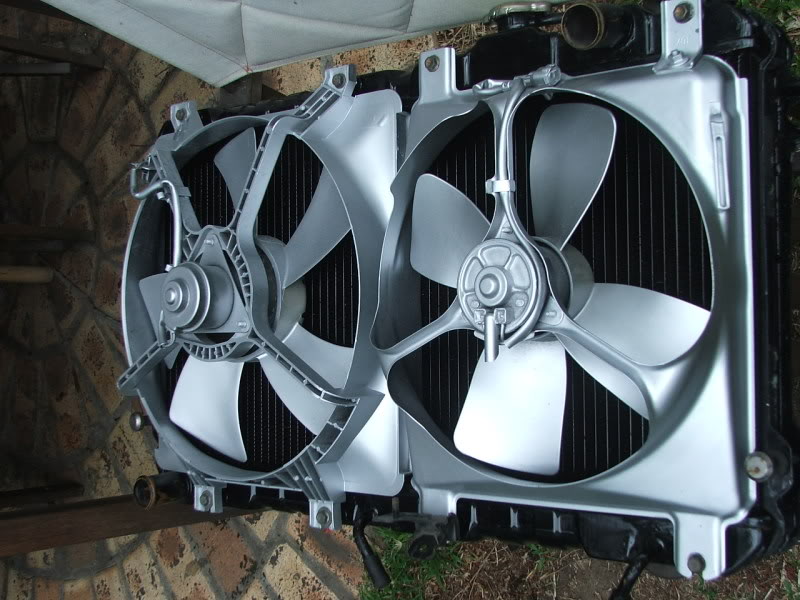

Metal top 2 core radiator (off the automatic) with the fans straight off the old radiator given a coat of paint.....
Name:  DSCF1814.jpg
Views: 2
Size:  92.9 KB

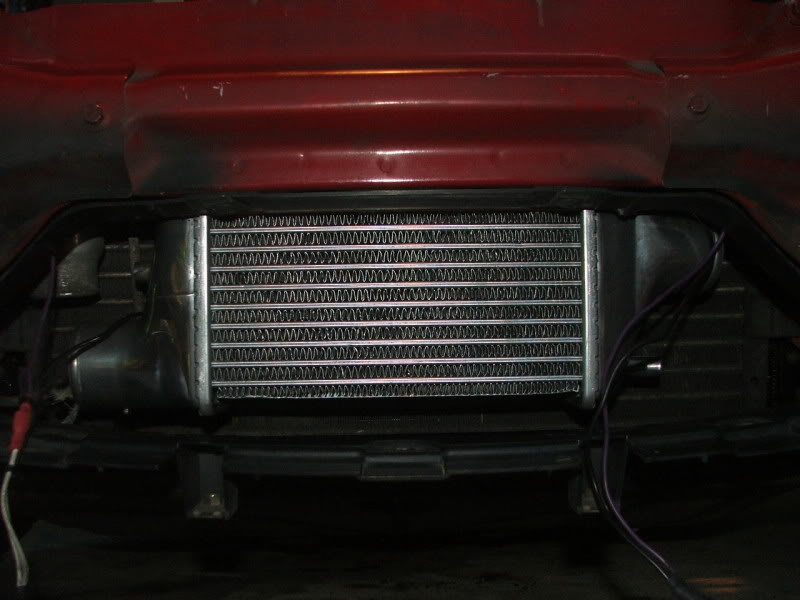

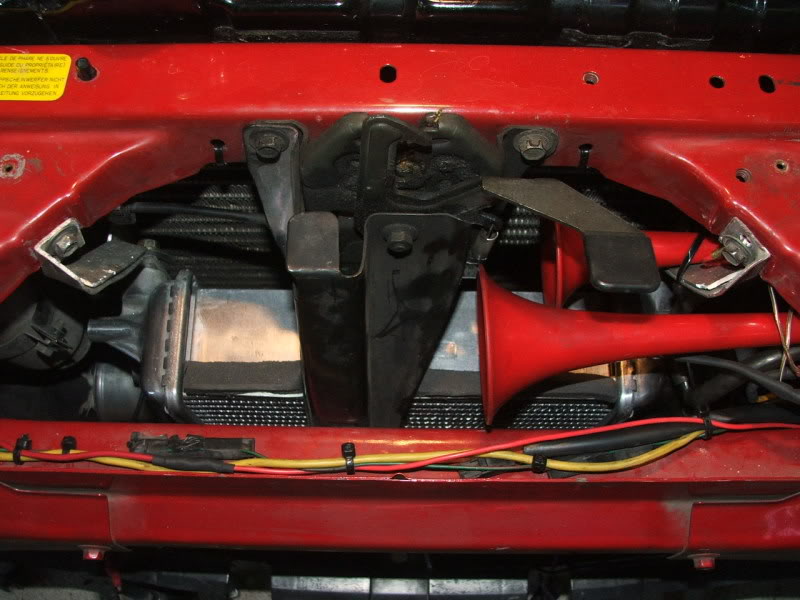

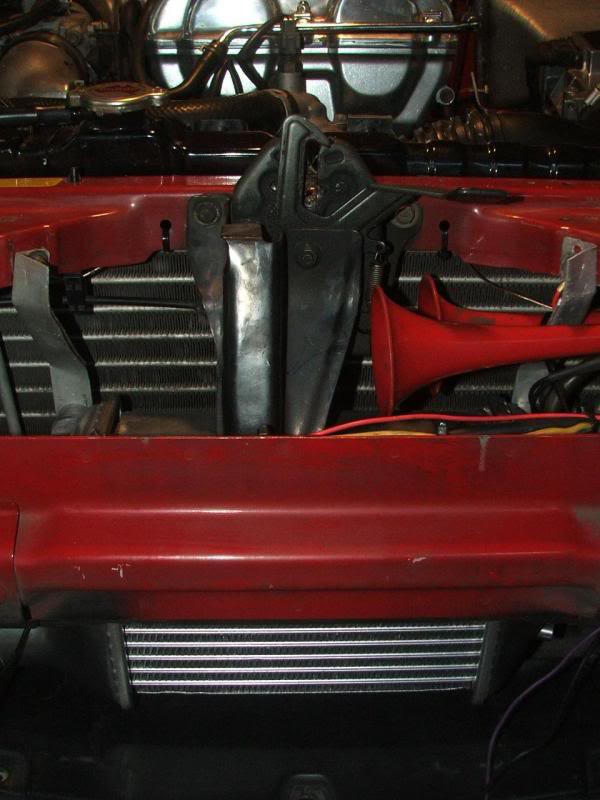

And the IC went in this weekend - no pipework yet, but getting it in place is half the fun.....

Name:  DSCF1883.jpg
Views: 2
Size:  62.3 KB
Name:  DSCF1881.jpg
Views: 2
Size:  73.7 KB
Name:  DSCF1882.jpg
Views: 2
Size:  57.8 KB
Uncle Arthur is offline   Reply With Quote
Old 01-06-2007, 10:12 PM   #2
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Nice! What did you use to clean the turbo blades?

And from where did you source the IC?
Atlanta93LE is offline   Reply With Quote
Old 01-06-2007, 11:33 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,848
Total Cats: 1,788
Default

looking good....

did that wategate come with the turbo? Looks like a nice replacement for the crap greddy one.
Braineack is online now   Reply With Quote
Old 01-07-2007, 02:00 AM   #4
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

Quote:
Originally Posted by Atlanta93LE View Post
Nice! What did you use to clean the turbo blades?

And from where did you source the IC?
The IC is (I am told) the topmount off a late model RX7. 2.25 inch inlets, and polishes up nicely, as well as being a good fit.

The turbo was cleaned and rebuilt in a workshop, but I'm told the process generally used is sandblast the blades to clean them then glass bead shotpeen them to get them looking like they've been varnished.

The inside of the turbo was completely carbon'd up, so the whole shaft was lathe spun to clean it, then polished, a new compressor wheel went on, plus new bearing and bearing housing, then the whole shaft was balanced. It's basically a new turbo inside.

I polished up the housing, and the wastegate actuator I purchased through a carparts place - just your standard aftermarket parts shop - cost me about $100 AUD, and I also polished it up - you'd be amazed how easy fuel pressure regs, etc etc in that dull brass colour come up with a good polishing.....
Uncle Arthur is offline   Reply With Quote
Old 01-07-2007, 04:50 AM   #5
Junior Member

Join Date: Nov 2006
Location: Australia
Posts: 120
Total Cats: 0
Default

how much did it cost you to get the turbo rebuilt? (i'm in melbourne, could post it up to brissy i guess)

thinking maybe i should do that too...
fatty is offline   Reply With Quote
Old 01-07-2007, 10:20 AM   #6
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

Quote:
Originally Posted by fatty View Post
how much did it cost you to get the turbo rebuilt? (i'm in melbourne, could post it up to brissy i guess)

thinking maybe i should do that too...
Ummmmmm.....lets just say I called in a favour - I cant say the actual price or the guy who did it, but paying full price you could expect to pay between $500-$700 in labour alone to do a proper rebuild on a TDO4 (and the parts aren't cheap new). If I'd have paid full price, I was looking at $1000ish.....

The cost comes from the finicky nature of the rebuild - stripping it, lathing, sand blasting, cleaning, shot peening, cleaning, rebuild, spin up, check balance, strip down, adjust, rebuild, check again, then reinstall the compressor and turbine housings.

That said - if you could find a turbo workshop in a country town somewhere, you could expect that price to be halved or more.....big city ricers have pushed up demand, and the price goes with it.

PM me and I could suggest a few places (I'm also on Auscartalk under the same name).
Uncle Arthur is offline   Reply With Quote
Old 01-07-2007, 03:01 PM   #7
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Damn it's like $80 for a rebuild kit to do it youself and $30 to get them balanced in the US. Poor Aussies.
cjernigan is offline   Reply With Quote
Old 01-07-2007, 03:06 PM   #8
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Where do you get it balanced for $30? I'd love to know!
Atlanta93LE is offline   Reply With Quote
Old 01-07-2007, 05:39 PM   #9
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

When's the big date to first start the car? I'd like to come watch.
timk is offline   Reply With Quote
Old 01-07-2007, 06:41 PM   #10
Junior Member

Join Date: Nov 2006
Location: Australia
Posts: 120
Total Cats: 0
Default

****, so it would cost more to rebuild than i paid for it!

i might give it a miss for now and just see how it goes. but will keep it in mind if i ever need to rebuild it, thanks.
fatty is offline   Reply With Quote
Old 01-07-2007, 06:52 PM   #11
Senior Member
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

Holy **** i cant believe my eyes!! Is that a Td04 13g I spy??? I thought i was the only person messin with one of those. Uncle, correct me if im wrong. Do you have any pics of your Mani and DP?/
adbradley is offline   Reply With Quote
Old 01-07-2007, 07:13 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,848
Total Cats: 1,788
Default

Brian's been rocking a 13g for a while now.
Braineack is online now   Reply With Quote
Old 01-07-2007, 07:19 PM   #13
Senior Member
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

na, he has a 13c, totaly differant
adbradley is offline   Reply With Quote
Old 01-07-2007, 08:10 PM   #14
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

Quote:
Originally Posted by adbradley View Post
Holy **** i cant believe my eyes!! Is that a Td04 13g I spy??? I thought i was the only person messin with one of those. Uncle, correct me if im wrong. Do you have any pics of your Mani and DP?/
Yes - a 13G - I believe it is - I'm told they are a highly efficient little turbo!!!

I've got pics of the mani and dump pipe at home which I will post up tonite.
Uncle Arthur is offline   Reply With Quote
Old 01-07-2007, 08:12 PM   #15
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

Quote:
Originally Posted by saboteur View Post
When's the big date to first start the car? I'd like to come watch.
When it comes time for the install and kick over..... there will be plenty of advance notice for a dodgy day event of MASSIVE proportions
Uncle Arthur is offline   Reply With Quote
Old 01-07-2007, 08:18 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,848
Total Cats: 1,788
Default

Quote:
Originally Posted by adbradley View Post
na, he has a 13c, totaly differant

ah yes, you're right.
Braineack is online now   Reply With Quote
Old 01-07-2007, 08:31 PM   #17
Senior Member
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

Wow im glad someone told you that the 13g was a good turbo, everyone tells me im crazy and that its to small for a miata.. I guess we will see.
adbradley is offline   Reply With Quote
Old 01-07-2007, 09:18 PM   #18
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

Quote:
Originally Posted by adbradley View Post
Wow im glad someone told you that the 13g was a good turbo, everyone tells me im crazy and that its to small for a miata.. I guess we will see.
Small = quick spool and small lag - how big do people think it needs to be for a 1.6 l engine????

And apparently it's a very efficient turbo, particularly with the twin fin compressor scroll.
Uncle Arthur is offline   Reply With Quote
Old 01-07-2007, 09:49 PM   #19
Senior Member
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

yeah, from what i can gather looking at the map, its about perfect for the miata as long as your not lookin for max power at like 7500..
adbradley is offline   Reply With Quote
Old 01-07-2007, 09:57 PM   #20
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

we shall see small turbo guys
magnamx-5 is offline   Reply With Quote
