Old 06-19-2014, 06:26 PM   #21
Junior Member
Thread Starter

Join Date: Aug 2010
Posts: 81
Total Cats: -9
Default

lol no worries

I ran a GT2554 at 14 psi on an HKS log. It hit real hard but did struggle at the top end like a MP62 ;-)

I've been thinking there's so many factors going on.

Manifold volume
Pipe diameter
Number and bend radius of gas direction changes
Package space
Downpipe location, number of bends etc
Cost
Power goal

Its between an equal length ram horn or flow directed collected very short unequal length tubular

I have some 1.25" schedule 10 stainless 304L cast elbows that I'm going with. Quality is good and a machined manifold to head flange from these dudes: Exhaust Head Flange - Mazda - Mazda Miata 1.8 Exhaust Head Flange

Last edited by Lloyd_D; 06-19-2014 at 07:47 PM.
Lloyd_D is offline   Reply With Quote
Old 06-19-2014, 06:29 PM   #22
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I wouldnt use sch10 stainless. I'd contact BMC race to get that same style manifold you linked but custom made as 304 stianless and to the pipe size you're using.
Leafy is offline   Reply With Quote
Old 06-19-2014, 06:44 PM   #23
Senior Member
iTrader: (15)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,404
Total Cats: 263
Default

I have an Artech ramhorm manifold with my EFR 6258. I made 315WHP @ 12PSI and 323WHP @ 14PSI on a Mustang dyno in El Paso, TX (approx 4000' elevation). I also have a 3" exhaust and 2.75" intercooler pipes with a Precision 600 intercooler. This a a mild steel manifold, not SS.

315WHP and 251TQ at around 12PSI (179kPa)


323WHP / 262WTQ @ 14 PSI


There was a problem with my manual boost controller in the second dyno. I could have made more power. I'm now running EBC.

Moar pics of manifold










99mx5 is offline   Reply With Quote
Old 06-19-2014, 06:47 PM   #24
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 784
Default

Ok what in the world is up with the wildly different EFR numbers?
concealer404 is offline   Reply With Quote
Old 06-19-2014, 06:56 PM   #25
Junior Member
Thread Starter

Join Date: Aug 2010
Posts: 81
Total Cats: -9
Default

Wo
That is some manifold. Nice welding on that.

Its almost like with the EFR6258 your forced to go top mount to keep the PS..

I'm hoping to retain it with a tight to head canted orientation similar to Soviet's

The problem is the BW turbo's are a mile long and to clear the body your forced to do unpleasant things
Lloyd_D is offline   Reply With Quote
Old 06-19-2014, 06:57 PM   #26
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Lloyd, I have power steering with the manifold I have. but my power steering pump is trunk mounted.
Leafy is offline   Reply With Quote
Old 06-19-2014, 07:32 PM   #27
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

Quote:
Originally Posted by concealer404 View Post
Ok what in the world is up with the wildly different EFR numbers?
B nice to see a data log on those numbers, I'm no ware near that HP/PSI ratio.
HHammerly is offline   Reply With Quote
Old 06-19-2014, 07:37 PM   #28
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I got in touch with ARTech and ordered the same manifold & downpipe as Swimming108: https://www.miataturbo.net/build-thr...llo-efr-77075/. It looks very, very similar to what Mazdaspeeder is running.

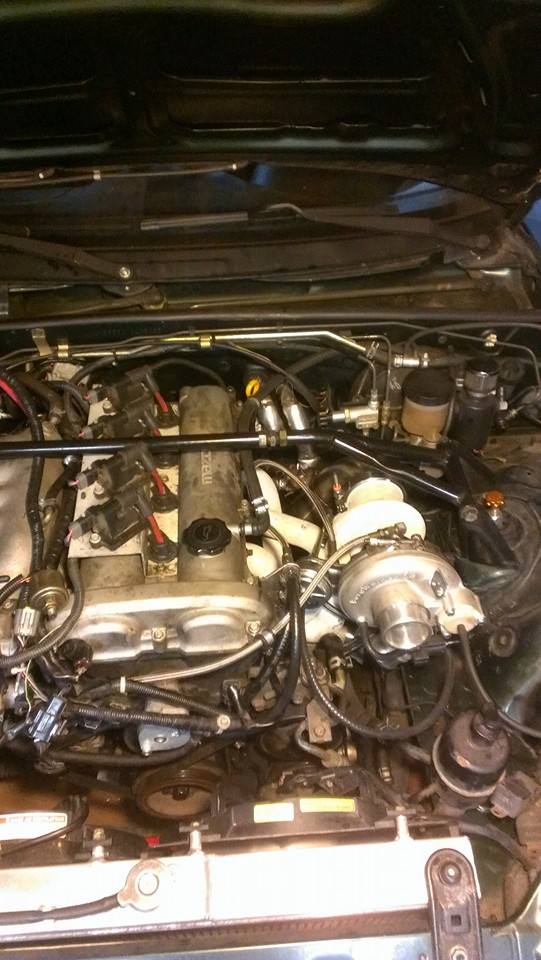

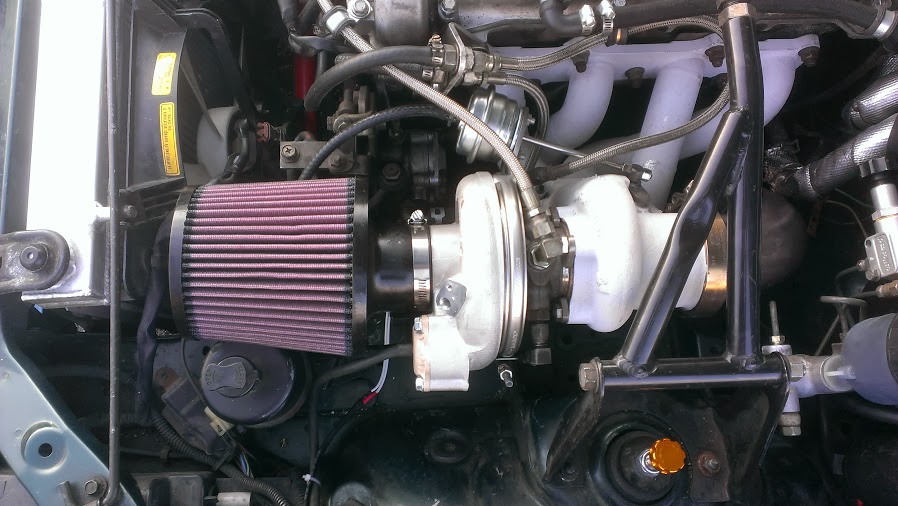

These are Swimming108's pics, not mine:





According to Abe, nothing needs modification to fit this manifold. Its both PS and AC compatible, and should require no modification to the mixing manifold.

Interesting enough, I need to get in touch with Abe as I can't remember if I ordered mine in 1.25 or 1.5. Swimming's looks like 1.5?



Anyway, I honestly don't think it'll make that much difference with my 6258. I'm not shooting for SovietPower™ on the top end. Dem throttle response y0, et cetera...
EO2K is offline   Reply With Quote
Old 06-20-2014, 10:07 AM   #29
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

My manifold IIRC was built by Abe on the specs of 99MX5's manifold. Except I retained PS, pretty sure he did not.

I believe it is sch40 mild steel runners with both flanges being SS, with 1.25" runners.

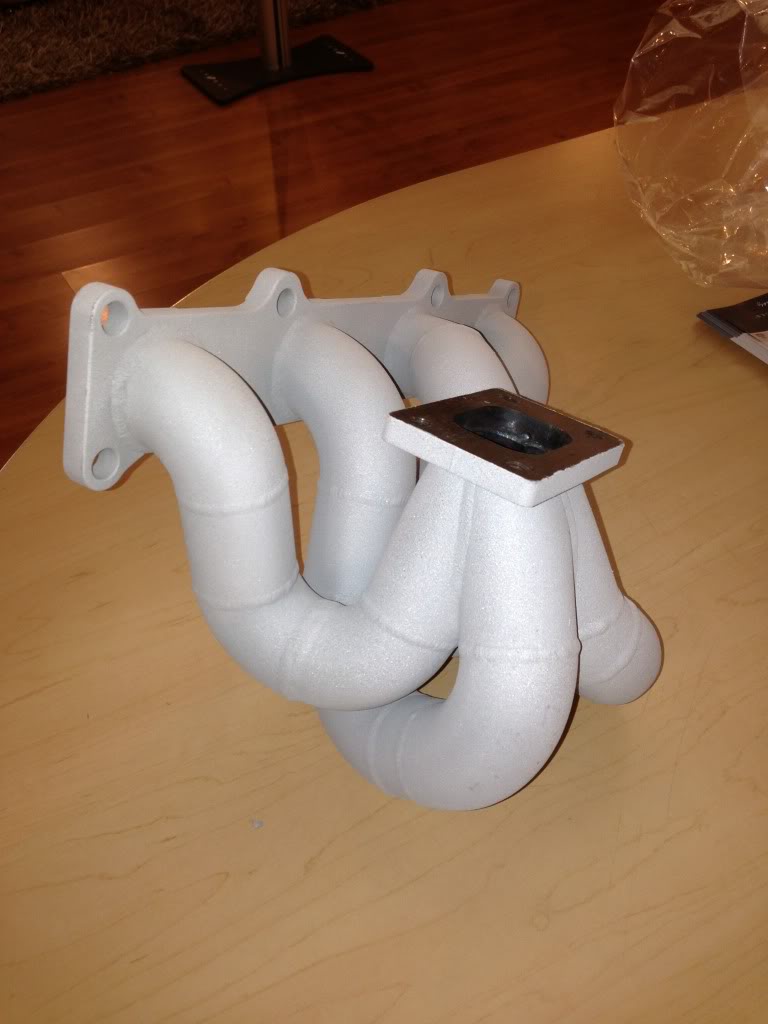

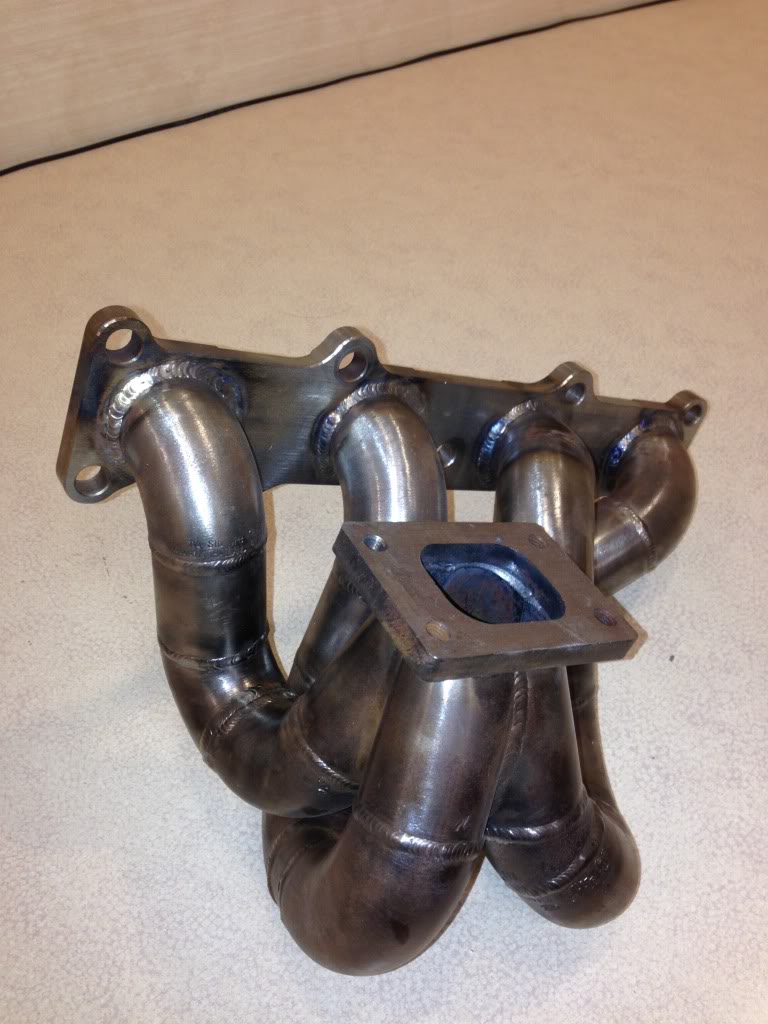

pre-coat

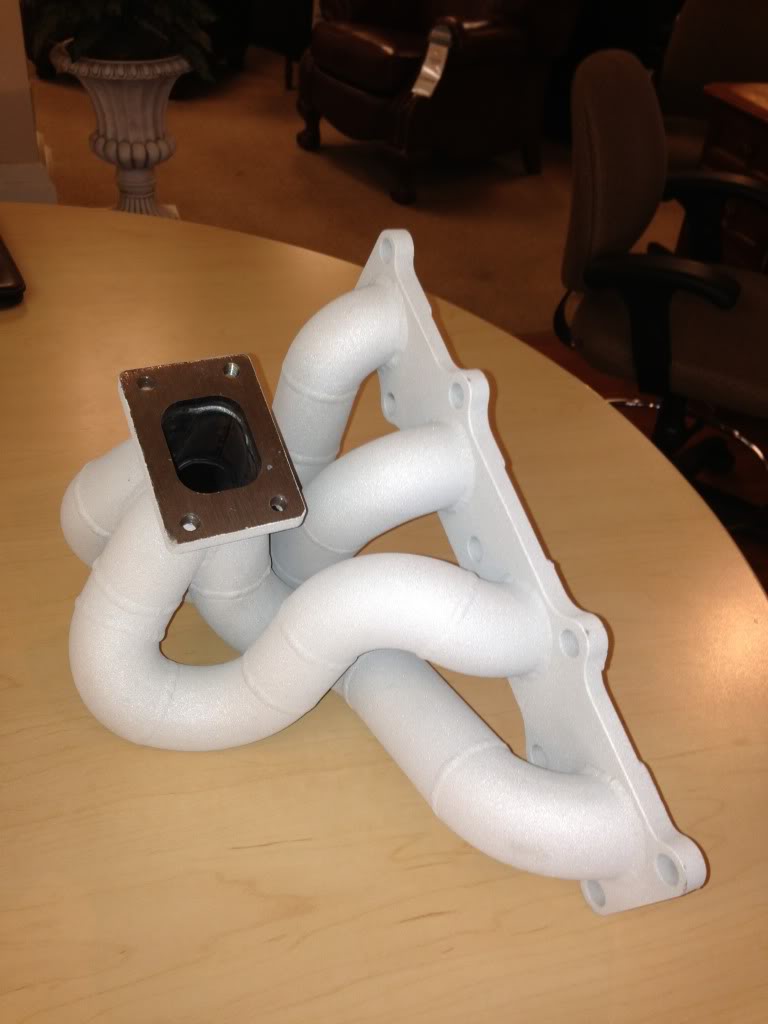

post-coat




If you want more photos let me know. Here is a link for the coating: http://swaintech.com/race-coatings/r...aust-coatings/

Also just as a personal opinon, with the kind of power the EFR turbos make, you'll be hard pressed to notice a difference between a log or ramhorn maniflold, for most people anyway.
Attached Thumbnails

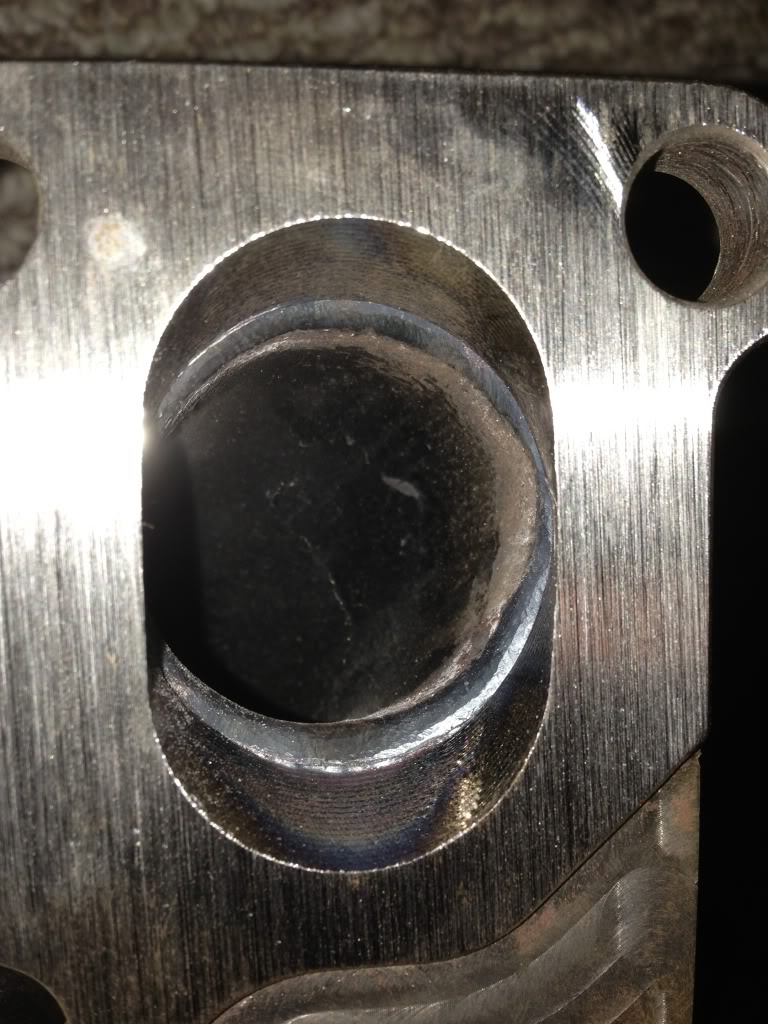

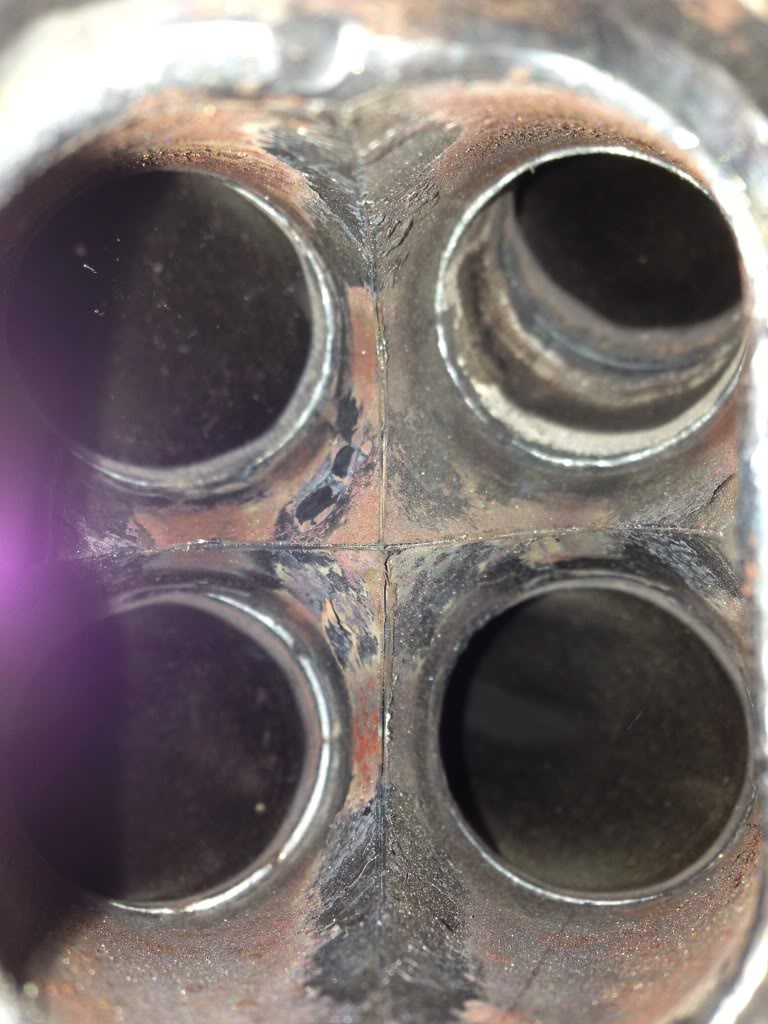

Log or ramhorn manifold for EFR6258-5373d245-651e-4bd4-821b-01d611a68f7a-46599-00000ff96a1e36c8_zpsaffc814a.jpg   Log or ramhorn manifold for EFR6258-null_zpse429dc93.jpg   Log or ramhorn manifold for EFR6258-null_zps87d2fb24.jpg   Log or ramhorn manifold for EFR6258-null_zps1b61e286.jpg   Log or ramhorn manifold for EFR6258-b85a7704-f59b-4a53-9bca-cc9033ce2020-46599-00000ff97983da6e_zpsf6bfb4bf.jpg


Last edited by Mazdaspeeder; 06-20-2014 at 10:25 AM.
Mazdaspeeder is offline   Reply With Quote
Old 06-20-2014, 10:35 AM   #30
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

I think you would notice.

I have used both types that I built. The results in this writeup feel accurate from what I had to do to the fuel map in my car.

http://www.full-race.com/articles/Bs...st_writeup.pdf
shlammed is offline   Reply With Quote
Old 06-20-2014, 12:57 PM   #31
Junior Member
Thread Starter

Join Date: Aug 2010
Posts: 81
Total Cats: -9
Default

That's a good link I read it

It's a compromise then between whether you want the power low or high in the rev range. Bit like the ar ratio on the turbine housing
Lloyd_D is offline   Reply With Quote
Old 06-20-2014, 12:59 PM   #32
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

300rpms for 50fltbs? Seems like an easy choice. AND its not like the tubular setup was making less power than the log even though the tubular wasnt completely spooled because it was making the same power with less boost.
Leafy is offline   Reply With Quote
Old 06-20-2014, 04:32 PM   #33
Junior Member
Thread Starter

Join Date: Aug 2010
Posts: 81
Total Cats: -9
Default

Very true Leafy very true

Damn it! I've got to buy more elbows lol
Lloyd_D is offline   Reply With Quote
Old 06-20-2014, 05:28 PM   #34
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by Lloyd_D View Post
Very true Leafy very true

Damn it! I've got to buy more elbows lol
if you order them from somewhere not local, get more than you need. one miss calculated cut and if you don't do a lot of these you might end up with an elbow less than you need.

just voice from someone who has done it.

Now I stock a bunch of them.
shlammed is offline   Reply With Quote
Old 07-10-2014, 06:49 PM   #35
Junior Member
Thread Starter

Join Date: Aug 2010
Posts: 81
Total Cats: -9
Default

Ok I made something... its a short unequal ramhorn

Volume is about 550cc. Wanted this as small as possible to keep spool good but not limit flow. Angle changes are kept to a minimum. Cylinders 2 & 3 have very little angle change. Cylinders 1 & 4 are as large radius as possible.

http://postimg.org/image/4b4qfhli5/

http://postimg.org/image/7xajs4rvh/

http://postimg.org/image/7cvipfyn1/

http://postimg.org/image/tarzj8dnh/

Stainless MIG welded, she isn't pretty I know
Lloyd_D is offline   Reply With Quote
Old 07-10-2014, 07:27 PM   #36
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Good show, probably better than I could have done.

Time to bust out the dremel and kill some of those weld boogers, last thing you want to do is push those into the turbine. Also, lets get a shot of the inside of that collector.
EO2K is offline   Reply With Quote
Old 07-10-2014, 07:39 PM   #37
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

interesting design.

is that going to clear the steering shaft? looks like it will be super low
18psi is offline   Reply With Quote
Old 07-10-2014, 07:46 PM   #38
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by 18psi View Post
interesting design.

is that going to clear the steering shaft? looks like it will be super low

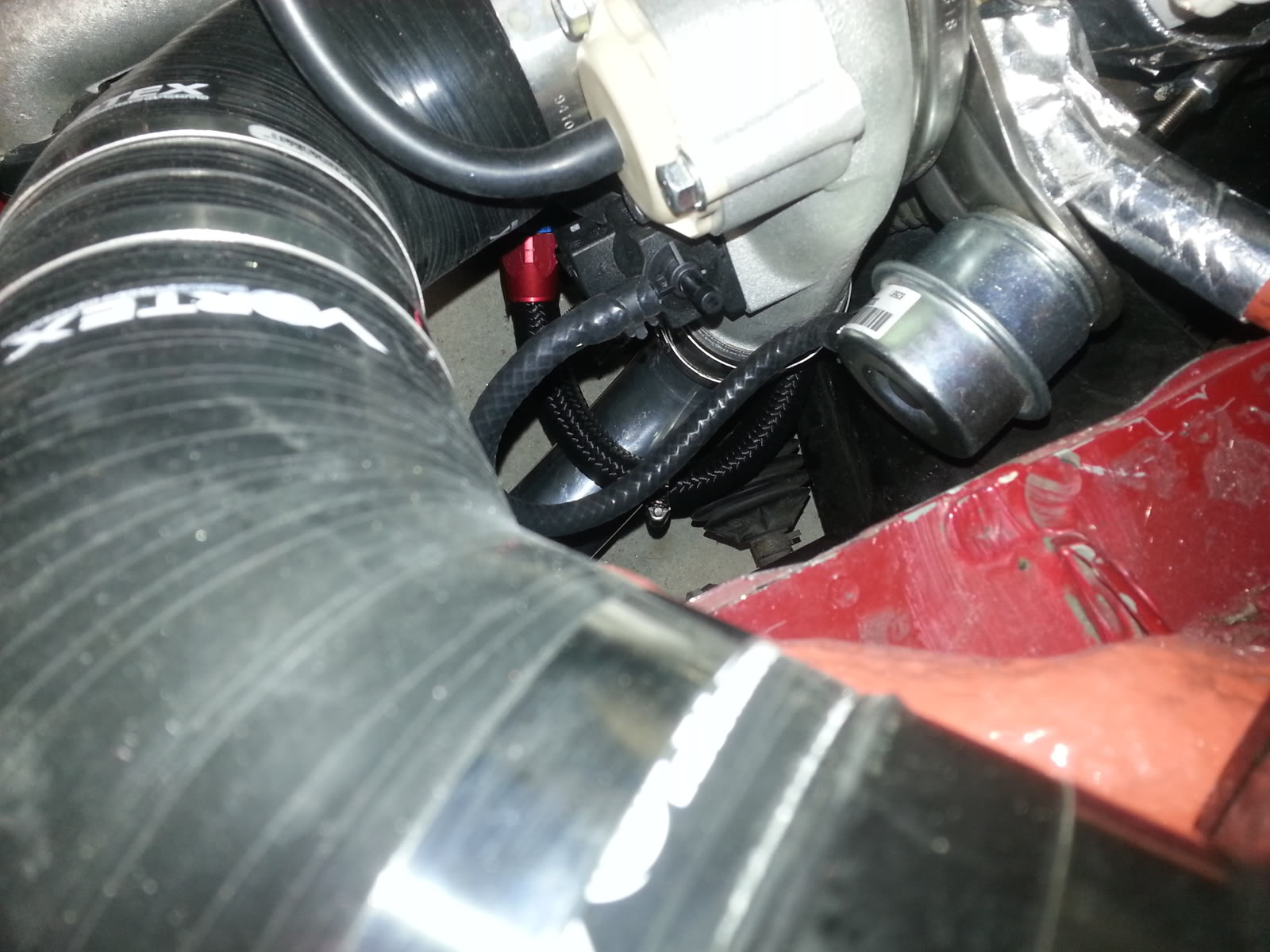

Doesnt look that much lower than mine, if at all. I'm more worried about how far away from the engine it is and if its going to clear the frame rail. Like mine is this close to the frame rail.

Name:  IMG_20130527_205841.jpg
Views: 30
Size:  194.3 KB

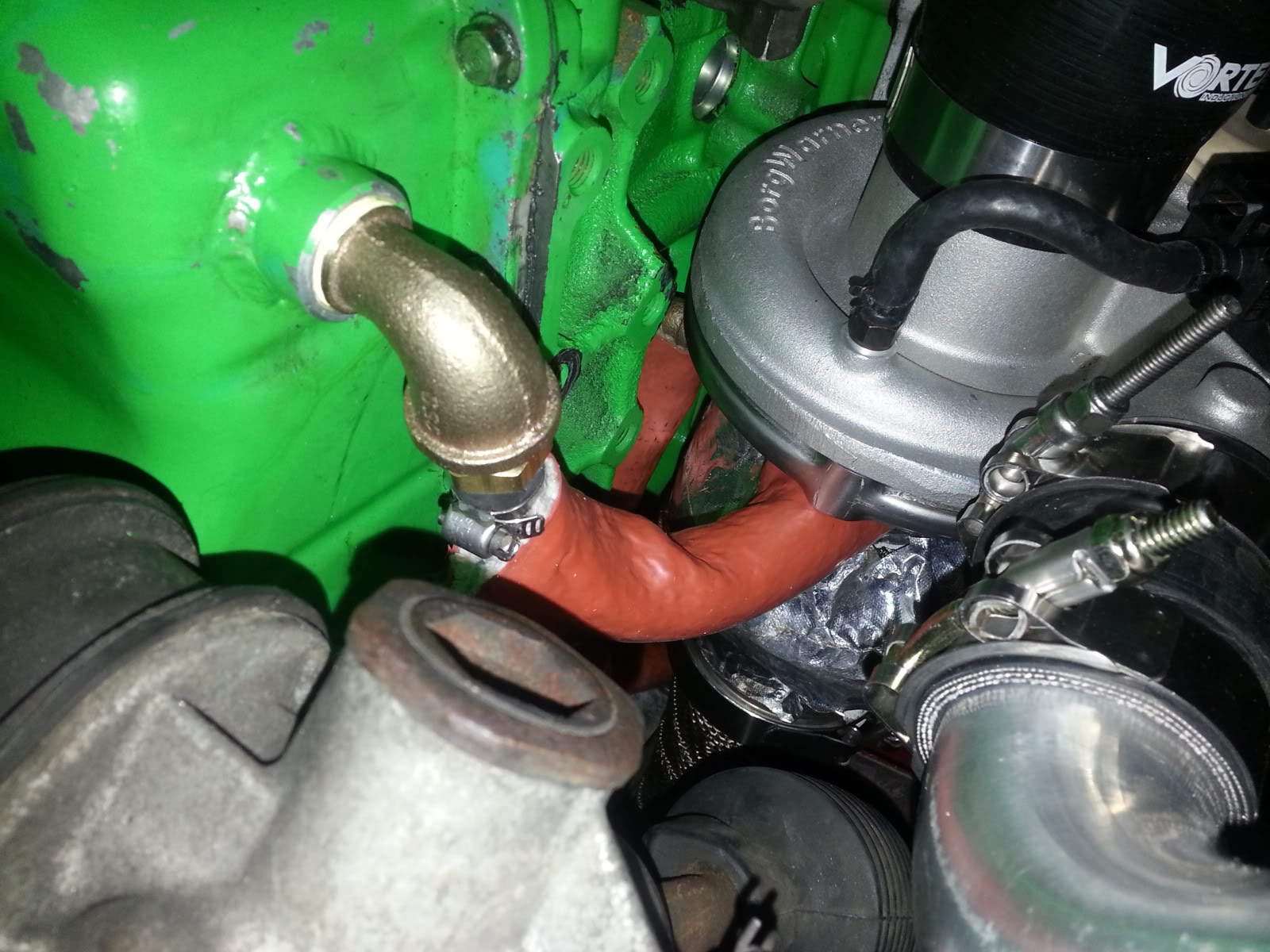

And this close to the engine block

Name:  IMG_20130601_111930-1.jpg
Views: 28
Size:  247.1 KB

Holy hell margin rape WTF?
Leafy is offline   Reply With Quote
Old 07-10-2014, 08:10 PM   #39
Junior Member
Thread Starter

Join Date: Aug 2010
Posts: 81
Total Cats: -9
Default

Its RHD...

Compressor housing is about 40mm off the sub frame. I had to move alot of stuff. PS pipes (reservoir and pump feed), and get the water pump outlet modified. The frame rail lip was also cut back and re-welded.

http://postimg.org/image/m1b0e9ogt/

View image: P1010633

http://postimg.org/image/4pf96kkd9/

http://postimage.org/image/qd47h0krh/

View image: image

http://postimg.org/image/7nc809s0t/

Its been cleaned and smoothed internally as best I can with a long reach die grinder
Lloyd_D is offline   Reply With Quote
Old 07-10-2014, 09:14 PM   #40
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

thats cool
you RHD guys have it so good not having the steering rod there, so much more room for downpipe
18psi is offline   Reply With Quote
