Old 07-11-2014, 10:05 AM   #41
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,701
Total Cats: 319
Default

Quote:
Originally Posted by EO2K View Post



According to Abe, nothing needs modification to fit this manifold. Its both PS and AC compatible, and should require no modification to the mixing manifold.
I had to get my mixing manifold modified, an unmodified inlet would contact the manifold. Unless he changed the design recently, there have been 2 others that have had to do the same. It's not that big a deal, Abe modified it for me.




psyber_0ptix is offline   Reply With Quote
Old 07-11-2014, 12:46 PM   #42
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by psyber_0ptix View Post
I had to get my mixing manifold modified, an unmodified inlet would contact the manifold. Unless he changed the design recently, there have been 2 others that have had to do the same. It's not that big a deal, Abe modified it for me.
Yep. I asked Abe and he said there was a minor revision and should have no problem clearing the manifold. I should know more in a couple weeks!
EO2K is offline   Reply With Quote
Old 07-11-2014, 09:42 PM   #43
Junior Member
Thread Starter

Join Date: Aug 2010
Posts: 81
Total Cats: -9
Default

Progressed it a bit today

Slotted the actuator bracket and bent the actuator arm so I could keep the actuator away from the chassis rail and fine tune its position.

Also a few more collector pics
View image: P1010772

View image: P1010774

View image: P1010768

View image: P1010765

View image: P1010764
Lloyd_D is offline   Reply With Quote
Old 07-14-2014, 05:18 AM   #44
Junior Member
Thread Starter

Join Date: Aug 2010
Posts: 81
Total Cats: -9
Default











Weekend's working fitting and welding up the downpipe

The Borg Warner turbo turbine V-band isn't a standard v-band design. So I had to modify the eBay purchased one. You cannot source the BW v-band flange or clamp here. The turbo company sold me a Vibrant flange and clamp and that didn't marry up either.
Attached Thumbnails
Log or ramhorn manifold for EFR6258-p1010776.jpg   Log or ramhorn manifold for EFR6258-p1010778.jpg   Log or ramhorn manifold for EFR6258-p1010786.jpg   Log or ramhorn manifold for EFR6258-p1010787.jpg   Log or ramhorn manifold for EFR6258-p1010789.jpg


Last edited by Lloyd_D; 07-14-2014 at 06:57 AM.
Lloyd_D is offline   Reply With Quote
Old 08-29-2014, 03:11 AM   #45
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,403
Total Cats: 261
Default

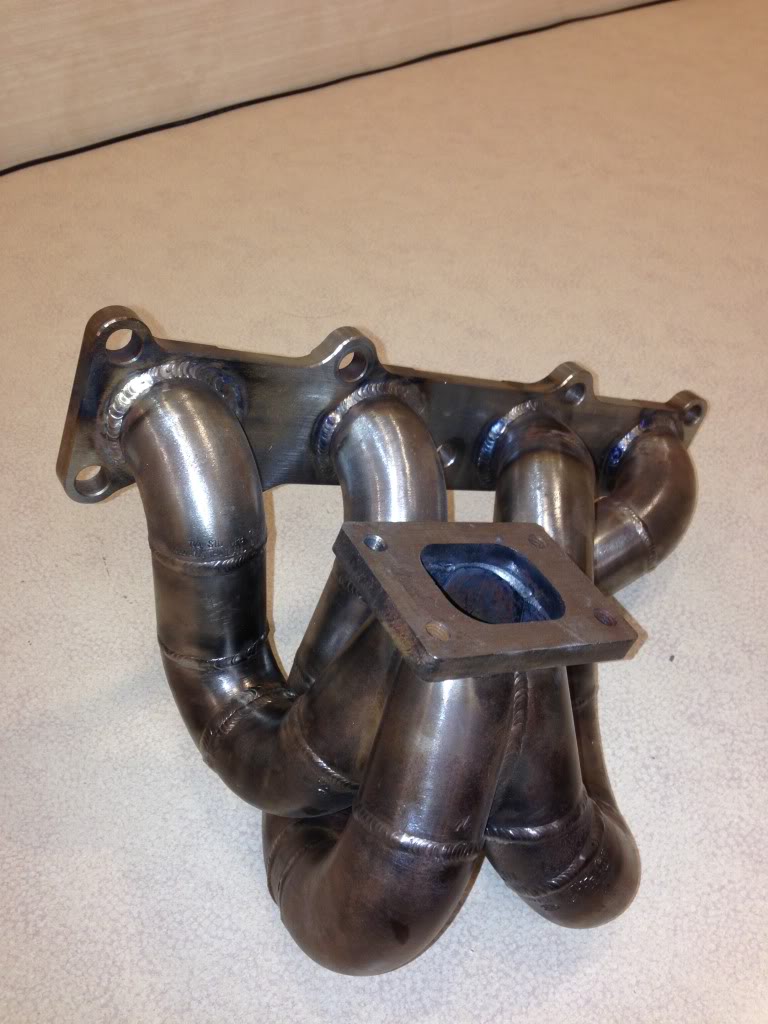

I know it's been a while for this thread, but I want to chime in about my manifold design. I wanted to get the most power pulse scavenging effect from the engine firing order. Notice that the 1-3-4-2 firing order in my manifold occurs in a circular order in the manifold collector. It was a feature I wanted in my manifold, as for the difference in power, I do not know how it compares to the offset firing order in the collector.

My manifold:
_ _ _ _
(2,4)
(1,3)

Others:
_ _ _ _
(1,4)
(2,3)



99mx5 is offline   Reply With Quote
Old 08-29-2014, 10:52 PM   #46
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Yup, I too went circular on purpose.
Leafy is offline   Reply With Quote
Old 08-30-2014, 10:52 PM   #47
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Really doesn't matter. There is enough back pressure in the turbo manifold to offset any type of flow caused by rifling if the firing order in an open scroll manifold.
shlammed is offline   Reply With Quote
