Default Look at what I did today (diy IC pipe)

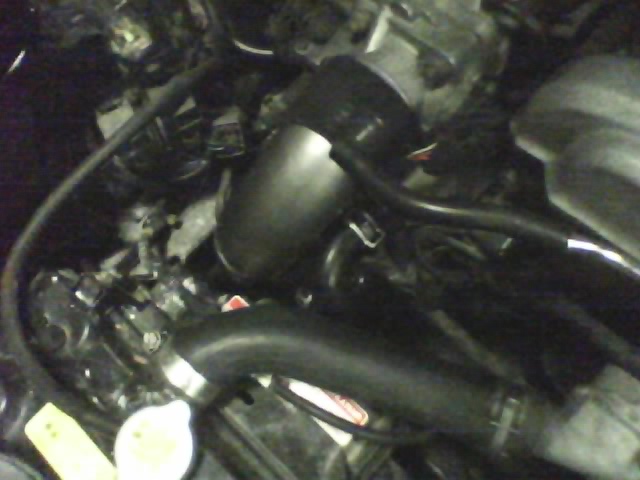

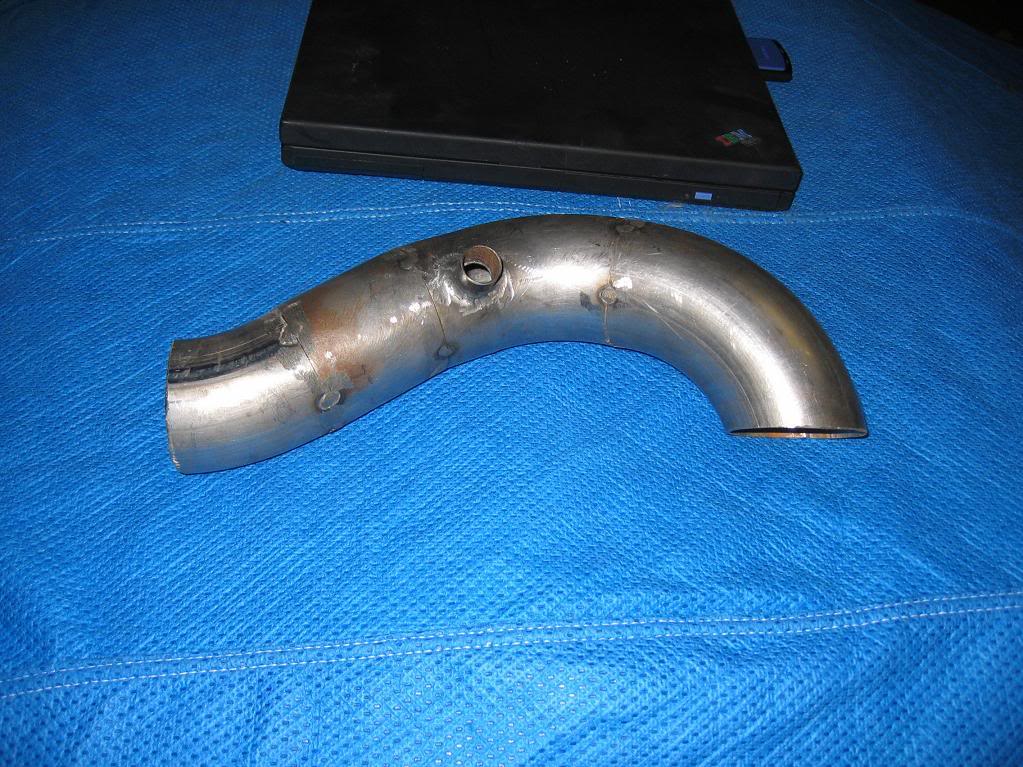

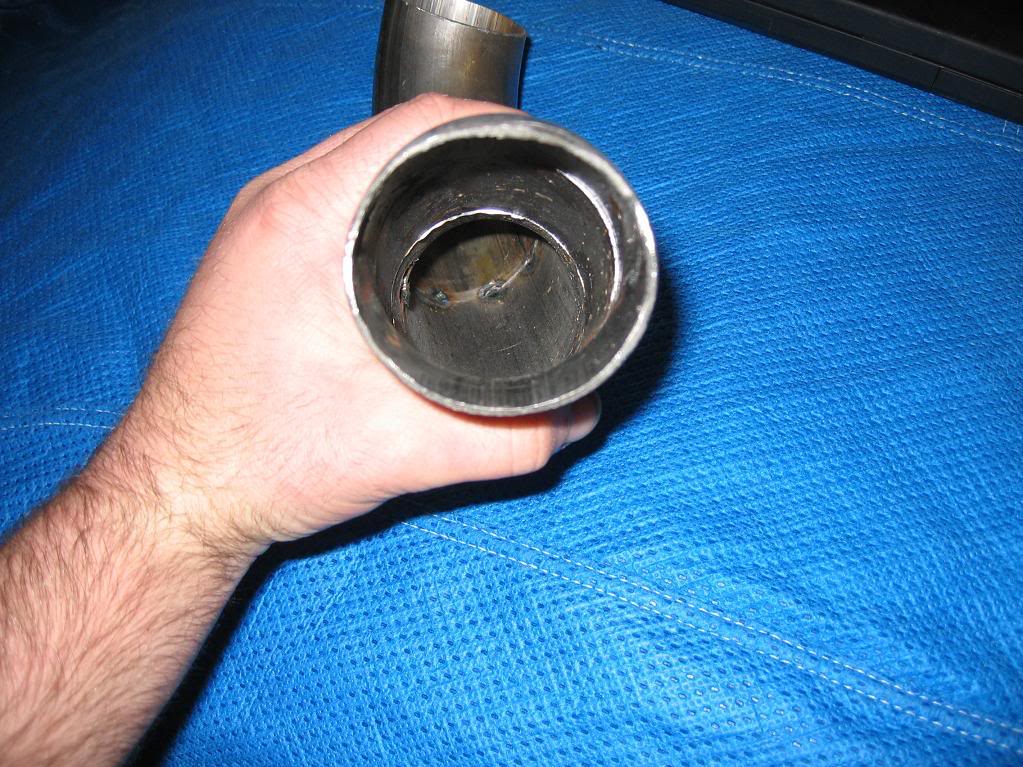

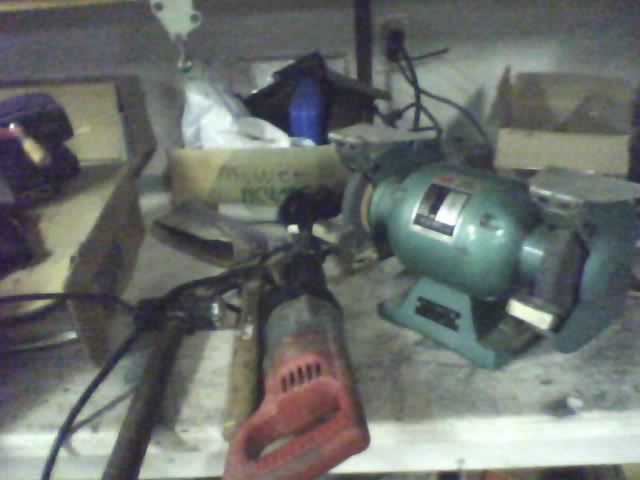

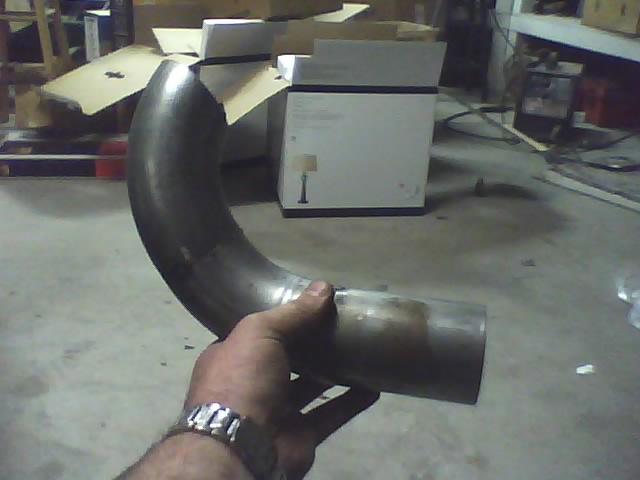

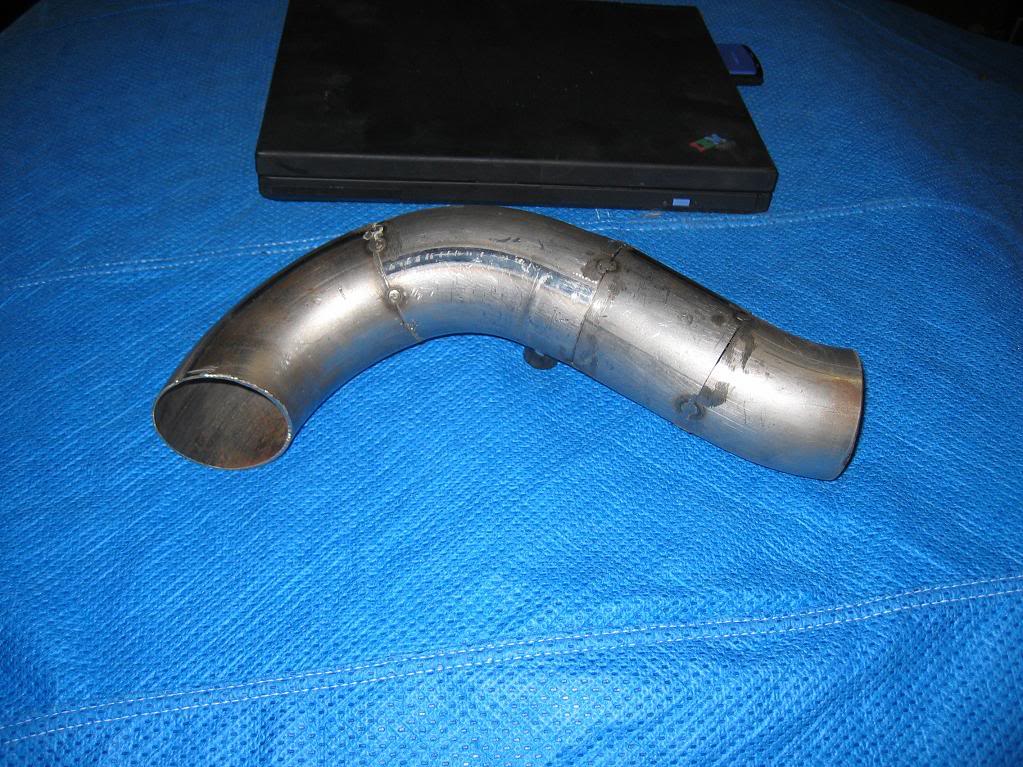

I am rather proud of myself as my metal working skills are not that great, or so I thought, but this came out well so I thought I would show it off. I had bought stripes template pipes a few months back but the 1.8 is a little different from the 1.6 and so I made a custom piece for the throttle inlet pipe. First picture is the piece unfinished, but almost there. second pic shows a few of the tools I used, and third pic is the piece installed. So far it is just tack welded together. sorry I forgot to snap a picture of the finished result out of the car.
Attached Thumbnails
Look at what I did today (diy IC pipe)-28-12-08_1846.jpg   Look at what I did today (diy IC pipe)-28-12-08_1847.jpg   Look at what I did today (diy IC pipe)-28-12-08_1958.jpg
akaryrye is offline   Reply With Quote
Old 12-29-2008, 05:43 AM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Looks good, I love fabrication so any feat be it small or large is satisfying. What kind of welding did you end up using?
cjernigan is offline   Reply With Quote
Old 12-29-2008, 06:03 AM   #3
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

that was done with a lincoln 115v mig welder (no gas). Can be seen in the background of pic 1. Last major obstacle now is fabbing up the downpipe and i am debating whether or not to have a shop do it. I have a bit of time to do it, but metal work makes me frustrated as hell and i just want to smash things to little bits (and peoples heads to little bits too).

Last edited by akaryrye; 12-29-2008 at 06:13 AM.
akaryrye is offline   Reply With Quote
Old 12-29-2008, 07:12 AM   #4
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

anybody have any paint recomendations?
akaryrye is offline   Reply With Quote
Old 12-29-2008, 04:48 PM   #5
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

what color is the rest under the hood?
zoomin is offline   Reply With Quote
Old 12-29-2008, 05:15 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Quote:
Originally Posted by akaryrye View Post
that was done with a lincoln 115v mig welder (no gas). Can be seen in the background of pic 1. Last major obstacle now is fabbing up the downpipe and i am debating whether or not to have a shop do it. I have a bit of time to do it, but metal work makes me frustrated as hell and i just want to smash things to little bits (and peoples heads to little bits too).
you did a good job on the ic pipe. just do the dp as well man. unless you have a hell of a shop that can do this, they usually dont do the best job
