Old 01-05-2010, 09:27 AM   #21
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

in all seriousness, im sure a drop in dual core aluminum radiator will be sufficient, and it looks like room wont be an issue. then just make sure you go ahead and shroud it well.
Braineack is offline   Reply With Quote
Old 01-05-2010, 10:18 AM   #22
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

Cool setup.

How is oil cooling handled in this particular case? What do S2Ks do stock for oil cooling?
Sparetire is offline   Reply With Quote
Old 01-05-2010, 03:51 PM   #23
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Oil cooling is achieved the same way it is in 1.8 miatas, with a water cooled assembly at the oil filter.
hingstonwm is offline   Reply With Quote
Old 01-05-2010, 05:38 PM   #24
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Since you have mastered rad mounting, I'll recommend the PRC twin core, dual pass, cross flow I have. The detailed images link on that page shows diagrams of the models. This is the rad used by circle track guys, but I found it per the turbo Z car guys which several used to cure cooling issues in their boosted track cars.

I'm using 2111003 19" x 22" Ford which is narrow enough to allow side-by-side fitting for a full size Mercedes oil cooler (with some minor mods) in the front/mouth of the Miata.

m2cupcar is offline   Reply With Quote
Old 01-05-2010, 05:52 PM   #25
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

your not gonna want to use a miata upgrade rad because of the inlet and exit holes in the rad! on the F20c motor your upper rad hose is on the driver side of the car and it runs into the driver side of the rad.....for miatas our upper rad hose flows out the front into the pass side of the rad....

when you go to purchase your upgrade rad find out the dimensions of a aftermarket rad that is made for the miata and keep those dimensions in your head while looking for another rad with the opposite inlets and exits

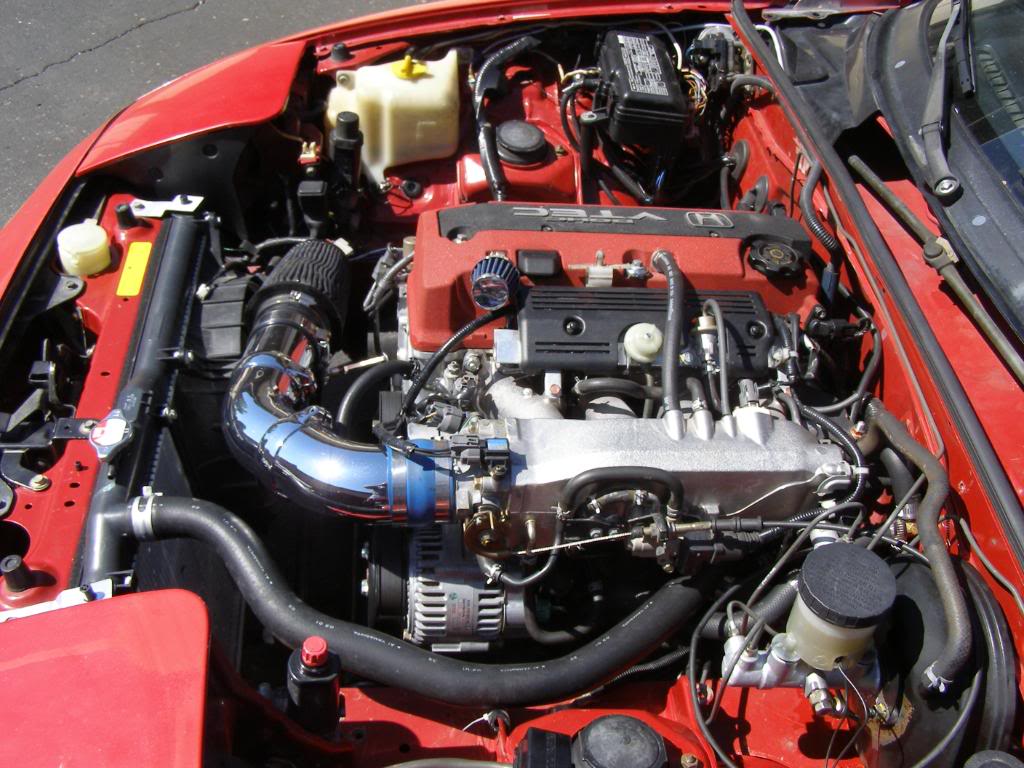

Name:  EngineConversion1.jpg
Views: 0
Size:  144.5 KB[/QUOTE]

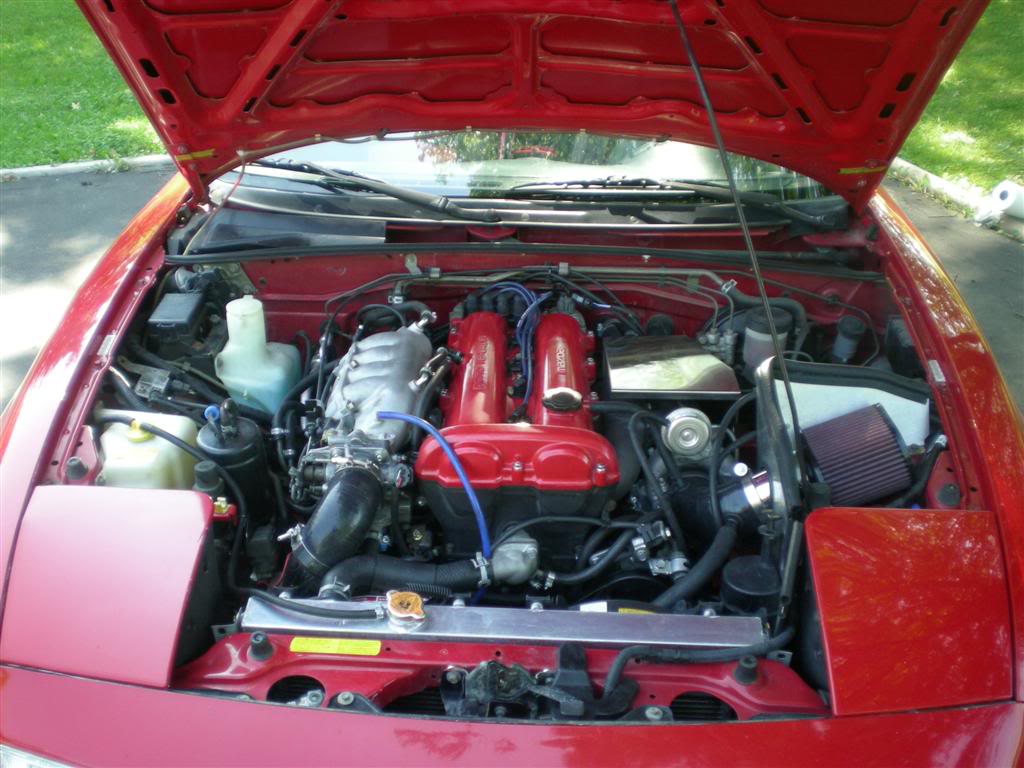

Name:  DSCN0747Large.jpg
Views: 0
Size:  110.1 KB
WonTon is offline   Reply With Quote
Old 01-06-2010, 12:49 PM   #26
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

I think I may just get a radiator built from scratch. I have a friend who built a rock crawler and had a custom unit done for about $350. M2supercar, your set up looks well thought out, what model benz did the oil cooler come from?
hingstonwm is offline   Reply With Quote
Old 01-06-2010, 12:55 PM   #27
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

I think it came from the 123 series... it was a 70s or 80s diesel. I just shopped by dimensions until I found something OE on ebay that would fit. This one holds ~quart plus the lines. Another option with greater capacity is the FC rx7 cooler. Work well with a full width but shorter rad for stacking. There's usually a bunch of circle track oil coolers on eBay too- which are usually short and wide - optimum for oil cooling and designed for stacking. More oil is your friend, and your cooling system's friend.
m2cupcar is offline   Reply With Quote
Old 01-06-2010, 02:32 PM   #28
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

+1 for the separate oil cooler if you have a slight issue as well. I used a relatively small Setrab oil cooler in PHX on a 2L turbo with great results. It takes some of the load off the primary cooling system.
Sparetire is offline   Reply With Quote
Old 01-06-2010, 03:28 PM   #29
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Thank you for the input guys! I have been on a couple of the s2000 sites, and to tell the truth, most of the time i feel like I am trying to have a conversation with the cast of the fast and furious. The sites seem to be very ricer oriented, not the case here at all.
hingstonwm is offline   Reply With Quote
Old 01-07-2010, 02:51 AM   #30
Newb

Join Date: Jul 2008
Posts: 17
Total Cats: 1
Default

That would be sick to drive, 9k redline in a miata
rxmx is offline   Reply With Quote
Old 01-07-2010, 04:13 AM   #31
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Quote:
Originally Posted by hingstonwm View Post
Thank you for the input guys! I have been on a couple of the s2000 sites, and to tell the truth, most of the time i feel like I am trying to have a conversation with the cast of the fast and furious. The sites seem to be very ricer oriented, not the case here at all.

Not all of us live our lives a quarter mile at a time
IcantDo55 is offline   Reply With Quote
Old 01-07-2010, 12:49 PM   #32
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

How true!

There was a request that I post a thread on the build site. I want to let you know that I will be doing so, but it won't be for a couple of weeks. I have my boards on the 22nd of this month, and need to study for them. However, as soon as I have taken them I will post on my build.
hingstonwm is offline   Reply With Quote
Old 01-07-2010, 12:57 PM   #33
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by hingstonwm View Post
How true!

There was a request that I post a thread on the build site. I want to let you know that I will be doing so, but it won't be for a couple of weeks. I have my boards on the 22nd of this month, and need to study for them. However, as soon as I have taken them I will post on my build.
what boards are you taking? Where are you located?
miatauser884 is offline   Reply With Quote
Old 01-07-2010, 05:29 PM   #34
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

I am in Colorado, taking my licensing test as an RN this month, so I have been spending most of my free time studying.
hingstonwm is offline   Reply With Quote
Old 01-07-2010, 07:37 PM   #35
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Nice build I cant wait to see a turbo going on it! good luck with the Radiator I have the CX racing one and it works well for me but as stated earlier the out let is on the passenger side.
Gotpsi? is offline   Reply With Quote
Old 01-10-2010, 09:22 PM   #36
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Just started a thread on my conversion over in build section for those interested.
