Default Low, Rearward Mount?

I don't plan to start manifold construction until I have the exhaust removed and I can physically see the room / space. However my thoughts are to mount small turbo low and rearward to the point that the charge pipe can go straight down, and behind the A/C (maybe only move the lower radiator hose.

It seems to me this would get the heat away from the brake MC and the heater hoses, and also simplify the down pipe.

The Manifold would be asymmetric towards the #3, rather than towards #2 as is typically seen.

The only trick I see is missing the steering column. Are there any other gotchas that I should look for?
DNMakinson is offline   Reply With Quote
Old 11-02-2013, 03:35 PM   #2
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Getting an intake tube to the inlet of the compressor might be hard.
Leafy is offline   Reply With Quote
Old 11-02-2013, 04:25 PM   #3
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Oil drain.
Depending on how low you go.
Miater is offline   Reply With Quote
Old 11-02-2013, 09:14 PM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Oil drain and steering column really keep it in the middle of the motor like most setups.
curly is offline   Reply With Quote
Old 11-02-2013, 09:18 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

good luck on a drain and clearing the steering column.
Braineack is offline   Reply With Quote
Old 11-02-2013, 11:21 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

mirror the msm setup

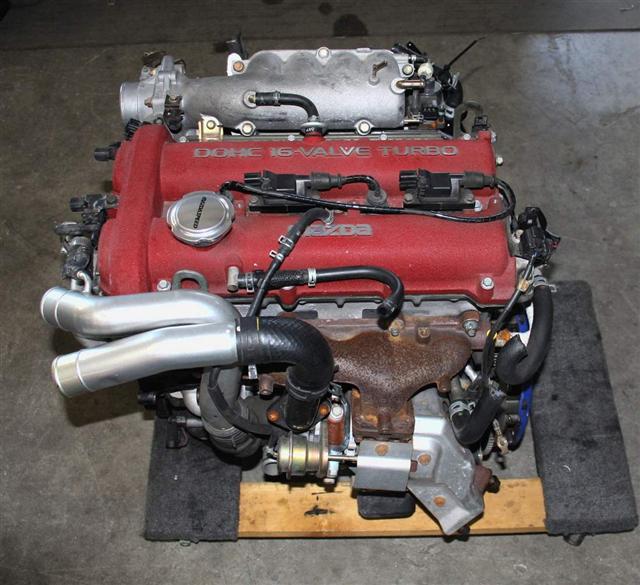

Attached Thumbnails
Low, Rearward Mount?-1229976307_393_ft0_img_57088.jpg
18psi is offline   Reply With Quote
Old 11-03-2013, 12:05 AM   #7
Elite Member
Thread Starter

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,700
Total Cats: 267
Default

Quote:
Originally Posted by 18psi View Post
mirror the msm setup
I have thought about, up and over, as a fallback.

I had already noted the steering column. The right-hand drive guys have a real advantage there.

The other 2: Drain and comp inlet.
Drain I knew to watch for, Inlet I may have missed until too late.

Thanks for the replies.
DNMakinson is offline   Reply With Quote
Old 11-03-2013, 11:20 AM   #8
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

Derp.



Waste gate actuator is the issue.

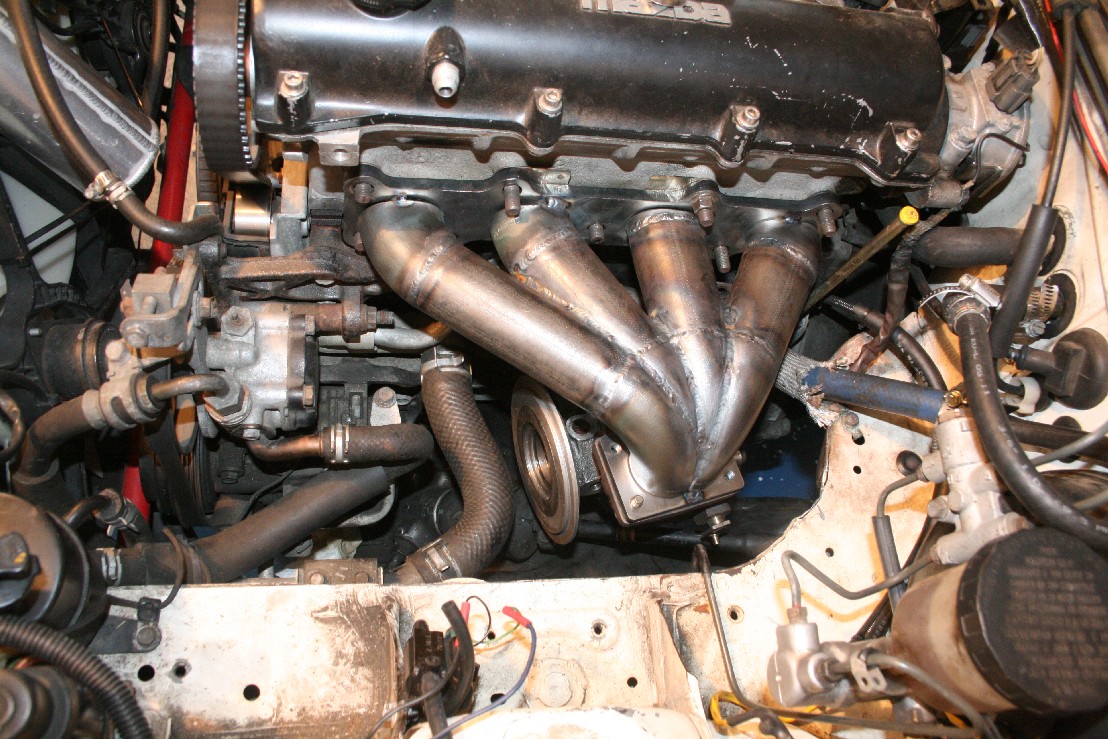

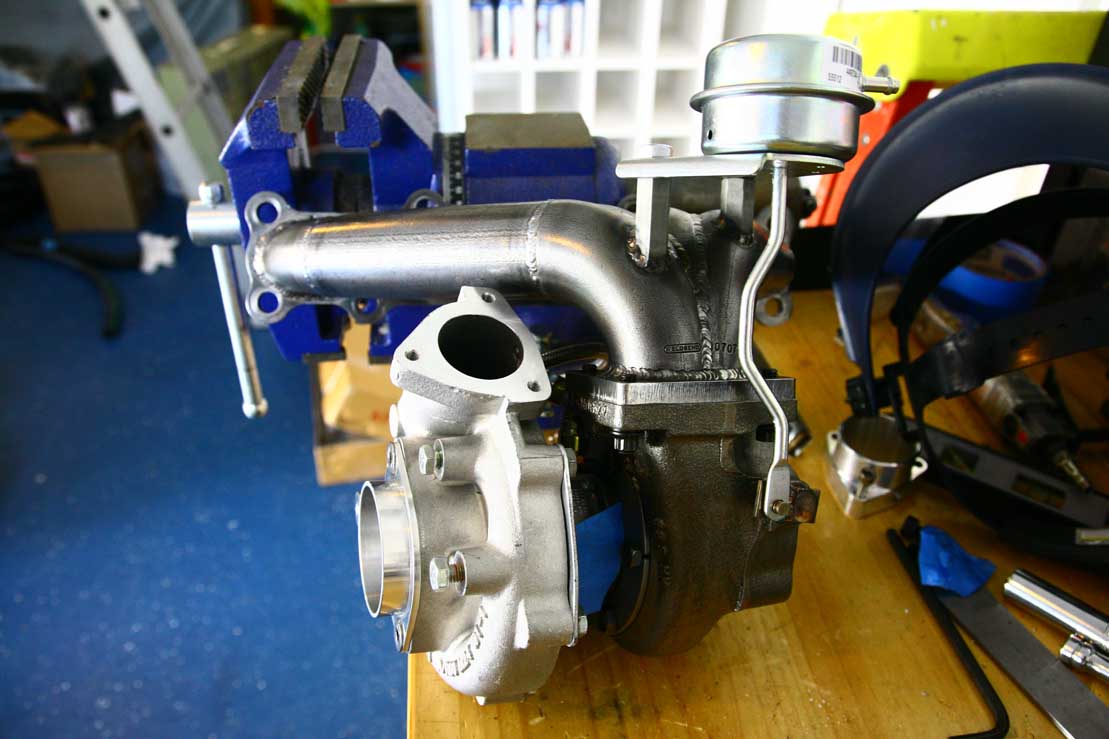

Attached Thumbnails
Low, Rearward Mount?-acpst2build5.jpg   Low, Rearward Mount?-acpst2build13.jpg
TurboTim is offline   Reply With Quote
Old 11-03-2013, 11:32 AM   #9
Elite Member
Thread Starter

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,700
Total Cats: 267
Default

^^^^
I remembered this thread and that you hated it, but succeeded. Room for wastegate against body.
DNMakinson is offline   Reply With Quote
Old 11-03-2013, 05:10 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Quote:
Originally Posted by TurboTim View Post
Derp.



Waste gate actuator is the issue.
The solution could not be any more obvious:

remove wg
achieve clearance
run ALLOFIT

18psi is offline   Reply With Quote
Old 11-03-2013, 05:18 PM   #11
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Or EWG out of the hood, like bauwse.
Full_Tilt_Boogie is offline   Reply With Quote
Old 11-03-2013, 06:17 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by TurboTim View Post
Derp.



Waste gate actuator is the issue.
but driving on this setup was awesome. I miss tuning that car
Braineack is offline   Reply With Quote
