Old 06-13-2012, 03:20 PM   #21
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

On another note, after I bought my plasma cutter I actually thought how much easier it would be to build my next weld-el manifold. Much of the time was spent sawing, grinding and forming the stainless weld els manually. I would think that with a five axis plasma cutter or tube laser one could cut weld-els perfectly that they could jigsaw together with zero gap for easy welding.

Sell the contour cut weld-els with two flanges as a "ready to weld" kit for $150-200.

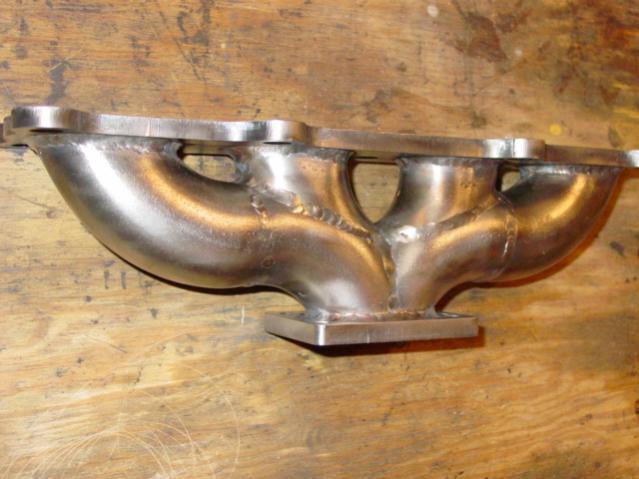

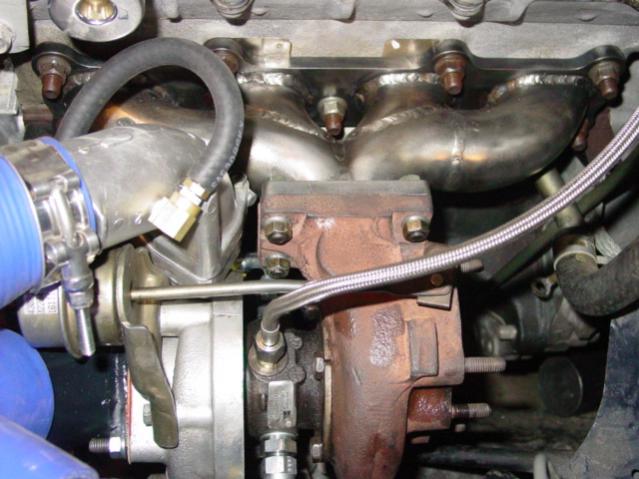

Here's the simple one that I made. Only six weld els and two flanges. It's symmetrical so there are only three distinct wel-el sections. This was for an SR20 T25 and fit without any modifications to the frame rail even though it's a side mount.
Attached Thumbnails
Manifold kits? ok to MIG weld?-picture-127.jpg   Manifold kits? ok to MIG weld?-picture%2520214.jpg
Stein is offline   Reply With Quote
Old 06-13-2012, 03:25 PM   #22
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Heck, if you could cut the weld-els, you could cut the flanges.

Say a COST of $25 for the large flange, $12 for the small one, $10 each for the six weld-els with labor, you are under $100 cost so yeah, you could sell it for $150.
Stein is offline   Reply With Quote
Old 06-13-2012, 03:35 PM   #23
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

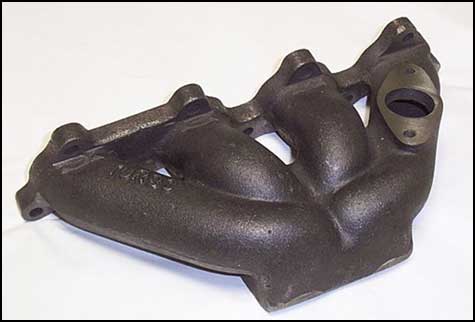

100 dollar B series manifold. Decent-ish collector, nice runners and an external wastegate mount. Jealous.

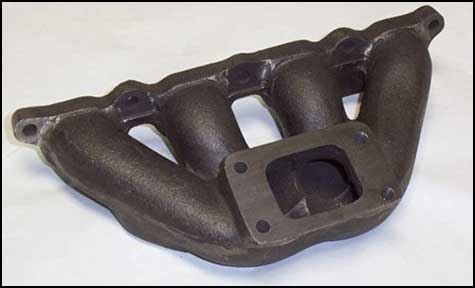

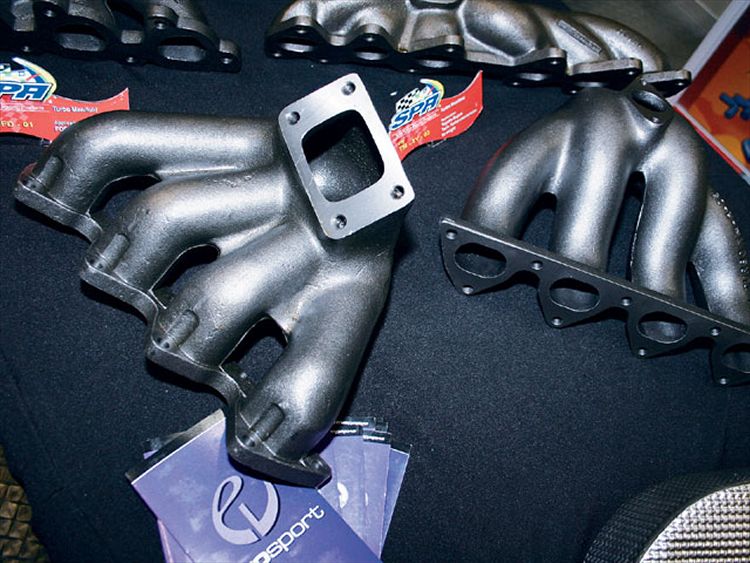

Or these ****'s. SPA top mount.



Or the 200 dollar knock off.
Attached Thumbnails
Manifold kits? ok to MIG weld?-treadstone_mb.jpg   Manifold kits? ok to MIG weld?-treadstone_md.jpg   Manifold kits? ok to MIG weld?-htup_0804_01_z-the_performance_racing_industry_pri_show-new_d_series_and_b_series_spa_turbo_top_.jpg
viperormiata is offline   Reply With Quote
Old 06-13-2012, 03:35 PM   #24
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by skidude View Post
I actually miss the wicked-cheap builds we used to see once in a while. I liked the creativity. $200 MS1, DIY manifold made from a hacked up stocker, intercooler from a junkyard mitsu, all held together with duct-tape and zip ties. Now a begi or FM manifold is considered "entry level".
They're reserved for the chump car and lemons builds these days, which I agree, is sad.

Doesn't really make sense since you can pick up a early 1.6 for so cheap these days, right around the $1000 mark. But again, those are reserved for the chump races.

OP, look into weld-els, they're the angled pieces you want. Ace stainless has what you want for ~$38, but I don't think they have the turbo flange you want.

For the manifold flange, I'd suggest finding a used stock piece and hacking it up. These days a lot of them are cracking, find one of those.
curly is offline   Reply With Quote
Old 06-13-2012, 04:01 PM   #25
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

Quote:
Originally Posted by mellowout View Post
It boggles my mind to frequently see how cheap some of these honda parts are. Just the other day I saw a B series turbo manifold for $30.

Id definitely be on board for a tacotaco 1.8 cast manifold
no matter how cheap that stuff is, most Honda people still can't afford it
pusha is offline   Reply With Quote
Old 06-13-2012, 08:11 PM   #26
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2011
Location: Independence Mo
Posts: 109
Total Cats: 1
Default

If I don't find a used cast, I might get ambitious and try to make my own mani.
With enough time and patience I think I could make something absurdflow-like. But it could go to rubbish... Would be lots of cutting and and grinding and fitting.

Anyone know what guage of mild is used in a good turbo mani? I think I found 11 guage mandrel bends for a decent price.
AkaZero is offline   Reply With Quote
Old 06-14-2012, 12:58 AM   #27
Junior Member

Join Date: Jan 2005
Location: Fort Worth, Texas
Posts: 242
Total Cats: -1
Default

Sch 40.
fwMiata is offline   Reply With Quote
