Default Manifold Woes

I am getting ready to install my EFR6258. I have decided to keep the AC and PS. It is daily driver with occasional Track and AX.

I had the manifold fabricated by a local race shop (well known among local racers and they do a lot of RX7). The ram style manifold has two sharp bends in the runner tubes leading to the collector. It can be clearly seen in the attached pictures. The fabricator tells me that it is acceptable and will not affect performance.

What do you gents think?

PS: I didn't want to wait the six weeks quoted by ARTech. Otherwise Abe would have been the choice.
Attached Thumbnails

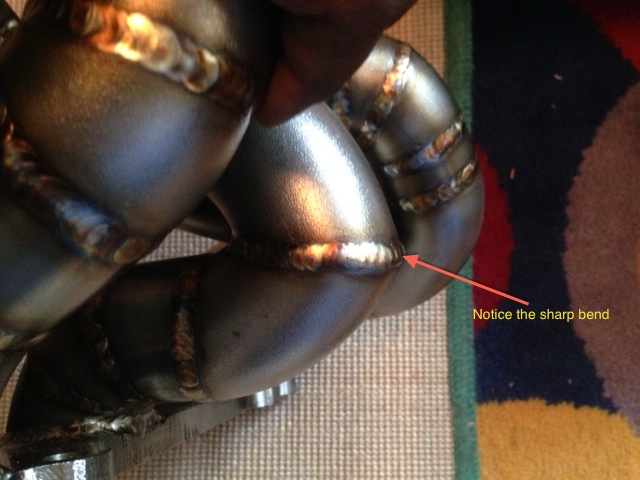

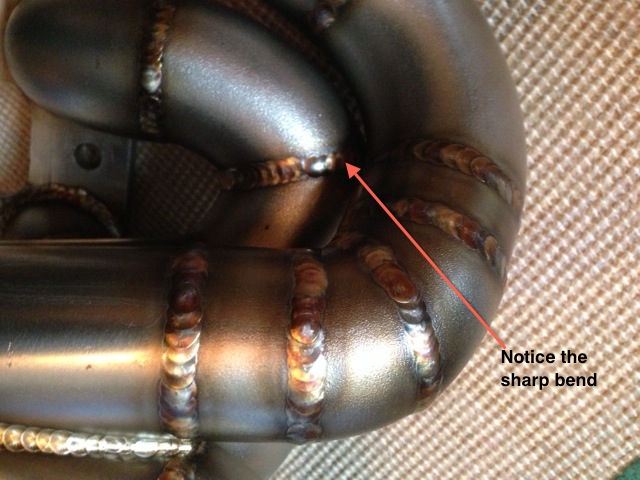

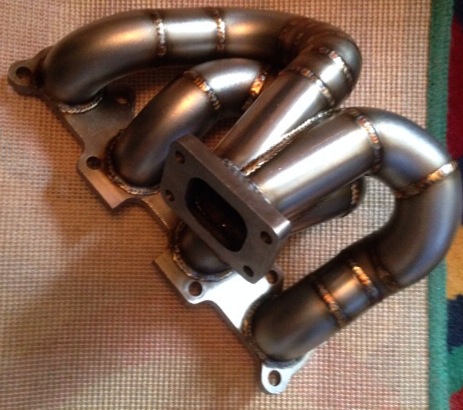

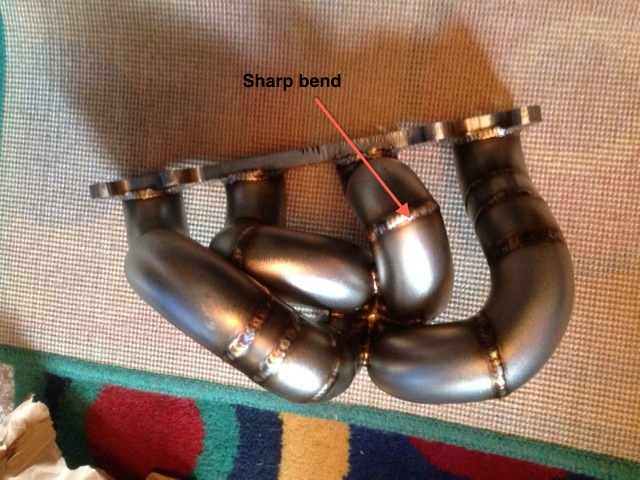

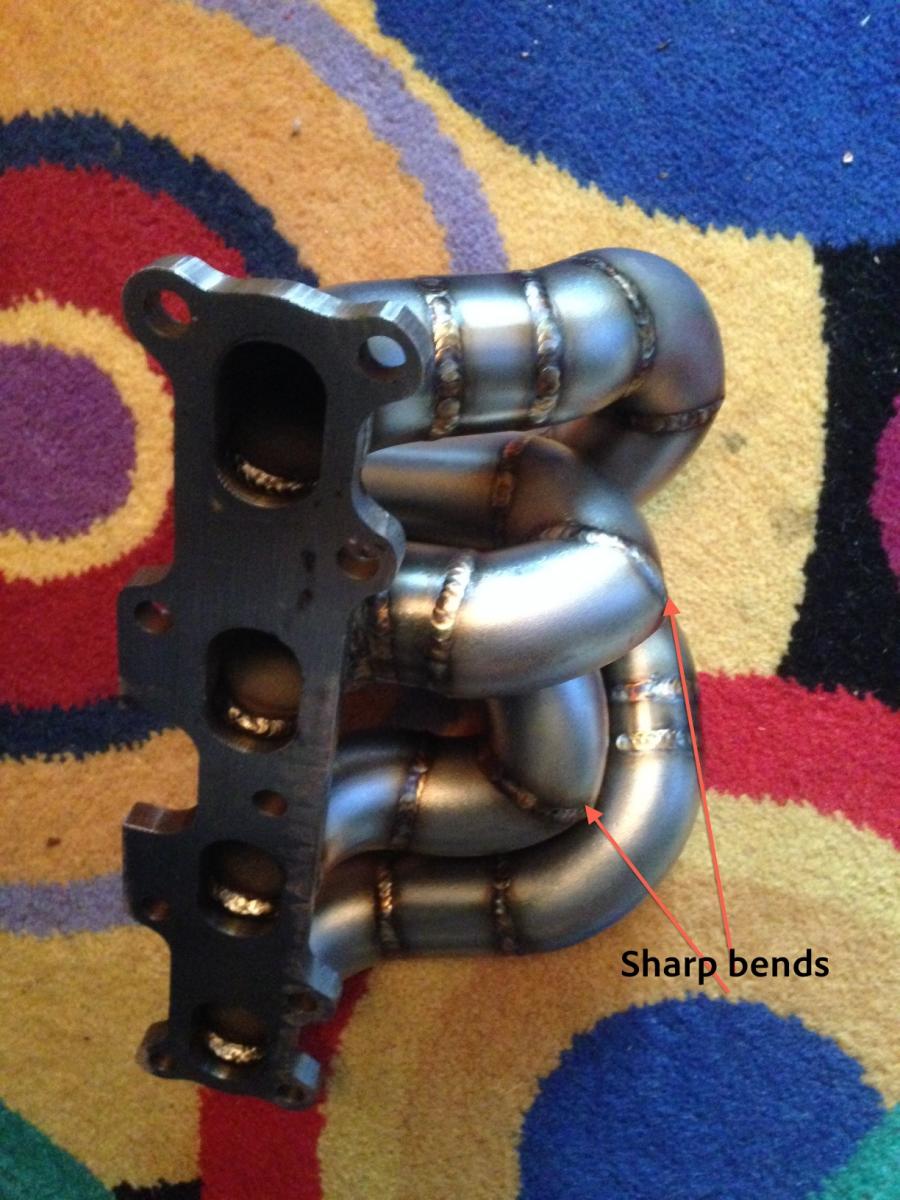

Manifold Woes-image.jpeg   Manifold Woes-image2.jpeg   Manifold Woes-image3.jpeg   Manifold Woes-image4.jpeg   Manifold Woes-photo.jpg

orlmiata is offline   Reply With Quote
Old 11-16-2013, 04:59 PM   #2
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,901
Total Cats: 609
Default

lazy and shitty imo. no reason they couldn't get the proper tight radius elbows to make that better. even pie cutting those would have been better, again, imo.

in practice it probably wont hurt much, but why wouldn't they just do it right to begin with when everything else about that mani looks so nice.

edit- also just noticed the round pipe wasn't crushed or blended to the oval port shape on the head flange. they fully welded the inside which is cool, but it looks like they are relying on the weld to blend from round to oval. I would have asked for my money back.
hi_im_sean is offline   Reply With Quote
Old 11-16-2013, 07:10 PM   #3
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 683
Total Cats: 3
Default

Quote:
Originally Posted by hi_im_sean View Post
lazy and shitty imo. no reason they couldn't get the proper tight radius elbows to make that better. even pie cutting those would have been better, again, imo.

in practice it probably wont hurt much, but why wouldn't they just do it right to begin with when everything else about that mani looks so nice.

edit- also just noticed the round pipe wasn't crushed or blended to the oval port shape on the head flange. they fully welded the inside which is cool, but it looks like they are relying on the weld to blend from round to oval. I would have asked for my money back.
Pretty much all this!
They clearly have the capabilities to do good work, but were just looking to make the buck from you and sending you on your way..... Curious, what did this manifold cost you? I would take a die grinder and smooth out the transitions at the head flange.

There are pictures of my manifold in my build thread, it mounts the EFR turbo and also keeps the PC and AC.
Amellrotts is offline   Reply With Quote
Old 11-16-2013, 07:27 PM   #4
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2013
Location: Orlando, Florida
Posts: 69
Total Cats: -7
Default

Quote:
Originally Posted by Amellrotts View Post
Pretty much all this!
They clearly have the capabilities to do good work, but were just looking to make the buck from you and sending you on your way..... Curious, what did this manifold cost you? I would take a die grinder and smooth out the transitions at the head flange.

There are pictures of my manifold in my build thread, it mounts the EFR turbo and also keeps the PC and AC.

It was about $900.00. Wouldn't grinding the transitions make the part of the runner tube thinner and more prone to cracks?
orlmiata is offline   Reply With Quote
Old 11-16-2013, 07:40 PM   #5
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

That's almost as bad at Tuning Done Wrong.

Sorry to see it sir. Just as others said, it should work fine but just clearly is not top notch work.
turbofan is offline   Reply With Quote
Old 11-16-2013, 07:58 PM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2013
Location: Orlando, Florida
Posts: 69
Total Cats: -7
Default

Quote:
Originally Posted by turbofan View Post
That's almost as bad at Tuning Done Wrong.

Sorry to see it sir. Just as others said, it should work fine but just clearly is not top notch work.
The owner of the shop has multiple cars that do under 7s in the 1/4 mile. So they definitely know their stuff. I am planning on going back and asking him to at least fix the bends.

If you look at these pictures, they can do quality work.

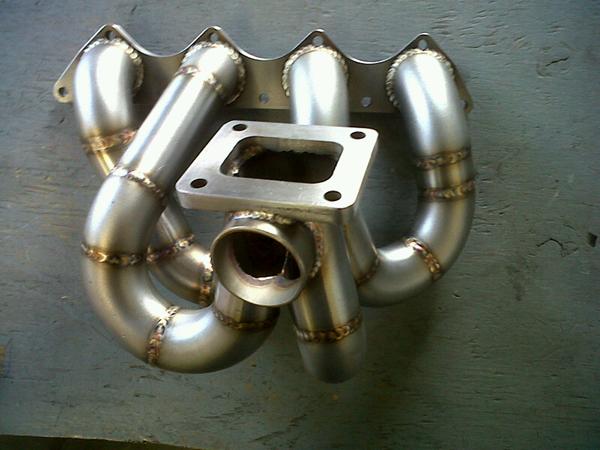

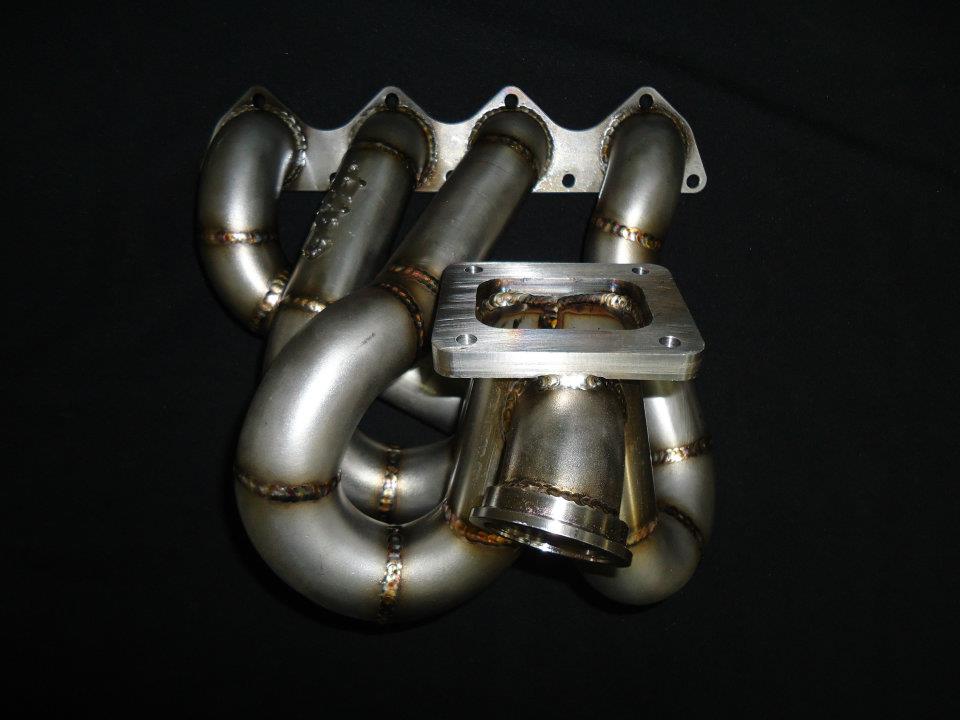

Attached Thumbnails
Manifold Woes-4g63-rwd-turbo-manifold.jpg   Manifold Woes-mani.jpg
orlmiata is offline   Reply With Quote
Old 11-17-2013, 01:36 AM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

For 900 bucks....yeah I'd make him fix it.
18psi is offline   Reply With Quote
Old 11-17-2013, 05:08 AM   #8
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Yes, in the states 900 is a LOT of money, it's definitely not good enough.

Dann
nitrodann is offline   Reply With Quote
Old 11-18-2013, 09:56 AM   #9
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

$900 for paying someone to do that, seems fair. If it was $1200 I would have expected none of the pinched bends and crappy transitions. Dont worry, in less than a season its going to crack at the nasty bend in picture 4 and they'll have to fix it anyways.
Leafy is offline   Reply With Quote
Old 11-18-2013, 11:23 AM   #10
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,191
Total Cats: 260
Default

At first i was thinking, aww you guys are harsh and haters. But 900 bucks. Holy hell man... I'm not sure i'd accept that for that much money. Who ever did it seems like they have the tools to do it right. But looking at that, it seems they didn't take their time.

I wouldn't worry about that sharp bend though, really. It's only going to affect it so very little, you'll never see a difference.
Erat is offline   Reply With Quote
Old 11-18-2013, 11:39 AM   #11
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

I paid less for my Absurdflow manifold new from Turbotim. At that price I would take it back and make them fix it.
shuiend is offline   Reply With Quote
Old 11-20-2013, 02:55 PM   #12
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

god damn, $900? its like half the cost of a miata. :/


I don't much about turbo manifolds, but I would want perfection for that price.
Seefo is offline   Reply With Quote
Old 11-20-2013, 03:36 PM   #13
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

For what it's worth, you'll get ovaled tubes from Abe at the head flange, and anywhere the welds come close to the stud holes is ground out with a counter bore tool to make enough room for the flanged exhaust nuts. No sharp bends, great looking welds, a gorgeous 3" separated gas downpipe with a flex section. All for $750.

I seriously hope you got a damn good looking downpipe for that price. I'm not sure I'd worry about the sharp bends too much, but for $900 I'd really expect a 1/2", laser cut 3D flange with ovaled tubes and blended welds. Yours looks like a shitty 3/8" burnt unit.
curly is offline   Reply With Quote
Old 11-20-2013, 04:18 PM   #14
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,355
Total Cats: 1,322
Default

Super, super shoddy work. You never grind bends at an angle like that. I wouldn't have paid for it.

e: "Fixing" those bends correctly will require him to rebuild much of the manifold. I hope you paid by CC, because it's time to drop it off at his shop and do a chargeback.
Savington is offline   Reply With Quote
Old 11-20-2013, 04:34 PM   #15
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by curly View Post
I seriously hope you got a damn good looking downpipe for that price. I'm not sure I'd worry about the sharp bends too much, but for $900 I'd really expect a 1/2", laser cut 3D flange with ovaled tubes and blended welds. Yours looks like a shitty 3/8" burnt unit.

no affiliation with the manifold above, but...

-3d flanges are not lazer cut.
-there is nothing wrong with a flame cut flange (assuming it isnt warped)
-1/2" thick flange is REALLY thick- 3/8" is a standard for a reason. i would bet your manifold bolts would need to be replaced to be long enough for a 1/2" flange

$750 is a good price for a manifold/downpipe combo, is that a stainless manifold or mild steel?
shlammed is offline   Reply With Quote
Old 11-20-2013, 04:35 PM   #16
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by Savington View Post
Super, super shoddy work. You never grind bends at an angle like that. I wouldn't have paid for it.

e: "Fixing" those bends correctly will require him to rebuild much of the manifold. I hope you paid by CC, because it's time to drop it off at his shop and do a chargeback.
he could replace them with tight radius elbows with no ill effects. problem with those elbows is that you dont design a manifold to use them because they are 4X the cost.
shlammed is offline   Reply With Quote
Old 11-20-2013, 05:13 PM   #17
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,355
Total Cats: 1,322
Default

Quote:
Originally Posted by shlammed View Post
he could replace them with tight radius elbows with no ill effects.
Not if you want it done correctly.
Savington is offline   Reply With Quote
Old 11-20-2013, 05:42 PM   #18
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by shlammed View Post
-3d flanges are not lazer cut.
-there is nothing wrong with a flame cut flange (assuming it isnt warped)
-1/2" thick flange is REALLY thick- 3/8" is a standard for a reason. i would bet your manifold bolts would need to be replaced to be long enough for a 1/2" flange

$750 is a good price for a manifold/downpipe combo, is that a stainless manifold or mild steel?
DP was mostly SS, I think the weld els he used were mild, but I did only get a log. Not as flowing as OP's, but still a big price difference.

My mistake about the laser cut flanges. I sorta meant laser cut as in prettier edges, or a 3D flange, which from what I've seen would be milled.

And no, nothing wrong with a flame cut flange, but as I said, for $900 it looks shitty.

My 3/8" warps like crazy. Along with a bunch of others I've heard of. By the time you sand it flat once or twice, it just warps that much easier. I could of sworn I've seen a few 1/2" manifolds floating around.
curly is offline   Reply With Quote
Old 11-20-2013, 05:47 PM   #19
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by curly View Post
DP was mostly SS, I think the weld els he used were mild, but I did only get a log. Not as flowing as OP's, but still a big price difference.

My mistake about the laser cut flanges. I sorta meant laser cut as in prettier edges, or a 3D flange, which from what I've seen would be milled.

And no, nothing wrong with a flame cut flange, but as I said, for $900 it looks shitty.

My 3/8" warps like crazy. Along with a bunch of others I've heard of. By the time you sand it flat once or twice, it just warps that much easier. I could of sworn I've seen a few 1/2" manifolds floating around.
My 3d flange is 1/2" 304. I got from those dudes in texas that make the 3d flanges, whatever their name was. Thing was ****. Flow theoretically isnt as good as the inch or so taper you get with the squished pipe, but you dont have to squish the pipe, and it all fit up perfect.
Leafy is offline   Reply With Quote
Old 11-21-2013, 09:42 AM   #20
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,191
Total Cats: 260
Default

I welded few 3/8's flanges just fine without any warping.

Just need to clamp it down and weld it properly. It's a non issue unless your process is wrong. And no way it should warp after it's all welded. Heavy track use may require relief cuts, or just heat treating the thing. Again, it should be a non issue.
Erat is offline   Reply With Quote
