Manual boost controller - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 03-13-2009, 12:22 PM   #1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2005
Location: San Jose, CA
Posts: 124
Total Cats: 0
Default Manual boost controller

amagalla is offline   Reply With Quote
Old 03-13-2009, 12:30 PM   #2
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Last one I bought off of ebay wouldn't go any lower than 15 psi.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-13-2009, 12:41 PM   #3
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Get the (NSX or NXS)one. Something like that. I have 2 with no problems or even boost creep.
Toddcod is offline   Reply With Quote
Old 03-13-2009, 12:48 PM   #4
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

Quote:
Originally Posted by amagalla View Post
Works perfect, it's what I'm running now. If you're trying to run lower boost, under 8-10psi the spring might be too stiff. I robbed a spring out of a clicky pen at work and was able to adjust for lower pressures though.
pdexta is offline   Reply With Quote
Old 03-13-2009, 02:10 PM   #5
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

+1 on the NXS. Its a no-gimmicks MBC that works out of the box.
The_Pipefather is offline   Reply With Quote
Old 03-13-2009, 02:31 PM   #6
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Quote:
Originally Posted by The_Pipefather View Post
+1 on the NXS. Its a no-gimmicks MBC that works out of the box.
You can get the NXS for the same price. It works great. And their service is unbeatable. I lost the guts to it by my own mistake. I emailed to buy some. They just sent them to me free of charge and shipping. So I decided to just buy another one to go with it to be fair. Now both cars have one.
Toddcod is offline   Reply With Quote
Old 03-13-2009, 03:56 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I bought that one and its fine from 10-18psi (I have a 10psi spring in my wastegate).
hustler is offline   Reply With Quote
Old 03-13-2009, 07:53 PM   #8
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Damn I need one, at less than $20 its way worth it so I don't have to unhook the lines, unmount it, and then use wrenches to adjust it. Anybody want my FM one?
curly is online now   Reply With Quote
Old 03-13-2009, 10:55 PM   #9
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

I had one of those... they were branded as Voodoo MBC. It was probably the single-best turbo purchase I made. It was perfectly adjustable from the start and worked exactly as advertised.

There are about 100 different MBC's out there of various shapes and designs. I did an absurd amount of homework, and I never found a single piece of concrete evidence of somebody saying-then-proving that a $100 Hallman works better than any el-cheapo $15 ball&spring ebay unit.

Install it, crank it down about halfway and go for a drive. Take it easy in 1st/2nd, cause if it's too high you may hurt something. Do a moderate pull in 4th and lift if you're seeing too much boost... pop hood, loosen a turn or two and repeat. You should be able to have the thing giving you the exact boost you want in about 10 minutes if you've got a road you can pull over on repeatedly.

Each time I would adjust the ****, I'd tap the body with the wrench to make sure the spring was at ease. Piece of cake.
samnavy is offline   Reply With Quote
Old 03-13-2009, 11:34 PM   #10
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

Quote:
Originally Posted by samnavy View Post
There are about 100 different MBC's out there of various shapes and designs. I did an absurd amount of homework, and I never found a single piece of concrete evidence of somebody saying-then-proving that a $100 Hallman works better than any el-cheapo $15 ball&spring ebay unit.
I bought a AEM-Truboost (msrp $352) and a turbonetics boost controller (msrp $108) they were both crap and didn't work at all. The only thing that has worked for me is the most basic cheapo ball and spring controller. It's really a simple simple concept, when companies try to complicate it and fancy it up things seem to go horribly wrong, at least in my experience.
pdexta is offline   Reply With Quote
Old 03-14-2009, 07:26 PM   #11
Junior Member
iTrader: (6)

Join Date: Feb 2009
Location: Salinas, CA
Posts: 446
Total Cats: 1
Default

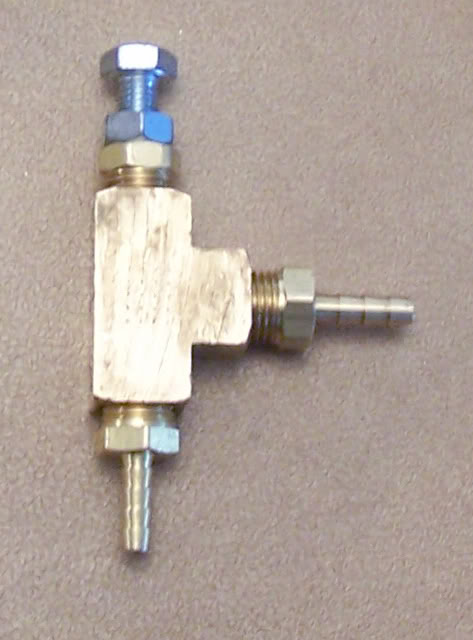

I built mine using the DIY MBC site.

Name:  101_0732.jpg
Views: 63
Size:  51.2 KB

Name:  101_0734.jpg
Views: 110
Size:  50.5 KB

Only difference is I used an 8mm bolt instead of 5/16. Keepin it meteric LOL I think I am going to braze a tab to it so that I have a way to attach it.
Qckslvr is offline   Reply With Quote
Old 03-14-2009, 07:57 PM   #12
Junior Member

Join Date: Jan 2008
Posts: 272
Total Cats: 0
Default

I use this one is its amazing!

Flyin' Miata 1 800 FLY MX5s
Sleeper_MX5 is offline   Reply With Quote
Old 03-14-2009, 09:00 PM   #13
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

That's the one I have but I don't really like it. There's no way to mount it (I'm using a ziptie and I hate it every time I look at it), and you have to unplug the outlet line, and carefully place two wrenches to adjust it. If the wrench on the lock nut is too low it'll lock into the body and obviously not loosen the nut. Those are just my pet peeves about it though. Its only a pain when you're adjusting it and I don't do that much at all.
curly is online now   Reply With Quote
