Default MBC with no pressure source on turbo

Running a Chinacharger T25. It doesn't have pressure source on the outlet like many other turbo's. So where should I get my pressure source from using the MBC?
emericareaper2 is offline   Reply With Quote
Old 06-14-2015, 12:01 PM   #2
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,707
Total Cats: 269
Default

Put an outlet anywhere on the charge pipes or intercooler tanks. Do not use a port post (after) the throttle body. If you are concerned with boost droop with RPM, use the cold side charge pipe, just before the throttle.

I'm pretty sure there are bungs that can be mounted into silicone elbows, if you cannot get one welded onto charge pipe.
DNMakinson is online now   Reply With Quote
Old 06-14-2015, 12:14 PM   #3
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

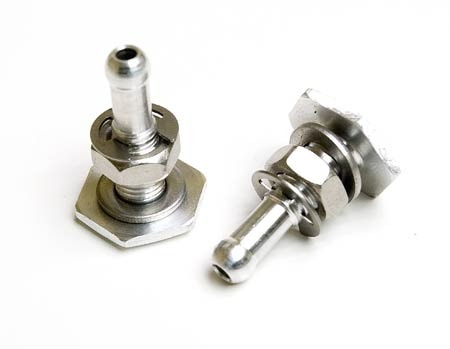

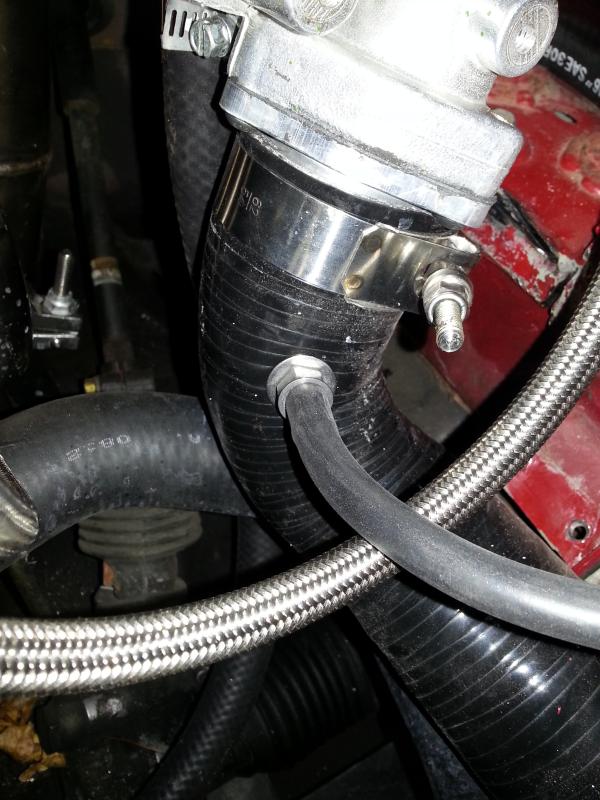

<p>I used one of these...</p><p>&nbsp;</p><p><br /><br />http://www.atpturbo.com/mm5/merchant.mvc?Screen=PROD&amp;Product_Code=ATP-FTG-010&amp;Category_Code=BCS<br /><br /><a href="http://s119.photobucket.com/user/hotsh0ts_05/media/Miata/20141101_114639_zpssi7rw718.jpg.html" target="_blank"><img alt="" src="https://www.miataturbo.net/attachment.php?attachmentid=141697&amp;dateline=14 34294896" /></a></p>
Attached Thumbnails
MBC with no pressure source on turbo-20141101_114639_zpssi7rw718.jpg   MBC with no pressure source on turbo-quicktap3_450_zps2xirgivl.jpg
BTMiata is offline   Reply With Quote
Old 06-14-2015, 12:17 PM   #4
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

^Thats easy enough! Thank you
emericareaper2 is offline   Reply With Quote
Old 06-14-2015, 12:19 PM   #5
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

<p>
Quote:
Originally Posted by emericareaper2 View Post
^Thats easy enough! Thank you
</p><p>&nbsp;</p><p>Yeah it was definitely the best option.. No problem!</p>
BTMiata is offline   Reply With Quote
Old 06-14-2015, 01:25 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

do it after the IC but before the TB.
Braineack is offline   Reply With Quote
Old 06-14-2015, 01:35 PM   #7
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by Braineack View Post
do it after the IC but before the TB.
^ This is the best location to take the boost reference from when running a manual boost controller. Taking the reference either from the compressor itself or from a point in the pipes before the intercooler will result in a slight boost drop-off that correlates with RPM.
Joe Perez is offline   Reply With Quote
