Default MegaSquirtPNP

Im planning on the MSPNP this spring and just ordered a walbro 190, and dont want to make any additional upgrades that will be rendered useless with the MSPNP, do i need a upgraded fuel regulator, currently using a vortech FMU.
HKSturboMiata is offline   Reply With Quote
Old 01-23-2008, 06:42 PM   #2
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

no. injectors.
Loki047 is offline   Reply With Quote
Old 01-23-2008, 06:48 PM   #3
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Get rid of the vortech, the stock regulator is fine. Your next purchase should be some injectors. 440-550cc injectors depending on how much power you plan to tune for.
cjernigan is offline   Reply With Quote
Old 01-23-2008, 06:53 PM   #4
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Is a walbro 190 the preffered pump 'round these parts? We run 255's on the SR20's.

C
chriscar is offline   Reply With Quote
Old 01-23-2008, 06:59 PM   #5
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

the 190 is proven to not overrun the stock fpr, the 255 might i don't know, regardless unless you're looking for big power the 190 is very sufficient
Mach929 is offline   Reply With Quote
Old 01-23-2008, 07:03 PM   #6
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Thanks, that's the answer I was looking for. The 255's need an afpr to bring the pressure back down to 3bar on an sr20.

Oh, what would you say the horsepower limit is on the 190?

C
chriscar is offline   Reply With Quote
Old 01-23-2008, 07:04 PM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 114
Total Cats: 0
Default

I currently have 1.8 injectors, what am I looking for if in 550 injectors for ease of install. basically looking for plug and play
HKSturboMiata is offline   Reply With Quote
Old 01-23-2008, 07:12 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

I wonder if there's some sort of post that answers all these questions.....i wonder if it's stickied? i wonder if the title is super easy to figure it out?
Braineack is offline   Reply With Quote
Old 01-23-2008, 07:17 PM   #9
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,327
Default

Cancel your fuel pump order. You don't need it. Stock fuel pump will flow 300whp worth of fuel at stock pressure.

All you need for a comprehensive spark and fuel package for a Miata is the MSPNP, properly-sized injectors (460s or 550s depending on power goals) and a wideband O2 sensor. No fuel pump, no FPRs, no O2 clamps, no bullshit. Just a proper EMS setup
Savington is offline   Reply With Quote
Old 01-23-2008, 07:32 PM   #10
I'm Miserable!
iTrader: (5)

bryantaylor's Avatar

Join Date: Dec 2006
Location: jacksonville, fl
Posts: 1,720
Total Cats: 0
Default

Quote:
Originally Posted by Mach929 View Post
the 190 is proven to not overrun the stock fpr, the 255 might
my 255 didnt overpower the stock fpr
bryantaylor is offline   Reply With Quote
Old 01-23-2008, 09:53 PM   #11
Senior Member
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

I would put a fuel pressure gauge on your system to make sure your stock pump is up to par. Your pump may not be as strong as it used to be.
miataspeed1point6 is offline   Reply With Quote
Old 01-23-2008, 10:31 PM   #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 114
Total Cats: 0
Default

Yea im still going to install the 190 for insurance, its only 80bucks
HKSturboMiata is offline   Reply With Quote
Old 01-23-2008, 10:53 PM   #13
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,327
Default

Yes, installing parts you don't need in any way, shape, or form is a GREAT way to blow $80.

Savington is offline   Reply With Quote
Old 01-23-2008, 10:55 PM   #14
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

He has a 91, his fuel pump might not be in very good shape. It's not a complete waste.
cjernigan is offline   Reply With Quote
Old 01-24-2008, 12:03 AM   #15
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 114
Total Cats: 0
Default

Name:  IMG_0981.jpg
Views: 3
Size:  137.2 KB

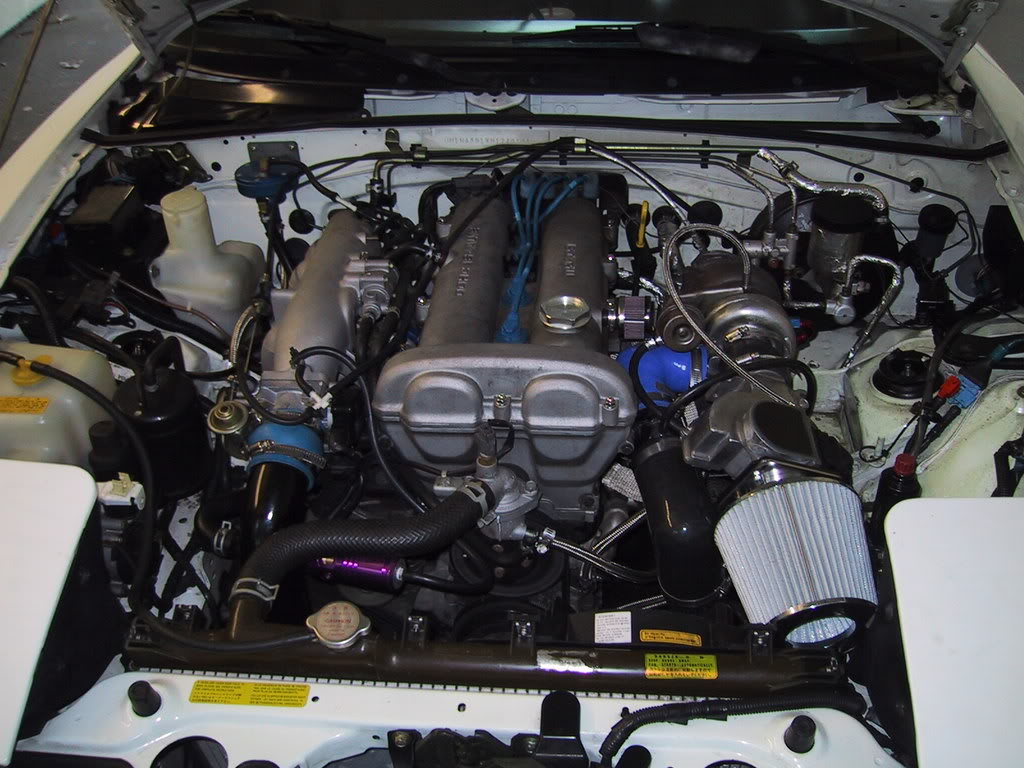

the current setup, and I just wanted to test the photobucket link.
HKSturboMiata is offline   Reply With Quote
Old 01-24-2008, 12:15 AM   #16
Newb

Join Date: Jan 2008
Location: seattle
Posts: 2
Total Cats: 0
Default walbro 195 HP

The guys at APE engineering hooked me up with a Walbro 195 High Pressure (HP), good up to 500 hp they said. Plenty of pressure and supply, they said most 4 cly don't need 255's, 255s just reciurculate more back to the tank. heat the fuel up by pumping it. That's after I went through 2 stock pumps, sometimes they hold when you raise the rail pressure, but not normally, I have heard of using a booster pump in line to help, but it's easier and cheaper to go with a 195. Just needed minor modification and it went right in.
It has worked good on two FI motors for over 200,000 miles.
old beater is offline   Reply With Quote
Old 01-24-2008, 01:25 AM   #17
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,327
Default

But you aren't raising rail pressure with a PROPER EMS like the MSPNP. You are just adding injectors that will provide enough fuel at stock pressure. This is why bandaid guys need a 190HP for 200whp, but standalone guys can take stock pumps to 250-300.
Savington is offline   Reply With Quote
Old 01-24-2008, 10:07 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default





here is the flow of a stock pump.

to determine how much HP the pump can deliver:

convert Gal/Hr to Lbs/Hr - Multiple by 6

Then Multiple that by .80 (duty cycle) and divide by .55 (BFSC) and see how much B.H.P. the pump is capable of flowing for.

example:

10psi would put you at roughly 60psi of fuel.

30 gal/hr x 6 = 180 x .8 / .55 = 260BHP

with that said, there are plenty of us running EMS greater than 250rwhp on the stock pump with plenty of fuel to spare.



I wonder where I pulled that image from? Man, if there was a collaboration of all these things in "one big post"
Braineack is offline   Reply With Quote
