Default Miata 1.6 + GT28RS BB ??

Hello.

I'm new on this forum, and my english is very bad

So, i have a 1.6 miata turbo with this setup:

-Megasquirt Pnp ECU
-430cc Supra Bi-turbo Injectors
-KnockSenseMS
-Dyn Dual Feed Rail
-AEM Wideband
-Complete XTD Racing clutch kit & light flywheel
-Wiseco Turbo pistons 8:5
-ARP Head Studs
-Forged Connecting Rods
-Mazda 323 Turbo PCV Valve
-Intercooler

Now i buy a new turbo:

TURBO GT28RS BALL BEARING
0.60 A/R
TURBINE: .86 A/R
TRIM: 60


I liked your opnion about this configuration

Best regards
nufi is offline   Reply With Quote
Old 09-05-2009, 11:07 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Opinion on what?
And what are you looking to accomplish with the car? Drag? Road race? Street car?

Because that is a fairly large turbo for a 1.6, and if you're looking for quick spool or good midrange you might want to look into something smaller.
18psi is offline   Reply With Quote
Old 09-05-2009, 11:14 PM   #3
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

I've driven that exact setup, down to the turbine A/R. That turbo is too big for a 1.6, IMO. You want to be looking at a 2560R, or a built 1.8 motor.
Savington is offline   Reply With Quote
Old 09-05-2009, 11:17 PM   #4
Newb
Thread Starter

Join Date: Sep 2009
Posts: 10
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
I've driven that exact setup, down to the turbine A/R. That turbo is too big for a 1.6, IMO. You want to be looking at a 2560R, or a built 1.8 motor.
How too big ? How the turbo spool ?
nufi is offline   Reply With Quote
Old 09-05-2009, 11:27 PM   #5
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

The turbo spool was pretty bad, worse than I would want to live with on the street or the track. My 2871R with the same .86 A/R turbine housing on my built 1.9 liter spools much faster. The 2860RS on the 1.6 wouldn't kick hard until after 4500rpm, and there was a serious lag in power after every shift as well. Simply too big for the motor. My 2871R with another 250cc of displacement is at full grunt by 4000rpm, and while there is a small delay between shifts, it's about half of what the 1.6/2860RS was.
Savington is offline   Reply With Quote
Old 09-05-2009, 11:32 PM   #6
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Hmmm, Im at 16psi by 4200 rpms with my 2871 on my 1.6. My turbine is a .64 though.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 09-05-2009, 11:37 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Yes. Too big
hustler is offline   Reply With Quote
Old 09-05-2009, 11:48 PM   #8
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

I like mine just fine. Kthnxbye.
Splitime is offline   Reply With Quote
Old 09-05-2009, 11:49 PM   #9
Newb
Thread Starter

Join Date: Sep 2009
Posts: 10
Total Cats: 0
Default



I gona try change for a :

1
T3
. 48 A/R COMPRESSOR
.60 A/R TURBINE
.60 TRIM

or
2
GT25 (BALL BEARING)
0.60 A/R
TURBINE: .49 A/R
TRIM: 55

????
What is the best in your's opinion ? ( for the 1.6L)
nufi is offline   Reply With Quote
Old 09-05-2009, 11:51 PM   #10
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by nufi View Post


I gona try change for a :

1
T3
. 48 A/R COMPRESSOR
.60 A/R TURBINE
.60 TRIM

or
2
GT25 (BALL BEARING)
0.60 A/R
TURBINE: .49 A/R
TRIM: 55

????
What is the best in your's opinion ?
What are your goals? What do you plan to do with the car?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 09-05-2009, 11:53 PM   #11
Newb
Thread Starter

Join Date: Sep 2009
Posts: 10
Total Cats: 0
Default

Quote:
Originally Posted by levnubhin View Post
What are your goals? What do you plan to do with the car?
Street road ( maybe a drift too )
nufi is offline   Reply With Quote
Old 09-05-2009, 11:53 PM   #12
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

That T3 might work, although I'll let Scott comment on the exact size since I'm not a T3 guru.

You want that GT25 (.60 comp a/r = GT2560R) with a .64 turbine A/R, NOT the .49 turbine A/R.
Savington is offline   Reply With Quote
Old 09-06-2009, 12:02 AM   #13
Newb
Thread Starter

Join Date: Sep 2009
Posts: 10
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
That T3 might work, although I'll let Scott comment on the exact size since I'm not a T3 guru.

You want that GT25 (.60 comp a/r = GT2560R) with a .64 turbine A/R, NOT the .49 turbine A/R.
But the seller only have this 3 turbos

I buy the gt28, but maybe i can speak with him to change.

In your opnion, who make a better street car ?

Ps.
Sorry for bad english
nufi is offline   Reply With Quote
Old 09-06-2009, 12:13 AM   #14
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Here is a gt28rs .86ar hotside on a stock 1.6l

Splitime is offline   Reply With Quote
Old 09-06-2009, 12:26 AM   #15
Newb
Thread Starter

Join Date: Sep 2009
Posts: 10
Total Cats: 0
Default

Quote:
Originally Posted by Splitime View Post
Here is a gt28rs .86ar hotside on a stock 1.6l

The full boost is at rpm ??
nufi is offline   Reply With Quote
Old 09-06-2009, 12:32 AM   #16
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

He's hitting full boost there at about 4400rpm and he had a damaged turbine wheel when he did that dyno.
neogenesis2004 is offline   Reply With Quote
Old 09-06-2009, 02:03 AM   #17
Newb
Thread Starter

Join Date: Sep 2009
Posts: 10
Total Cats: 0
Default

Quote:
Originally Posted by neogenesis2004 View Post
He's hitting full boost there at about 4400rpm and he had a damaged turbine wheel when he did that dyno.
Is this car ?
YouTube - WMHM8 Miotta In Car part 1

Last edited by nufi; 09-06-2009 at 02:40 AM.
nufi is offline   Reply With Quote
Old 09-06-2009, 02:57 AM   #18
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Quote:
Originally Posted by nufi View Post
what is so funny?
18psi is offline   Reply With Quote
Old 09-06-2009, 02:59 AM   #19
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Quote:
Originally Posted by Splitime View Post
Here is a gt28rs .86ar hotside on a stock 1.6l

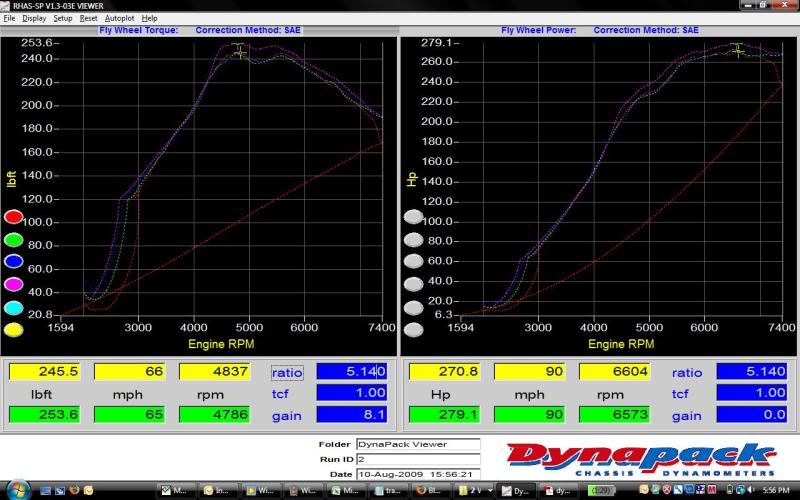

Name:  blacktraxdyno.jpg
Views: 42
Size:  68.4 KB

I rest my case.
Savington is offline   Reply With Quote
Old 09-06-2009, 03:20 AM   #20
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

What case would that be exactly? Dave is running like 4lbs less than you in his dyno. Plus his damaged turbine isn't exactly helping his spool in that dyno.

Both of you have approx 180tq at redline, you just have more before that because you are running like 15 or more psi. There is not boost plot on your dyno, but it is safe to guess that you hit peak boost near peak tq because of the falloff afterward. IF that assumption is correct it looksl ike you hit peak boost around the same time as well. I think your dyno and Daves dynos would be VERY similar at the same boost.
neogenesis2004 is offline   Reply With Quote
