Default Miata Turbo Shuts Off

Hey everyone,

Hopefully I can get some help here. I recently finished installing a T25 on my 1999 1.8. It has an ebay manifold, with custom intercooler piping, and a custom downpipe. I am using a Flyin' Miata Voodoo Box for engine management. I tuned it following the instructions that came with the Voodoo Box.

The car runs great when it isn't in boost, however after hitting boost and letting off the gas, the rpms drop and sometimes the car cuts off and dies, other times, the rpms will drop and go back up and idle very high around 2k. After cutting off, the car will turn back on normally. My boost gauge is telling me I am hitting 6psi.

The only thing I could think it is, is when installing the downpipe, I accidently snapped one of the bolts off, so only four bolts are holding the downpipe on to the turbo. Could a small exhaust leak be the reason this is happening?

Please help!
faviles5566 is offline   Reply With Quote
Old 03-31-2016, 08:45 PM   #2
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,059
Total Cats: 48
Default

What kind of blow off valve setup are you using?
x_25 is offline   Reply With Quote
Old 03-31-2016, 08:49 PM   #3
Newb
Thread Starter

Join Date: Sep 2015
Posts: 11
Total Cats: 2
Default

I am using a Bosch recirculating BOV. Thanks for responding!
faviles5566 is offline   Reply With Quote
Old 03-31-2016, 08:51 PM   #4
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,059
Total Cats: 48
Default

Quote:
Originally Posted by faviles5566 View Post
I am using a Bosch recirculating BOV. Thanks for responding!
As long as it is recirculating back after the MAF it should be fine. That was my only guess.
x_25 is offline   Reply With Quote
Old 03-31-2016, 09:16 PM   #5
Newb
Thread Starter

Join Date: Sep 2015
Posts: 11
Total Cats: 2
Default

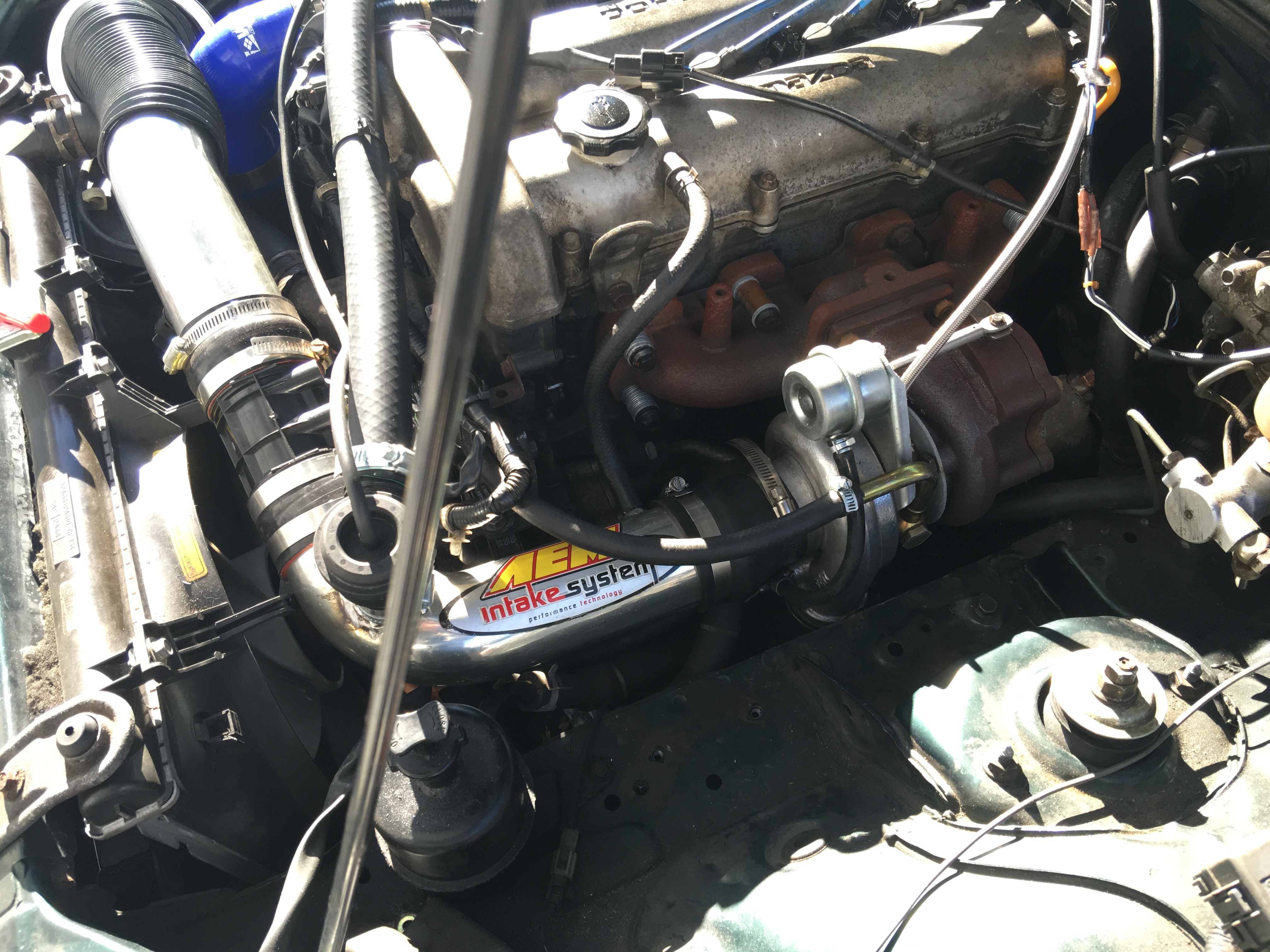

Here is a picture of the engine bay the BOV is right after the MAF
Attached Thumbnails
Miata Turbo Shuts Off-image.jpeg
faviles5566 is offline   Reply With Quote
Old 03-31-2016, 09:46 PM   #6
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,417
Total Cats: 1,513
Default

Quote:
Originally Posted by faviles5566 View Post
Here is a picture of the engine bay the BOV is right after the MAF
LOL. BOV is plumbed wrong.
sixshooter is offline   Reply With Quote
Old 03-31-2016, 09:47 PM   #7
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 849
Total Cats: 91
Default

Where is that BOV hose going to?
acedeuce802 is offline   Reply With Quote
Old 03-31-2016, 09:53 PM   #8
Newb
Thread Starter

Join Date: Sep 2015
Posts: 11
Total Cats: 2
Default

Quote:
Originally Posted by sixshooter View Post
LOL. BOV is plumbed wrong.
I'm extremely embarrassed. What is wrong with it?

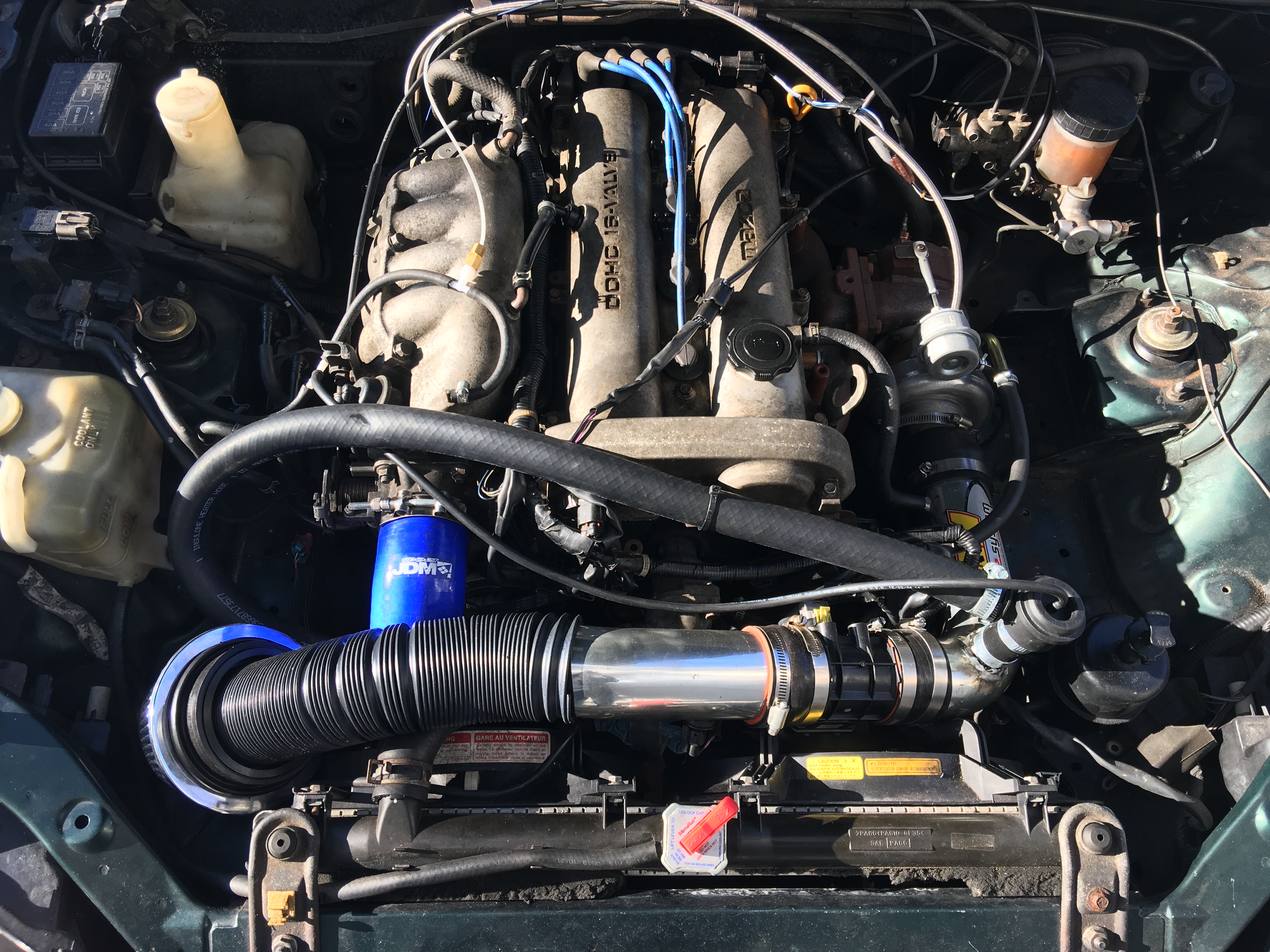

The hose is going to a nipple that was welded on a few inches after the throttle body
Attached Thumbnails
Miata Turbo Shuts Off-image.jpeg

Last edited by faviles5566; 03-31-2016 at 10:22 PM.
faviles5566 is offline   Reply With Quote
Old 03-31-2016, 09:57 PM   #9
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 849
Total Cats: 91
Default

Does it idle?
acedeuce802 is offline   Reply With Quote
Old 03-31-2016, 10:00 PM   #10
Junior Member

Join Date: Aug 2014
Location: Charlotte NC
Posts: 64
Total Cats: 12
Default

BOV mounted onto the intake side of the turbo? Poscat to you sir.


Attached Thumbnails
Miata Turbo Shuts Off-80-66316081_72b7ae0df38e43a4ad3e137b8ed0f0dd1a954091.jpg
tehzack is offline   Reply With Quote
Old 03-31-2016, 10:28 PM   #11
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,829
Total Cats: 270
Default

Wtf is going on
Girz0r is offline   Reply With Quote
Old 03-31-2016, 10:42 PM   #12
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 718
Total Cats: 55
Default

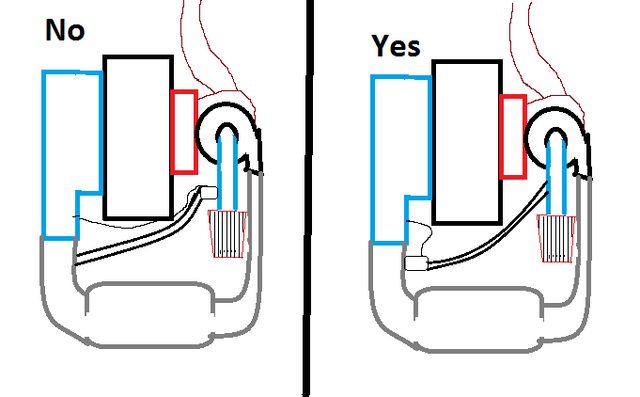

You were pretty close, man. Here, I drew a sweet picture that should explain.

Onyxyth is offline   Reply With Quote
Old 03-31-2016, 10:45 PM   #13
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 718
Total Cats: 55
Default

Also what's up with the washers on the exhaust manifold?
Onyxyth is offline   Reply With Quote
Old 03-31-2016, 10:58 PM   #14
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 849
Total Cats: 91
Default

Your first diagram should work just fine. That's essentially how BEGI routes theirs, except with the BOV fipped. It's common to use that BOV flipped, as boost pressure helps it seal shut.
acedeuce802 is offline   Reply With Quote
Old 03-31-2016, 11:13 PM   #15
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 718
Total Cats: 55
Default

In that case, he'd still have to swap the "direction" of the BOV.
Onyxyth is offline   Reply With Quote
Old 03-31-2016, 11:15 PM   #16
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 849
Total Cats: 91
Default

Direction of the BOV doesn't matter. It's just a piston that opens and allows air to flow. What he needs to do, is route that pre-throttle.
acedeuce802 is offline   Reply With Quote
Old 04-01-2016, 07:42 AM   #17
Junior Member

Join Date: Jan 2016
Posts: 437
Total Cats: 21
Default

IIRC soviet was using a similar BOV, he had it mounted halfway between the intake and cold side plumbing
Forrest95M is offline   Reply With Quote
Old 04-01-2016, 07:58 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,687
Total Cats: 1,760
Default

Where is your idle valve connected?
Braineack is offline   Reply With Quote
Old 04-01-2016, 10:24 AM   #19
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 153
Total Cats: -84
Default

Quote:
Originally Posted by faviles5566 View Post
I'm extremely embarrassed. What is wrong with it?

The hose is going to a nipple that was welded on a few inches after the throttle body
As long as that longer, ~1" diameter hose is going into the correct end of the BOV, this set up will work just fine. Where the BOV is mounted matters none, except for its sensitivity/response. It would operate better mounted on the charge pipe.
NBoost is offline   Reply With Quote
Old 04-01-2016, 10:32 AM   #20
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,829
Total Cats: 270
Default

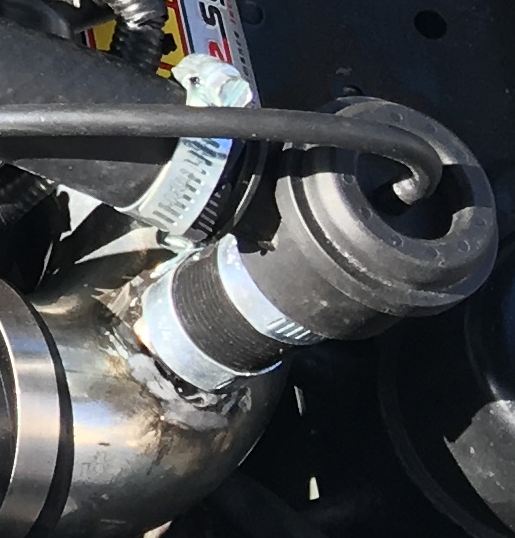

Flip this the other way

Put it closer to the charge pipe on the cold side.

I'd swap your T fittings locations also, put them closer to the intake manifold and just side by side so manifold==t=t======emissions thingy
Attached Thumbnails
Miata Turbo Shuts Off-bf974e5.jpg
Girz0r is offline   Reply With Quote
