Default Moving that coolant pipe

Hey guys,
I'm learning how to weld while I'm at college and I've been dreaming about fabbing up a sweet low-mount unequal length header that's shifted forward a bit for downpipe flow (and that sweet exhaust note). I took a look under the hood and it's pretty tight between the steering shaft, firewall and coolant tube. Does anyone move the coolant pipe on the front/right of the block to get extra room for the turbo? I'm about to go practice TIG but I can take a pic of what I mean in a bit.

Last edited by squeegee; 11-01-2015 at 05:11 PM.
squeegee is offline   Reply With Quote
Old 11-01-2015, 03:51 PM   #2
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Begi makes a piece that faces inlet to the water pump forward instead of backwards. I will try to snap a picture of it a bit later today. Should be pretty easy to copy.
shuiend is offline   Reply With Quote
Old 11-01-2015, 04:27 PM   #3
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

Yeah the begi coolant neck goes out between the power steering pump/ ac compressor and block.. Then it goes down close to the sway bar where it uses metal tube because of the tight fit.

Pics when I get home.
90 Turbo is offline   Reply With Quote
Old 11-01-2015, 05:11 PM   #4
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

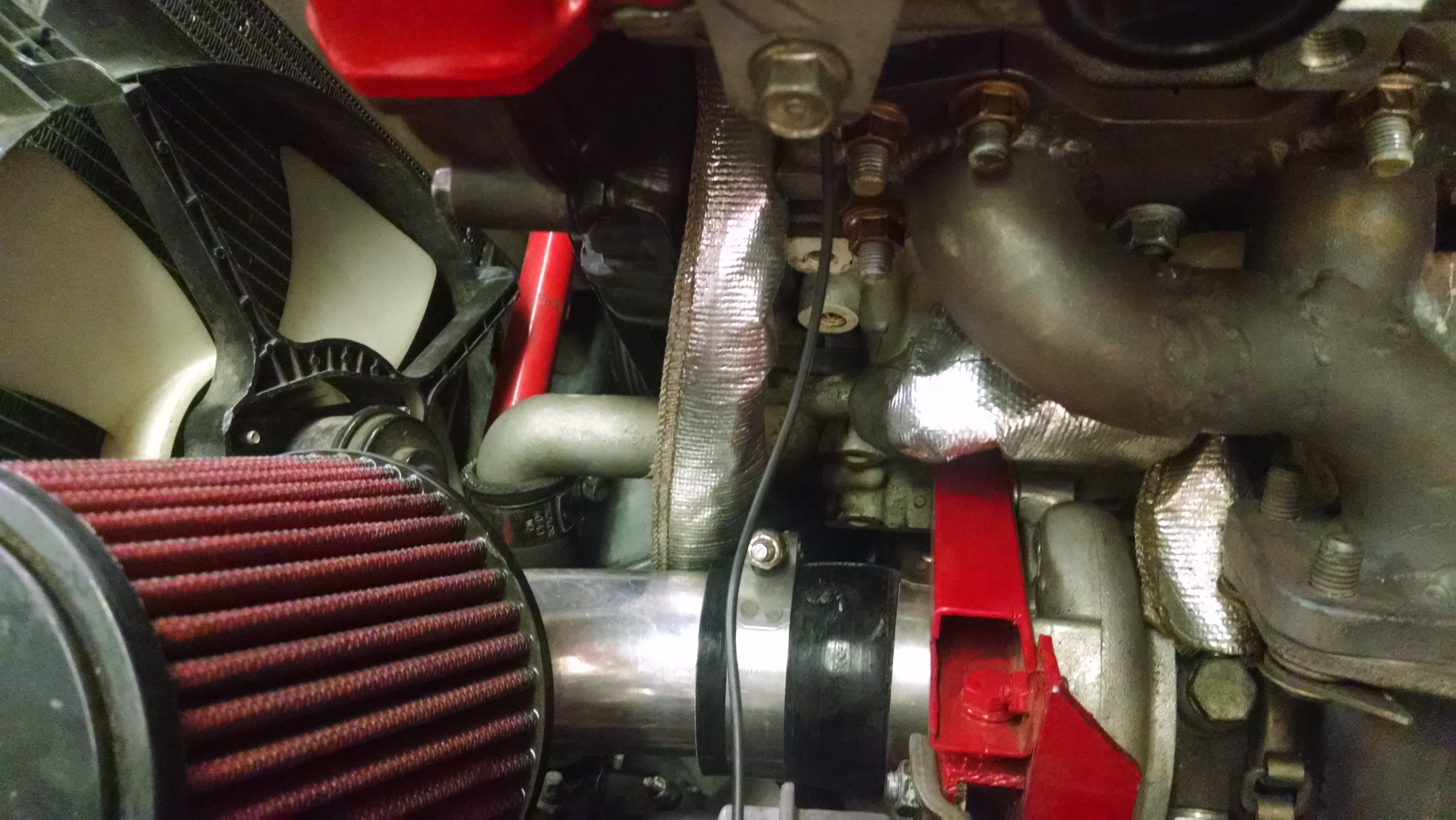

Weld the hole. Flip it around and tap the other end for turbo coolant return.

there are a few more pictures in my build thread.

Put a T in the lower rad hose and send the heater outlet back to it.

If you can weld its free.
Attached Thumbnails
Moving that coolant pipe-ud7gu3q.jpg
aidandj is offline   Reply With Quote
Old 11-01-2015, 05:45 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 86
Total Cats: 6
Default

Thanks guys. I couldn't find the front tube on Begi's site, only that slick reroute spacer for the rear. I wonder what he does with the heater core return.

I can't really tell where your heater return hose is in your pic either, aidandj. It's pretty busy down there.

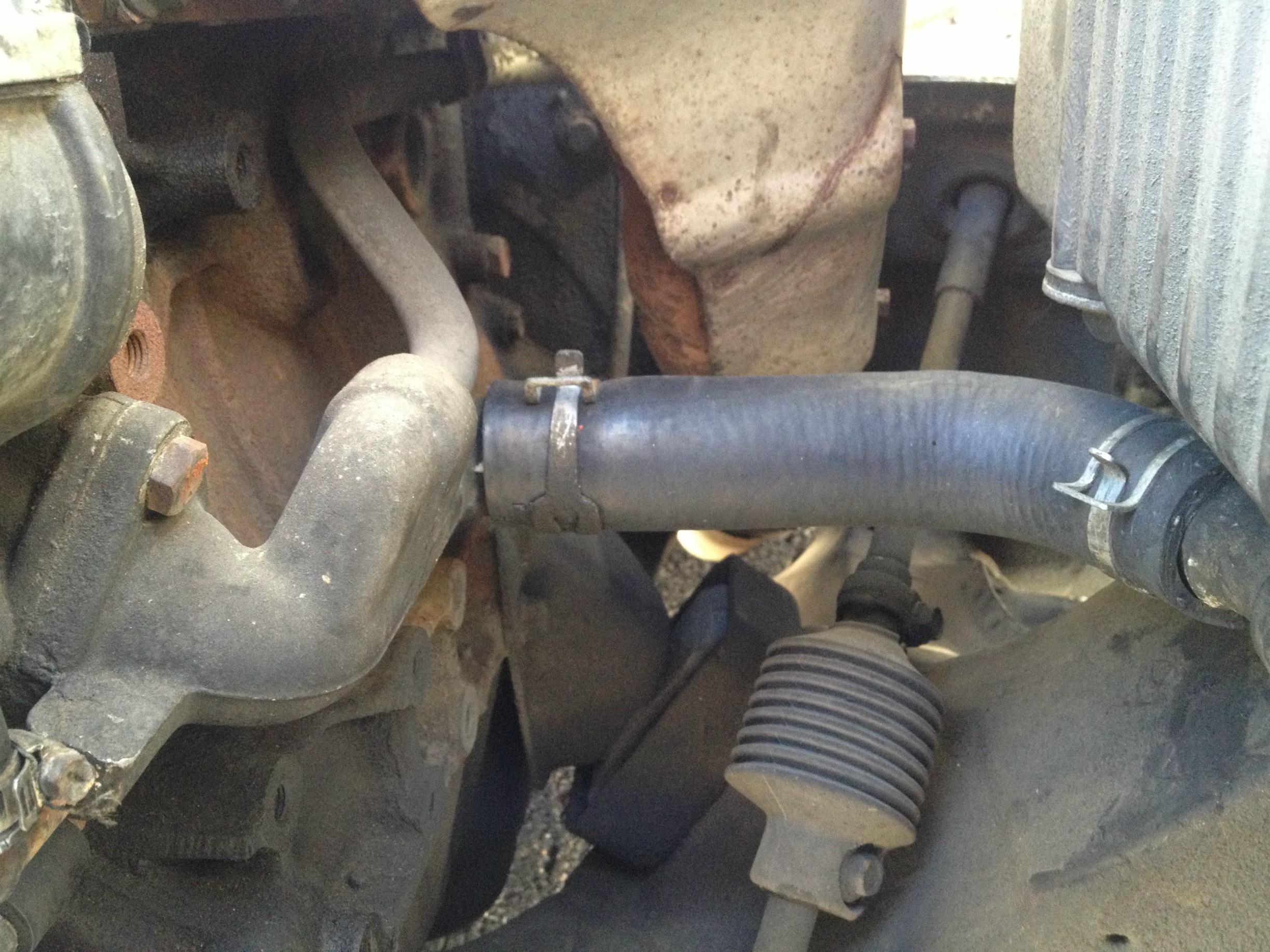

Here's a shot down the side of the engine, really shows how cramped it is in there


Turns out aliens landed in the shop while I was there
squeegee is offline   Reply With Quote
Old 11-01-2015, 05:50 PM   #6
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

Do some more searching. I have a lot of pictures of it in my build thread. Curly did it too.

Here is a video of how I ran mine.

[Url]

**** the mobile site
aidandj is offline   Reply With Quote
Old 11-01-2015, 06:23 PM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 86
Total Cats: 6
Default

Thanks, found it.

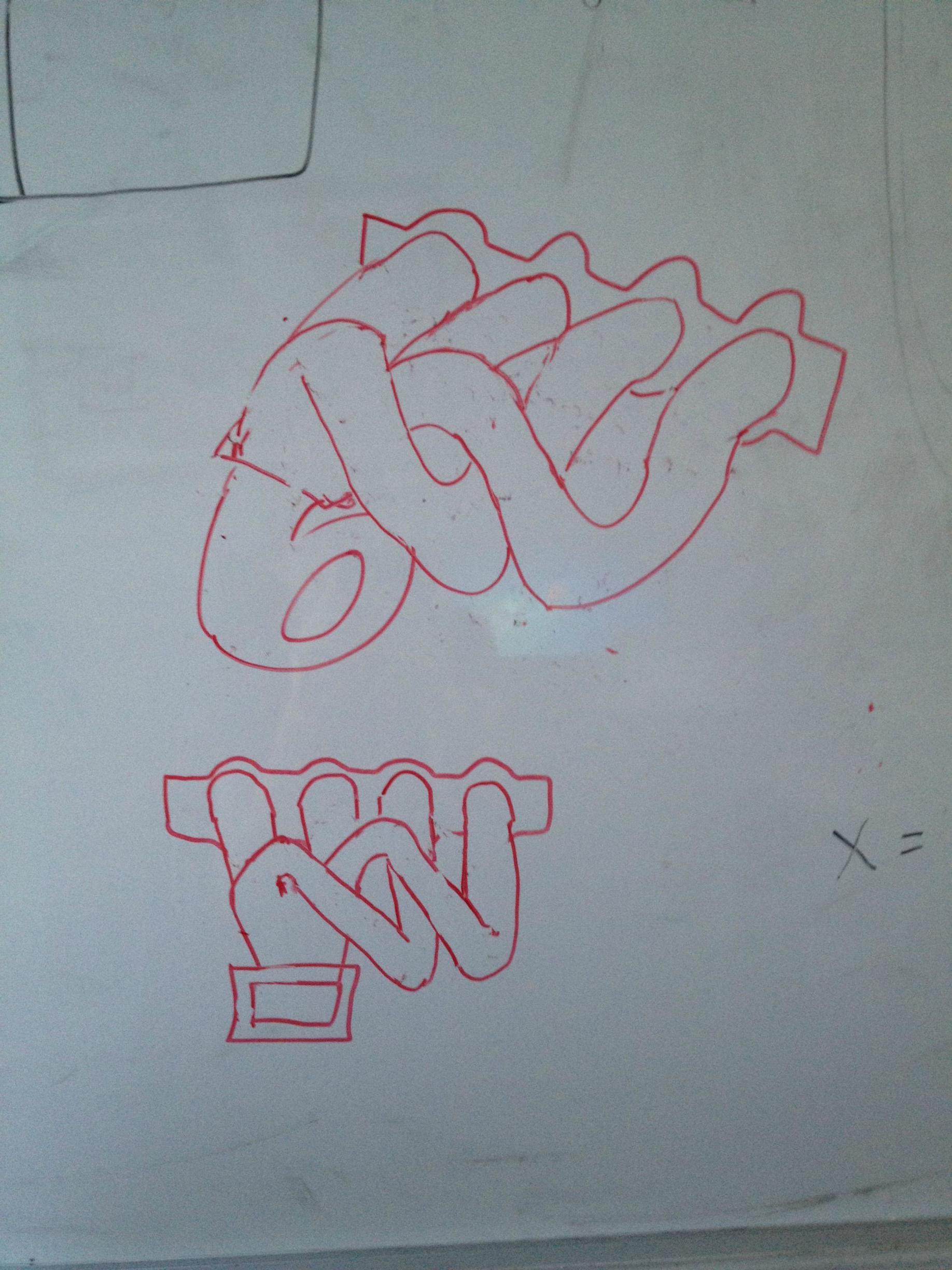

Here's my header design if you were wondering. I'll see if I can draw it in CAD
squeegee is offline   Reply With Quote
Old 11-01-2015, 06:37 PM   #8
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

Looks unnecessarily complicated. I prefer the short runner low-mounts. Good spool, good flow.
aidandj is offline   Reply With Quote
Old 11-01-2015, 07:04 PM   #9
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

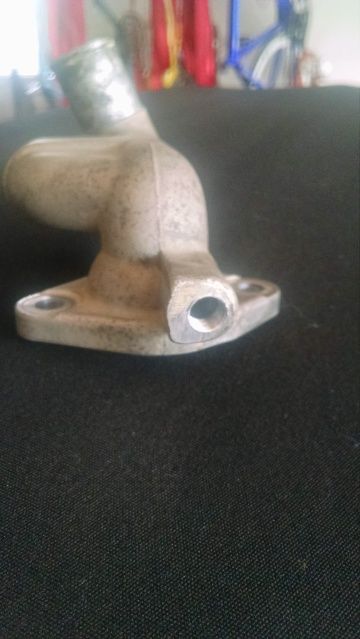

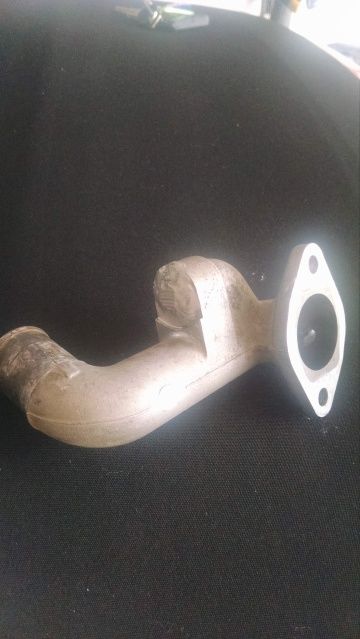

Aidandj's pics. Tell me why I should do this beyond removing the heater core return line, which I don't see as totally necessary unless there's no heater core in use.





Attached Thumbnails
Moving that coolant pipe-80-126611_community_build_thread_aidan_rambles_23vxljs_6f0a9616901de7fc19dd3ac8dfc57db50826d6f9.jpg   Moving that coolant pipe-80-126612_community_build_thread_aidan_rambles_2ykmc1f_ee331cac7248283be4e39d319985e20637ae7010.jpg
matthewdesigns is offline   Reply With Quote
Old 11-01-2015, 07:06 PM   #10
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

I did it to fit my turbo. And just make things easier down there.

hi_im_sean did a much ballerer version.
aidandj is offline   Reply With Quote
Old 11-01-2015, 07:08 PM   #11
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

You still have a heater core? If so, where does the return dump back into the system?
matthewdesigns is offline   Reply With Quote
Old 11-01-2015, 07:10 PM   #12
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

Quote:
Originally Posted by matthewdesigns View Post
You still have a heater core? If so, where does the return dump back into the system?
Look at my video again. It goes into a T in the lower rad hose.
aidandj is offline   Reply With Quote
Old 11-01-2015, 07:36 PM   #13
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

OK thanks. Will look at it for a first time haha

Edit: Obv after watching, thanks!
matthewdesigns is offline   Reply With Quote
Old 11-01-2015, 08:00 PM   #14
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

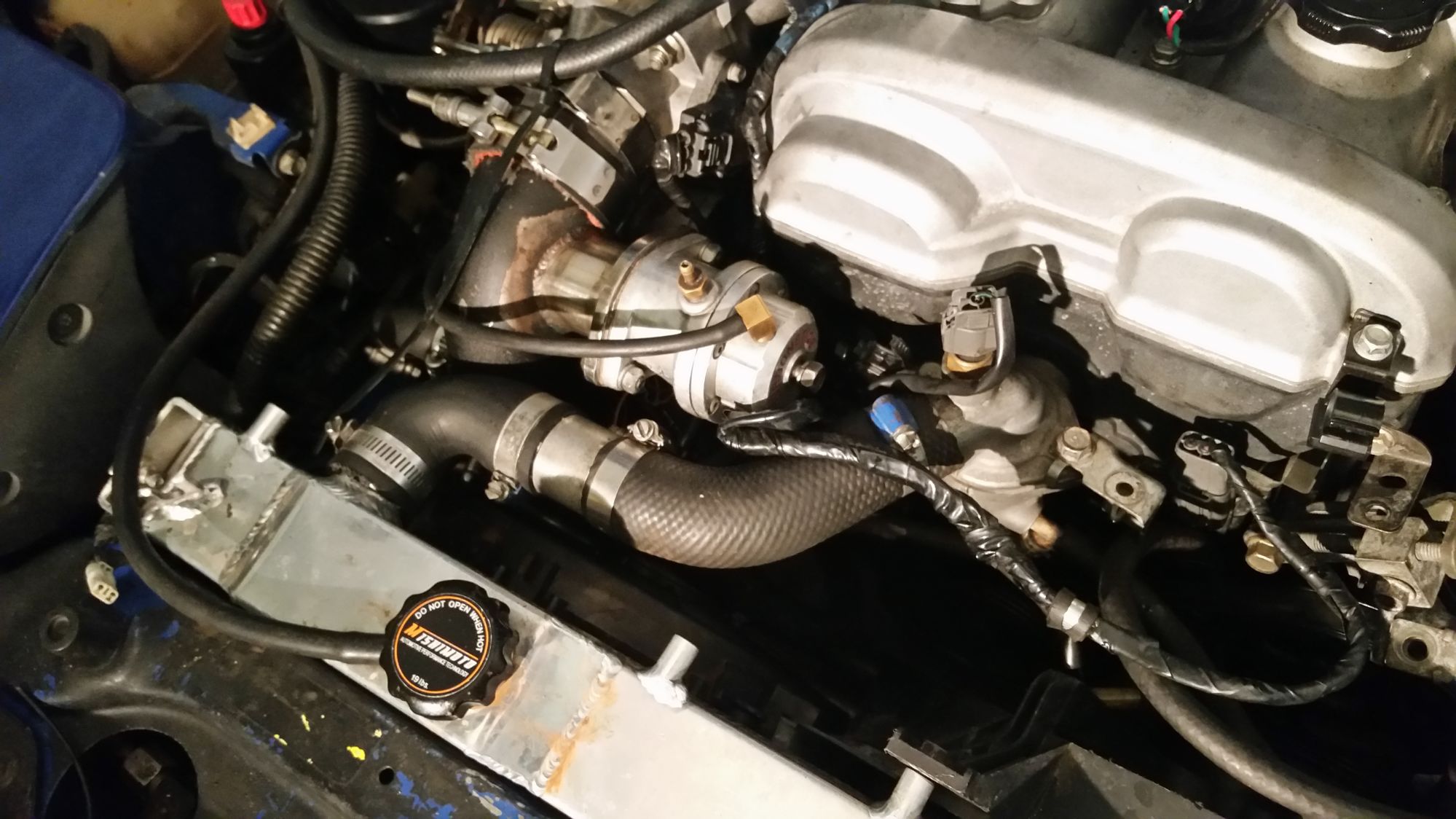

I have begi neck and it reroutes the water from the heater core into the upper radiator hose.

I am unsure but have been told it's a semi effective reroute option especially with stock vvt head gasket.
Attached Thumbnails
Moving that coolant pipe-80-20151101_175446_7392735146524481096a2ca9411239e789fb6647.jpg
90 Turbo is offline   Reply With Quote
Old 11-01-2015, 08:02 PM   #15
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

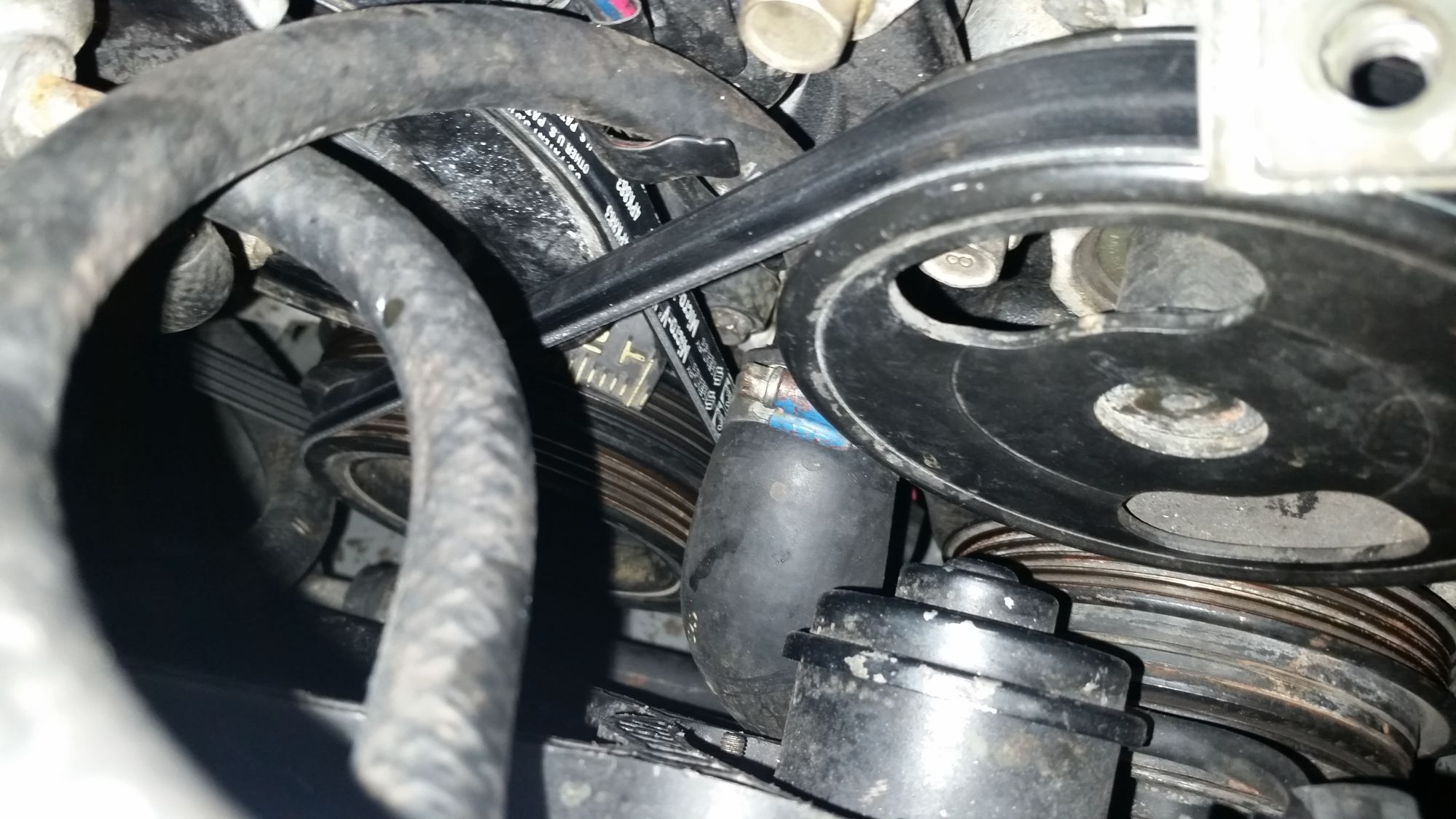

Neck is hard to see.
Attached Thumbnails
Moving that coolant pipe-80-20151101_175533_479ac5ac8a8e6813a9ab6f912284fdb63756fafa.jpg
90 Turbo is offline   Reply With Quote
Old 11-01-2015, 08:02 PM   #16
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

^dont do that.
aidandj is offline   Reply With Quote
Old 11-01-2015, 10:00 PM   #17
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

Quote:
Originally Posted by aidandj View Post
^dont do that.
Why? It's the way the car came with 1.6 from begi.
Seems to work fine and my research on here seemed to indicate it was fine.
90 Turbo is offline   Reply With Quote
Old 11-01-2015, 10:22 PM   #18
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

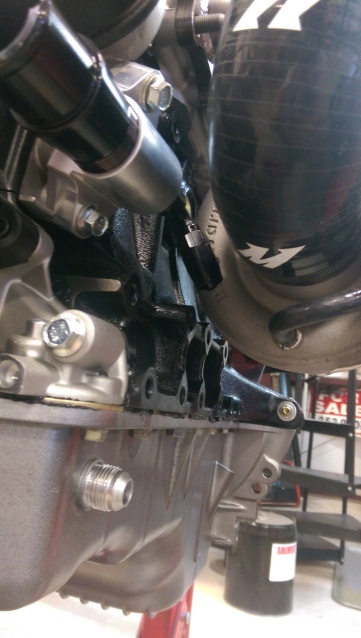

Another option.

Attached Thumbnails
Moving that coolant pipe-ngcxhy.jpg
TheBandit is offline   Reply With Quote
Old 11-01-2015, 10:26 PM   #19
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

Quote:
Originally Posted by 90 Turbo View Post
Why? It's the way the car came with 1.6 from begi.
Seems to work fine and my research on here seemed to indicate it was fine.
It ***** with the car warming up. There is a reason the coolant that bypasses the thermostat goes straight to the motor.
aidandj is offline   Reply With Quote
Old 11-02-2015, 09:33 AM   #20
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

Quote:
Originally Posted by aidandj View Post
It ***** with the car warming up. There is a reason the coolant that bypasses the thermostat goes straight to the motor.
OK thanks. In texas where it rarely gets below freezing when I drive the car it is not a problem but I appreciate the feedback.
