Default Msm, which style of bov do you prefer?

I'm gathering the last few pieces to put on my budget turbo kit. Since I'm running : 1.8 swap, mspnp2, wideband o2, and no afm, I ask a straight forward question of the opinion of those who have boosted before me.

Which style of blow off valve is the best bang for your buck? I am going in on a project that is mostly budget oriented, so any suggestions? Later on im thinking of a beautiful GFB bov but for now I need cheap function. Thanks a ton
Troy Jordan is offline   Reply With Quote
Old 03-22-2016, 02:52 PM   #2
Junior Member

Join Date: Feb 2015
Location: South Lake Tahoe
Posts: 100
Total Cats: 2
Default

I don't know what works best on a miata, but when I had my DSM I fell in love with the sound from a genuine greddy type-s.


Regardless of performance, I'd throw this on anything if I could keep hearing that sound lol. I checked those ebay replicas, but they don't sound the same, and any bov for 30 bucks is bound to not be as effective.

GFB or gofastbits makes some really awesome products, Blow off Valves/Diverter Valves
miataa is offline   Reply With Quote
Old 03-22-2016, 02:55 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

I'm trying to comprehend the question still

Not sure if clueless about bov's in general, or just ricer and by style you mean how it sounds
18psi is offline   Reply With Quote
Old 03-22-2016, 02:55 PM   #4
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,849
Total Cats: 271
Default


Last edited by Girz0r; 03-22-2016 at 03:13 PM.
Girz0r is offline   Reply With Quote
Old 03-22-2016, 03:07 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

he says msm then talks about a pieced together turbo kit
18psi is offline   Reply With Quote
Old 03-22-2016, 03:15 PM   #6
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,849
Total Cats: 271
Default

Yea I'm just going with 'msm' and provided a factory replacement link...

From previous posts claiming maaad HP on oem internals, vehicular intelligence is questionable



OP, fwiw... Greddy FV
Girz0r is offline   Reply With Quote
Old 03-22-2016, 03:26 PM   #7
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

90civichhb is offline   Reply With Quote
Old 03-22-2016, 03:37 PM   #8
Newb
Thread Starter

Join Date: Feb 2016
Location: Southern illinois
Posts: 21
Total Cats: -3
Default

I was curious which style works the best in your opinion. I have read that ssbov works best on air metered cars. Since I'm not metered and running a mspnp2, I'm looking for the most reliable style. Thanks
Troy Jordan is offline   Reply With Quote
Old 03-22-2016, 03:40 PM   #9
Newb
Thread Starter

Join Date: Feb 2016
Location: Southern illinois
Posts: 21
Total Cats: -3
Default

I guess I should of put in the title, " ihi rhf5 turbo " custom setup
Troy Jordan is offline   Reply With Quote
Old 03-22-2016, 03:42 PM   #10
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,849
Total Cats: 271
Default

In my own experience when using MAF, my greddy FV solved a lot of tuning headaches when I put it on my turbo system. (VS the old ebay copy greddy type rs that was on the car, had o-ring seals & a bad adjustment design.)

If using MAP, anything should be fine as long as your tuning is on point.


Are you using a MSM turbo setup?


Do you have a cat?
Girz0r is offline   Reply With Quote
Old 03-22-2016, 04:16 PM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,322
Total Cats: 1,919
Default

Quote:
Originally Posted by Troy Jordan View Post
I was curious which style works the best in your opinion. I have read that ssbov works best on air metered cars.
For vehicles running a MAF sensor, pretty much the only design rule is that you want a valve that can recirculate its exhaust back into the intake pipe downstream of the sensor. I can't imagine why any one specific make and model (eg: Blitz) would be superior in this regard.


Quote:
Originally Posted by Troy Jordan View Post
Since I'm not metered and running a mspnp2, I'm looking for the most reliable style.
Then just buy an OEM-style diaphragm valve. They will be more reliable, as a general rule, than piston-type valves, including the SSBOV you refer to earlier. Over time, the pistons tend to stick in their bores, which eventually leads to the valve hanging in a partially-open state.

The plastic-bodied Bosch valves are a good, reliable choice here. The one 90civichhb linked to on eBay appears to be an approximate copy of one, and is probably as good as any other in this regard.

On my '92, I used a cheap, Chinese made knockoff of a Greddy RS, for which recirculating adapters are available.
Joe Perez is offline   Reply With Quote
Old 03-22-2016, 04:21 PM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

huh? I was just about to recommend the piston style cause IMO it is more reliable than a rubber balloon that will deteriorate over time and leak

also the bosch plastic valves are notorious for leaking, even at low boost.

We seem to have polar opposite opinions lol
(though all the piston style valves I've used were new or near new, so you might be right regarding super old ones with bad seals)
18psi is offline   Reply With Quote
Old 03-22-2016, 04:30 PM   #13
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

The one I linked is aluminum but is a replica of the Bosch unit for sure. I use that one on my car and it seems to be doing fine at 180kPa. I did, however, take it apart and used quality grease on the bits that rub stuff.
90civichhb is offline   Reply With Quote
Old 03-22-2016, 04:32 PM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

Yeah I've tried that one and it worked fine
18psi is offline   Reply With Quote
Old 03-22-2016, 10:00 PM   #15
Junior Member
iTrader: (1)

Join Date: Jan 2016
Location: Indianapolis, IN
Posts: 132
Total Cats: 22
Default

I've had very good luck on a previous car (mk4 GTI) of using a stock evo diverter valve. I believe evo 8s and 9s both have the nice metal valve. If you Google "mad max diverter" it will show how you can modify them to hold up to ~30psi of boost as well.
zellers88 is offline   Reply With Quote
Old 03-22-2016, 10:22 PM   #16
Newb
Thread Starter

Join Date: Feb 2016
Location: Southern illinois
Posts: 21
Total Cats: -3
Default

Awesome input guys! That is the thought(typed) process I was hoping to evoke. I may jump on the non piston diaphragm to start with. I have my eye on a gfb but need to get it plumbed up and running beforehand. Save $ to get a proper tune.
Troy Jordan is offline   Reply With Quote
Old 03-22-2016, 10:41 PM   #17
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,322
Total Cats: 1,919
Default

Quote:
Originally Posted by Troy Jordan View Post
I may jump on the non piston diaphragm to start with.

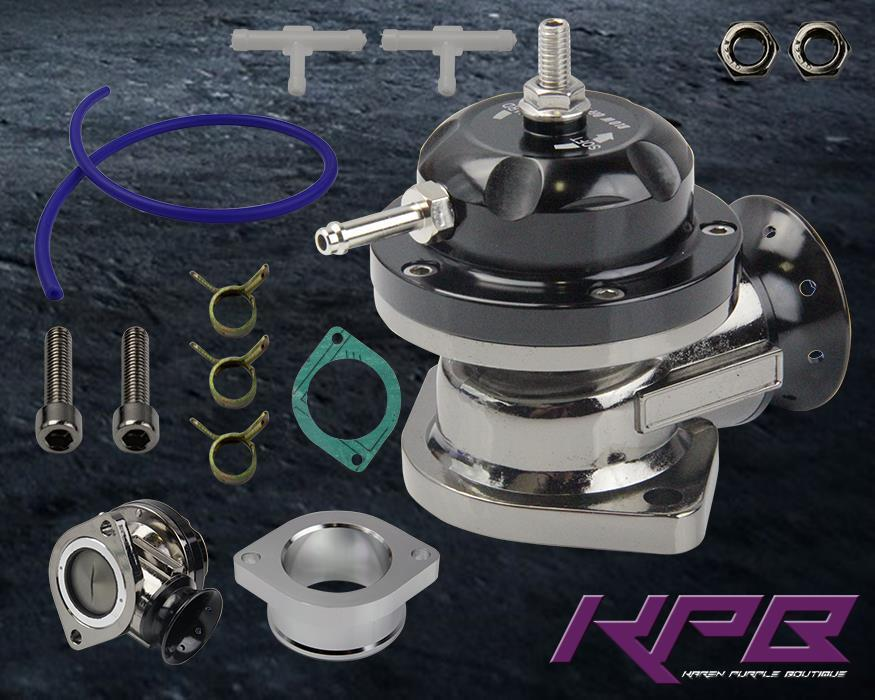

This is approximately the valve that I settled on for my '92, after going through two others:

Black Turbo Type RS BOV Blow Off Valve Adjustable PSI Boost Accord Prelude RSX | eBay





I don't remember exactly who I bought it from, and I have no idea how many different places are actually manufacturing these knockoffs (relative to the number of vendors selling them under different names), but it gave me years of reliable service.

The recirc adapter is a separate piece. I cut my own on the lathe, but you can also buy them for about $15.


A lot of these have dual, coaxial springs inside. For lower-boost applications, or for a softer transition into and out of venting, you can open it up and remove the smaller of the two.

Regardless, you'll want to open it up anyway to clean it out thoroughly (this sort of Chinese **** is notorious for coming out of the box full of machining chips and abrasive dust) and put some light grease on the moving parts.

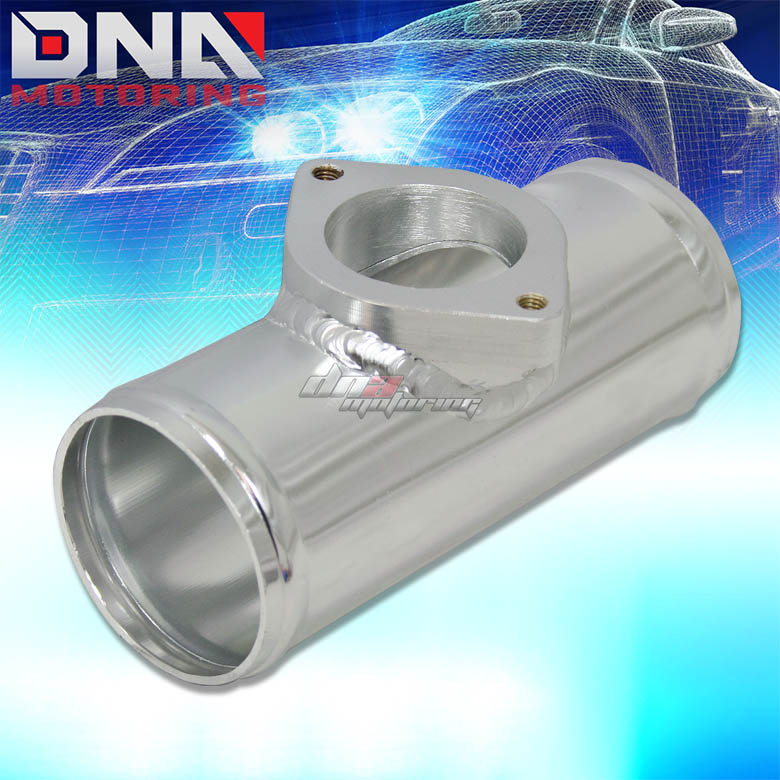

Tubes are also widely available with a mating flange for it pre-attached, in case you're not up for welding. Example: 2 5"T 6061 Aluminum for Greddy Turbo Intercooler Blow Off Valve Flange Pipe Tube | eBay


Attached Thumbnails
Msm, which style of bov do you prefer?-80-blob_224d96d2ab4c078f9627ab74a50e9381a1897129.png   Msm, which style of bov do you prefer?-80-blob_e97ce8219f9251b3cc180b3623acdbb8e02110c0.png
Joe Perez is offline   Reply With Quote
Old 03-22-2016, 11:01 PM   #18
Newb
Thread Starter

Join Date: Feb 2016
Location: Southern illinois
Posts: 21
Total Cats: -3
Default

Thanks joe!!! Good call on the initial go thru. I'll pretend it's a "new" 91/30 and clean the nasty stuff out of it.
Troy Jordan is offline   Reply With Quote
