Old 10-21-2009, 12:28 AM   #1
Senior Member
Thread Starter
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default my 2871r dyno vs the turbonetics *******

So the 2871 is at 20psi also. It wasnt tuned long though. Timing wasnt changed from the S60. Just adjusted AF so it would be safe. I believe there is alot of room for timing and much better improvement.
Attached Thumbnails

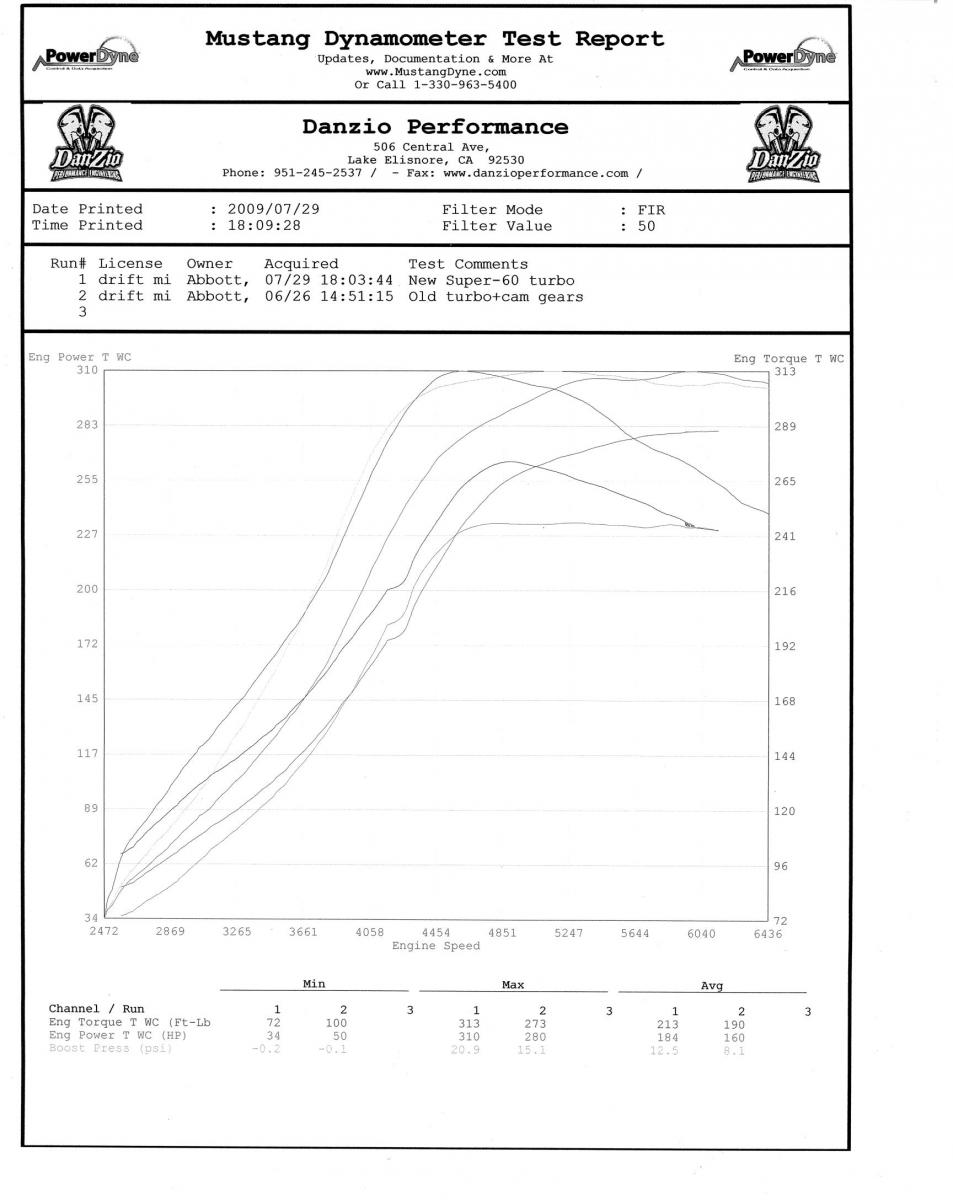

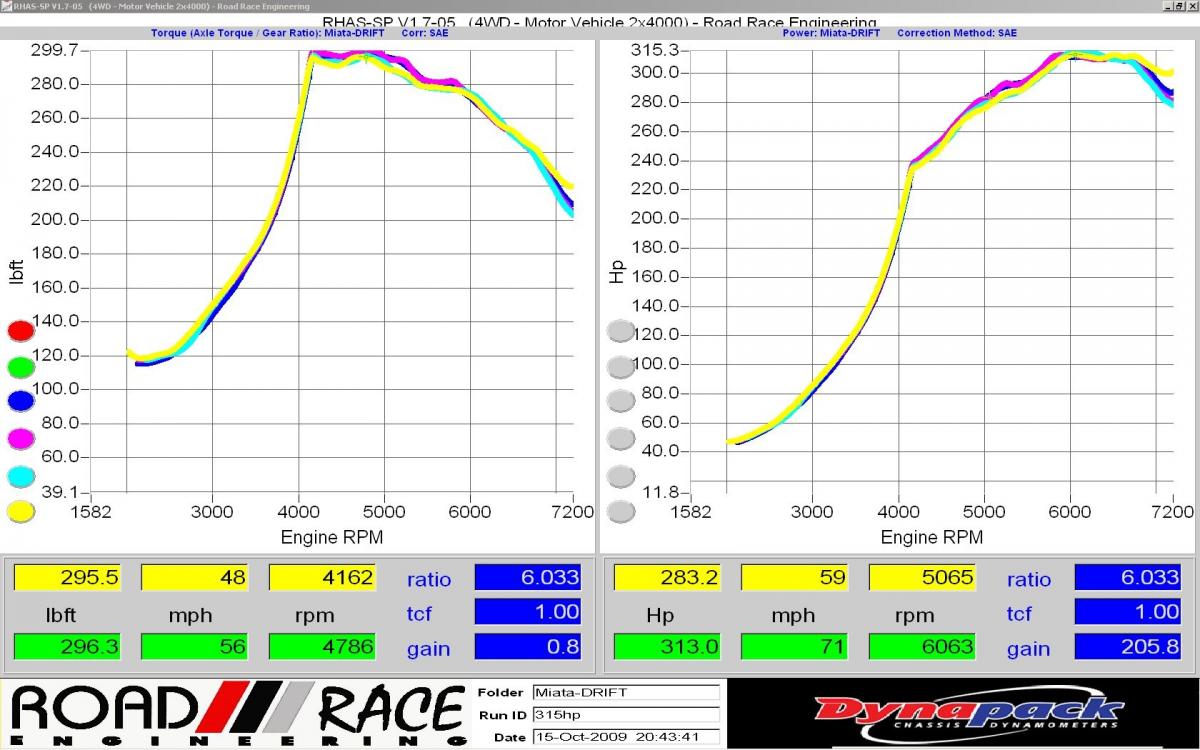

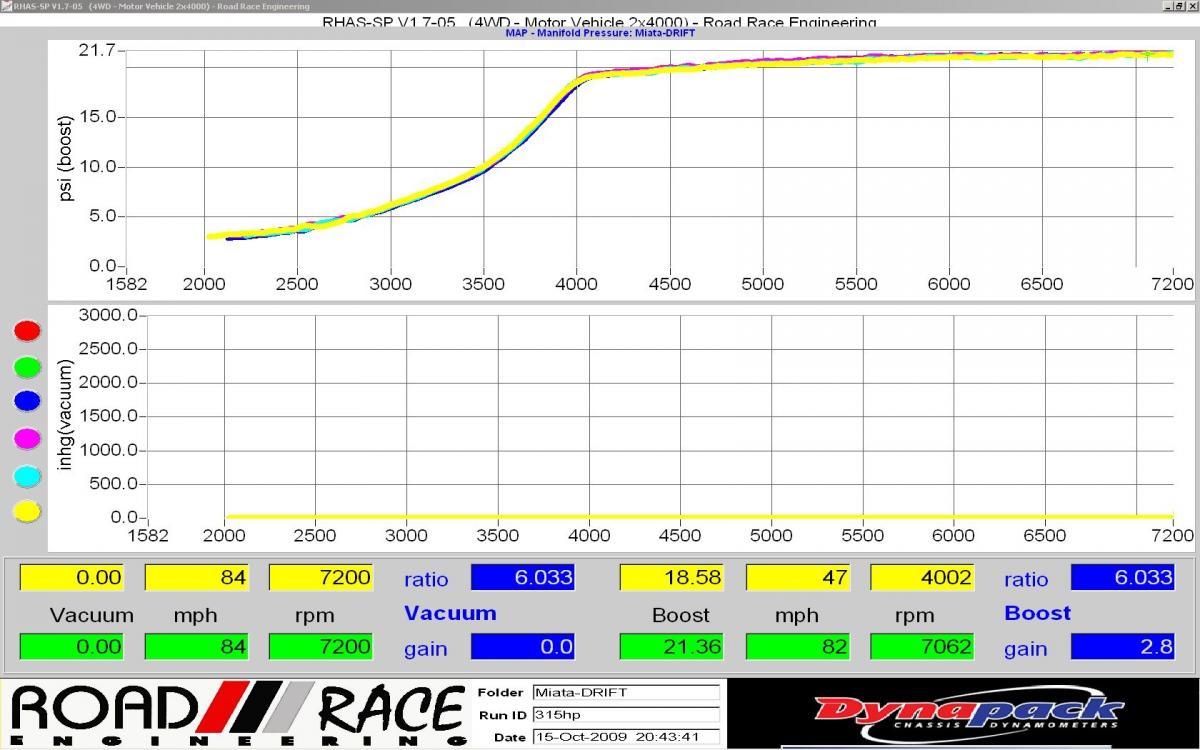

my 2871r dyno vs the turbonetics shitter-t3-s60-stage-1.jpg   my 2871r dyno vs the turbonetics shitter-315hp.jpg   my 2871r dyno vs the turbonetics shitter-315hp-boost.jpg
TURNS101 is offline   Reply With Quote
Old 10-21-2009, 12:33 AM   #2
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

Significantly faster spool.
+40 lb-ft
+30 hp

How is that other company still in business?
SolarYellow510 is offline   Reply With Quote
Old 10-21-2009, 12:35 AM   #3
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

Great gains, was your previous turbo DBB?
jtothawhat is offline   Reply With Quote
Old 10-21-2009, 01:43 AM   #4
Senior Member
Thread Starter
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

Quote:
Originally Posted by SolarYellow510 View Post
Significantly faster spool.
+40 lb-ft
+30 hp

How is that other company still in business?
I am actually down in power. The s60 was on a mustang, the 2871 is on a dyno pack. The car feels significantly less powerful.
It does appear to spool better, but def alot less *****.
Quote:
Originally Posted by jtothawhat View Post
Great gains, was your previous turbo DBB?
The previous turbo was the Turbonetics bb. Its not a DBB and that company is full of lying ********.

Anyway. I think the 2871 has alot of room for improvement. I am going to leave it at the dyno for a while to get it dialed in..

I will post the difference between now and then as soon as I have it.
TURNS101 is offline   Reply With Quote
Old 10-21-2009, 02:26 AM   #5
Junior Member
iTrader: (18)

Join Date: Aug 2006
Location: Temple City, Ca
Posts: 305
Total Cats: 0
Default

may i ask what's your build on your engine. too lazy to search. LOL

that's the turbo i'm going to put on soon hopefully
Hi Im Simon is offline   Reply With Quote
Old 10-21-2009, 12:39 PM   #6
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

The 2871 .64a/r feels to small on my car. If I had the choice again I would have sprung for a 3076. I'm on a built motor aswell.
dc2696 is offline   Reply With Quote
Old 10-21-2009, 12:57 PM   #7
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

Wow RRE is still around? I remember them back from my DSM days.
fmowry is offline   Reply With Quote
Old 10-21-2009, 01:00 PM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

damn, I bet that car scoots.
hustler is offline   Reply With Quote
Old 10-21-2009, 01:02 PM   #9
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Hmm. Kind of looks like you wanted a 3071.
Ben is offline   Reply With Quote
Old 10-21-2009, 01:19 PM   #10
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

I love how the t3s60 womps the 2871. I can't wait to dyno my shizzle on the NE Dyno Day.
neogenesis2004 is offline   Reply With Quote
Old 10-21-2009, 01:26 PM   #11
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

hmm i think once you get the timming sorted it will be atleast as good if not better. still very respectable and workable in getting sideways imo
magnamx-5 is offline   Reply With Quote
Old 10-21-2009, 01:32 PM   #12
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,327
Default

Get the timing sorted out. What A/R did you go with?
Savington is offline   Reply With Quote
Old 10-21-2009, 01:39 PM   #13
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

2871 has 3 different compressor trims too. Lot of flavors in trims and A/R combos.
fmowry is offline   Reply With Quote
Old 10-21-2009, 01:41 PM   #14
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,327
Default

If he got the turbo he was talking about from the other thread, it's the 52 trim compressor. He was talking about doing a very small A/R to aid spool, which would obviously hurt top end.
Savington is offline   Reply With Quote
Old 10-21-2009, 06:53 PM   #15
Senior Member
Thread Starter
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

I dont have the a/rs on hand.
This is the .64 housing.

Once the timing is sorted I think it will be much better.

this is the turbo I have. The very generic model most have.
TurboByGarrett.com - Catalog

Again, we will sort the timing and see what happens. I am surprised i am at the same boost. I expected to be running it lower. i am sure the timing is why. I would like to see 350-360 whp and ftlbs on this dyno pack thingy.

RRE is still rocking it out. They had the bay full of time attack car, road race, and ralley cars. I was the 5th person on the dyno that day..

More to come. car should be on the dyno next week..
TURNS101 is offline   Reply With Quote
Old 10-21-2009, 07:17 PM   #16
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Its nice to see what they turbos can do.
Loki047 is offline   Reply With Quote
Old 10-22-2009, 12:06 PM   #17
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

What gear was your car in when pulling on the Dynapack? It says you have a final drive ratio during the pull of 6.033 to 1. If you were in fourth, which is probable, that would mean that your tq and hp numbers are artificially high (which always makes a happy customer but doesn't tell the truth). The dyno operator knows this and is giving you BS numbers to make you feel good. That is why it feels slower than the numbers indicate. The numbers are just incorrect. It is a very common trick...happens often...

Good luck.
sixshooter is offline   Reply With Quote
Old 10-22-2009, 12:18 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Final drive ratio is irrelevant as Dyno is calibrated to Hub speed and engine rpm. The software should self calibrate, unless they didn't set it up properly.
Braineack is offline   Reply With Quote
Old 10-22-2009, 05:47 PM   #19
Senior Member
Thread Starter
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

I am not sure what gear it was in.
I am quite sure this tuner and the shop would not **** around with fluffing numbers. They know it wont fly with me and or my engine builder. The tuner is also an honest guy.

I am down on power simply because the 2871 numbers are on a wimpy dyno, not a mustang.
The HP is about what the mustang said and about TQ is about 20ftlbs less.

So the lower tq and the non mustang dyno all = less power. It wasnt a slouch, it just didnt have the ***** I did before. This is the one track I need every amount of power i could get..

Quote:
Originally Posted by sixshooter View Post
What gear was your car in when pulling on the Dynapack? It says you have a final drive ratio during the pull of 6.033 to 1. If you were in fourth, which is probable, that would mean that your tq and hp numbers are artificially high (which always makes a happy customer but doesn't tell the truth). The dyno operator knows this and is giving you BS numbers to make you feel good. That is why it feels slower than the numbers indicate. The numbers are just incorrect. It is a very common trick...happens often...

Good luck.
Quote:
Originally Posted by Braineack View Post
Final drive ratio is irrelevant as Dyno is calibrated to Hub speed and engine rpm. The software should self calibrate, unless they didn't set it up properly.
I believe this was happening..
TURNS101 is offline   Reply With Quote
Old 10-22-2009, 05:53 PM   #20
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,327
Default

Quote:
Originally Posted by Braineack View Post
Final drive ratio is irrelevant as Dyno is calibrated to Hub speed and engine rpm. The software should self calibrate, unless they didn't set it up properly.
Not on a Dynapack. They do it correctly, by inputting the final drive and then using the 1:1 gear.
Savington is offline   Reply With Quote
