Default my 96 build

i bought this car in november of 08, it was completely stock when i became the owner.

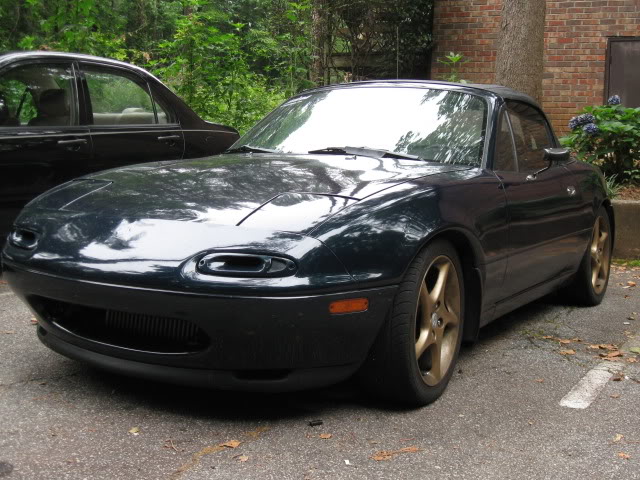

here is what it looks like now!

Name:  CopyofCopyofCopyofCopyofmiata016.jpg
Views: 1
Size:  95.2 KB

so far my mod list includes:

lowered on eibach springs
frame rail stiffeners
harddog single diagnal roll bar
turn signal intakes
R package sway bar
R package lip
one GT style carbon fiber mirror
MOMO steering wheel and daikei hub
NB sport wheels
AEM UEGO

for the power mods:

chinacharger (equivalent to a Garrett 2854)
older FM II IC and piping
BEGI log manifold
BEGI SG downpipe
Blitz BOV
MSPNP

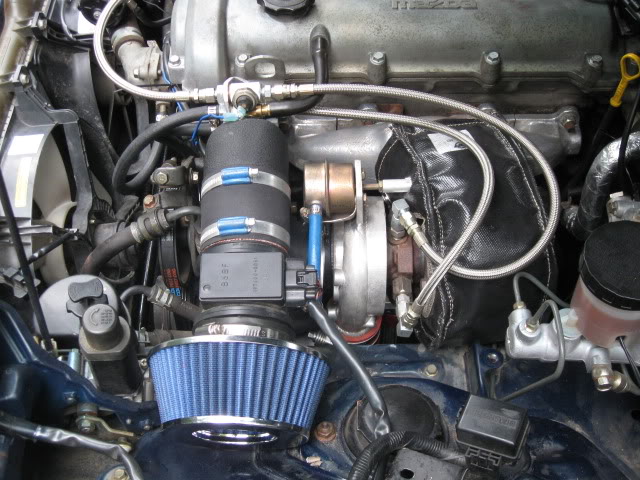

Name:  miata018.jpg
Views: 1
Size:  94.8 KB

Name:  miata019-1.jpg
Views: 2
Size:  88.5 KB

all that is left to install is exhaust, RC 550 injectors, Vishnu dual feed fuel rail and walboro 190 hp fuel pump.

after that a good tune!
WonTon is offline   Reply With Quote
Old 07-15-2009, 02:41 PM   #2
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

Clean up that engine bay, otherwise nice work!
zoomin is offline   Reply With Quote
Old 07-15-2009, 02:45 PM   #3
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

thats next on my to do list!
WonTon is offline   Reply With Quote
Old 07-15-2009, 02:53 PM   #4
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,355
Total Cats: 1,322
Default

It's a little hard to tell, but if your crankcase is plumbed back into the intake, vent it or put a catch can on it at the very least. Replace your radiator as well; when they turn brown, they are brittle and have a tendency to pop. Could take a week, could take a year, but it's best to deal with it on your timetable. Also, get rid of that turbo blanket. It does no good.

Nice clean build, otherwise.
Savington is online now   Reply With Quote
Old 07-15-2009, 03:01 PM   #5
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
It's a little hard to tell, but if your crankcase is plumbed back into the intake, vent it or put a catch can on it at the very least. Replace your radiator as well; when they turn brown, they are brittle and have a tendency to pop. Could take a week, could take a year, but it's best to deal with it on your timetable. Also, get rid of that turbo blanket. It does no good.

Nice clean build, otherwise.
i waiting on money right now. radiator is one of the next things im gonna be buying. i completely forgot about a catch can! thanks for the reminder.
WonTon is offline   Reply With Quote
Old 07-15-2009, 03:12 PM   #6
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

Are you running the oil feed line off a "T" at the oil pressure sender? And definitely get the filter put on that Blitz BOV.
zoomin is offline   Reply With Quote
Old 07-15-2009, 03:17 PM   #7
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Quote:
Originally Posted by zoomin View Post
Are you running the oil feed line off a "T" at the oil pressure sender? And definitely get the filter put on that Blitz BOV.
i got the distribution block kit from bell. the oil pressure sending unit got relocated to the distribution block and the feed was put in place of the sending unit.

rotornut has to find it for me, its his old BOV!
WonTon is offline   Reply With Quote
Old 07-15-2009, 03:38 PM   #8
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

Quote:
Originally Posted by WonTon View Post
i got the distribution block kit from bell. the oil pressure sending unit got relocated to the distribution block and the feed was put in place of the sending unit.

rotornut has to find it for me, its his old BOV!
Have a link to the distribution block? I ran a "T" on my first setup but sometimes the pressure gauge would act funny.
zoomin is offline   Reply With Quote
Old 07-15-2009, 03:48 PM   #9
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

this a link to the kit. the only have pics of the 99 up kits i believe,

BEGi

if you look in my third pic and look at the left corner of the valve cover you can see the sending unit with a blue wire coming off it!
WonTon is offline   Reply With Quote
Old 07-15-2009, 04:27 PM   #10
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

+1 on the rad, mine didn't even look that bad when the top cracked. Partsgroup has brand new Koyos with larger than stock capacity for $142.
rccote is offline   Reply With Quote
Old 07-15-2009, 04:31 PM   #11
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Quote:
Originally Posted by rccote View Post
+1 on the rad, mine didn't even look that bad when the top cracked. Partsgroup has brand new Koyos with larger than stock capacity for $142.
when i get the funds ill be pickin one up, thanks for the lead man!
WonTon is offline   Reply With Quote
Old 01-12-2010, 06:17 PM   #12
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

somewhat of a update!

right now im swapping in a 6 speed transmission and a 3.9 diff from an 03! everything has been going pretty good till now. my old trans and diff are out and gone, and im working on taking the clutch and flywheel off to take off the 5 speed trans plate thingy and put on the 6 speed trans plate thingy.

then it hit me..........i dont have a ******* clutch alignment tool to put my clutch back on

as soon as my roomate gets home ill shoot some pics with his camera!

oh does anybody know who sell the SS braided clutch line? while i was under the car i noticed mine leaking at the joining of the rubber to hard-line!
WonTon is offline   Reply With Quote
Old 01-12-2010, 06:26 PM   #13
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Are you desperate? Find a clutch kit at local parts store. Make sure you can return it before buying. Purchase, take home and slit the shrink wrap just enough at the edge of the cardboard backer to slide the tool out. Use it and then reinsert and return the kit. No harm done.
m2cupcar is offline   Reply With Quote
Old 01-12-2010, 06:32 PM   #14
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Quote:
Originally Posted by m2cupcar View Post
Are you desperate? Find a clutch kit at local parts store. Make sure you can return it before buying. Purchase, take home and slit the shrink wrap just enough at the edge of the cardboard backer to slide the tool out. Use it and then reinsert and return the kit. No harm done.
nah im not desperate man! i got other stuff i can do to keep me busy till i really need it! Eric is gonna let me know if he still has his!

i just felt like updating my build thread!
WonTon is offline   Reply With Quote
Old 01-12-2010, 06:42 PM   #15
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

If you're stuck, let me know...I'll mail you my clutch alignment tool as long as you return in when you're done.
mgeoffriau is offline   Reply With Quote
Old 01-12-2010, 06:49 PM   #16
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Seriously go buy (or borrow) a professional alignment tool. The ones that come in the cheap kits are so flimsy (hollow) that I invariably have trouble getting the tranny to line up.

I finally borrowed one from my mechanic uncle, and it made it much easier. Straight in, first time.

ACT Alignment Tool 1994-2005 Mazda Miata MX5, 1.8L, 215 and 225mm, Automotive, Parts & Accessories, Clutch/Flywheels at Underbid.com
gospeed81 is offline   Reply With Quote
Old 01-12-2010, 06:53 PM   #17
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

rotornut lives like 20 min from me he may still have his, if he does ill be borrowing his, and my roomate just got back and he said he would lend me the money to temporaily buy the clutch kit and then when im done using the part we can return it!
WonTon is offline   Reply With Quote
Old 01-12-2010, 08:22 PM   #18
Junior Member
iTrader: (6)

Join Date: Mar 2009
Location: down south tx
Posts: 115
Total Cats: -1
Default

damn wonton thats nice lil setup. i jus pm a few questions..
1.8-m is offline   Reply With Quote
Old 01-12-2010, 09:05 PM   #19
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Quote:
Originally Posted by WonTon View Post
oh does anybody know who sell the SS braided clutch line?
You can have mine.
RotorNutFD3S is offline   Reply With Quote
Old 01-13-2010, 12:29 AM   #20
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Quote:
Originally Posted by RotorNutFD3S View Post
You can have mine.
have or buy?

yeh that clutch line is bout to pop soon!




i finally got a clutch tool! nickt93, thanks for tracking it down for me.....6 speed is in the car and im working on bolting it up and getting all the little **** put back together. then is on to the PPF and driveshaft!
