Post My Almost Complete 1.8 Turbo Kit

Good Morning,

This is my first post on MiataTurbo.net and I think it is about time since I almost have my full turbo kit. I have been reading as much as I can here to prepare myself.
Below you will find my turbo kit plan and what part's I have already purchased. Forgive me if I forgot anything.
Few Questions has anyone done a similar type build?
What power did you end up making?
My goal is 250/250 hp/t. Would I achieve this with this build?
Also since I am going T3 will the spool be hurt significantly? Roughly when will I be hitting boost?
And lastly what BOV/Wastegate should I get? Any bad reviews from the 25$ eBay ones?
Any weak links in my build that I should fix?
Should I rebuild my engine prior to turboing? My car is a 1995 1.8l with 200k miles runs and drives great.


Downpipe (Abe, purchased)
T3 Turbo Manifold (Abe, purchased)
Turbo used garret (0.48 AR Exhaust Housing)
(0.60 A/R Compressor House) (purchased)
BOV (ebay)
Intercooler (purchased)
Intercooler Piping (purchased)
Oil drain lines (purchased)
wastegate (ebay)
clutch 600$ (FM Happy meal)
Boost gauge (ebay)
rx7 460cc or 550 cc injectors (Ebay)
Deatschwerks 165LPH Fuel Pump (FM)
Ms1PnP (Purchased)
Tyrant Fabrication Side exit turbo exhaust. (purchased)
AEM Wideband (purchased)
AEM Oil Pressure/Boost Gauge (Amazon combo) (side note: I really wanted matching color/brand)
Thank you for taking the time to read and answer any questions. Have a great day. ( side note: this is my first turbo build so please excuse any noob mistakes I make/say )

Last edited by [email protected]; 06-18-2016 at 01:50 PM.
muutant1998@gmail.com is offline   Reply With Quote
Old 06-19-2016, 01:33 PM   #2
Junior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 321
Total Cats: 19
Default

I would go with flow force ev14 injectors.
They are always recommended here, I run them and no issues
borka is offline   Reply With Quote
Old 06-19-2016, 02:15 PM   #3
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,338
Total Cats: 77
Default

Quote:
Originally Posted by borka View Post
I would go with flow force ev14 injectors.
Second that.

I would also recommend trying to sell that MS1PNP and getting something closer to MS3 tech if you have the time.
Schuyler is offline   Reply With Quote
Old 06-20-2016, 02:13 AM   #5
Senior Member

Join Date: Sep 2015
Location: San Jose, CA
Posts: 895
Total Cats: 28
Default

ms3 is better in every way
MiataMan00 is offline   Reply With Quote
Old 06-20-2016, 07:09 AM   #6
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,075
Total Cats: 917
Default

Quote:
Originally Posted by [email protected] View Post
OK Ill go with those injectors, can anyone explain pros and cons of going with ms3 or ms2 pnp? over the ms1?
Would you go out and buy a playstation 1 instead of a playstation 4?
shuiend is offline   Reply With Quote
Old 06-23-2016, 01:21 AM   #8
Senior Member

Join Date: Sep 2015
Location: San Jose, CA
Posts: 895
Total Cats: 28
Default

Quote:
Originally Posted by [email protected] View Post
Is a ms3 really necessary for a street daily driver? I'll upgrade if it is.
Yes. Do yourself a favor and get it
MiataMan00 is offline   Reply With Quote
Old 06-23-2016, 08:32 AM   #9
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,976
Total Cats: 145
Default

Ms1 and ms2 are no longer supported with software improvement or updates. Ms3 is .
ryansmoneypit is offline   Reply With Quote
Old 06-23-2016, 01:31 PM   #10
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,338
Total Cats: 77
Default

Quote:
Originally Posted by [email protected] View Post
Is a ms3 really necessary for a street daily driver? I'll upgrade if it is.
In my opinion, you will be see the benefits of the MS3 more in a street car than a racecar .
Schuyler is offline   Reply With Quote
Old 06-23-2016, 02:17 PM   #11
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,075
Total Cats: 917
Default

Quote:
Originally Posted by Schuyler View Post
In my opinion, you will be see the benefits of the MS3 more in a street car than a racecar .
Without a doubt this. I know plenty of people who run MS1's on track because it works well enough for running the engine. They don'e have any of the creature comforts that the MS3 excels at. Like badass closed loop idle control and AC control and ****.
shuiend is offline   Reply With Quote
Old 06-23-2016, 03:34 PM   #12
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

Quote:
Originally Posted by Schuyler View Post
In my opinion, you will be see the benefits of the MS3 more in a street car than a racecar .
Quote:
Originally Posted by shuiend View Post
Without a doubt this. I know plenty of people who run MS1's on track because it works well enough for running the engine. They don'e have any of the creature comforts that the MS3 excels at. Like badass closed loop idle control and AC control and ****.
Absolutely this. The MSPNP1 in the Red track car is 100% bone stock. The MSPNP1 in the Silver DD has been hacked to pieces and runs software I wrote. So, if you're not into that kind of thing, MS3 all the way on a daily.
hornetball is offline   Reply With Quote
Old 06-28-2016, 11:02 AM   #15
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,456
Total Cats: 2,272
Default

there is no 1 answer. most end up working ok, some do not and you have to fix them or replace them.

give it a shot.
18psi is offline   Reply With Quote
Old 06-28-2016, 11:31 AM   #16
Junior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 321
Total Cats: 19
Default

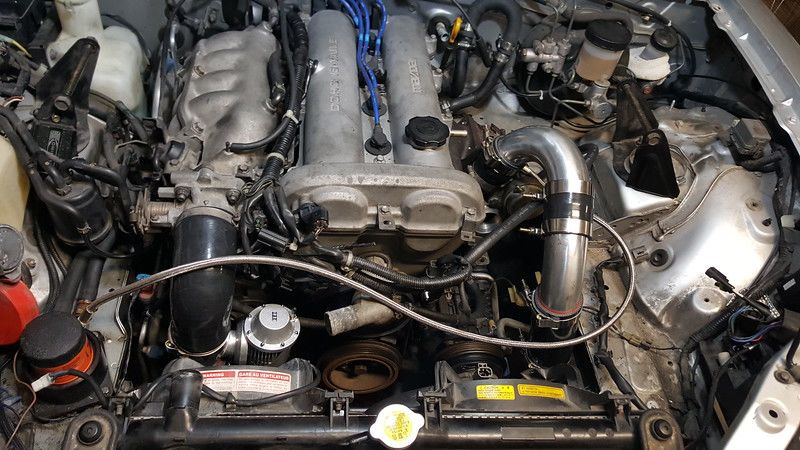

im running an eBay HKS SSQV, and it seems to work great. closes at idle and all. been running it for about a month now.

you can see it off the throttle body boot
Attached Thumbnails
My Almost Complete 1.8 Turbo Kit-80-i_lthmxb7_l_9f162f204327c4e2b52b8d62f64082ff87c10c5d.jpg
borka is offline   Reply With Quote
Old 06-28-2016, 12:18 PM   #17
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Westminster
Posts: 65
Total Cats: 0
Default

Okay Ill keep that in mind when ordering the BOV and WG.
Once I get the rest of my turbo parts I will start the install and build thread. ( ETA 1-2 months )
It will be my first build thread and I hope to not run into to many major issues.
However it will be my first time dealing with tuning and taking my car apart so mistakes will be made.
muutant1998@gmail.com is offline   Reply With Quote
Old 07-13-2016, 12:42 PM   #18
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Westminster
Posts: 65
Total Cats: 0
Default

Will start taking pictures of the parts as they come in and once I have them all I will start the install/build thread.
ARtech manifold and down pipe should be here in a week and then I will just need the injectors and the clutch to start the install.
Saving up for a ms3pnp or pro but I will start the build thread without it.
Should be a relatively slow build thread since I am still waiting on parts and since I will prob encounter some problems being a noob and all.
muutant1998@gmail.com is offline   Reply With Quote
Old 07-13-2016, 01:18 PM   #19
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,075
Total Cats: 917
Default

You need to get the MS3 of some sort before anything else. Install it with a wideband and learn to tune with the engine naturally aspirated. The likely hood of you blowing up your engine is far smaller this way.
shuiend is offline   Reply With Quote
Old 07-13-2016, 05:26 PM   #20
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Westminster
Posts: 65
Total Cats: 0
Default

Would I be able to learn to tune on a ms1 naturally aspirated then upgrade to ms3 when the turbo goes in?
Would it make a difference if I learned on the ms1 compared to the ms3?
muutant1998@gmail.com is offline   Reply With Quote
