Default My NA VVT turbo build (Pics)

Hey everyone, my names moe Im from NJ and heres the turbo kit I've pieced together and will be installing during my spring break. The car is a 97 chassis with full weight

The Build

04 VVT engine (stock internals for now)

650cc Ev-14 Injectors

MS3x ECU

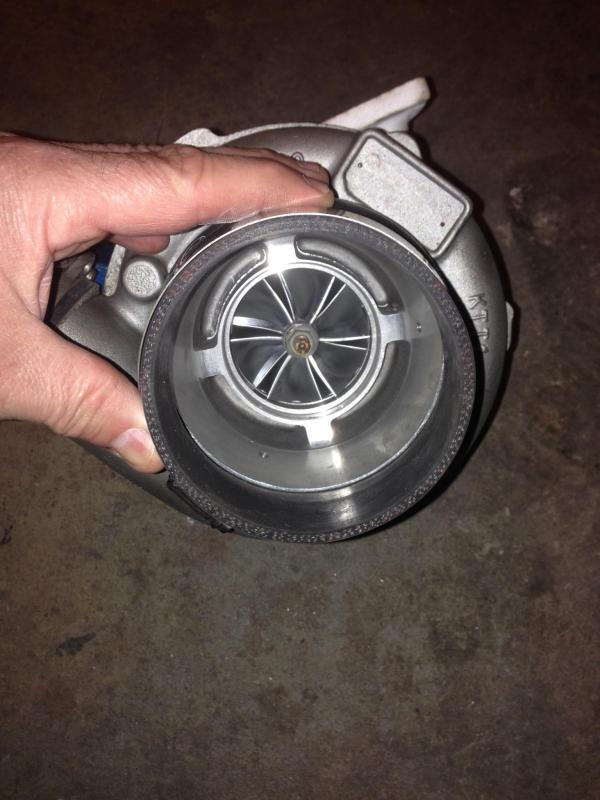

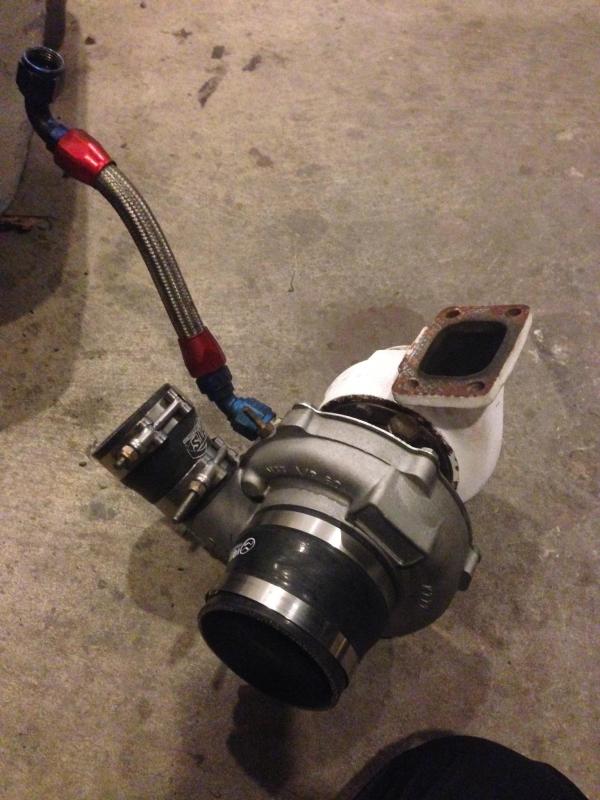

Custom 57mm billet compressor with anti surge port housing stage three t31 turbine with v-band outlet (Swain Tech coated)

Custom schedule 10 header (Swain Tech coated)

JGS 40mm external wastegate with our without reroute (7lb spring)

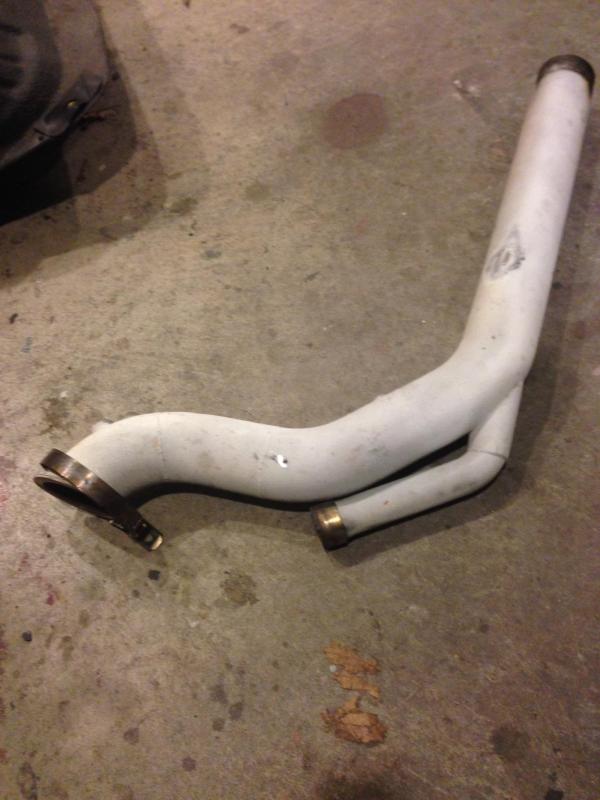

3" v-band stainless down pipe (Swain Tech coated)

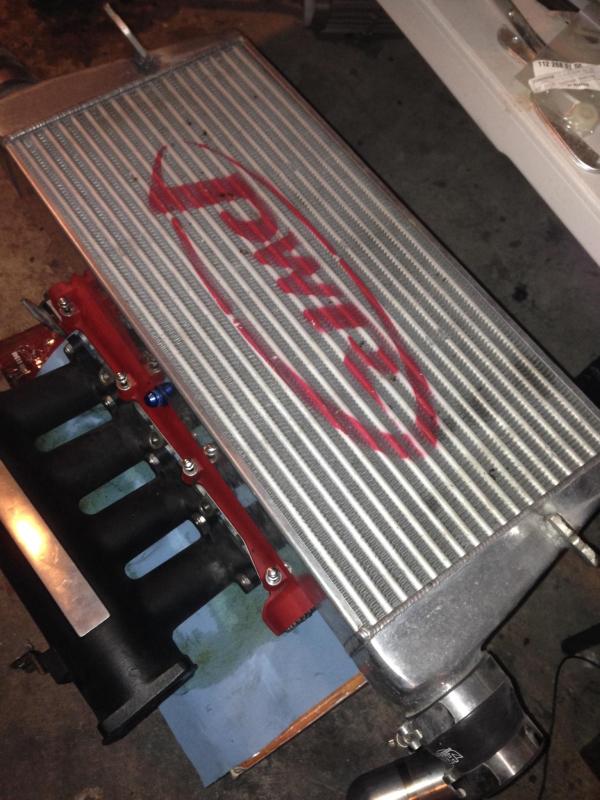

PWR 24x13x3 intercooler with custom aluminum piping

Koyo Radiator w/race fan, custom piping

Tial 50mm Bov

Flying Miata stage 1 clutch






Attached Thumbnails
My NA VVT turbo build (Pics)-2zpqm53.jpg   My NA VVT turbo build (Pics)-dcse2u.jpg   My NA VVT turbo build (Pics)-24zc6tw.jpg   My NA VVT turbo build (Pics)-ip5qn9.jpg   My NA VVT turbo build (Pics)-6fqb6x.jpg

My NA VVT turbo build (Pics)-5d7w9k.jpg
Rwdturbo747 is offline   Reply With Quote
Old 03-03-2015, 07:46 AM   #2
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,702
Total Cats: 319
Default

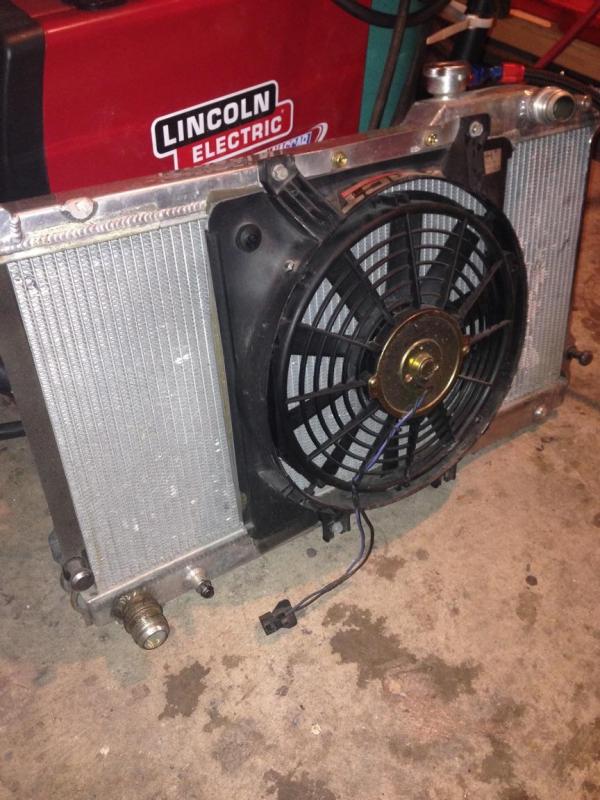

What fan sits that we'll in the center?
psyber_0ptix is offline   Reply With Quote
Old 03-03-2015, 03:28 PM   #3
Junior Member
Thread Starter

Join Date: Feb 2015
Posts: 62
Total Cats: -1
Default

Quote:
Originally Posted by psyber_0ptix View Post
What fan sits that we'll in the center?
It's custom welded on brackets, and 4 bolts. I guess a modified koyo radiator. the fan it's self is a koyo racing fan.
Rwdturbo747 is offline   Reply With Quote
Old 03-03-2015, 03:40 PM   #4
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,702
Total Cats: 319
Default

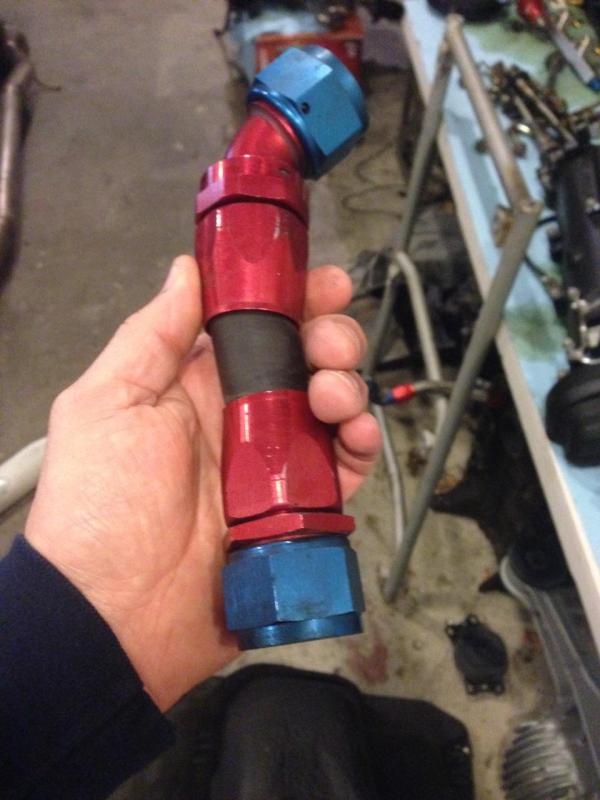

What are you doing for a PCV/breather setup setup? looks like you have an AN fitting there.
psyber_0ptix is offline   Reply With Quote
Old 03-03-2015, 04:11 PM   #5
Junior Member
Thread Starter

Join Date: Feb 2015
Posts: 62
Total Cats: -1
Default

Quote:
Originally Posted by psyber_0ptix View Post
What are you doing for a PCV/breather setup setup? looks like you have an AN fitting there.
That picture is from the previous owner. I will most likely have my welder weld a bung on the valve cover and run a/n fittings to a firewall mounted catch can. But I don't think it will be a necessity for low boost.
Rwdturbo747 is offline   Reply With Quote
Old 03-03-2015, 04:55 PM   #6
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,404
Total Cats: 200
Default

At what boost level does a catch can become a necessity?
ryansmoneypit is offline   Reply With Quote
Old 03-03-2015, 05:11 PM   #7
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Is this your only car? Do you have to have it running at the end of spring break? Have you already installed the MS3x and gotten that working? From reading your posts here it really sounds like you have bitten off a large project, that will most likely end in some sort of failure.
shuiend is offline   Reply With Quote
Old 03-03-2015, 05:52 PM   #8
Junior Member
Thread Starter

Join Date: Feb 2015
Posts: 62
Total Cats: -1
Default

Quote:
Originally Posted by shuiend View Post
Is this your only car? Do you have to have it running at the end of spring break? Have you already installed the MS3x and gotten that working? From reading your posts here it really sounds like you have bitten off a large project, that will most likely end in some sort of failure.
This is not my only car, or else I could never attempt this. I am not working alone on this build. A buddy of mine that lives in NJ hes on here by the name of BTmiata will be guiding me since he has done this all before. Am i expecting a 100% success? Of course not, but I am hoping to get this thing running first try and I am hoping to get feedback both positive and negative from the senior members. (MS3x will be shipped out tom).
Rwdturbo747 is offline   Reply With Quote
Old 03-03-2015, 06:00 PM   #9
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

I would highly suggest splitting it in pieces and doing things in steps.

First install the MS and get it up and running in the car. Learn how to tune a bit and get comfortable.

Then swap in the VVT motor. Retune and get all the kinks worked out with that.

Then throw on turbo parts, and tune.

I only say this because there is a ton of things that can go wrong when you do it all at once. Is the motor not starting because of a hardware issue, or MS issue, and other things that come up.
shuiend is offline   Reply With Quote
Old 03-03-2015, 06:07 PM   #10
Junior Member
Thread Starter

Join Date: Feb 2015
Posts: 62
Total Cats: -1
Default

Quote:
Originally Posted by shuiend View Post
I would highly suggest splitting it in pieces and doing things in steps.

First install the MS and get it up and running in the car. Learn how to tune a bit and get comfortable.

Then swap in the VVT motor. Retune and get all the kinks worked out with that.

Then throw on turbo parts, and tune.

I only say this because there is a ton of things that can go wrong when you do it all at once. Is the motor not starting because of a hardware issue, or MS issue, and other things that come up.
Well my VVT swap is already in and working (w/o vvt of course) for about a year now. Car runs and starts everyday. I will be getting tuned by a professional tuner so I don't plan on trying to tune this car myself. I am deff not even close to being ready to tune my own car. That being said, the only issue Im worried about is will this turbo at 7psi blow my stock engine? I am going to be doing rods and pistons but thats probably going to be next winter. I know there is no magic number and everyone here says 220tq is a safe figure.
Rwdturbo747 is offline   Reply With Quote
Old 03-03-2015, 07:18 PM   #11
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

One thing he has going for him is that I literally just got my setup together in October... So I should be able to help him get this thing set up. I'm sure there are going to be hiccups, but like he said this is not his daily and I made sure to make him aware that no matter how much you plan and try to get everything set up perfect in one weekend, it very rarely ever works out to be like that. Hopefully any roadblocks that we come across, you guys will help us get through!
BTMiata is offline   Reply With Quote
Old 03-03-2015, 07:25 PM   #12
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 266
Default

Good luck with the project!
Mobius is offline   Reply With Quote
Old 03-03-2015, 07:26 PM   #13
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

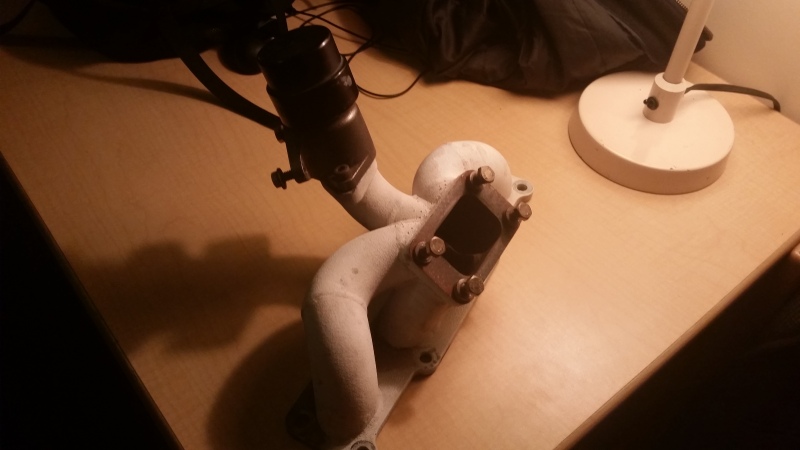

No manifold pics?!?
aidandj is offline   Reply With Quote
Old 03-03-2015, 07:37 PM   #14
Junior Member
Thread Starter

Join Date: Feb 2015
Posts: 62
Total Cats: -1
Default

Quote:
Originally Posted by aidandj View Post
No manifold pics?!?
Attached Thumbnails
My NA VVT turbo build (Pics)-a9u8p3.jpg
Rwdturbo747 is offline   Reply With Quote
Old 03-03-2015, 07:38 PM   #15
Junior Member
Thread Starter

Join Date: Feb 2015
Posts: 62
Total Cats: -1
Default

Quote:
Originally Posted by Mobius View Post
Good luck with the project!
Thanks buddy! hopefully everything goes on nicely
Rwdturbo747 is offline   Reply With Quote
Old 03-04-2015, 07:39 AM   #16
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,702
Total Cats: 319
Default

Hey BT, did you send those FM tools back (I forget). I think you already had. I just need to find them. Assembling motor this week and VVT head needs some seals

/hyjack
psyber_0ptix is offline   Reply With Quote
Old 03-04-2015, 08:35 AM   #17
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by psyber_0ptix View Post
Hey BT, did you send those FM tools back (I forget). I think you already had. I just need to find them. Assembling motor this week and VVT head needs some seals

/hyjack
Yup I sent them back shortly after using them so you shoukd have em!
BTMiata is offline   Reply With Quote
Old 03-18-2015, 07:21 AM   #18
Junior Member
Thread Starter

Join Date: Feb 2015
Posts: 62
Total Cats: -1
Default

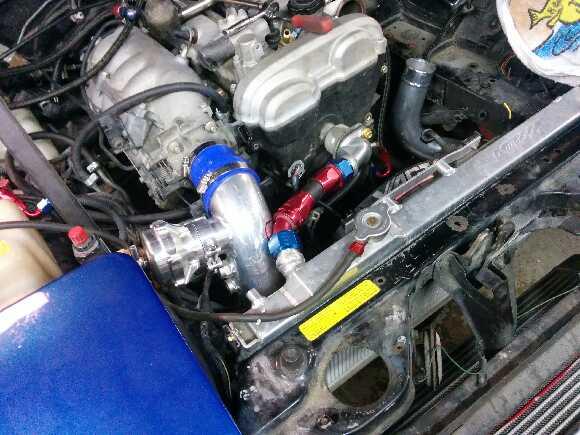

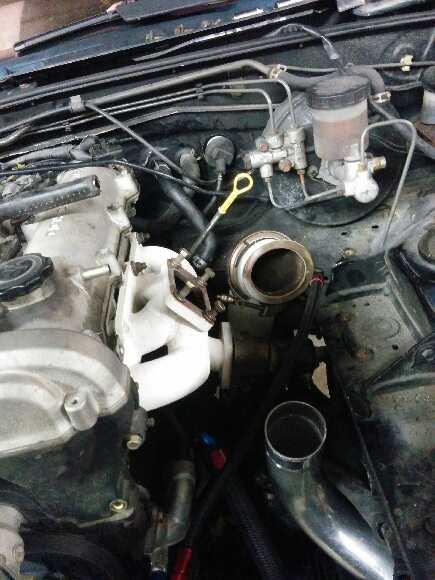

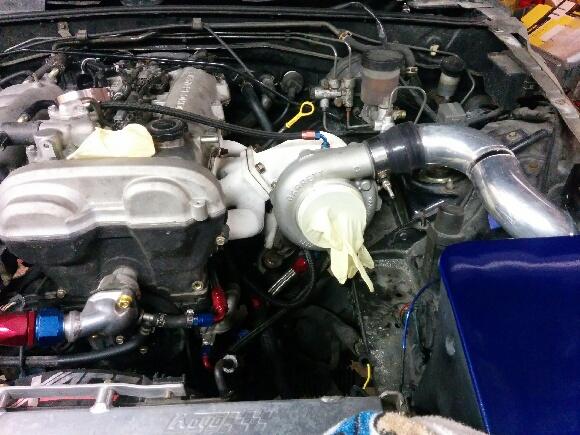

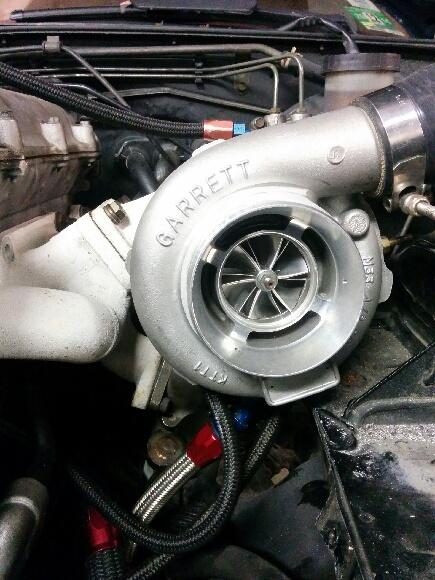

Well heres the progress so far, hopefully will be starting it this weekend enjoy the pictures.






My engine bay is so dirty gotta get some degreaser and clean that bad boy up, just need to figure out the wiring diagram for the MS VVT controls and everything should start right up. Praying I dont run into any issues.
Attached Thumbnails
My NA VVT turbo build (Pics)-2jcg46r.jpg   My NA VVT turbo build (Pics)-fk6t0n.jpg   My NA VVT turbo build (Pics)-svja5t.jpg   My NA VVT turbo build (Pics)-iyojl4.jpg
Rwdturbo747 is offline   Reply With Quote
Old 03-18-2015, 07:49 AM   #19
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,702
Total Cats: 319
Default

Can you show more pics on how you're routing your hotside charge piping? I'm running a different setup but am pretty limited unless I just throw the filter on the inlet. Just lookin for ideas.

Looks like one picture has it going into the fender area, the other is where all other kits run, interfering with where A/C would be
psyber_0ptix is offline   Reply With Quote
Old 03-18-2015, 11:48 PM   #20
Junior Member
Thread Starter

Join Date: Feb 2015
Posts: 62
Total Cats: -1
Default

Quote:
Originally Posted by psyber_0ptix View Post
Can you show more pics on how you're routing your hotside charge piping? I'm running a different setup but am pretty limited unless I just throw the filter on the inlet. Just lookin for ideas.

Looks like one picture has it going into the fender area, the other is where all other kits run, interfering with where A/C would be
Well I'm not running A/C nor power steering but I wanted a stealthy way to route the intercooler piping from the hotside so its routed through the fender and tucked long the wheel well. Ill post more pictures after the welding is done.
Rwdturbo747 is offline   Reply With Quote
