Default My spool sucks, help me!

I can't get more than 1-2 psi at 3k rpm no matter how much load i'm putting (also tried brake boosting). I have tried the following thing:

- tighten the wastegate arm

- run with no vaccum hose to the wastegate actuator

- retard spark

- advance spark

- add more fuel

- remove fuel

- retard/avdance vvt cam

- run open downpipe

'01 car with T3 60 trim 0.48 / 0.63, custom log manifold, stock injectors, stock clutch, adaptronic ems.

No intake boost leak, no pre-turbo exhaust leaks... what i'm doing wrong?

Name:  fixedspool.png
Views: 8
Size:  8.4 KB
ismael_pt is offline   Reply With Quote
Old 12-20-2009, 09:35 AM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

pics of "custom log manifold" please.
hustler is offline   Reply With Quote
Old 12-20-2009, 09:42 AM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

Quote:
Originally Posted by hustler View Post
pics of "custom log manifold" please.

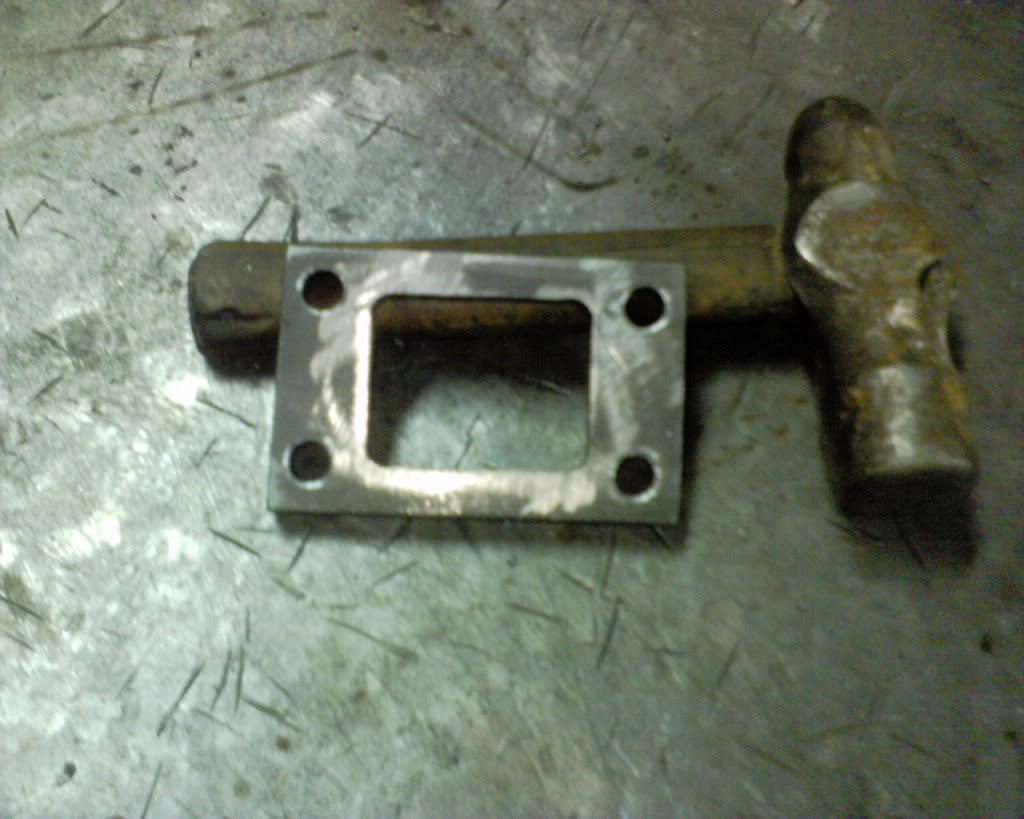

Name:  DSC00125.jpg
Views: 8
Size:  96.7 KB

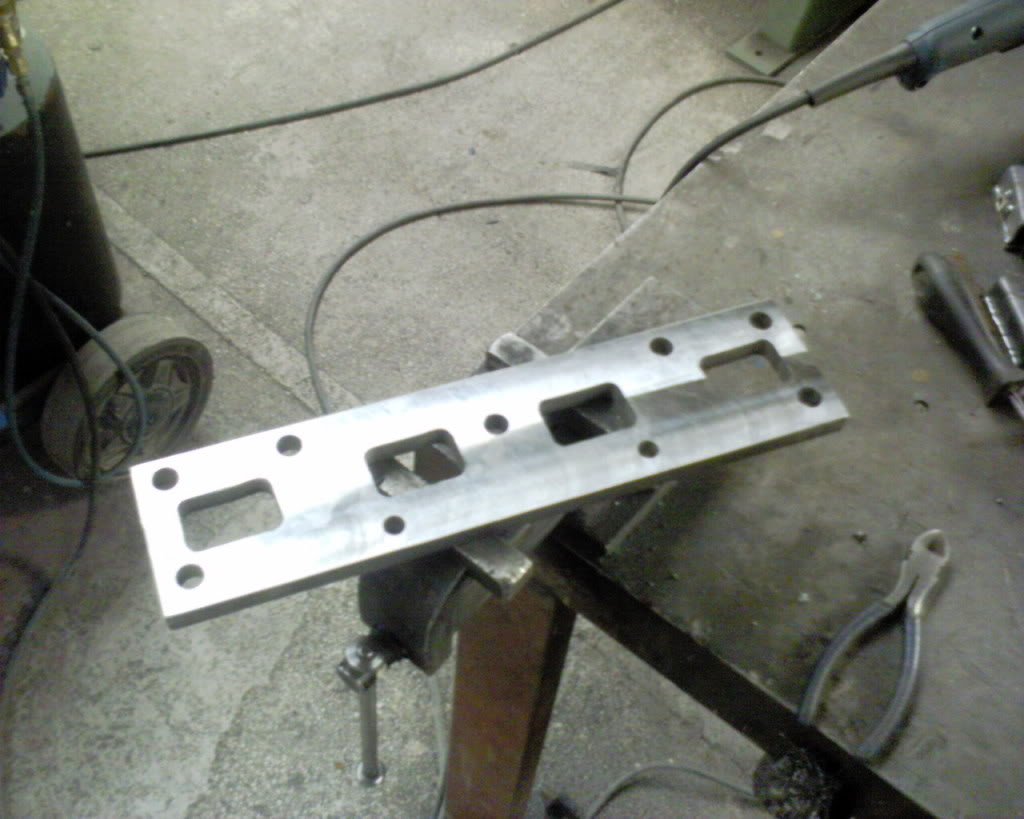

Name:  DSC00096.jpg
Views: 9
Size:  96.1 KB

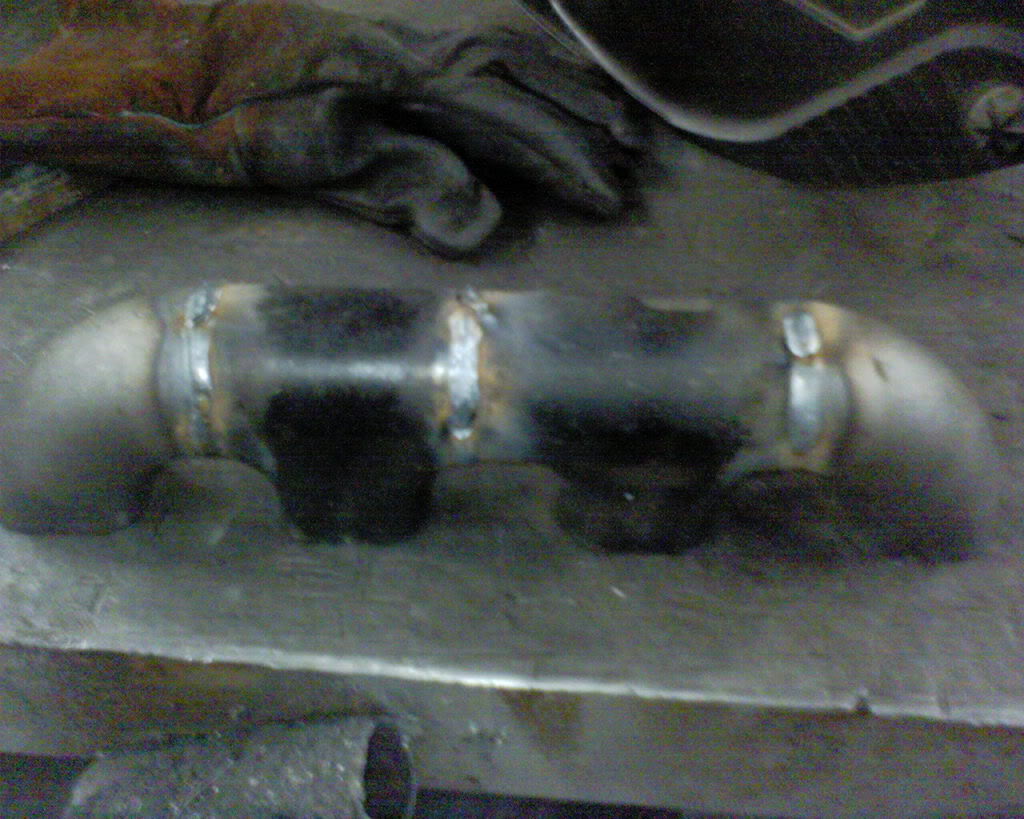

Name:  DSC00121.jpg
Views: 8
Size:  135.3 KB

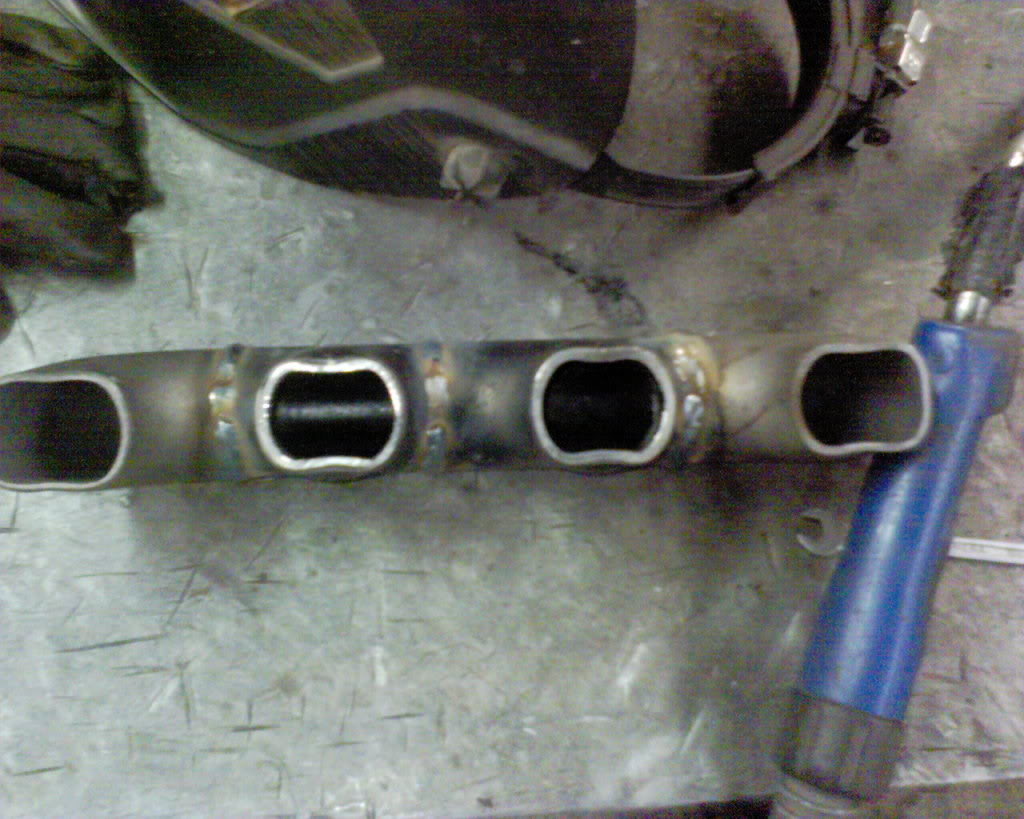

Name:  DSC00122.jpg
Views: 8
Size:  127.1 KB

Name:  DSC00137.jpg
Views: 8
Size:  112.5 KB
ismael_pt is offline   Reply With Quote
Old 12-20-2009, 09:57 AM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Well, that manifold is certainly not helping spool.
hustler is offline   Reply With Quote
Old 12-20-2009, 10:05 AM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

Quote:
Originally Posted by hustler View Post
Well, that manifold is certainly not helping spool.
Yes, but I dont believe that it is the reason of the totality of the problem.
ismael_pt is offline   Reply With Quote
Old 12-20-2009, 10:30 AM   #6
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Plug both ends of your intake (from the turbo to the throttle) and confirm there's no boost leak. There's some examples on the forum- I used some pvc end caps with a tire valve in cap to ad air from a compressor.
m2cupcar is offline   Reply With Quote
Old 12-20-2009, 12:10 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

no reason it should spool that slow...check for leaks, wastegate operation, timing, etc.
Braineack is offline   Reply With Quote
Old 12-28-2009, 12:05 AM   #8
Guest

Join Date: Dec 2009
Posts: 11
Total Cats: 0
Default

Is everything good with the turbo?
Jester of Paint is offline   Reply With Quote
Old 12-28-2009, 12:21 AM   #9
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

visually inspect the wastegate itself. make sure it's closing.
y8s is offline   Reply With Quote
Old 12-28-2009, 11:38 AM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

I checked for leaks and is not leaking. I'm sure the wastegate is closing because the turbo makes tons of boost past 4.5-5k rpm.

I'm asking myself if the VTCS stuff could be causing the problem. In my car the VTCS is still conected to the stock ecu. I belive that the ecu disconnect vtcs past 60ºC or something... so the question is... since the adaptronic loom is emulating WT signal and I have no idea of the value that are throwing the resistors, maybe the vtcs is always closed and only open when rpm hit some kind of threshold value on the stock ecu.

Anybody knows more about how the stock ecu control the vtcs?
ismael_pt is offline   Reply With Quote
Old 01-02-2010, 11:43 AM   #11
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by m2cupcar View Post
Plug both ends of your intake (from the turbo to the throttle) and confirm there's no boost leak. There's some examples on the forum- I used some pvc end caps with a tire valve in cap to ad air from a compressor.

Ismael; did you try this advice?

Do you have any local friends with another T3 you can borrow?
Rafa is offline   Reply With Quote
Old 01-02-2010, 12:06 PM   #12
Junior Member
iTrader: (1)

Sentic's Avatar

Join Date: Feb 2008
Location: Sweden
Posts: 435
Total Cats: 5
Default

Quote:
Originally Posted by ismael_pt View Post
I checked for leaks and is not leaking. I'm sure the wastegate is closing because the turbo makes tons of boost past 4.5-5k rpm.
This shouldn't get you sure its closed. If it is a little open, then you will still build enough exhausts at higher revs to make boost, but it won't do at lower.
Sentic is offline   Reply With Quote
Old 01-02-2010, 12:09 PM   #13
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Sentic View Post
This shouldn't get you sure its closed. If it is a little open, then you will still build enough exhausts at higher revs to make boost, but it won't do at lower.
Ajusta la varilla del Wastegate manualmente y déjanos saber que pasa.
Rafa is offline   Reply With Quote
Old 01-02-2010, 12:10 PM   #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

Quote:
Originally Posted by Rafa View Post
Ismael; did you try this advice?

Do you have any local friends with another T3 you can borrow?
Yes, i've tried and there is no boost leak. I doubt that it is boost leak related because i can hear the turbo spooling while rpm is increasing but not in high load situations. If it was boost leak problem, the turbocharger would scream like crazy when in load. So the problem is a spool problem, not a leak problem.

Past 4.500 rpm the boost creeps very quick.


No locals with T3's unfortunately :(
ismael_pt is offline   Reply With Quote
Old 01-02-2010, 12:12 PM   #15
Junior Member
iTrader: (1)

Join Date: Jun 2009
Location: Auburn Maine
Posts: 185
Total Cats: 0
Default

Same as above, check for boost leaks & check the wasgate to make sure the flopper is closing all the way. If you have an adjustable one adjust it alittle tighter.

Also what psi is the actuator for? Do you have a manual or electronic boost controller? Maybe its cracking open early.
vw_nut is offline   Reply With Quote
Old 01-02-2010, 12:24 PM   #16
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

8.3 psi is the factory setting, same as my target boost, but i've tried to tighten to a herculean level...

MBC, also have an EBC but not installed yet.

I have dismantled several times the turbo, and the gate moves freely.
ismael_pt is offline   Reply With Quote
Old 01-02-2010, 12:52 PM   #17
Junior Member
iTrader: (1)

Join Date: Jun 2009
Location: Auburn Maine
Posts: 185
Total Cats: 0
Default

Quote:
Originally Posted by ismael_pt View Post
8.3 psi is the factory setting, same as my target boost, but i've tried to tighten to a herculean level...

MBC, also have an EBC but not installed yet.

I have dismantled several times the turbo, and the gate moves freely.
So you have tried to tighten the rod that goes to the waste gate flapper? I wouldn't bother with the EBC if the MBC you have is a ball and spring type. It's not going to help. After that check for boost leaks. I've had some silicone connectors fail before and it was hard to find. Also vvt problems are a possibility. Retarded cam timing will make boost build slower, and if it moves enough could cause the problems you describe. (I am not aware of how the later vvt works so I don't know how much of a problem this could cause)

Last edited by vw_nut; 01-02-2010 at 12:57 PM. Reason: reread for comprehension
vw_nut is offline   Reply With Quote
Old 01-02-2010, 01:22 PM   #18
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

Quote:
Originally Posted by ismael_pt View Post
I checked for leaks and is not leaking. I'm sure the wastegate is closing because the turbo makes tons of boost past 4.5-5k rpm.

I'm asking myself if the VTCS stuff could be causing the problem. In my car the VTCS is still conected to the stock ecu. I belive that the ecu disconnect vtcs past 60ºC or something... so the question is... since the adaptronic loom is emulating WT signal and I have no idea of the value that are throwing the resistors, maybe the vtcs is always closed and only open when rpm hit some kind of threshold value on the stock ecu.

Anybody knows more about how the stock ecu control the vtcs?
oh oh wait!

Stock opens the VTCS at 3000 rpm. normally it only stays closed below 3000 and 60C, but if the adaptronic is jackin up your junk, it will cause problems.

but there's an easy way to test it...

On the front of the intake manifold, under the throttle body, is a vacuum actuator (similar to the wastegate one) that pulls the VTCS closed at startup. Just pull the hose off and plug the manifold side so it doesn't leak and see if it improves things.
y8s is offline   Reply With Quote
Old 01-02-2010, 02:30 PM   #19
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

In for solution/info.
dgmorr is offline   Reply With Quote
Old 01-02-2010, 06:57 PM   #20
Newb

Join Date: Jun 2009
Location: Southern California
Posts: 39
Total Cats: 0
Default

Hola, saludos a España si te encuentras ayi. Mira el vtcs es algo como el puero secundario del mazda rx7 n/a y solamente funciona para una aplicacion sin turbo. En el rx7 esta operado de 2 maneras dependiendo de el modelo. La idea es de abrirse a las 4,500-5,000 revoluciones en el RX-7 y me imagino que en los miatas Mazda tuvo una idea similar, nadamas no se exactamente en que tiempo o que contrala cuando se sierra o se abre. Lo que se es que esta operado por una valvula de vaccum. Puede ser que se este serrando especialmente si cambian los niveles de vaccum con el systema de turbo.

Lo que te puedo decir es que desconectes la valvula esa para que este abierto todo el tiempo. Eso es de acuerdo a este articulo que por lo pronto te pueda interesar.
www.mazdaspeedy.com: Removing restrictive VTCS from intake manifold
