Default my turbo build

So far the build has been going great. I got a jgs diy manifold a chinacharger gt2860 from e motor usa. Ordered an adaptronic, with the harness and 600 cc injectors from boundary engineering just thought id share some pictures with you guys with my diy turbo build. I'm still waiting for my adaptronic and injectors so thoes pictures will come soon
Attached Thumbnails
my turbo build-08241452.jpg   my turbo build-08241451a.jpg   my turbo build-08241451.jpg
ls1motorsports is offline   Reply With Quote
Old 08-25-2009, 12:02 AM   #2
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

mor pics...
p51hellfire is offline   Reply With Quote
Old 08-25-2009, 01:57 AM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2009
Location: illinois
Posts: 190
Total Cats: -4
Default

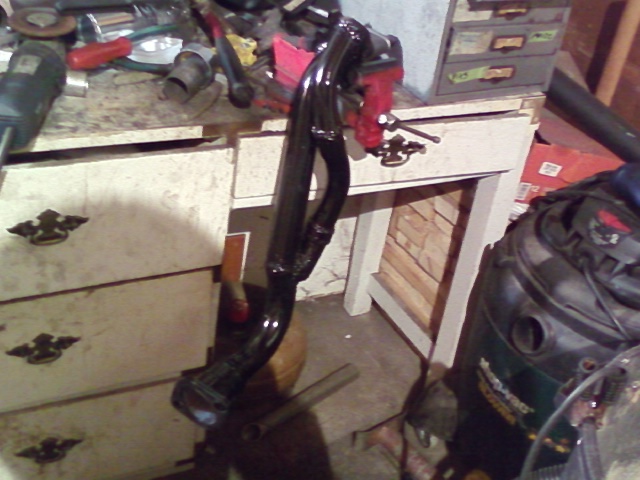

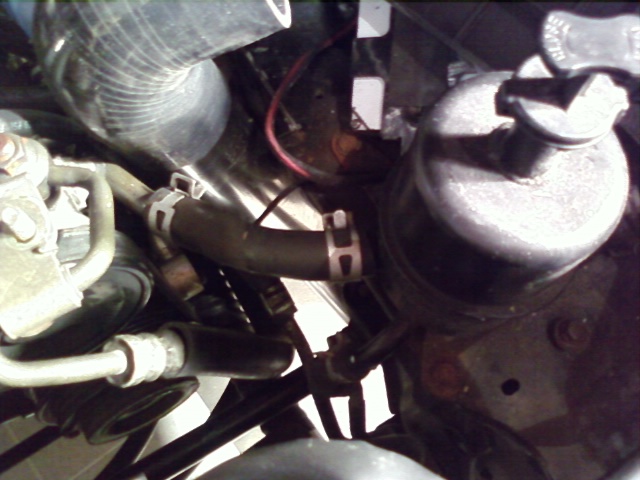

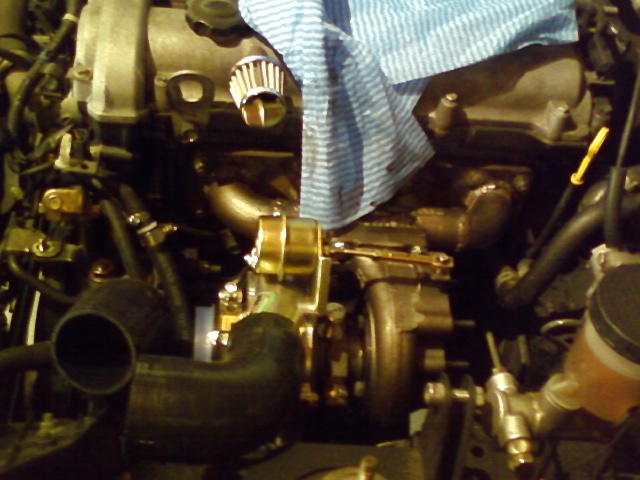

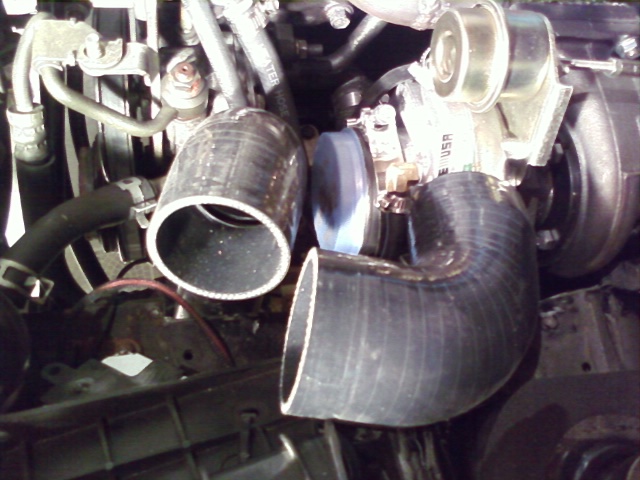

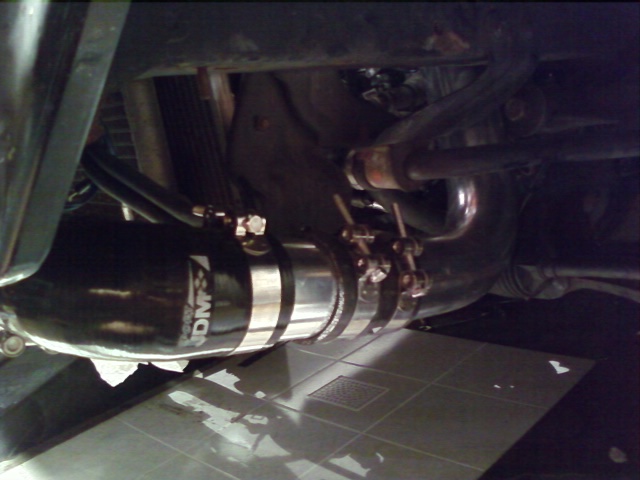

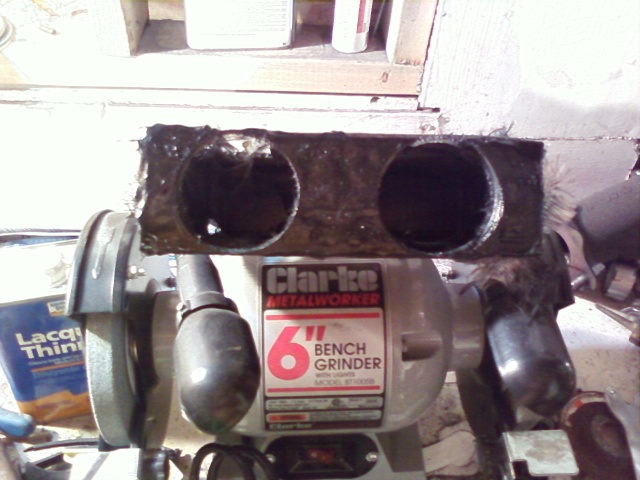

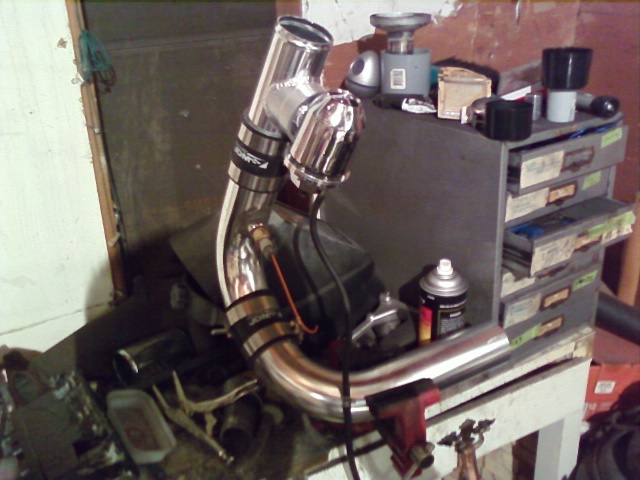

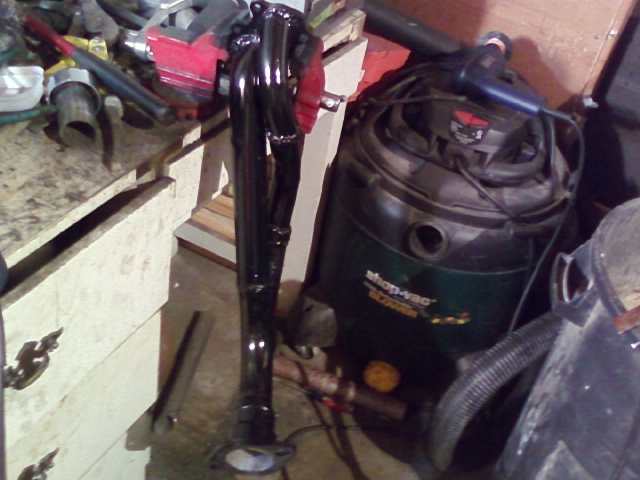

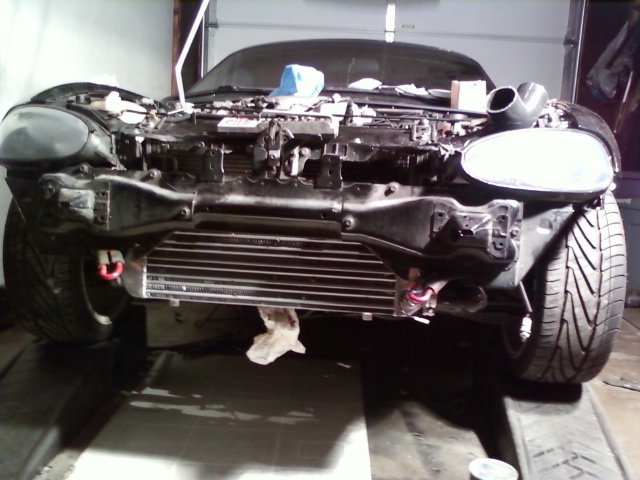

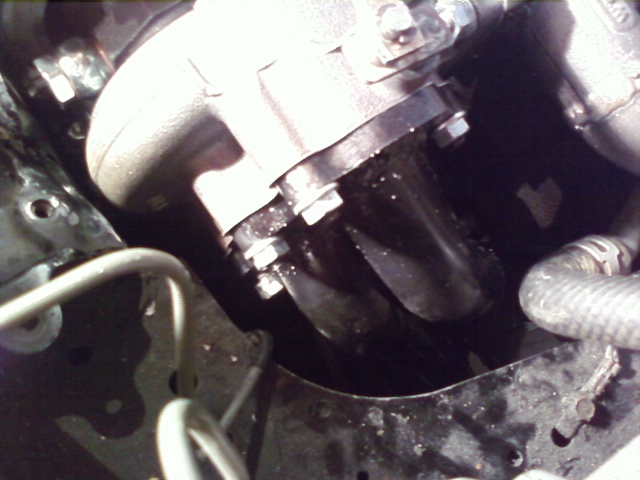

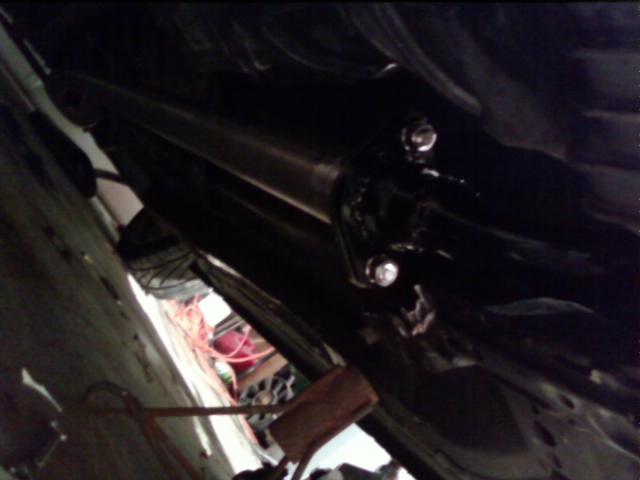

sure thing ive got my cold pipe with blow off valve done, my guage (lc1 and boost guage) holder that will go between the ac and heat controls and cd player, the bottom of the down pipe and 2.5 inch straight pipe back, power steering re route ( had to cut off the neck on the power steering side and weld it back on. The material was really thin for my tig welder so i used jb weld just in case i had a small leak any where. front mount intercooler mounted with some home made brackets, hot pipe connected but still missing one 90 deg coupler, turbo with 90 deg coupler missing, down pipe sprayed with some grill paint
Attached Thumbnails
my turbo build-1.jpg   my turbo build-2.jpg   my turbo build-3.jpg   my turbo build-4.jpg   my turbo build-5.jpg

my turbo build-6.jpg   my turbo build-7.jpg   my turbo build-8.jpg   my turbo build-9.jpg
ls1motorsports is offline   Reply With Quote
Old 08-25-2009, 01:59 AM   #4
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2009
Location: illinois
Posts: 190
Total Cats: -4
Default

guage holder still needs refining
ls1motorsports is offline   Reply With Quote
Old 08-25-2009, 02:02 AM   #5
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

Just a tiny bit.....
p51hellfire is offline   Reply With Quote
Old 08-26-2009, 02:24 AM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2009
Location: illinois
Posts: 190
Total Cats: -4
Default

kinda stuck on a problem.. any one know a good way of getting to the oil pressure sending unit by the oil filter with out taking off the lower intake mani? I took of the brace under it and it helps a lot but still seems like a pain with out taking the whole manifold out... IDEAS?!?!?
ls1motorsports is offline   Reply With Quote
Old 08-26-2009, 02:27 AM   #7
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

serious..... it's not hard......
p51hellfire is offline   Reply With Quote
Old 08-26-2009, 02:29 AM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2009
Location: illinois
Posts: 190
Total Cats: -4
Default

so do u advise on taking lower manifold off?
ls1motorsports is offline   Reply With Quote
Old 08-26-2009, 06:13 AM   #9
Junior Member
iTrader: (12)

Join Date: Sep 2008
Location: Inland Empire So-Cal
Posts: 274
Total Cats: 0
Default

Quote:
Originally Posted by ls1motorsports View Post
so do u advise on taking lower manifold off?
you can do it without removing the lower manifold...

lol... i had to do this, and it was a bitch... iirc, you can use a really short swivel head open box 17mm wrench...

but to get at it, i actually removed the starter and motor mount.. lol....

not fun, but doable... and prepare to curse like there is no tomorrow as you are doing this...
james399 is offline   Reply With Quote
Old 08-26-2009, 09:54 PM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2009
Location: illinois
Posts: 190
Total Cats: -4
Default

just did a free air calibration to my wideband lc1. it got warm. Is it suppose to be doing that?
ls1motorsports is offline   Reply With Quote
Old 08-27-2009, 08:36 AM   #11
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by ls1motorsports View Post
just did a free air calibration to my wideband lc1. it got warm. Is it suppose to be doing that?
Yes...you also did a heater calibration the first time around...this means you probably hooked it up right.

Mine used to take a half hour to heat up...I had to do it again.
gospeed81 is offline   Reply With Quote
Old 08-27-2009, 10:39 AM   #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2009
Location: illinois
Posts: 190
Total Cats: -4
Default

thank you . I tried removing the oil sensor yesterday but it seems to be bigger than a 22 mm ... As of right now i dont have anthing bigger so i will go to the store in a bit so i can rmove it. Oil feed line will come from begi tomorw and hope adaptronic comes soon then i think im ready to tune and boost
ls1motorsports is offline   Reply With Quote
Old 08-31-2009, 10:23 AM   #13
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2009
Location: illinois
Posts: 190
Total Cats: -4
Default

everything is now mounted in the car and ready to go. I just need to wait for adaptronic to fire it up . Hope it will be here in a couple hours. But i wont be getting my hopes up
ls1motorsports is offline   Reply With Quote
