Default NA Lower Intake Air Temp

Here's a an underhood external air source for NAs. There's actually space behind the plastic bumper support up front that can be separated from the mounth and channeled up and over (or around) the rad, to provide outside air for the intake. Of course this adds pressure to the other side of the rad and takes incoming air away from that which would normally go through the mouth - but it's the net result that counts.

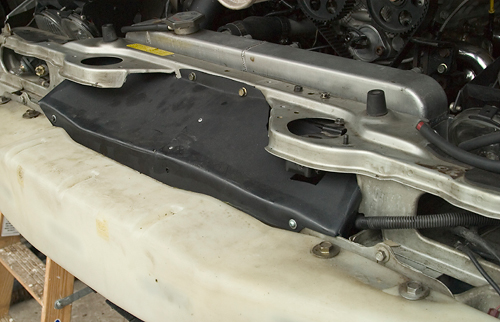

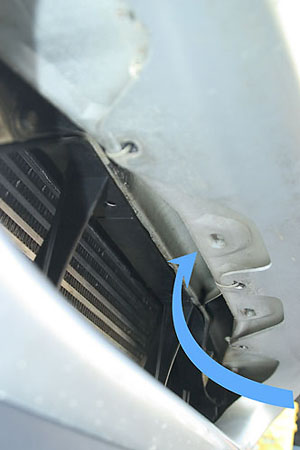

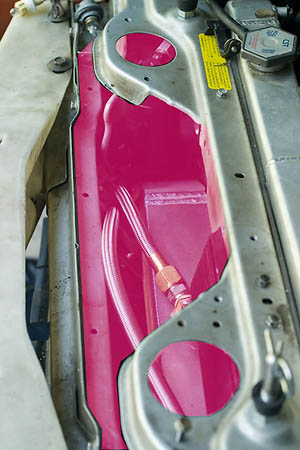

Arrow shows incoming air traveling in behind bumper support. Red area (top view) represents the divider/panel to keep both passages separate.
Attached Thumbnails
NA Lower Intake Air Temp-airentry.jpg   NA Lower Intake Air Temp-airsource.jpg   NA Lower Intake Air Temp-airseparator.jpg
m2cupcar is offline   Reply With Quote
Old 06-07-2007, 10:37 AM   #2
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Thats the concept behind the radiator area covers/shrouds made by companies like Cusco and stuff. Although, it looks like yours takes into account air that might escape bumper cover and not just the radiator top.

+1 for DIY
Splitime is offline   Reply With Quote
Old 06-07-2007, 10:48 AM   #3
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

some of have hood latches and horns there
Ben is offline   Reply With Quote
Old 06-07-2007, 10:50 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

I blocked mine to decrease the pressure behind the radiator; hopefully making up for the naca duct...

makes a handy tool tray as well.
Braineack is offline   Reply With Quote
Old 06-07-2007, 11:11 AM   #5
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

You can move the horn and build around the latch (like I did for the airbag sensor) - the latch was in the way of the oil cooler and lines. Horn is under my driver's side headlight. When I go to the bigger IC, I'll probably have change this to reposition the cooler- sealing off the entire area. Even then a ducting could be fab'd to channel some air from that source to an airbox.
m2cupcar is offline   Reply With Quote
Old 06-07-2007, 11:46 AM   #6
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

the NB has that panel built into the bumper cover itself. more or less.

maybe this weekend I'll start my ducting plan...
y8s is offline   Reply With Quote
Old 06-07-2007, 11:52 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

That's exactly what I was thinking Rob. maybe a 1-2" tube from that area to the filter.
Braineack is offline   Reply With Quote
Old 06-07-2007, 12:35 PM   #8
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

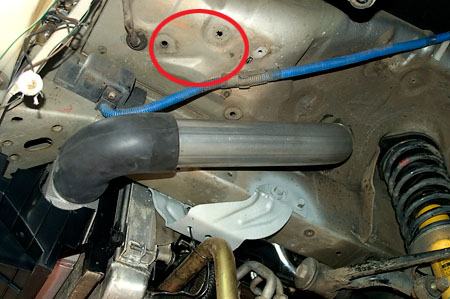

Just went out and looked at the area under the driver's side headlight. I can't see any reason not to drill a 3" hole through that sheet metal. It's on the outside of the frame rail and definitely a good source of outside air for the turbo to pull from. Anybody know what the air pressure looks like in the fender well/nose area? I'm thinking that static would be preferred as not to create high pressure on the engine side of the rad. Thoughts?
Attached Thumbnails
NA Lower Intake Air Temp-airhole.jpg
m2cupcar is offline   Reply With Quote
Old 06-07-2007, 12:37 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

that coupled with a cold-air box and it wouldn't really matter.
Braineack is offline   Reply With Quote
Old 06-07-2007, 12:39 PM   #10
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

:ROFL: Corky Bell told me to do that and build an isolation box over the filter.

Which I really want to do. But don't see how I can without clocking the turbo and redoing the hot side pipes to the FMIC.
Ben is offline   Reply With Quote
Old 06-07-2007, 12:47 PM   #11
Senior Member
iTrader: (2)

Join Date: May 2007
Location: Tampa, Florida
Posts: 502
Total Cats: 0
Default

Mod a JR CAI if you can find a cheap used one.
drewbroo is offline   Reply With Quote
Old 06-07-2007, 12:52 PM   #12
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

Quote:
Originally Posted by m2cupcar View Post
Just went out and looked at the area under the driver's side headlight. I can't see any reason not to drill a 3" hole through that sheet metal. It's on the outside of the frame rail and definitely a good source of outside air for the turbo to pull from. Anybody know what the air pressure looks like in the fender well/nose area? I'm thinking that static would be preferred as not to create high pressure on the engine side of the rad. Thoughts?
the NB's already got a big hole there...

hint: use woodworking vacuum system stuff?
y8s is offline   Reply With Quote
Old 06-07-2007, 04:13 PM   #13
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Rob have you considered venting your hood?
Ben is offline   Reply With Quote
Old 06-07-2007, 04:39 PM   #14
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

It's on the to-do list. I once made five consecutive boosted runs from 2-7k and then promptly pulled over, popped the hood to look and got a blast of hot air that felt like I just stuck my head in a furnace. That was enough to convince me.

I'm not sure what I'm going to do though. I'm not a big fan of the extreme extraction hood (like FM and CSR on m.net). I'd like something a little more subtle. The good thing about the hole-in-the-hood, is that it does wonders for both speed and stop-n-go traffic.

I've considered these cf kidney shaped vents - tho a bit pricey for me
http://www.carbontrix.com/vents.htm
The 13x10 might work upside down too.

Also considered OE vents from other cars (there's a guy with viper hood vents in his Miata around us somewhere- tho they look like speaker grills to me).

And considered mounting one of the smaller ebay hood scoops upside down. But something tells me they'd melt soon.
m2cupcar is offline   Reply With Quote
Old 06-07-2007, 04:46 PM   #15
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

ouch. expensive.

I've been looking at DIY type hood vent stuff. So far my favorite concept is THIS GUY.

I have a spare hood that was dontated for the cause. Smurf blue baby! But I don't have the tools to cut into it. The finest metal working tool I have is a zis-wheel. I think something along the lines of a router would be more appropriate.
Ben is offline   Reply With Quote
Old 06-07-2007, 04:52 PM   #16
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Jig saw with a fine metal blade will cut through the hood like butter. Nice clean and controlled cut too.
jayc72 is offline   Reply With Quote
Old 06-07-2007, 05:03 PM   #17
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Rx7 holes are definitely functional. I'm willing to cut some supports to make a shape that looks good. I raced with a guy that had nothing but the perimeter support in his Miata hood and it held up fine- just flimsy when open.

I cut a junk hood up using a metal cutting wheel and 4" grinder. There's nothing to the hood- bet you could intricate stuff with a dremel.
