Default Name these turbos

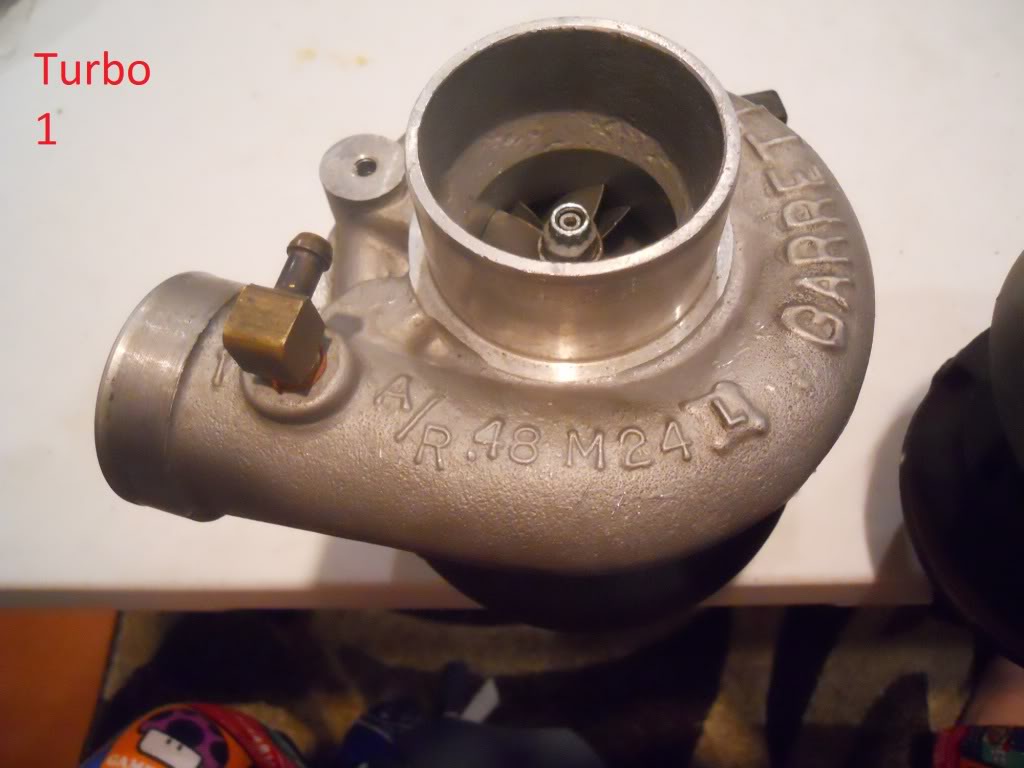

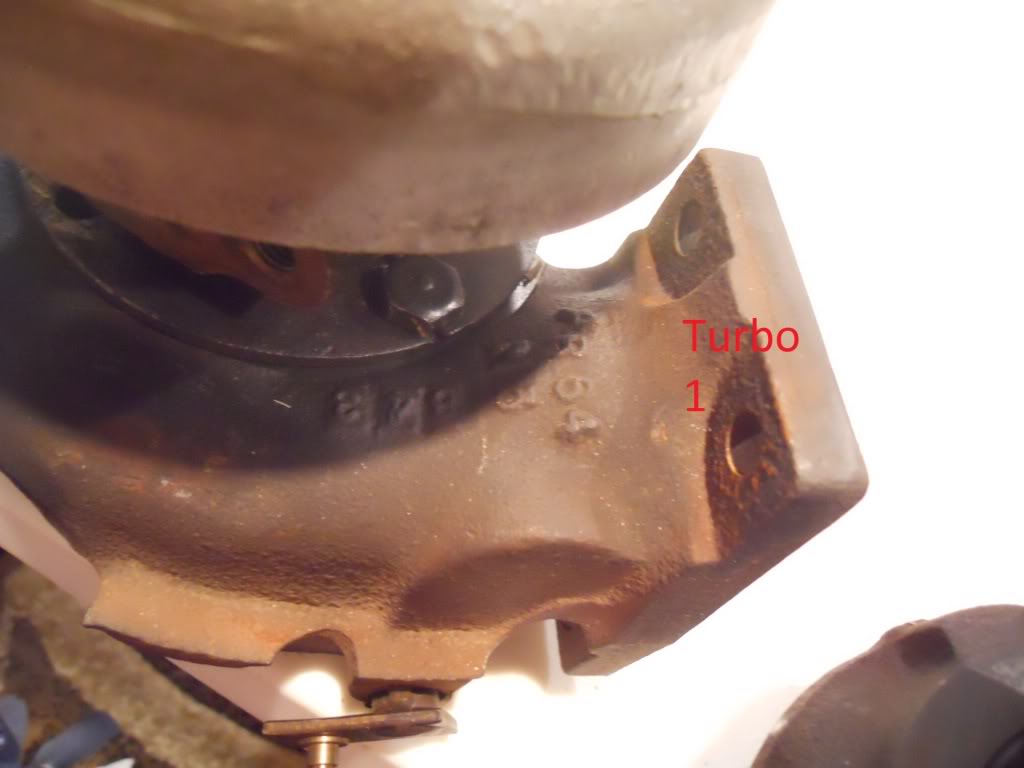

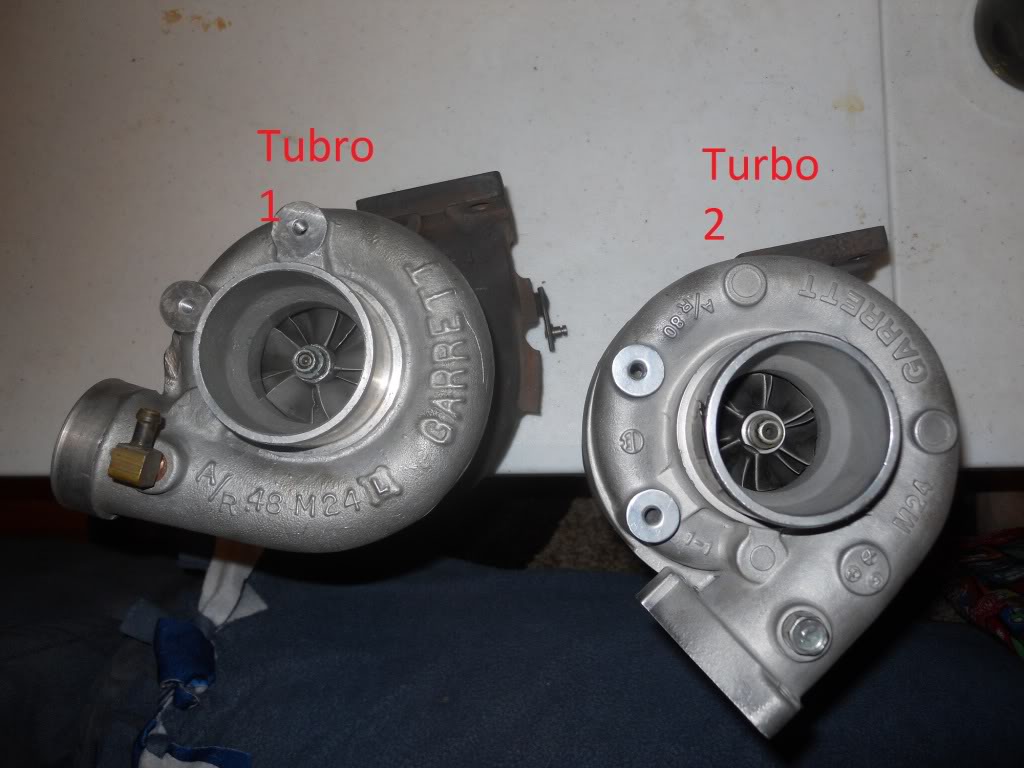

Turbo 1 shows a compressor of .48 and impeller of .64. I can't find a match on Garrett's web site.

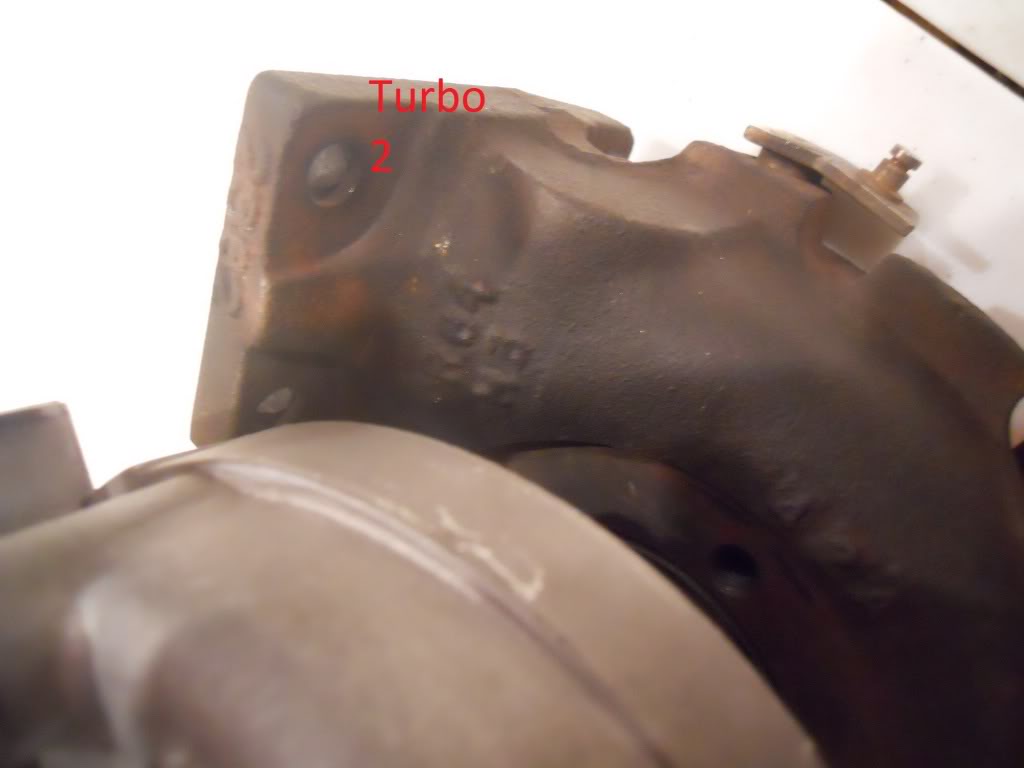

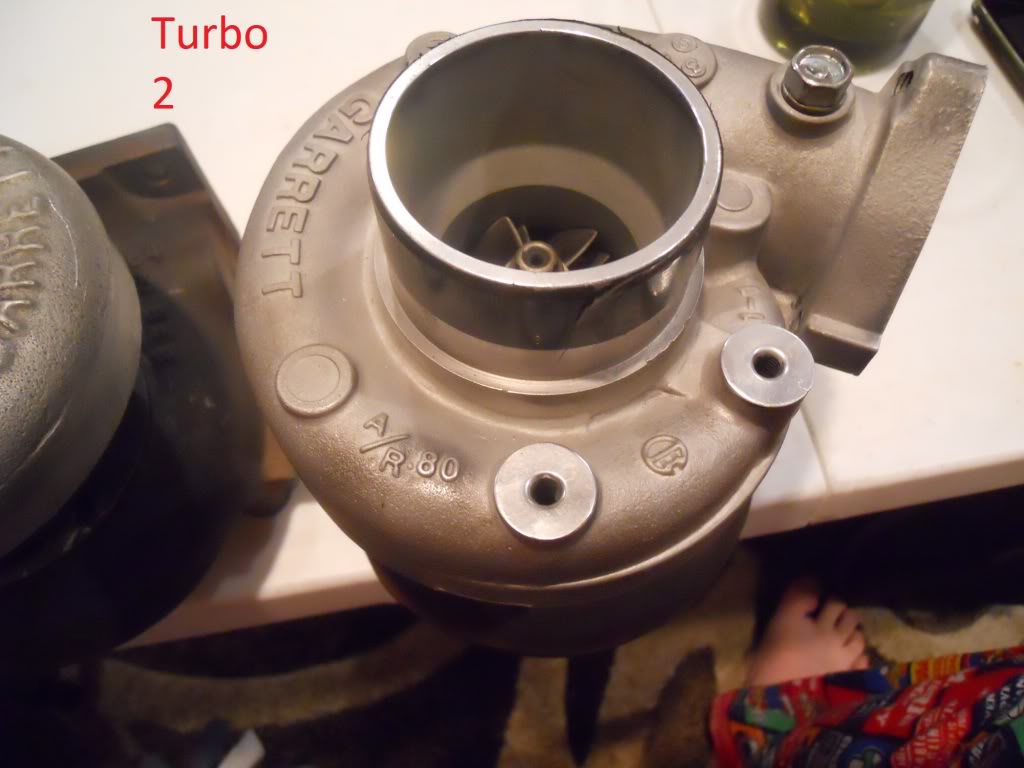

The second is compressor .80 and impeller .64. I think it is a 2554.. can you confirm?

Name:  DSCN1893.jpg
Views: 1
Size:  86.0 KB

Name:  DSCN1894.jpg
Views: 1
Size:  68.4 KB

Name:  DSCN1897.jpg
Views: 2
Size:  51.1 KB

Name:  DSCN1895.jpg
Views: 1
Size:  74.1 KB

Name:  DSCN1898.jpg
Views: 1
Size:  38.2 KB
fizbin84 is offline   Reply With Quote
Old 05-20-2011, 01:09 AM   #2
Senior Member
iTrader: (12)

Join Date: May 2008
Location: Roselle, Illinois
Posts: 846
Total Cats: -35
Default

whats the part number on the tag of the center section say?
Hot_Wheels is offline   Reply With Quote
Old 05-20-2011, 01:44 AM   #3
Newb
Thread Starter

Join Date: May 2010
Location: OC, CA
Posts: 19
Total Cats: 0
Default

no tag that I can see... would that make these knock offs?
fizbin84 is offline   Reply With Quote
Old 05-20-2011, 01:54 AM   #4
Senior Member
iTrader: (12)

Join Date: May 2008
Location: Roselle, Illinois
Posts: 846
Total Cats: -35
Default

no, #2 looks like a t28, has the nissan 3 bolt outlet with the larger inlet,
Hot_Wheels is offline   Reply With Quote
Old 05-20-2011, 11:48 AM   #5
Newb
Thread Starter

Join Date: May 2010
Location: OC, CA
Posts: 19
Total Cats: 0
Default

Morning bump for any more ideas...???!!!
fizbin84 is offline   Reply With Quote
Old 05-20-2011, 11:50 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Turbo 2 is a T25 from an SR20.

Turbo 1 has a bad compressor wheel.



your pictures suck.
Braineack is offline   Reply With Quote
Old 05-20-2011, 12:19 PM   #7
Newb
Thread Starter

Join Date: May 2010
Location: OC, CA
Posts: 19
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
Turbo 2 is a T25 from an SR20.

Turbo 1 has a bad compressor wheel.



your pictures suck.
Thanks! and I know

What would that typically cost to rebuild or replace?
fizbin84 is offline   Reply With Quote
Old 05-20-2011, 12:23 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

are you going to be running one of these?

remove the compressor housings and measure the ind/exd. diameters

snap a shot compareing the turbine wheels.
Braineack is offline   Reply With Quote
Old 05-20-2011, 12:32 PM   #9
Newb
Thread Starter

Join Date: May 2010
Location: OC, CA
Posts: 19
Total Cats: 0
Default

Yea, I'll be running number two for now. I purchased the first blind and got robbed because it is useless without a new compressor. I purchased the second as a known good unit just to get the system running.

I'll take some pics this afternoon.
fizbin84 is offline   Reply With Quote
Old 05-21-2011, 02:11 AM   #10
Newb
Thread Starter

Join Date: May 2010
Location: OC, CA
Posts: 19
Total Cats: 0
Default

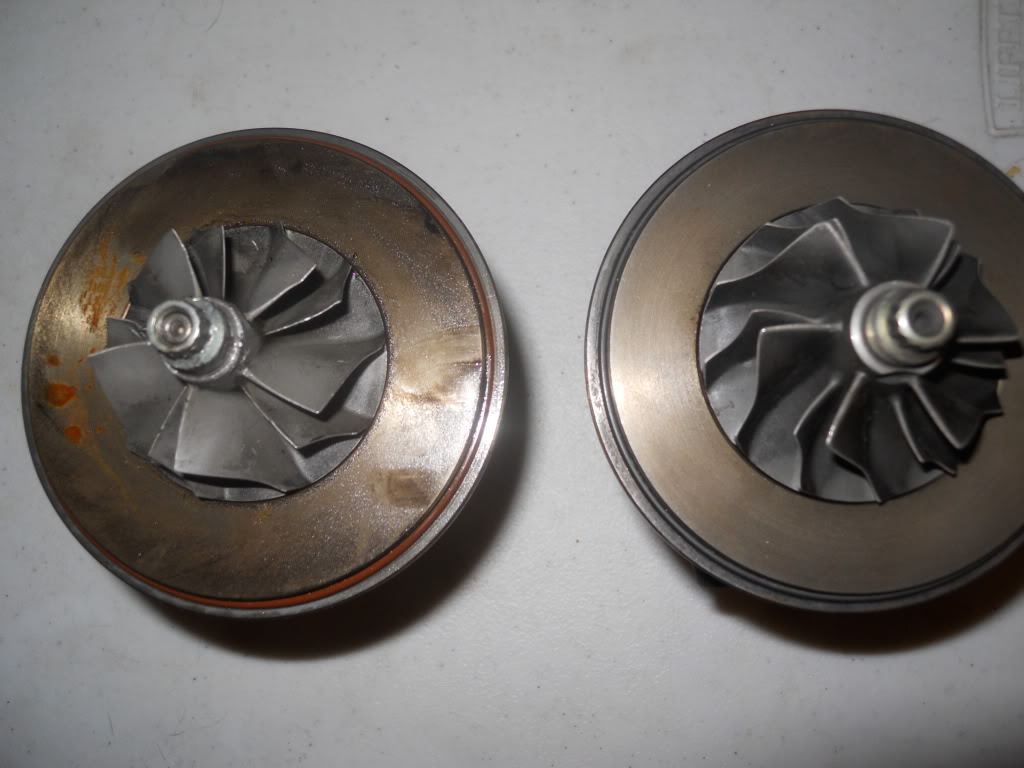

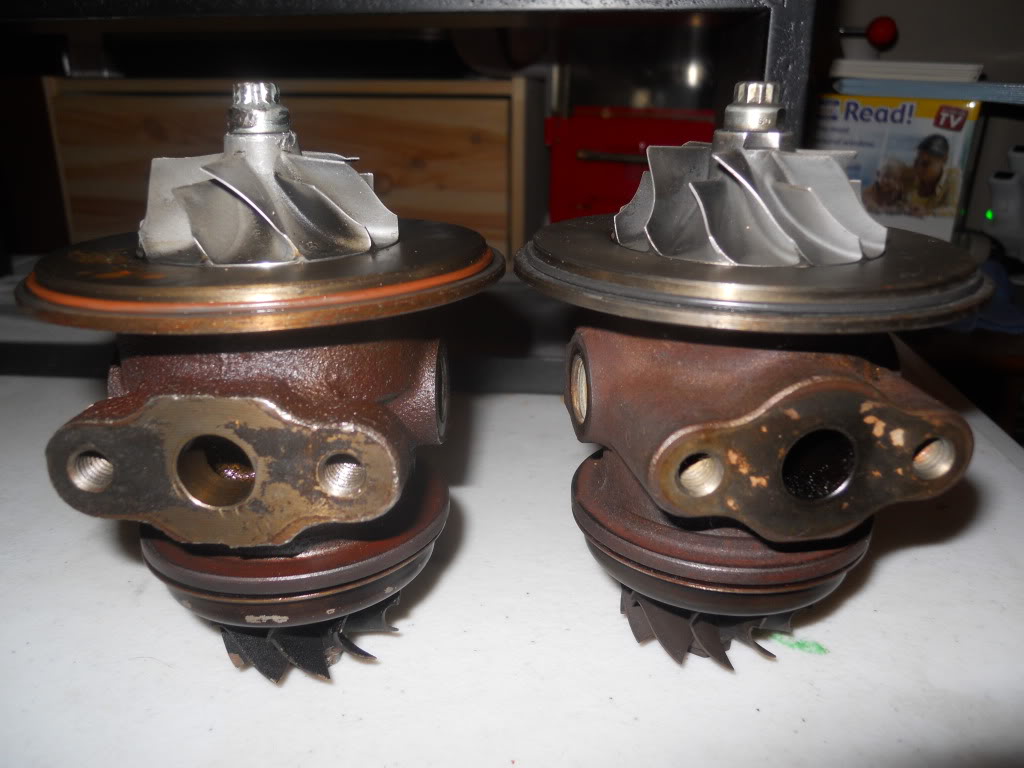

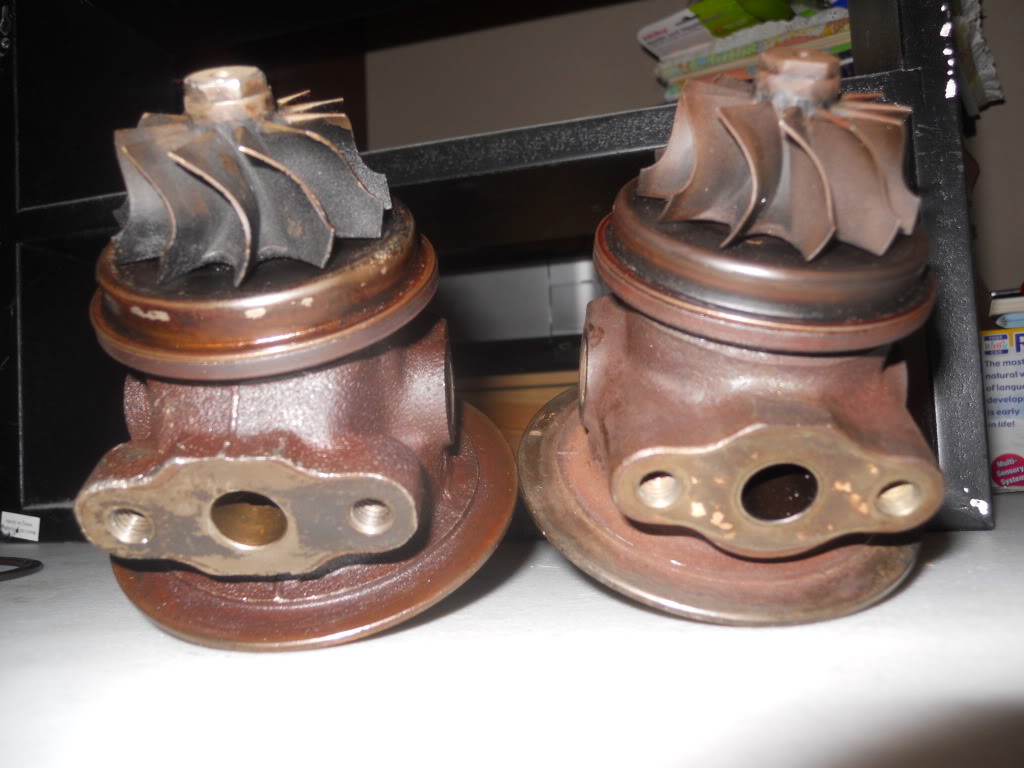

ok pics and measurments. On the left is turbo 1 right is turbo 2.

I don't have a decent micrometer any more so all numbers are kinda guess work.

Turbo 1 seems to have an inducer of 42mm and exducer of 52mm

Turbo 2 seems to have an inducer of 42mm and exducer of 54mm

Two people have identified turbo 2 as a T25 from an SR20. That seems really close to a GT2554, only 1/2mm different on the exducer. Is that the main difference?

What would the measurments make the first one? Something around a 2252? The A/R does match, but the size is close.

Now the pics...

Name:  DSCN1902.jpg
Views: 2
Size:  89.4 KB

Name:  DSCN1900.jpg
Views: 1
Size:  79.7 KB

Name:  DSCN1904.jpg
Views: 2
Size:  91.1 KB

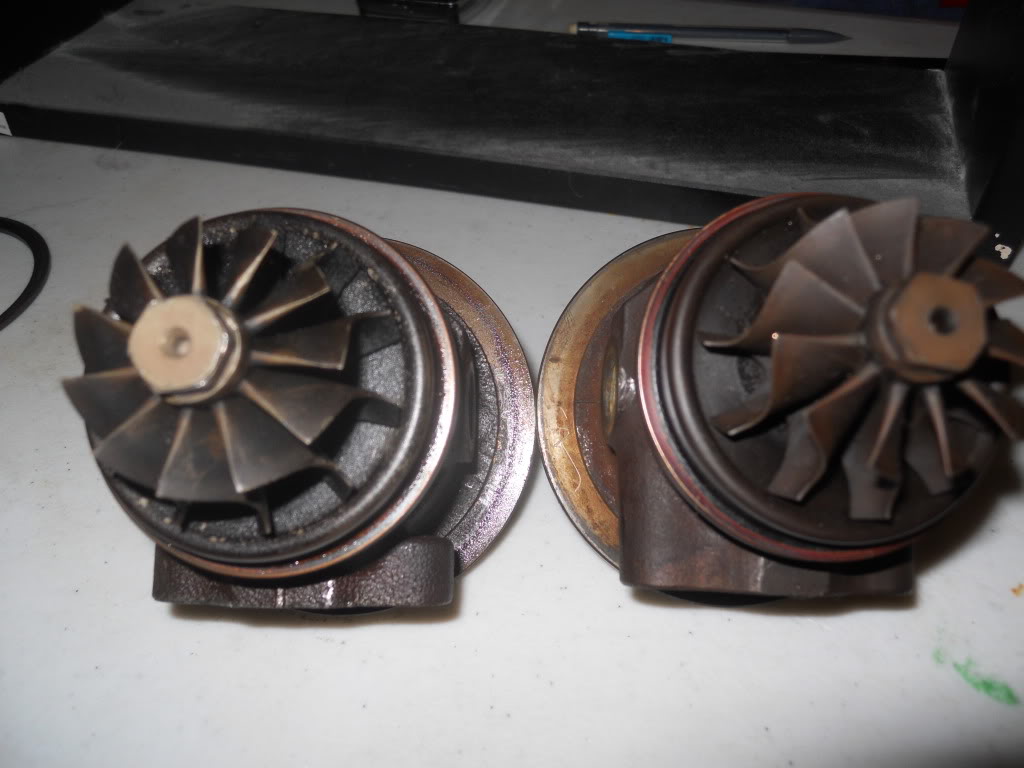

Name:  DSCN1903.jpg
Views: 1
Size:  77.5 KB

edited for different pics
fizbin84 is offline   Reply With Quote
Old 05-21-2011, 11:07 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by fizbin84 View Post
Turbo 1 seems to have an inducer of 42mm and exducer of 52mm

Turbo 2 seems to have an inducer of 42mm and exducer of 54mm

Two people have identified turbo 2 as a T25 from an SR20. That seems really close to a GT2554, only 1/2mm different on the exducer. Is that the main difference?

Im going to guess they are both the same sized turbo. Not many 52mm wheels floating around, although the blades look different. 5 blades vs 6.

shame they are slightly different can then you could use the better housing on turbo 2.

the sr20 turbo is sized like a 2554. main difference is journal bearing vs ball bearing. it's a great little turbo to use for a ~220rwhp install.
