Default NB intercoolers?

What's the best NB intercooler for the front? I got no AC, FM rubbery pipes, and a customer for my Flyin' Miata FMIC.

I was looking at this:
http://www.cxracing.com/mm5/merchant...gory_Code=INCO

But maybe a 3" would fit? There are 3x11 ones I could get... I don't want more than I need, but enough for a healthy 16 psi would make me feel better, esp with these rubber insulating lines.
AbeFM is offline   Reply With Quote
Old 08-03-2008, 03:57 AM   #2
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Let's see, I have a 20x12x3 CORE intercooler mounted in my NB and it's invisible with the hood shut. Can't see it as it's behind the A/C condenser and in front of the radiator. No pipes down low and all factory plastic undertray and front bumper support and all that stuff fits with no modifications. Intercooler is mounted upside down such that the charge pipes exit up high and go around the headlights. Pics in my SC thread
patsmx5 is offline   Reply With Quote
Old 08-03-2008, 04:05 AM   #3
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Name:  radiator4.jpg
Views: 20
Size:  112.4 KB

Name:  radiator5.jpg
Views: 12
Size:  114.0 KB




Name:  radiator6.jpg
Views: 14
Size:  110.1 KB

Name:  FMIC.jpg
Views: 13
Size:  124.5 KB


Name:  FMIC2.jpg
Views: 12
Size:  110.7 KB

Name:  radiator1.jpg
Views: 12
Size:  105.3 KB

Name:  SC9.jpg
Views: 12
Size:  109.4 KB

Name:  SC8.jpg
Views: 12
Size:  114.8 KB
patsmx5 is offline   Reply With Quote
Old 08-03-2008, 09:39 AM   #4
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

damn thats a badass install Pat
paul is offline   Reply With Quote
Old 08-03-2008, 11:31 AM   #5
Elite Member
Thread Starter
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

No kidding. I can't get him to break his AC system just to take a pic without it, though. :-(


I wonder if it's bigger than I need? At least I'd never wonder if it was "enough", and I wonder how to route the remaining tubing.... But it does seem close, and $100 over FM's 750.... Well. :-) It'll require more investigation.
AbeFM is offline   Reply With Quote
Old 08-03-2008, 11:52 AM   #6
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Even without the AC, that's a sweet setup... glad I saw this.

It makes routing the IC pipes a snap providing there's room for a 90* coupler at the inlet/outlet against the stock radiator support. I'm very interested in how this is going to turn out with the coldside... please post more pics as progress continues.

What's the stock you used for the mounting brackets... looks like 1/8" stainless? How does the bottom of the radiator get support?

Slimline fans? Which ones?
samnavy is offline   Reply With Quote
Old 08-03-2008, 11:54 AM   #7
Elite Member
Thread Starter
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Looks like you'd need a 180 followed by a 90, all pretty sharp. I might concider a narrower IC for my car, with more room for bends.

Remember the old Track Dog set up (FM4 I think) which had part of the rad missing so the charge pipe could go through the rad? Don't imagine it helped cooling much, but it was cool.
AbeFM is offline   Reply With Quote
Old 08-03-2008, 12:12 PM   #8
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

There are several examples out there of guys running a Honda radiator that's only half as wide as ours and advertises the same cooling. Stick that baby in the middle with a large 12" fan??? They're all 2" cores but you can get cheap aliminum ones w/fan for $115.

http://cgi.ebay.com/ebaymotors/KOYO-...spagenameZWDVW

http://cgi.ebay.com/ebaymotors/96-00...spagenameZWDVW
samnavy is offline   Reply With Quote
Old 08-03-2008, 12:43 PM   #9
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Quote:
Originally Posted by samnavy View Post
Even without the AC, that's a sweet setup... glad I saw this.

It makes routing the IC pipes a snap providing there's room for a 90* coupler at the inlet/outlet against the stock radiator support. I'm very interested in how this is going to turn out with the coldside... please post more pics as progress continues.

What's the stock you used for the mounting brackets... looks like 1/8" stainless? How does the bottom of the radiator get support?

Slimline fans? Which ones?
Used 1/8 aluminum for mounting the bottom of the condenser and the intercooler. Bent the top condensor mounts over and used them again. Used the factory radiator mount and made new top mounts to space the radiator 1/2" further. I used 5/16" foam to seal and space the heat exchangers from one another. Never drilled a hole in the car, just used existing bolt holes and ran my metal to them. Stock fans for now since they fit but I have a pair of 12's to (ebay special) use if I ever get a bigger radiator.

I'll put more pics when the charge pipes are routed.
patsmx5 is offline   Reply With Quote
Old 08-03-2008, 01:02 PM   #10
Junior Member

Join Date: Oct 2007
Location: AC, NJ
Posts: 346
Total Cats: 0
Default

Quote:
Originally Posted by AbeFM View Post
What's the best NB intercooler for the front? I got no AC, FM rubbery pipes, and a customer for my Flyin' Miata FMIC.

I was looking at this:
http://www.cxracing.com/mm5/merchant...gory_Code=INCO

But maybe a 3" would fit? There are 3x11 ones I could get... I don't want more than I need, but enough for a healthy 16 psi would make me feel better, esp with these rubber insulating lines.
That's the IC that I have. It is possibly a little too long for the FM pipes, but you can just barely make it fit.
compy is offline   Reply With Quote
Old 08-03-2008, 08:46 PM   #11
Elite Member
Thread Starter
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

FM said to trim their pipes if need be. I'm still looking at pat's "turn the world of intercooling on it's head" approach of upsidedown intercooler. Though really that quickly leads to an IC with vertical outlets, and that leads to a (not-un-inspired) track-dog-racing-like intercooler set up, which might take the cake. Though I don't know how much trimming I want to do on that cross member.

This looks good, but only 11x11 front face?



24x12x3.5, 3.5"
That also looks good, but those 90* bends aren't magic there, so I might as well do them myself on a bigger radius.

Which puts me right back at this one:
with 11"x12"x3"

Ok, I guess the last is no better than the first. Sigh.

Pat, finish up your install so I can complain about it!
AbeFM is offline   Reply With Quote
Old 08-03-2008, 09:32 PM   #12
Junior Member

Join Date: Oct 2007
Location: AC, NJ
Posts: 346
Total Cats: 0
Default

Quote:
Originally Posted by AbeFM View Post
FM said to trim their pipes if need be.
Yeah but there is obviously a limit on how much you can trim, and with an IC that is 12 inches wider than the FM one, it can be tough.
compy is offline   Reply With Quote
Old 08-03-2008, 10:17 PM   #13
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I used one similar to your last option above in an NB, but in an over-the-top configuration. The one I used from CXRacing has a 4" thick core.
Core Size: 11"X12"X4"
Overall Size: 18"x12"x4"
3" Inlet & Outlet
4" Core
https://www.miataturbo.net/forum/sho...931#post267931

But I think you said above you already have the FM hoses, which would not work with an over the top of course.
ZX-Tex is offline   Reply With Quote
Old 08-03-2008, 11:10 PM   #14
Elite Member
Thread Starter
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Any pics? Is it in the links in your sig?

I might sell off my FM stuff, or some of it. Might not.
AbeFM is offline   Reply With Quote
Old 08-04-2008, 12:00 AM   #15
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by AbeFM View Post
Any pics? Is it in the links in your sig?
Yes. Same pictures as in the link I put in my post above. C'mon dude you are not a noob
ZX-Tex is offline   Reply With Quote
Old 08-04-2008, 12:30 AM   #16
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

I really like my TDR i/c.
Abe, have you seen my TDR fan-aiflow vid?
JasonC SBB is offline   Reply With Quote
Old 08-04-2008, 12:44 AM   #17
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Mine is too short, 18x6x3 core 21" wide at the endtanks. Centered outlets. I wish it was 3" taller.
cjernigan is offline   Reply With Quote
Old 08-04-2008, 05:47 PM   #18
Elite Member
Thread Starter
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

^Is three what you think it would take before getting tight on space?


Quote:
Originally Posted by JasonC SBB View Post
I really like my TDR i/c.
Abe, have you seen my TDR fan-aiflow vid?
No! Do share!

Quote:
Originally Posted by ZX-Tex View Post
Yes. Same pictures as in the link I put in my post above. C'mon dude you are not a noob
Heh, a noob is wolf's clothing. :-) Nice looking set up. Seems like the slim fans are not optional. :-) Still, seems like something could be made of it. Did you get a BOV on there?
AbeFM is offline   Reply With Quote
Old 08-04-2008, 06:00 PM   #19
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Nope it would not work with the stock fans. The slim lines are a must for sure, though there is plenty of room behind them even with the radiator tilted. Yep I have a BOV on there. You can see a tee fitting at the outlet of the compressor right after the 90 deg bend. the BOV is attached to the underside of the tee. It fits with a little room to spare, but not much.

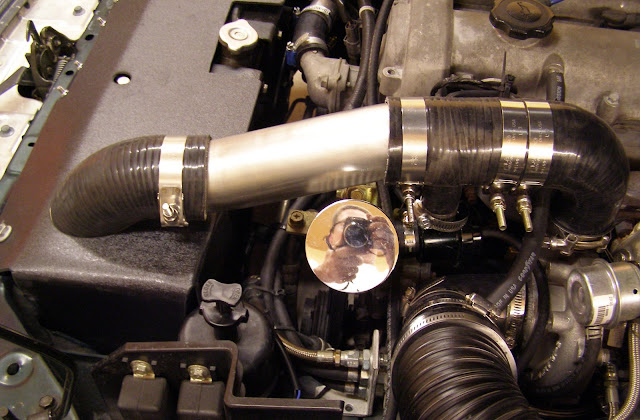

See sig for BOV details. It is basically a knockoff of a Forge 007.
ZX-Tex is offline   Reply With Quote
Old 08-04-2008, 08:01 PM   #20
Senior Member

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

I used a 24x11x3

http://www.cxracing.com/mm5/merchant...gory_Code=INCO

But I went over the radiator. I have A/C, P/S as well.

Name:  DSC_0064_mod.jpg
Views: 14
Size:  87.7 KB

Name:  MiataBuildDayFinal007.jpg
Views: 109
Size:  66.6 KB
coastertrav is offline   Reply With Quote
