NC oil feed line


Old 06-17-2018, 11:47 PM
  #1
Newb
Thread Starter

Join Date: Feb 2010
Posts: 5
Total Cats: 0
Default NC oil feed line

Where are you guys tapping into for the oil feed line?

Thanks.
krazy4 is offline
Old 06-18-2018, 03:16 PM
  #2
Junior Member

Join Date: Sep 2015
Location: Memphis, TN
Posts: 194
Total Cats: 30
Default

The Fab9 kits tee off the oil sending unit.
albuquerquefx is offline
Old 06-18-2018, 05:18 PM
  #3
Newb
Thread Starter

Join Date: Feb 2010
Posts: 5
Total Cats: 0
Default

Thank you for the info. Do you know if that is filtered oil at that location?
krazy4 is offline
Old 06-19-2018, 08:57 AM
  #4
Junior Member

Join Date: Jan 2010
Location: Anderson, SC
Posts: 141
Total Cats: 8
Default

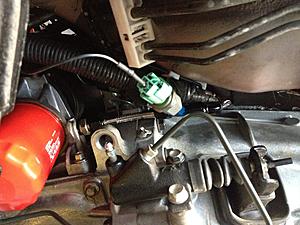

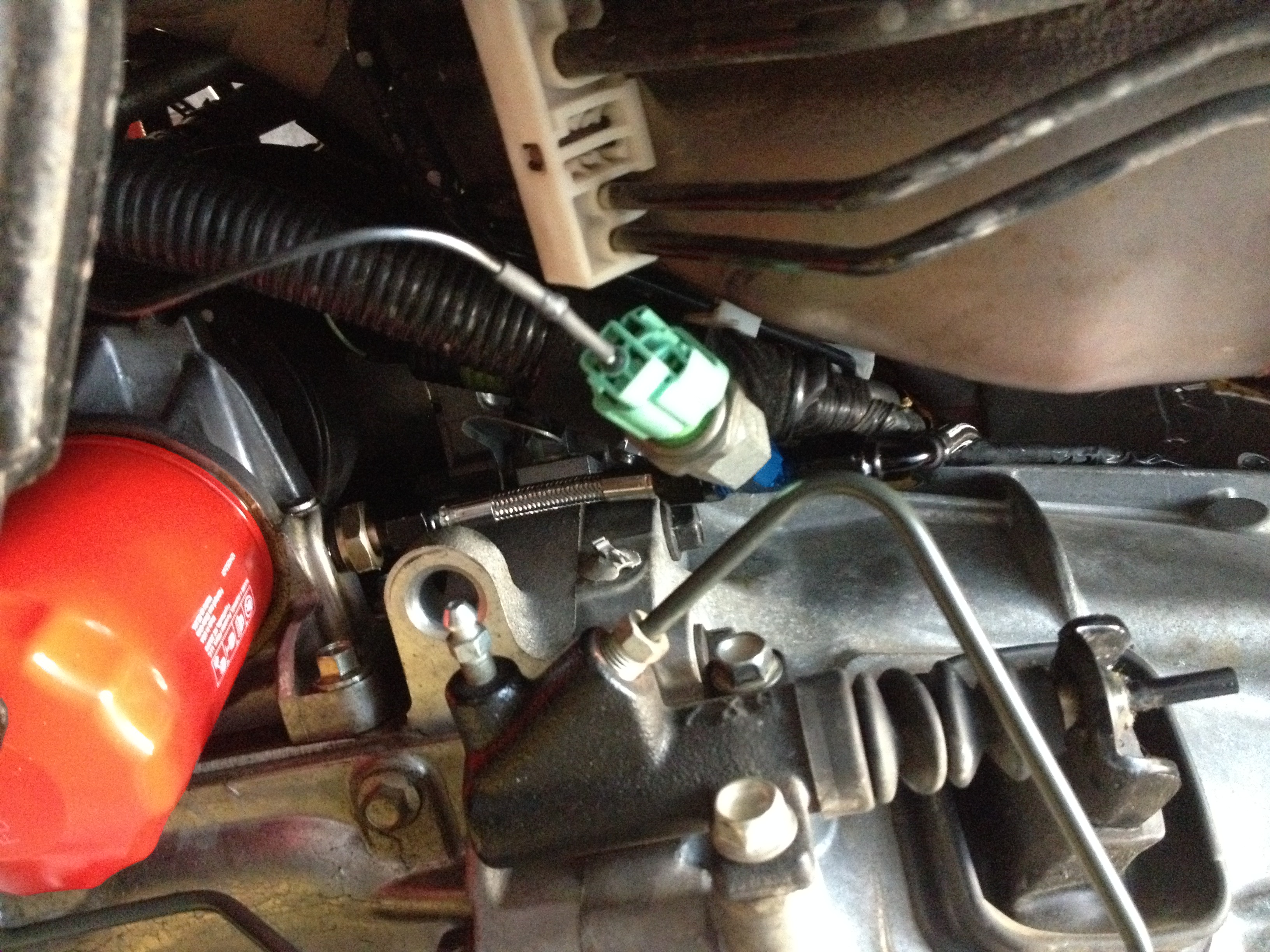

Here's what it looks like on the one we're doing. It's recently filtered because it's off the pressure feed at the housing, but I think you mean straight from being filtered to the turbo? I'm not certain about that, but the fact that the pressure sending unit is right off the filter housing means it's likely. Straight from the sump to the housing, then out to the rest of the engine. Since it's picking up the pressure right there, I doubt the oil could go many other places first.
Attached Thumbnails NC oil feed line-img_3054.jpg
sharkythesharkdogg is offline
Old 06-19-2018, 04:21 PM
  #5
Newb
Thread Starter

Join Date: Feb 2010
Posts: 5
Total Cats: 0
Default

Thank you for the picture. It looks like you're coming off the pressure sending unit port and used a T.

It looks like the oil would be filtered off of that port.
krazy4 is offline
Old 06-19-2018, 06:05 PM
  #6
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 3,157
Total Cats: 382
Default

its not like you have un filtered oil circulating ..
ryansmoneypit is offline
Old 06-20-2018, 03:54 AM
  #7
Newb
Thread Starter

Join Date: Feb 2010
Posts: 5
Total Cats: 0
Default

Originally Posted by ryansmoneypit View Post
its not like you have un filtered oil circulating ..
On other cars that I've built there were areas that were filtered and areas that were not filtered.
Some people tap into areas that are unfiltered for the oil feed line. Not a smart idea.

I'm pretty sure the NC isn't going to be any different.
krazy4 is offline
Old 06-20-2018, 08:47 AM
  #8
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 3,157
Total Cats: 382
Default

I have never heard of an engine with uncirculating oil. I think what you really mean, is that you want oil fresh from the filter, rather than after it has made it's way into the engine. Ultimately, if your engine isn't dying and you regularly change oil / filter, any source for oil should be just fine. The factory turbo oil feed from Mazda, was from the block, post filter.
ryansmoneypit is offline
Old 06-20-2018, 11:05 AM
  #9
Junior Member

Join Date: Jan 2010
Location: Anderson, SC
Posts: 141
Total Cats: 8
Default

Exactly. I think pulling oil from the pressure sender will give you what you want anyway, but I also don't believe it's critical.

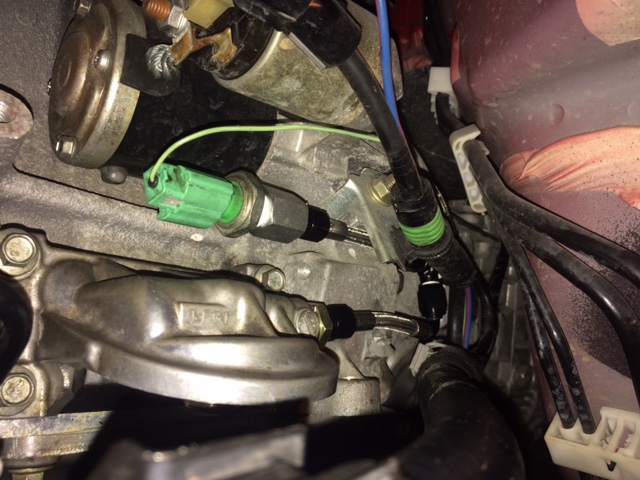

The FAB9 kit we worked with came with some lines and fittings that wind up pointing the pressure sensor back at the filter housing. It seems it works on earlier versions of the car, but the later models had an added heat exchanger, which the sensor winds up pointing at. I borrowed a picture from another project where you can see it sitting between the oil filter housing and the starter. Since the heat exchanger takes up that space, we just used a simpler t-fitting and installed the sensor off of that. This method will work with either oil filter housing. It also means the sensor isn't cantilevered off of a piece of SS hose, so it won't shake around over bumps nearly as much.
Attached Thumbnails NC oil feed line-oil-sending-unit.jpg
sharkythesharkdogg is offline
