Default Late model 1.8 guys - diagram your oil feed setup

I'm having the most frustratingly ridiculous time trying to get my oil feed in. Here's what I'm doing:

Name:  Oilfeed.jpg
Views: 126
Size:  13.2 KB

However, no matter what angle I'm coming from, I'm finding it impossible to get the oil feed line on. Front, back, down, up, whatever. Even if I got it on, there's no way in hell I could stick a wrench up there to get it off.

How should I go about this?
rider384 is offline   Reply With Quote
Old 05-08-2010, 09:35 PM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

1. You're just going to break that "typical" tee anyway, the vibrations from sticking the oil pressure gauge sender on the side of it will break it off the side of the motor

2. Get a BSP to -3AN adapter, bring an AN line up off the side of the block, and then put your pressure sender and oil feed line on a tee that's attached to the firewall. A little more expensive initially, but about a bajillion times easier to install, maintain, and way more reliable.
Savington is offline   Reply With Quote
Old 05-08-2010, 10:42 PM   #3
Junior Member
iTrader: (2)

Join Date: Aug 2008
Location: Mobile,AL
Posts: 185
Total Cats: 0
Default

Mine has the T mounted towards the engine ( I-)with the oil pressure sender mounted forward and the oil feed pointing back. Has been that way for six years.
K20 Mini is offline   Reply With Quote
Old 05-08-2010, 11:53 PM   #4
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Mine has been mounted just like the diagram (standard FM2 parts) for 8 years and 50K miles now, no vibration damage.

As for installation -- when I put it on the first time, I had the intake manifold off, the second time I had the engine out of the car, so I can't help much.

--Ian
codrus is offline   Reply With Quote
Old 05-09-2010, 12:11 AM   #5
Senior Member
iTrader: (2)

Join Date: Sep 2008
Location: ON
Posts: 523
Total Cats: 2
Default

I have a steel fitting to the block but I did basically what's in your diagram except I positioned the t to keep the weight closer to the block (|->Block vs your T>Block) for less leverage. I had some issues mounting it (removed the intake mani brace) but it wasn't that hard from under the car.

Do this part right (...every part really), you don't want to do it twice. I would've done it the way Savington describes but I had all the parts already to do it the way I did.
inferno94 is offline   Reply With Quote
Old 05-09-2010, 01:46 AM   #6
Junior Member
iTrader: (2)

Join Date: Nov 2006
Location: N/A
Posts: 360
Total Cats: 0
Default

Mine is the same as your diagram only the T has male threads on the side going into the block so no need for that threaded fitting.

Been working fine for ~2 years now and all the parts came off my old escort gt that was turboed for about a year or so.

Stubby wrenches definitely help for getting up in there.
mikeflys1 is offline   Reply With Quote
Old 05-09-2010, 02:32 PM   #7
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

same here, I have a 96' engine in my 94', and I just did what your diagram shows, routed behind the block, under the heater core coolant lines, and banjo-fitted to the turbo from the far right side. works fine and has been for the past couple years now.
Pen2_the_penguin is offline   Reply With Quote
Old 05-09-2010, 03:59 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Brass tee failures are pretty well documented, folks. Use a steel tee or get an oil pressure light, because when it breaks you lose oil pressure.
Savington is offline   Reply With Quote
Old 05-09-2010, 05:04 PM   #9
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

I just used a sandwich plate and then a -4An fitting and line.
dustinb is offline   Reply With Quote
Old 05-10-2010, 01:50 AM   #10
Junior Member

kday's Avatar

Join Date: Aug 2008
Location: Boston
Posts: 223
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
2. Get a BSP to -3AN adapter, bring an AN line up off the side of the block, and then put your pressure sender and oil feed line on a tee that's attached to the firewall. A little more expensive initially, but about a bajillion times easier to install, maintain, and way more reliable.
It can be pretty cheap too, e.g.:

http://www.discounthydraulichose.com...m?1=1&CartID=0

9002-04-02 is a BSP to -4 AN flare (more or less).

Steel industrial fittings are way way cheaper than aluminum race car parts.
kday is offline   Reply With Quote
Old 05-10-2010, 01:59 AM   #11
Junior Member
iTrader: (7)

Join Date: Nov 2006
Location: Makakilo
Posts: 444
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
. . .2. Get a BSP to -3AN adapter, bring an AN line up off the side of the block, and then put your pressure sender and oil feed line on a tee that's attached to the firewall. A little more expensive initially, but about a bajillion times easier to install, maintain, and way more reliable.
Sorry to threadjack with a dumb question, but how do you attach the tee to the firewall? Would a pair of 36" -3an lines be sufficient to complete this type of setup?
r808 is offline   Reply With Quote
Old 05-10-2010, 02:01 AM   #12
Junior Member
iTrader: (7)

Join Date: Nov 2006
Location: Makakilo
Posts: 444
Total Cats: 0
Default

Quote:
Originally Posted by kday View Post
It can be pretty cheap too, e.g.:

http://www.discounthydraulichose.com...m?1=1&CartID=0

9002-04-02 is a BSP to -4 AN flare (more or less).

Steel industrial fittings are way way cheaper than aluminum race car parts.
Wait. . . when Savington and you both write BSP do you mean BSPP or BSPT? that link is for BSPP.
r808 is offline   Reply With Quote
Old 05-10-2010, 09:50 AM   #13
Junior Member

kday's Avatar

Join Date: Aug 2008
Location: Boston
Posts: 223
Total Cats: 0
Default

Well, the oil pressure sensor has a sealing washer. It seems odd that they'd use tapered threads and a sealing washer.

I can tell you that the fitting I mentioned threads into my 1996 block perfectly. I haven't actually fired it up yet so I can't tell you any more than that.
kday is offline   Reply With Quote
Old 05-10-2010, 12:09 PM   #14
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by r808 View Post
Sorry to threadjack with a dumb question, but how do you attach the tee to the firewall? Would a pair of 36" -3an lines be sufficient to complete this type of setup?
Note that a long -3 AN hose represents a measurable oil pressure drop. I've had my (aftermarket) OPG sender mounted in the turbo supply line and in the -10 remote filter line (immediately after the filter), and it was 5-20 psi lower at the end of the -3 line. The delta varies with base pressure and with oil temp.

--Ian
codrus is offline   Reply With Quote
Old 05-10-2010, 02:34 PM   #15
Junior Member
iTrader: (6)

Join Date: Jan 2006
Location: St Johns, Fl
Posts: 378
Total Cats: 0
Default

I can attest to brass fittings breaking off in the block. Happened on my SR20DET. Luckily I saw the trail of oil before I completely lost oil pressure. I even had an oil pressure gauge, but I didn't see it go to 0. Use Steel as suggested or move the T fitting somewhere else!
clay is offline   Reply With Quote
Old 05-10-2010, 04:42 PM   #16
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by Savington View Post
1. You're just going to break that "typical" tee anyway, the vibrations from sticking the oil pressure gauge sender on the side of it will break it off the side of the motor

2. Get a BSP to -3AN adapter, bring an AN line up off the side of the block, and then put your pressure sender and oil feed line on a tee that's attached to the firewall. A little more expensive initially, but about a bajillion times easier to install, maintain, and way more reliable.
Wish I had read this a couple of months ago. I got a kit from stelathmode performance, (though I'd probably go with ATP turbo for customer service). Good quality parts (the right parts, no cross thread BS) Goes on real smooth when motors out of the car.

Listen to Sav. I forgot to tighten my oil feed line at the sender. It's tee'd like your picture. Sender perpendicular to motor and oil feed running parallel toward rear. It was a MF to get a wrench up there past the starter and oil sending unit. It would have been so easy to remote mount that sending unit. Probably only cost an extra 10 bucks.
miatauser884 is offline   Reply With Quote
Old 05-10-2010, 05:38 PM   #17
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by r808 View Post
Wait. . . when Savington and you both write BSP do you mean BSPP or BSPT? that link is for BSPP.
I believe that it is supposed to be BSPT (tapered) thread. That would make this the correct link: http://www.discounthydraulichose.com...SPT_p/9011.htm

For anyone who has a serious aversion to buying anything that's spec'd as JIC, you can get BSP to AN and BSP to NPT adapters here as well: http://www.pegasusautoracing.com/pro...p?Product=3230
Note that some of those fittings are steel, and others aluminum. Shop wisely.
Joe Perez is offline   Reply With Quote
Old 05-10-2010, 07:05 PM   #18
Junior Member

kday's Avatar

Join Date: Aug 2008
Location: Boston
Posts: 223
Total Cats: 0
Default

Anyone serious enough to care about JIC vs AN should machine the block to take an ORB fitting.

Anyway, I just measured my stuff. The oil pressure sensor is indeed tapered. The BSPP fitting with the O-ring seal fits perfectly and threads in easily by hand. I don't have an inside micrometer so I can't measure this, but it could be that the block is not tapered but the sensor is.

Pics








kday is offline   Reply With Quote
Old 05-10-2010, 07:47 PM   #19
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by kday View Post
Anyone serious enough to care about JIC vs AN should machine the block to take an ORB fitting.
Yeah, it wasn't my intention to suggest that there is a practical difference between AN and JIC, just acknowledging that in the past, folks have questioned it.

For the record, a standard JIC connector has the same 37 mating surface as an AN connector. There is a subtle difference in the specifications for the thread shape, however from a practical standpoint, the two are identical.


That O-ring fitting is pretty neat. Hadn't seen those before.
Joe Perez is offline   Reply With Quote
Old 05-14-2010, 10:58 PM   #20
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Ok, I have re-done it:

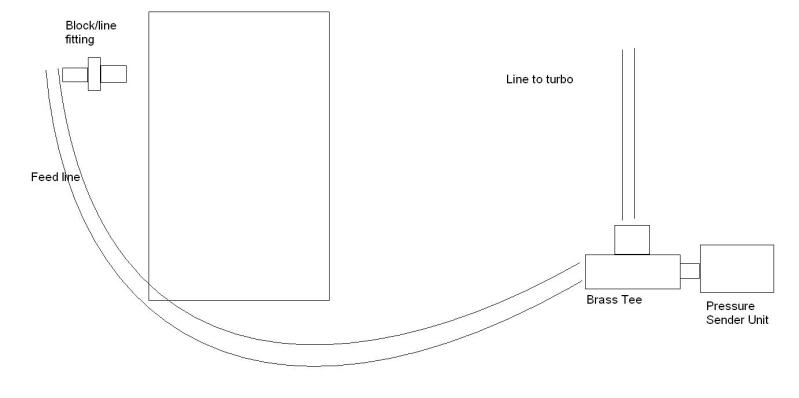

Name:  Picture063.jpg
Views: 127
Size:  12.5 KB

So just a fitting and a line are on the block now, and it runs all the way up to a tee mounted in the old oil recicrulation clip things. From the tee the line to the turbo and the pressure sender unit are connected.

Does this look good? Easier access for sure.
