Default need boost/vaccume line help fast

Could someone check this out real quick to make sure I wired all the lines correctly? Got a track day on sunday, and am getting it tuned tomorrow night, so just making sure everything is right before that.

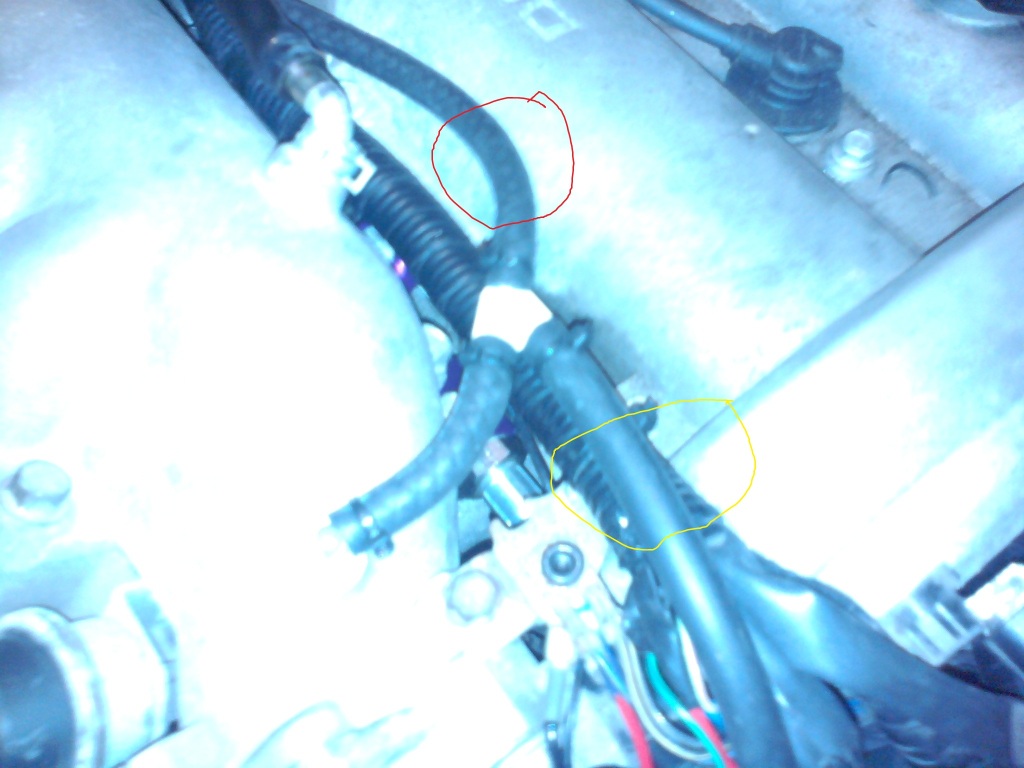

The red line connects straight to the boost gauge, the yellow one goes to the BOV nipple.

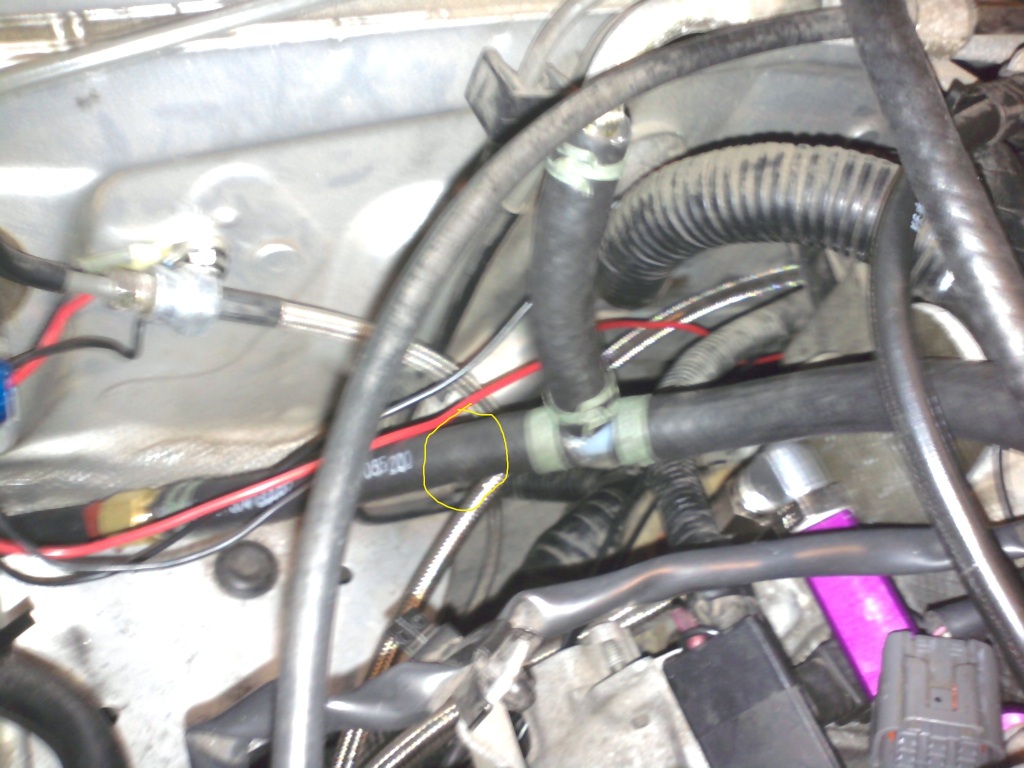

Yellow line goes to the MAP

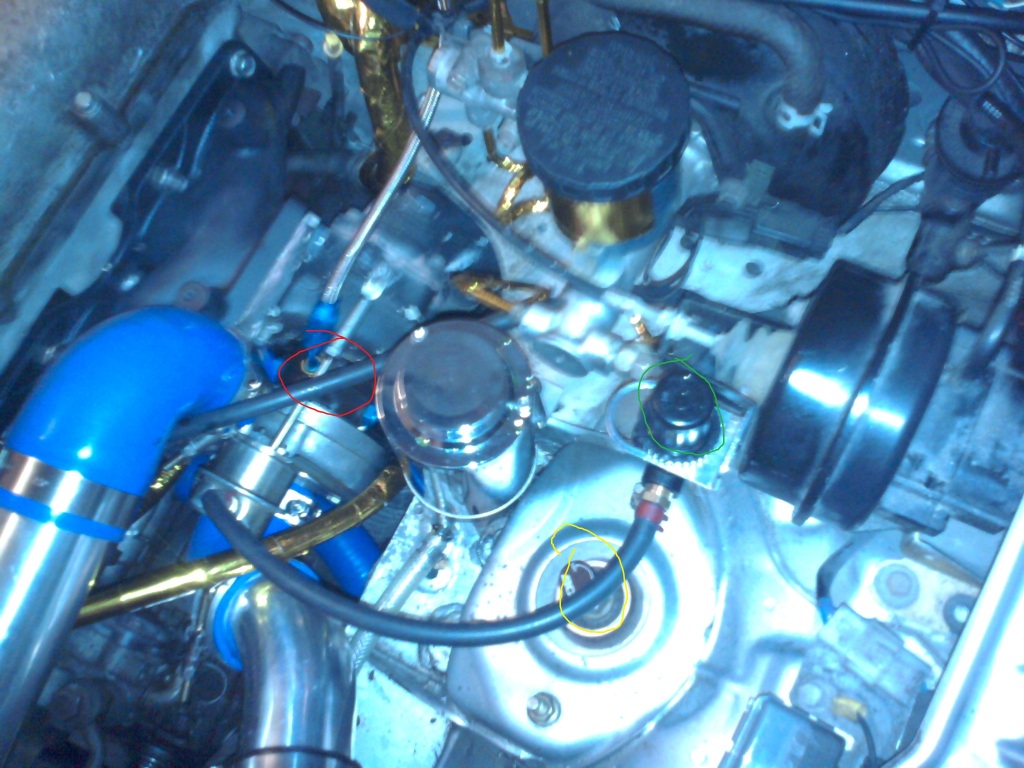

red is going to the turbo, yellow to the wastegate, and the blue is the controller/regulator.



Thanks guys
Attached Thumbnails
need boost/vaccume line help fast-photo0611.jpg   need boost/vaccume line help fast-photo0613.jpg   need boost/vaccume line help fast-photo0612.jpg
imput1234 is offline   Reply With Quote
Old 10-29-2011, 02:52 AM   #2
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Yes it looks fine. Boost/vac is boost vac. nothing special about it unless you have one way valves or some ****
Faeflora is offline   Reply With Quote
Old 10-29-2011, 04:32 AM   #3
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Quote:
Originally Posted by Faeflora View Post
Yes it looks fine. Boost/vac is boost vac. nothing special about it unless you have one way valves or some ****
k thanks, that's what I was thinking.

For some reason my boost gauge isn't working. It never goes past 0PSI, it moves in the mmHg area below 0 tho. I cant seem to figure out why, all the boost gauge wiring seem to be correct. Any ideas?

Gauge is a STRI X-Line 52mm.
imput1234 is offline   Reply With Quote
Old 10-29-2011, 10:02 AM   #4
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

I'd recommend that you source the pressure line for your wastegate from somewhere after the IC and before the throttle. You will have pressure drop through the IC as flow increases. This will result in boost sag, even though you have a nice MBC. Joe Perez had a nice, easy to understand write-up on this.
hornetball is offline   Reply With Quote
Old 10-29-2011, 11:57 AM   #5
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Quote:
Originally Posted by hornetball View Post
I'd recommend that you source the pressure line for your wastegate from somewhere after the IC and before the throttle. You will have pressure drop through the IC as flow increases. This will result in boost sag, even though you have a nice MBC. Joe Perez had a nice, easy to understand write-up on this.
Your talking about this red line, connected to the turbo right?




I'm gonna look that up, thanks.
imput1234 is offline   Reply With Quote
Old 10-29-2011, 01:19 PM   #6
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Yes, that's the one.
hornetball is offline   Reply With Quote
Old 10-30-2011, 07:50 PM   #7
Senior Member
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

Quote:
Originally Posted by hornetball View Post
I'd recommend that you source the pressure line for your wastegate from somewhere after the IC and before the throttle. You will have pressure drop through the IC as flow increases. This will result in boost sag, even though you have a nice MBC. Joe Perez had a nice, easy to understand write-up on this.
i sourced all mine from the manifold after the tb.

you should not source boost from the compressor housing. you will get sag. red goes from housing to mbc?
Clos561 is offline   Reply With Quote
Old 10-30-2011, 08:13 PM   #8
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Quote:
Originally Posted by Clos561 View Post
i sourced all mine from the manifold after the tb.
you should not source boost from the compressor housing. you will get sag. red goes from housing to mbc?
Sourcing bov boost from the compressor housing is at least better than manifold however sourcing boost between the IC and the TB is the best.

During cruise your turbo will be pushing 100% as the waste gate will be closed. It kinda defeats the throttle body as every time you're not at full boost the wastegate will be closed trying to get to the set boost however you're limiting the pressure going to the engine with the throttle body so you get a big mind ****. You press the gas, more exhaust goes to the turbo to spool it, turbo spools more but wastegate stays closed. You press the gas some more now you're in boost however still at low throttle so the turbo spools more as the wastegate still stays closed. You step to wot, the turbo has already spooled and built up a lot more than your set psi so you get a spike in psi so your wastegate now opens and you're fine. Now you're turning keeping the gas even, the throttle is say 30% open at 6psi however your wastegate is now closed so your turbo is trying to get to the set psi so it spools more so you close the throttle to make up for it, then when you step on the gas after the turn and you get another spike again throwing your rear end into the wall where you crash and burn and die. Is that what you want? This is why you cant have nice things!!1!
triple88a is offline   Reply With Quote
Old 10-30-2011, 08:45 PM   #9
Senior Member
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

ive never had spikes or any erratic boost behavior
Clos561 is offline   Reply With Quote
Old 11-01-2011, 01:51 AM   #10
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Finally works guys, the line does not work for boost. i ended up teeing the line for the MAP and it works now!
imput1234 is offline   Reply With Quote
Old 11-01-2011, 11:40 AM   #11
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by triple88a View Post
Sourcing bov boost from the compressor housing is at least better than manifold however sourcing boost between the IC and the TB is the best.

During cruise your turbo will be pushing 100% as the waste gate will be closed. It kinda defeats the throttle body as every time you're not at full boost the wastegate will be closed trying to get to the set boost however you're limiting the pressure going to the engine with the throttle body so you get a big mind ****. You press the gas, more exhaust goes to the turbo to spool it, turbo spools more but wastegate stays closed. You press the gas some more now you're in boost however still at low throttle so the turbo spools more as the wastegate still stays closed. You step to wot, the turbo has already spooled and built up a lot more than your set psi so you get a spike in psi so your wastegate now opens and you're fine. Now you're turning keeping the gas even, the throttle is say 30% open at 6psi however your wastegate is now closed so your turbo is trying to get to the set psi so it spools more so you close the throttle to make up for it, then when you step on the gas after the turn and you get another spike again throwing your rear end into the wall where you crash and burn and die. Is that what you want? This is why you cant have nice things!!1!
This makes sense.

Faeflora is offline   Reply With Quote
Old 11-01-2011, 11:46 AM   #12
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

This is why we can't have nice things!
