Old 12-13-2008, 01:37 AM   #21
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

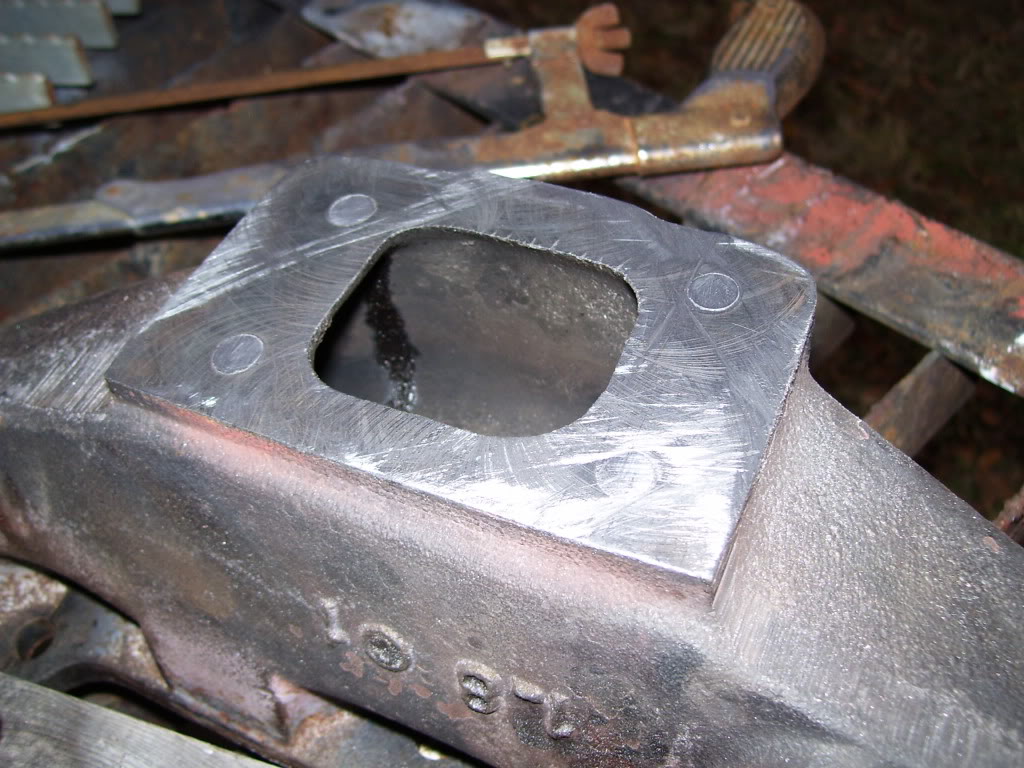

I'm working on it. The old threads were M8-1.25 and they were stripped out pretty bad. So I drilled them out and taped it 3/8-16. Then put some high strength red lock-tite on some grade 5 bolts and torqued them into the new threads. Let it cure for a day. Then used a hacksaw to cut the bolts off. Then a file to get them flat. Now I got all metal again.

C-clamped a T3 flange to the manifold, then used a drill bit to transfer center marks (need a set of transfer punches...). Picked the one that would be the hardest and did it first. Drilled 1/8, something bigger, then 5/16. Then taped it... Sucks tapping cast iron/grade 5 bolt. Dissimilar metals FTL. Hard and slow, but it's working. Gotta get some thread cutting oil before I do the others. STP oil helped, but ain't the same by any means.

Pics:

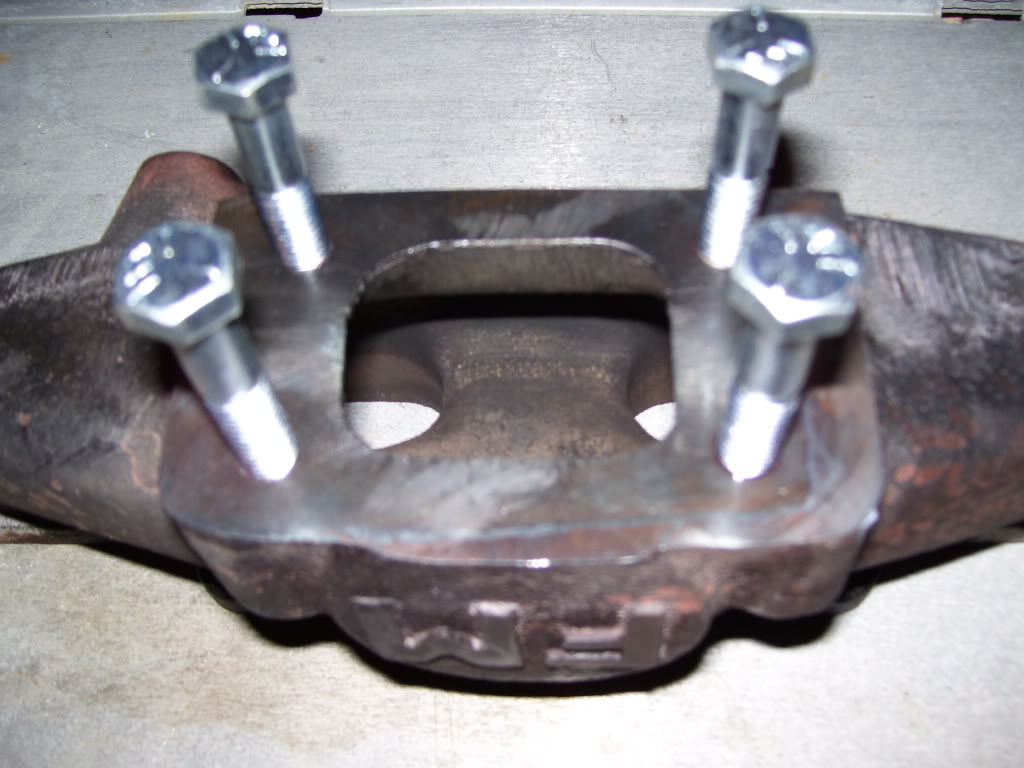

Name:  100_1697.jpg
Views: 3
Size:  89.3 KB

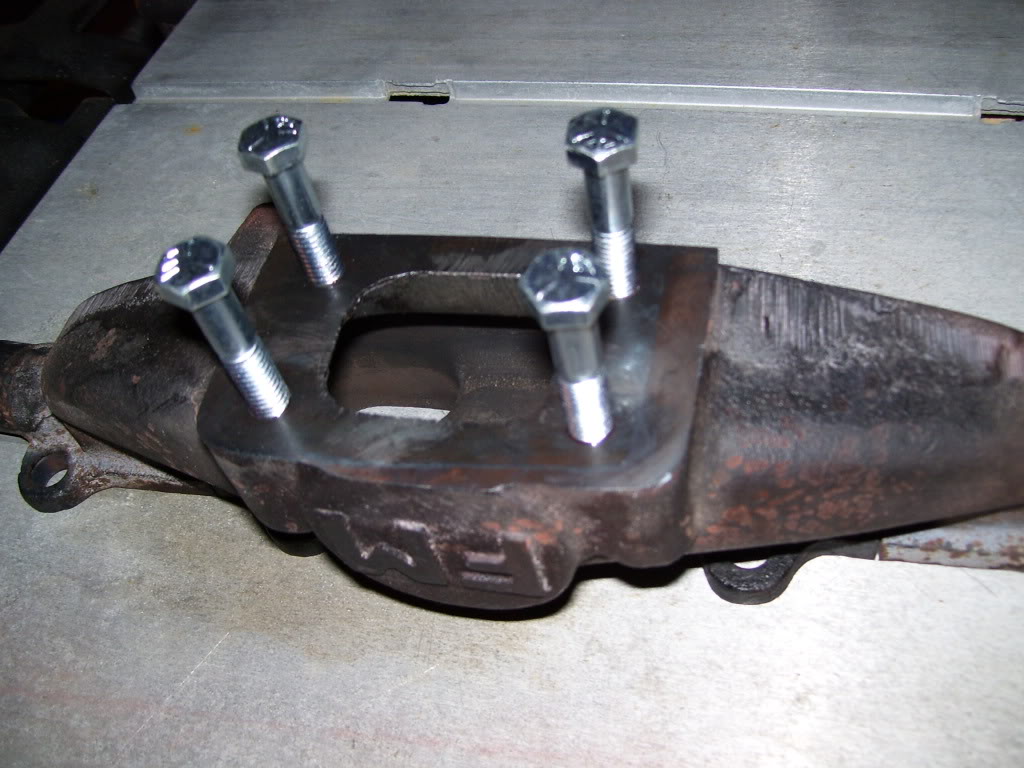

Name:  100_1698.jpg
Views: 4
Size:  120.8 KB

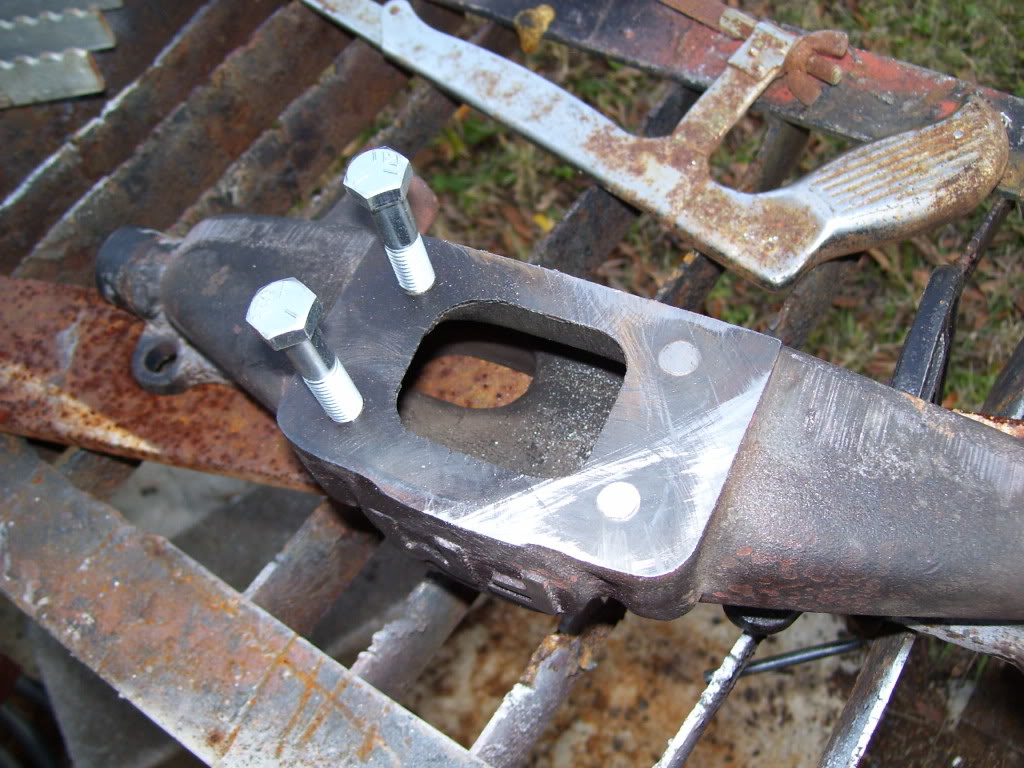

Name:  100_1704.jpg
Views: 3
Size:  152.7 KB

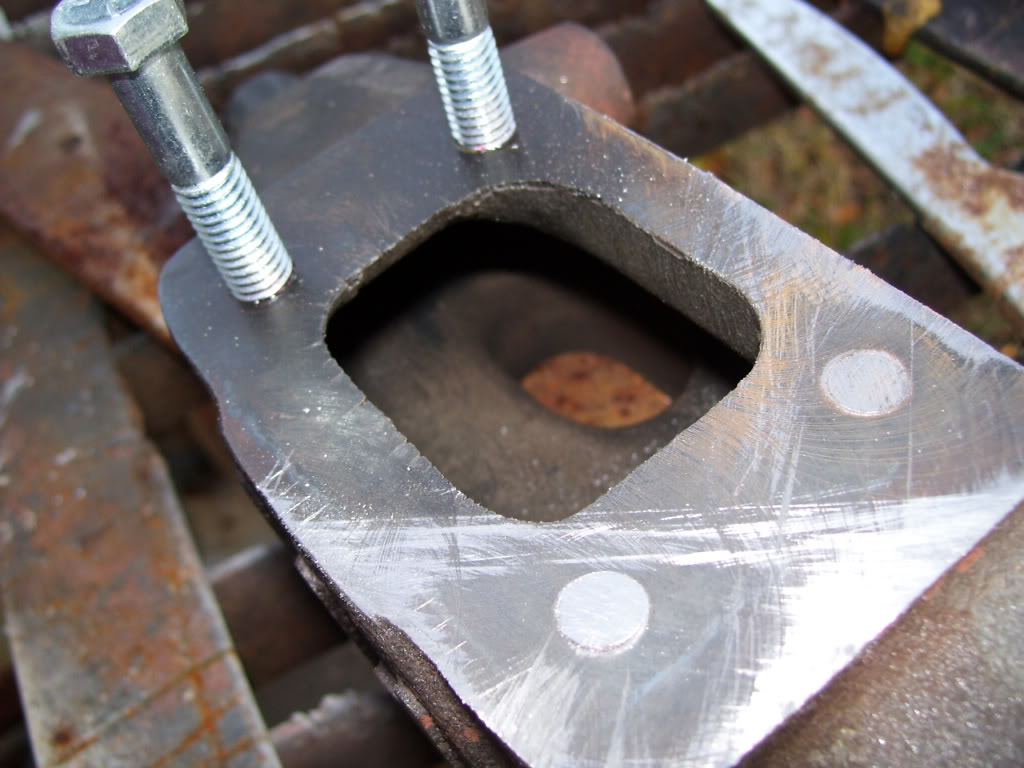

Name:  100_1705.jpg
Views: 4
Size:  107.7 KB

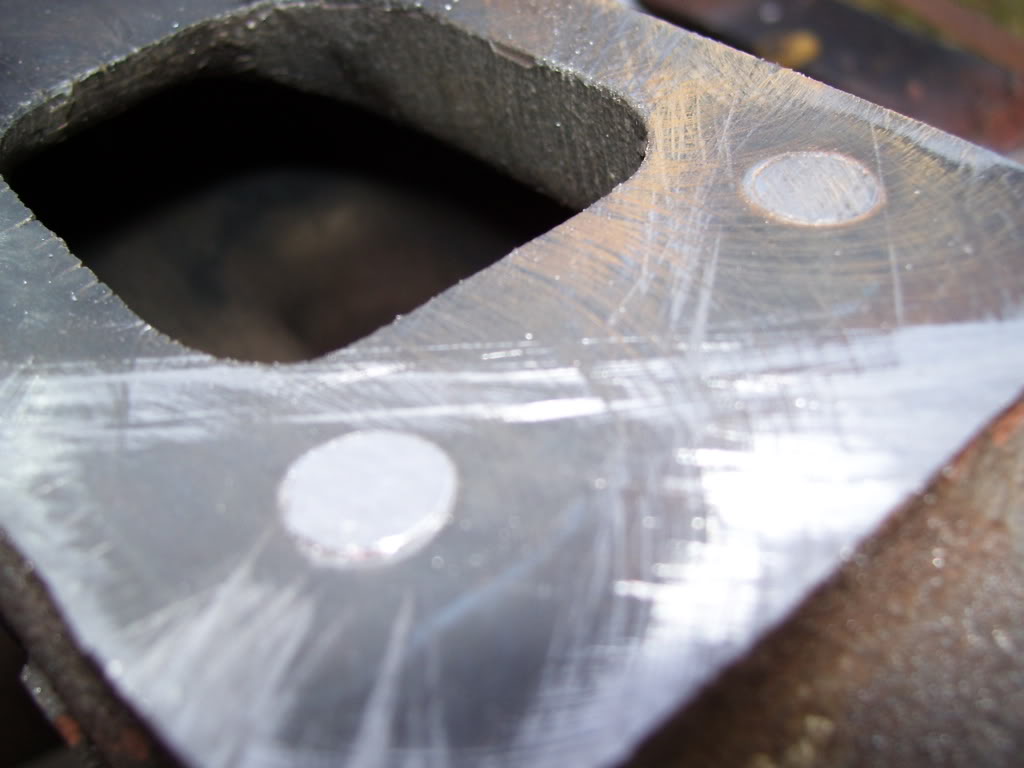

Name:  100_1707.jpg
Views: 3
Size:  69.5 KB

Name:  100_1710.jpg
Views: 3
Size:  148.3 KB

Name:  100_1713.jpg
Views: 3
Size:  151.8 KB

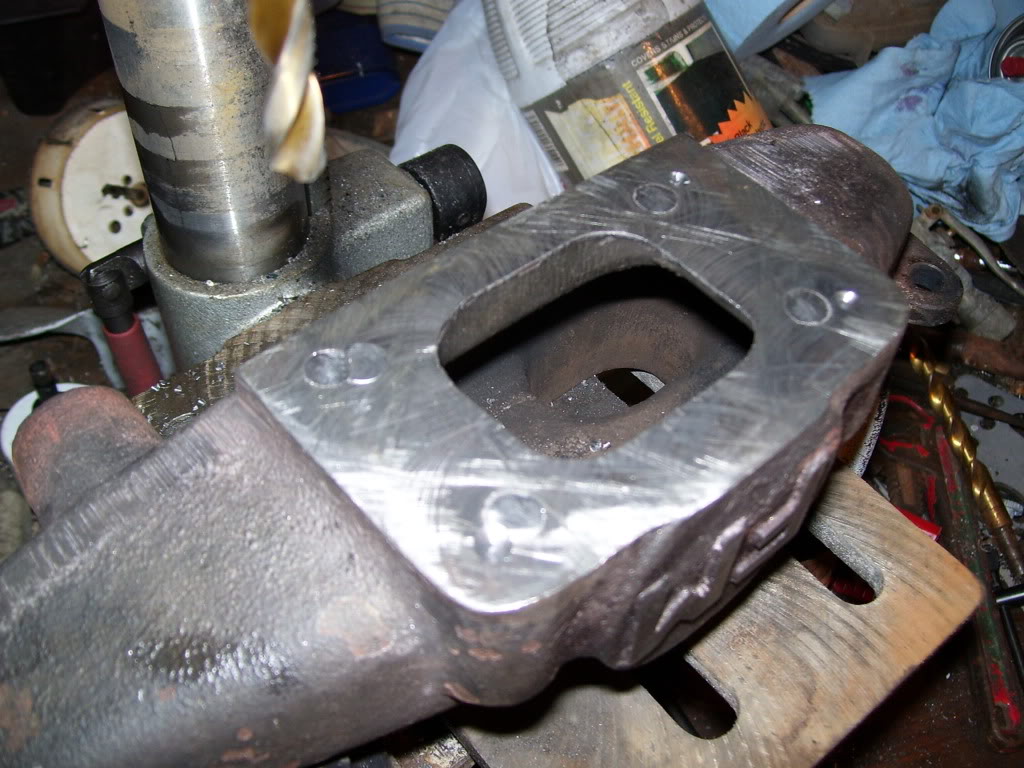

Name:  100_1719.jpg
Views: 4
Size:  137.1 KB

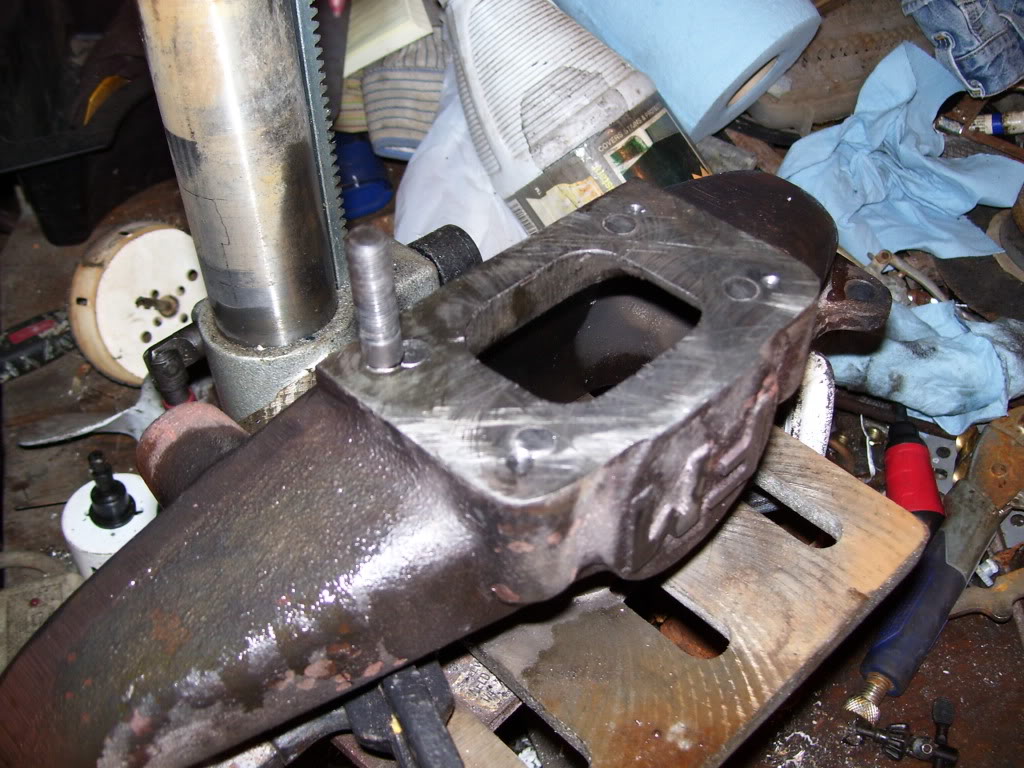

Name:  100_1723.jpg
Views: 3
Size:  160.0 KB

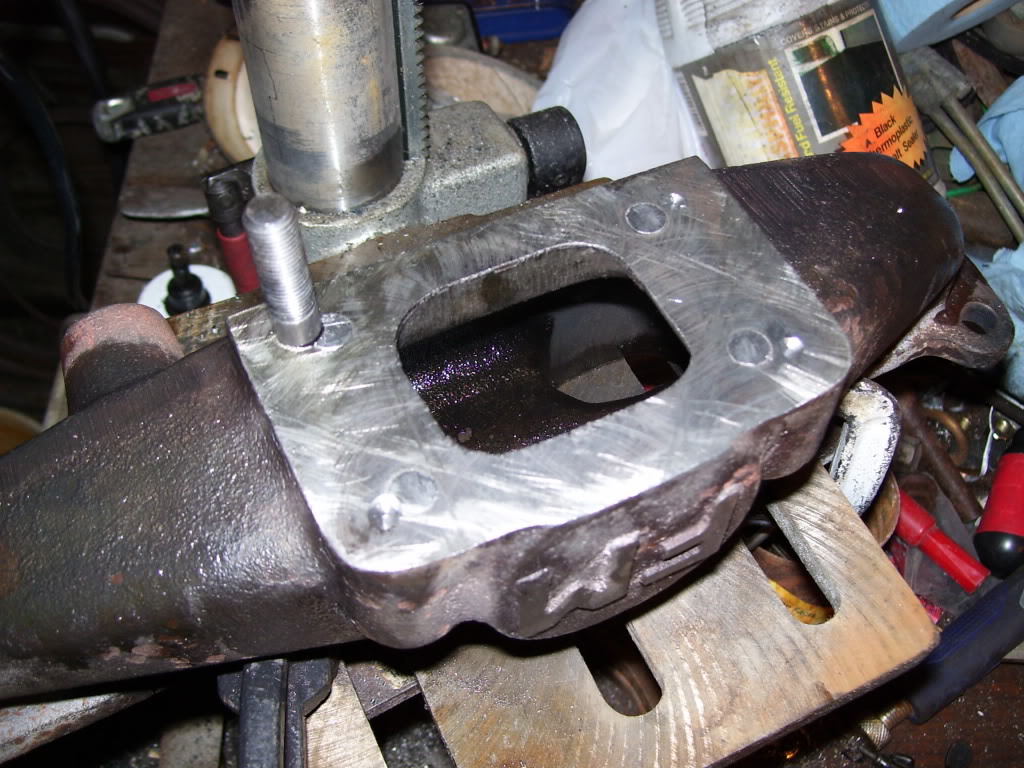

Name:  100_1724.jpg
Views: 3
Size:  159.7 KB
patsmx5 is online now   Reply With Quote
Old 12-13-2008, 12:05 PM   #22
Senior Member
iTrader: (6)

nester's Avatar

Join Date: Sep 2005
Location: Houston, TX
Posts: 812
Total Cats: 0
Default

looks pretty good
nester is offline   Reply With Quote
Old 12-13-2008, 12:33 PM   #23
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

impressive
viperormiata is offline   Reply With Quote
Old 12-13-2008, 11:27 PM   #24
Junior Member
iTrader: (1)

Join Date: Nov 2008
Location: weston, fl
Posts: 50
Total Cats: 0
Default

wow, that actually looks pretty good. good luck with that, it looks like it will work.
cornercarvermx5 is offline   Reply With Quote
Old 12-14-2008, 01:25 AM   #25
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Yeah, I'm pretty sure it's gonna work. Bought a damn set of Craftsmen taps and they're ****. Things don't have a center mark on top to steady the tap with a center. Ended up taping the first hole slightly crooked as I was eye balling it. Got another hole drilled, but I'm gonna have to buy a real tap before I do another. I want it right.
patsmx5 is online now   Reply With Quote
Old 12-15-2008, 10:11 PM   #26
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,480
Total Cats: 248
Default

Quote:
Originally Posted by patsmx5 View Post
I'm glad it is working for you. We did basically the same thing but from a T3 to a T2 on our Swift GT manifold:



It held fine.
TurboTim is offline   Reply With Quote
Old 12-15-2008, 10:56 PM   #27
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

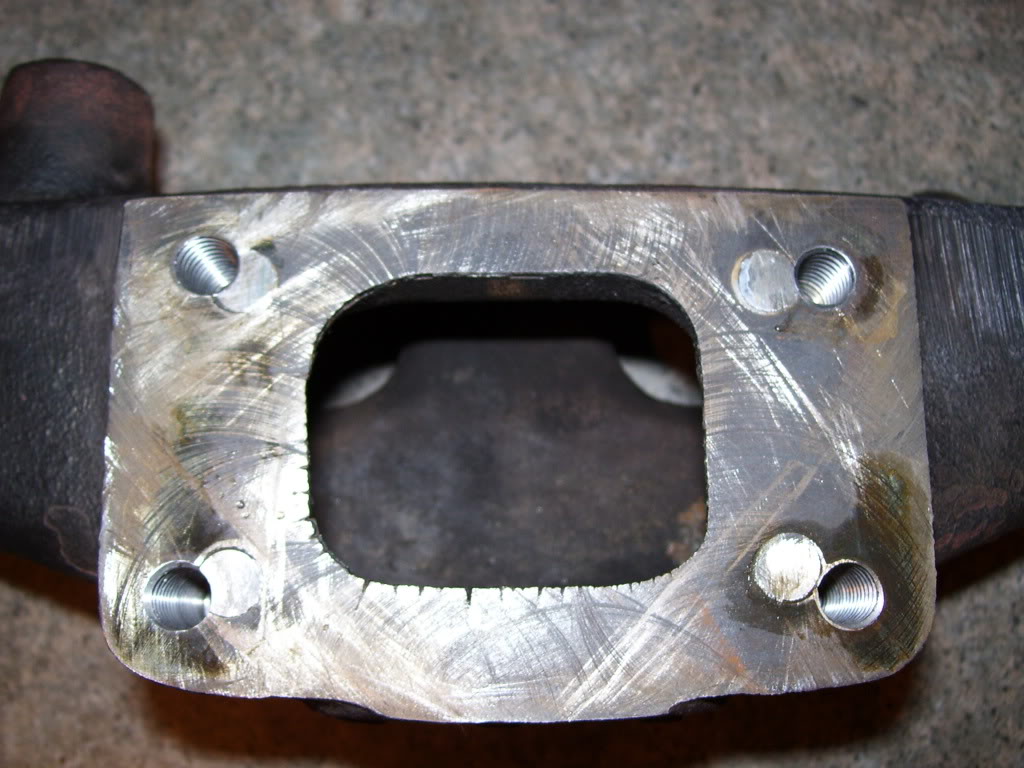

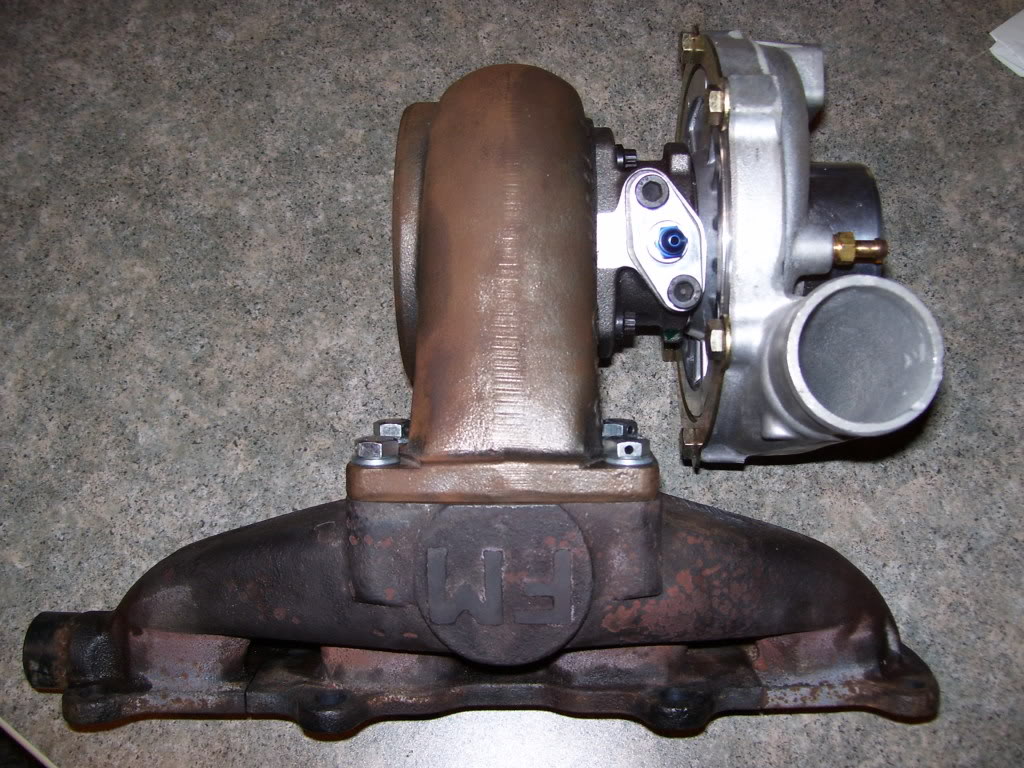

Finished the holes for the turbo to bolt up. Cutting fluid FTW. And changed to bolts. I drilled the heads of the bolts so I can wire them together. My bolts will NOT back out. Will drill and wire the downpipe bolts too. Now I'm starting on adding a wastegate port.

Tim- Looks good, and glad to hear.

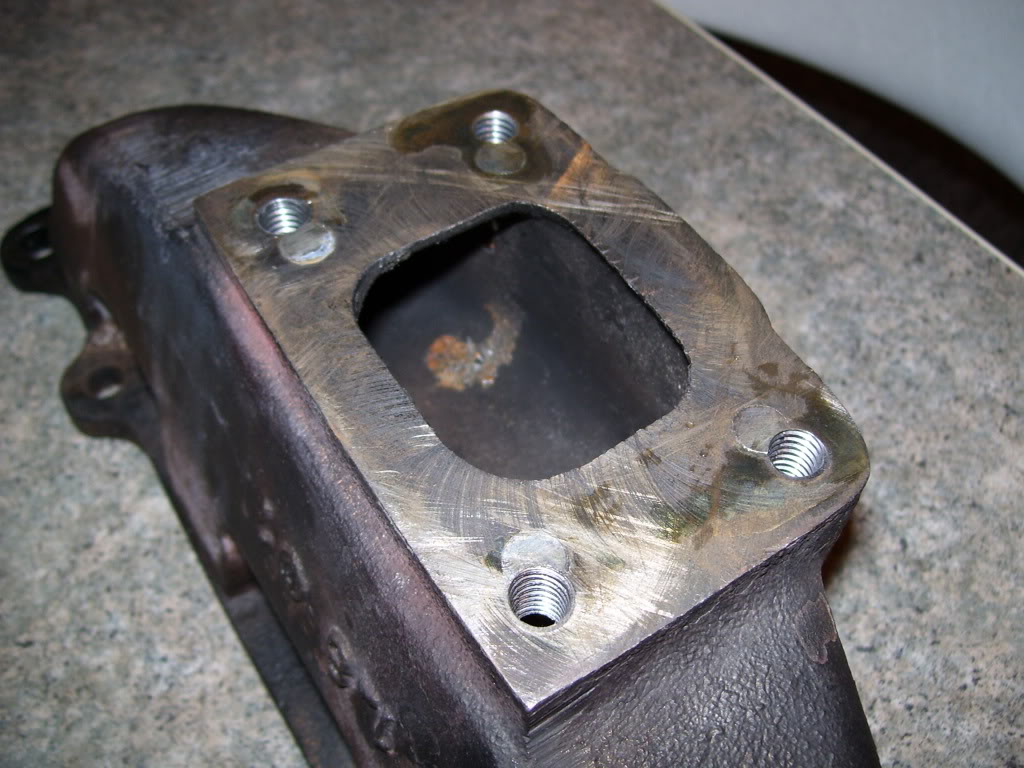

Name:  100_1767.jpg
Views: 2
Size:  129.4 KB

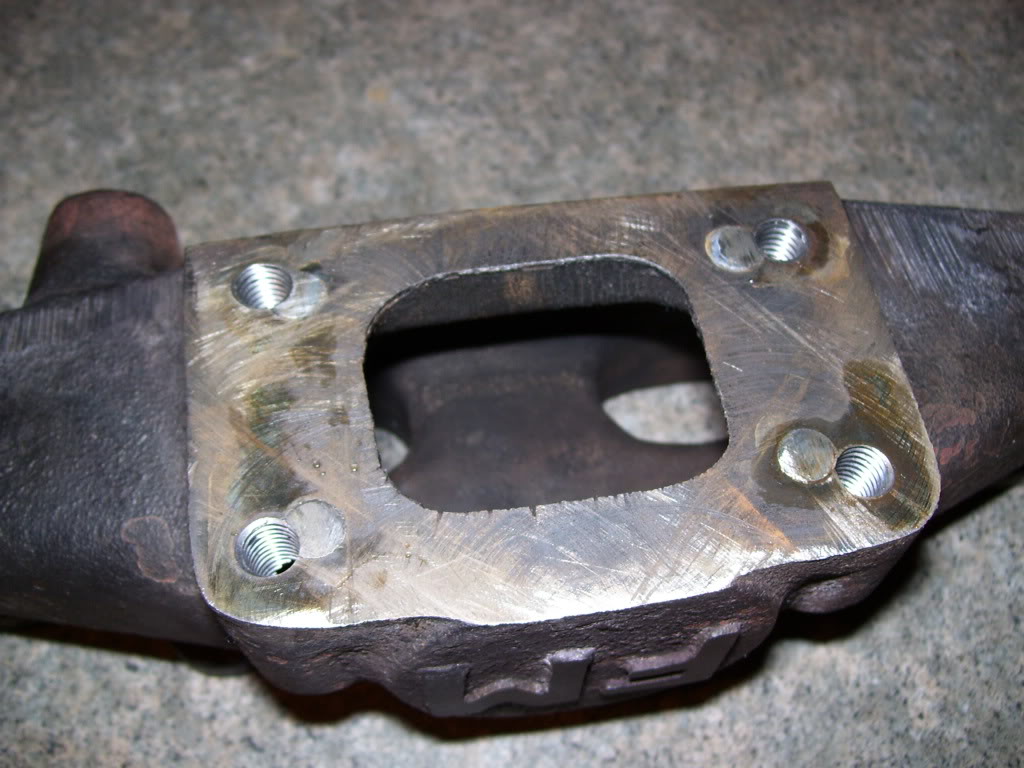

Name:  100_1765.jpg
Views: 2
Size:  116.4 KB

Name:  100_1766.jpg
Views: 2
Size:  122.0 KB

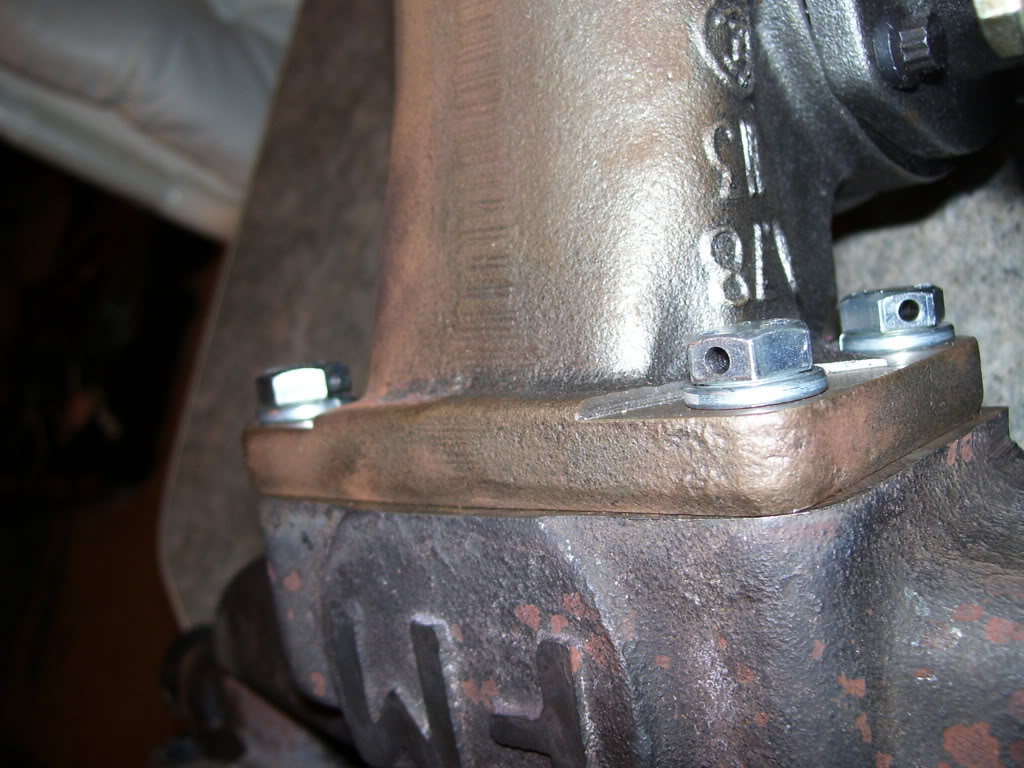

Name:  100_1764.jpg
Views: 2
Size:  138.6 KB

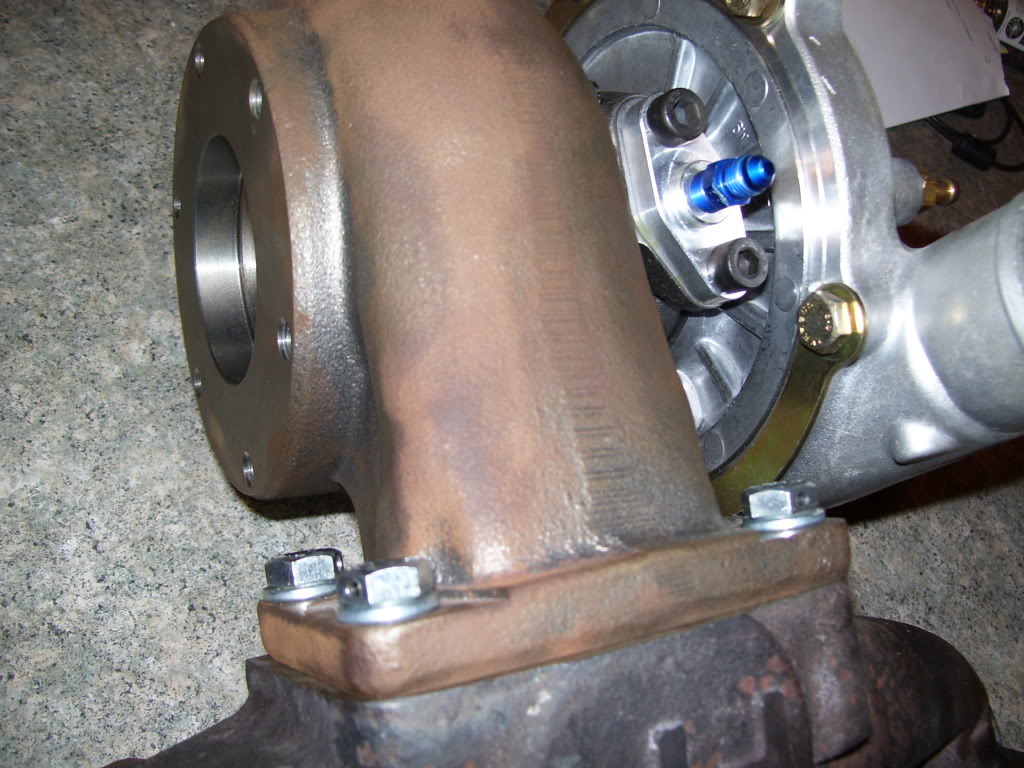

Name:  100_1758.jpg
Views: 2
Size:  143.5 KB

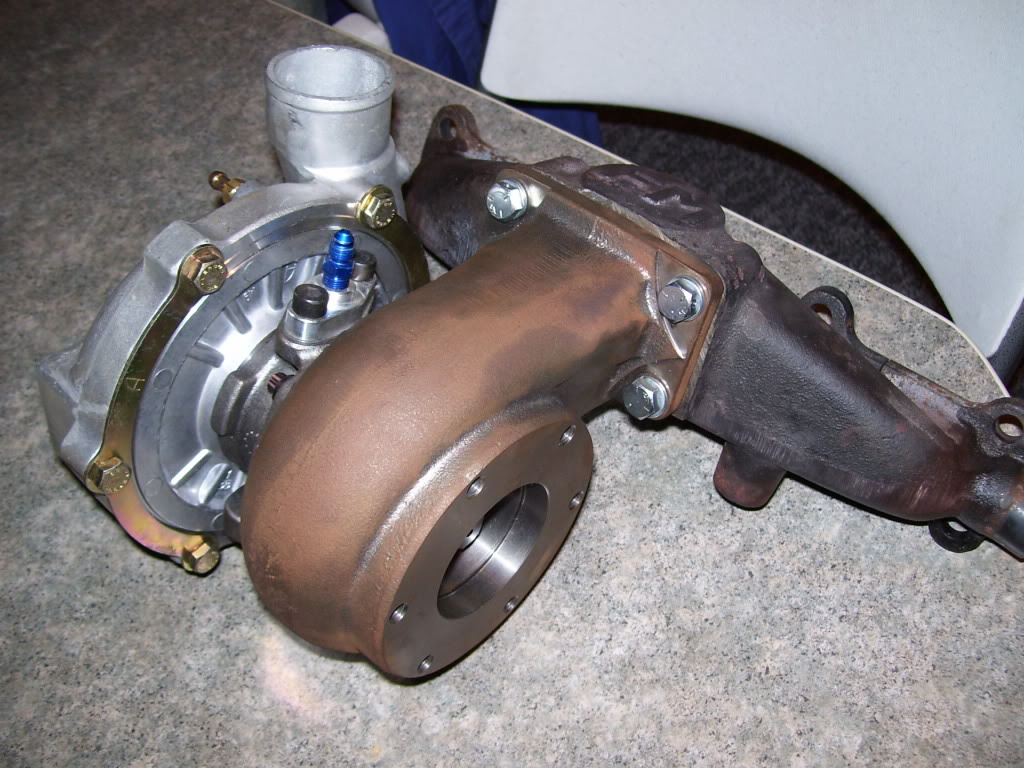

Name:  100_1756.jpg
Views: 2
Size:  158.3 KB

Name:  100_1755.jpg
Views: 2
Size:  173.2 KB
patsmx5 is online now   Reply With Quote
Old 12-15-2008, 11:12 PM   #28
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

looks really good man.
18psi is offline   Reply With Quote
Old 12-16-2008, 01:15 AM   #29
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Looks great. Are you going to mill it for a flat surface?


Turbo Tim, Did you say you turbo'ed a Gt swift. As in Suzuki, or metro with the 16 valve motor? I'll pm you.
Toddcod is offline   Reply With Quote
Old 12-16-2008, 01:29 AM   #30
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Did I miss it or did you already say what you were going to do about an EWG?
kotomile is offline   Reply With Quote
Old 12-16-2008, 10:58 AM   #31
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

The external gate setup will mimic the S5 manifold setup. About to start on that right now.
patsmx5 is online now   Reply With Quote
Old 12-16-2008, 11:47 AM   #32
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I'm thinking about switching to bolts and safety wiring mine too, lol.

Ceramic coating looks super cool (may hold some heat in the turbine/not radiate as much)
hustler is offline   Reply With Quote
Old 12-16-2008, 01:59 PM   #33
Senior Member
iTrader: (2)

Join Date: Aug 2007
Location: North Cackalackey
Posts: 716
Total Cats: 2
Default

don't forget to put some of the rutland gasket cement works perfectly. looks like this
musanovic is offline   Reply With Quote
Old 12-16-2008, 04:59 PM   #34
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,355
Total Cats: 1,322
Default

Quote:
Originally Posted by musanovic View Post
don't forget to put some of the rutland gasket cement works perfectly. looks like this
Flat surfaces don't need gaskets.
Savington is offline   Reply With Quote
Old 12-17-2008, 12:23 AM   #35
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

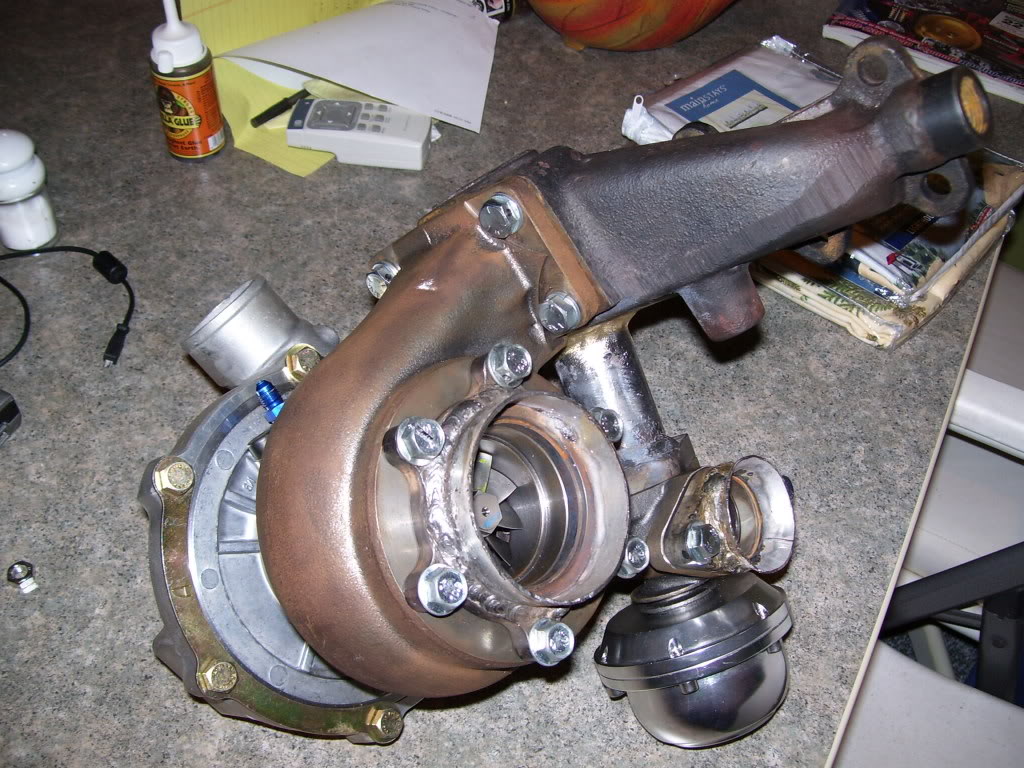

Yeah, my welds ain't pretty. But they'll work I believe. Better than I did on my exhaust system, and it's still working...

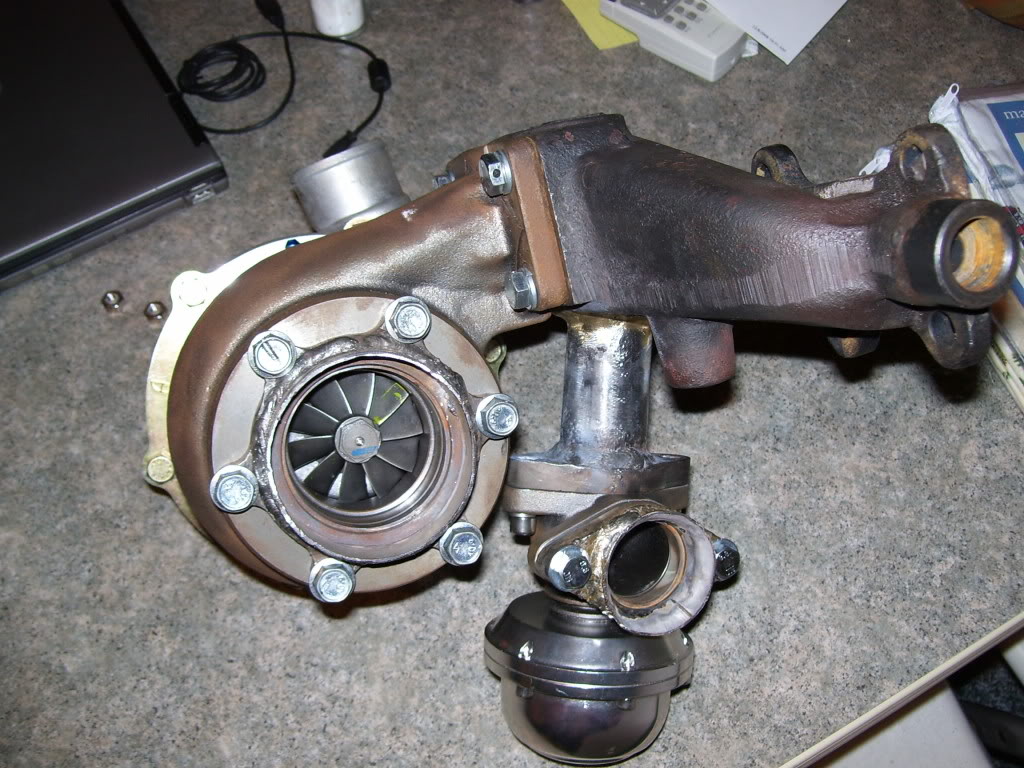

Name:  100_1769.jpg
Views: 2
Size:  172.7 KB

Name:  100_1770.jpg
Views: 2
Size:  180.6 KB

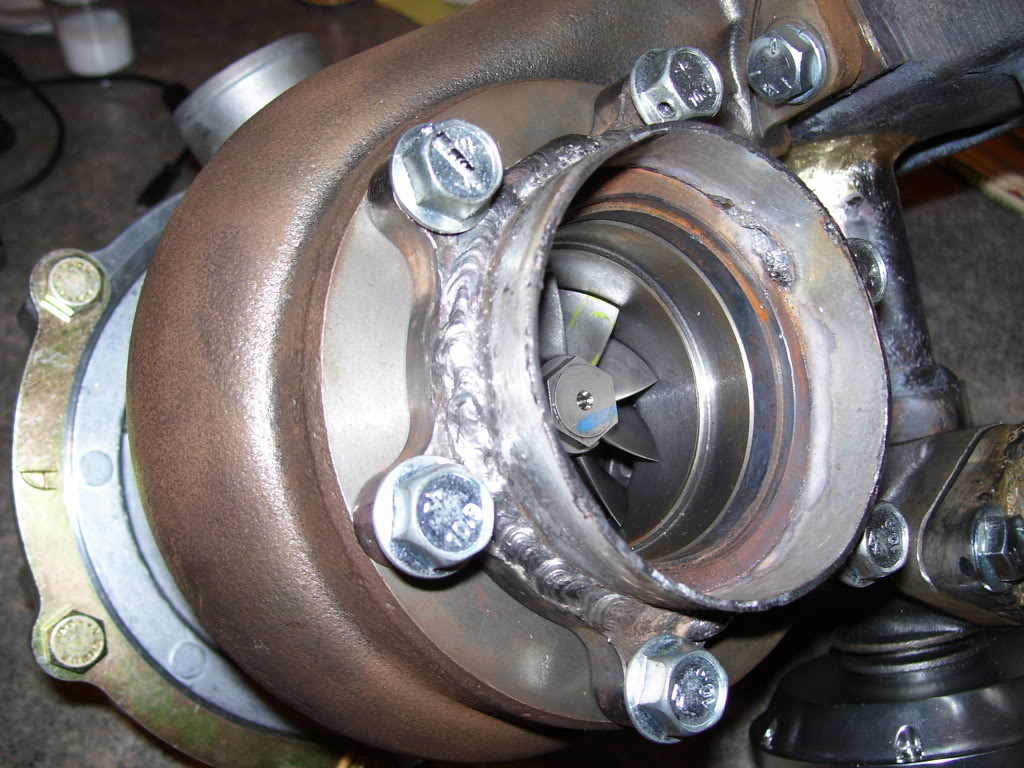

Name:  100_1771.jpg
Views: 2
Size:  159.5 KB

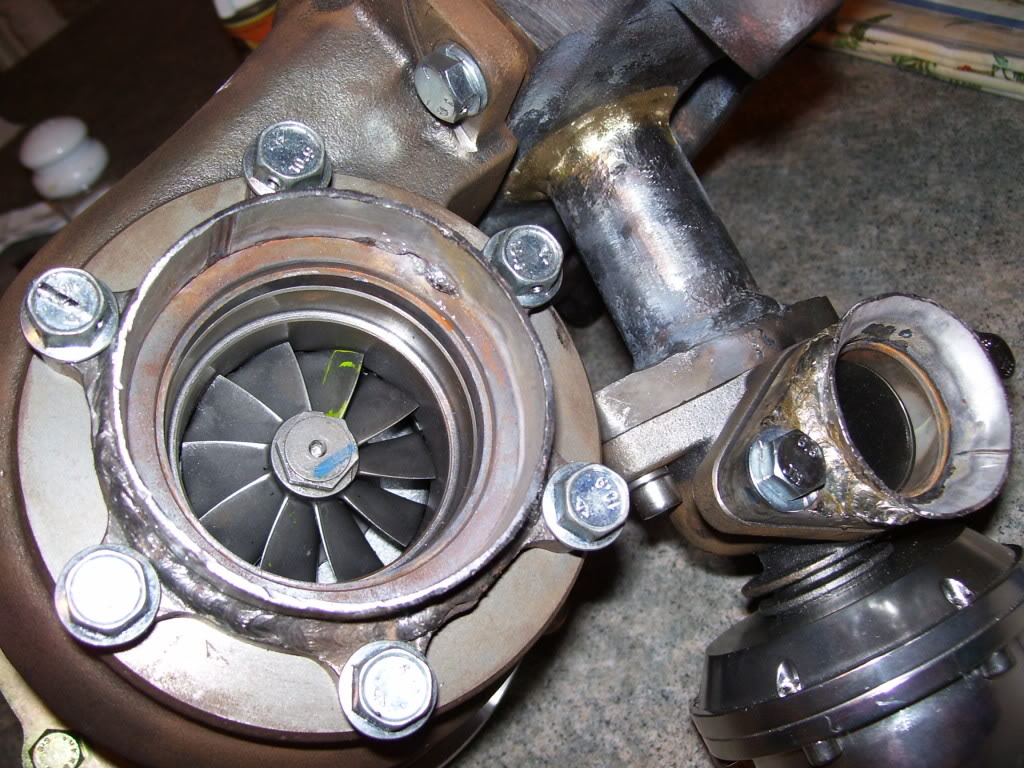

Name:  100_1772.jpg
Views: 2
Size:  177.2 KB
patsmx5 is online now   Reply With Quote
Old 12-17-2008, 12:25 AM   #36
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Turbine looks big in the pics.
patsmx5 is online now   Reply With Quote
Old 12-17-2008, 07:48 PM   #37
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,480
Total Cats: 248
Default

Quote:
Originally Posted by Toddcod View Post
Turbo Tim, Did you say you turbo'ed a Gt swift. As in Suzuki, or metro with the 16 valve motor? I'll pm you.
Is there a difference? It was a legit Swift GT. Very very fun.

This build is going awesome Pat!
TurboTim is offline   Reply With Quote
Old 12-17-2008, 08:09 PM   #38
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

Quote:
Originally Posted by patsmx5 View Post
Turbine looks big in the pics.
thats because it is big lol...at least when compared to other turbo's being used here
18psi is offline   Reply With Quote
Old 12-17-2008, 08:17 PM   #39
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

Looks almost as good as my FM3

I tell you what man, that is true craftsmenship
viperormiata is offline   Reply With Quote
Old 12-17-2008, 08:44 PM   #40
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

This down pipe is gonna be a BITCH. ****. Started building one and it ain't gonna work. Gotta start over on that. Oh well, I'll get it. Probably gonna have the waste gate dump back in pretty soon for simplicity over performance. Just want it done at this point. I utterly HATE doing anything with exhaust.
patsmx5 is online now   Reply With Quote
