DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 12-16-2014, 11:14 AM   #1
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default New Garrett Turbos (GTW, GTX2971R) Who will be the trailblazer?

I don't have any data to show as of this moment (still looking) but my friend got some new info from the PRI show in Indy that says that Garrett will be releasing a bunch of new turbos and a new GTW line. Supposedly they are cheaper than the GTXs but just as good.

Also, they released a new turbo called the GTX2971R that looks like an interesting option...

SEMA 2014: The Pressure Is High In The Garrett Booth - REVVED
Chiburbian is offline   Reply With Quote
Old 12-16-2014, 12:28 PM   #2
Junior Member
iTrader: (2)

Join Date: May 2014
Location: Arlington, TX
Posts: 328
Total Cats: 40
Default

Haha the guy that wrote that article is the project lead on my senior design engineering team.

Good to see Garrett expanding the smaller side of their lineup. They need to make a GTX in the 2560-ish range!
Dustin1824 is offline   Reply With Quote
Old 12-16-2014, 12:37 PM   #3
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

GTX4594R or bust.
shuiend is offline   Reply With Quote
Old 12-17-2014, 01:57 AM   #4
Junior Member

Join Date: Jul 2013
Location: SanDiego
Posts: 53
Total Cats: 5
Default

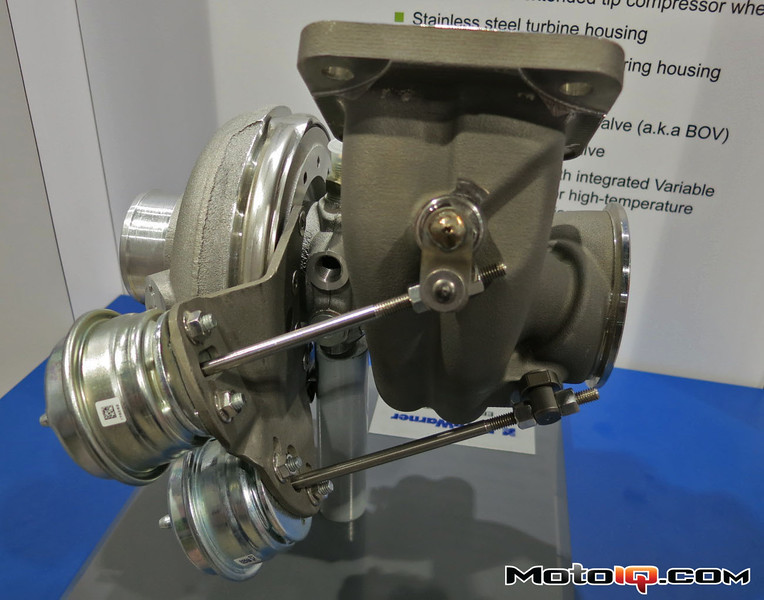

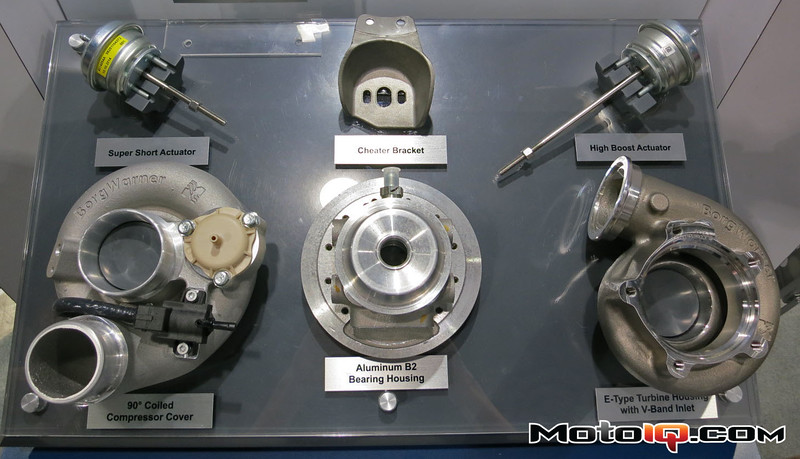

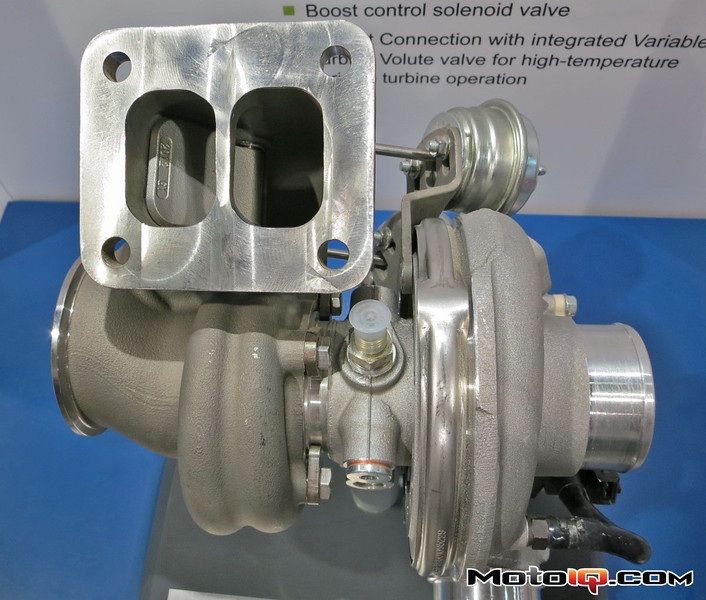

Borg Warner also has some new stuff coming out. Built in quick spool valve


and 90* compressor cover outlets
Attached Thumbnails
New Garrett Turbos (GTW, GTX2971R) Who will be the trailblazer?-img_6118adj-l.jpg   New Garrett Turbos (GTW, GTX2971R) Who will be the trailblazer?-img_6119adj-l.jpg   New Garrett Turbos (GTW, GTX2971R) Who will be the trailblazer?-img_6124adj-l.jpg
ThunderKunt is offline   Reply With Quote
Old 12-17-2014, 09:50 AM   #5
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,561
Default

I'll be in my bunk.
sixshooter is online now   Reply With Quote
Old 12-17-2014, 10:39 AM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

new turbo tech makes me all warm and tingly

18psi is offline   Reply With Quote
Old 12-17-2014, 12:05 PM   #7
Junior Member
iTrader: (1)

Join Date: Jun 2014
Location: Metro Detroit
Posts: 270
Total Cats: 26
Default

Fascinating. The quick spool valve in the BW looks tasty, as it means you don't need a real twin-scroll manifold, which are quite rare in smaller power aftermarket manifolds (e.g. all the Miata ones).

Does anyone know what size turbos these quick spool valves will be on?
Ryephile is offline   Reply With Quote
Old 12-17-2014, 12:19 PM   #8
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by Ryephile View Post
Fascinating. The quick spool valve in the BW looks tasty, as it means you don't need a real twin-scroll manifold, which are quite rare in smaller power aftermarket manifolds (e.g. all the Miata ones).

Does anyone know what size turbos these quick spool valves will be on?
The reason that twin-scroll manifolds are a rarity in the miata world is mostly because people don't want to pay for it or a turbo that would use it. I know TurboTim has plans for them up on his website.
shuiend is offline   Reply With Quote
Old 12-17-2014, 12:47 PM   #9
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

I had two people wanting to spend the $1000 for my equal length TS. Fortunately for me my hours are back at Jesel cause building that would have sucked.

Turbonectics also had some pretty turbos in our size at PRI. TNX series i believe. I walked by the BW booth before the show when everything was covered up but forgot to go back, oops. but dayum that QSV T4 would be nice.

Precision already had their 4828 which is our size.
TurboTim is offline   Reply With Quote
Old 12-17-2014, 01:23 PM   #10
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Im in the midst of building a t4 twin scroll Miata manifold. Its a personal project though, so with all of the customer work I have its on the back of the bench for the time being. This manifold also has tapered runners for big power... but I will leave it at that until I get more time to build it.


From the looks of that quick spool borg warner, you still run a twin scroll manifold... it just dumps one of those scrolls into the other side with the flapper. Borg would have omitted the divider if it were meant for an open scroll manifold.
shlammed is offline   Reply With Quote
Old 12-20-2014, 12:23 AM   #11
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

That type of quick spool valve works nicely. It showed pretty nice results on the '87/'88 Rx7 turbos. Hitachi, I think it was.

The added capability of the turbine was never taken advantage of by adding more compressor capability.

corky
Corky Bell is offline   Reply With Quote
