Default Newb needs help on turbo ID

I have a factory rebuilt turbo that I bought a little while back. I was told it was a factory mazda turbo. I'm trying to figure out what it is before I decide to use it or sell it.
"airresearch" cast in small clear block letters on compressor housing
"e24" cast on compressor snail
"409115 54" Stamped on compressor snail.

Rebuild tag has the following...

Code "RS"
Model "780357" Or "7B0357"
Garrett p/n "466954.2
S/N "98060907B"

"DH2/4 Garrett M4" Cast on exhaust side cover

Thanks for any help, kind of like to know what its worth (i have a feeling I overpaid)


JohnX is offline   Reply With Quote
Old 01-07-2011, 10:58 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

SAAB
900 (16V Intercooled)
88
2.0L
GAR
TB0357
466954-2X




specs;
http://www.turbointernational.com/pr...turboModel=399


Last edited by Braineack; 01-11-2011 at 09:37 AM.
18psi is offline   Reply With Quote
Old 01-08-2011, 02:16 AM   #3
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

If you think you overpaid...tell us...what did you pay for this? Without searchin, I'm GUESSING this is about a .49/ .48 unit. If my numbers hold true, (which they most likely don't), the turbo should be very fast spooling, but not high RPM power maker. My second turbo was a T25 flanged .49/ .48 and it spooled way fast, but anything over 10 psi after 5500RPM's was a joke.
thirdgen is offline   Reply With Quote
Old 01-09-2011, 01:29 AM   #4
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2010
Location: Rancho Cucamonga CA
Posts: 76
Total Cats: 0
Default

Okay, seems i'm a bigger bonehead than i thought. I bought this turbo and another one at the same time from the same guy for $300. He did tell me one was for a saab, guess i mixed them up. I'll have to post some specs from the other one i have sitting here, it should be the mazda turbo i guess.
JohnX is offline   Reply With Quote
Old 01-09-2011, 01:31 AM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2010
Location: Rancho Cucamonga CA
Posts: 76
Total Cats: 0
Default

Quote:
Originally Posted by thirdgen View Post
...but anything over 10 psi after 5500RPM's was a joke.
So would it run 6500 rpm at 8 psi you think?? Kind of all I had in mind for my first attempt
JohnX is offline   Reply With Quote
Old 01-09-2011, 11:31 AM   #6
!!! NOT CONFIRMED !!!

Join Date: Nov 2007
Location: Virginia Beach, Va
Posts: 158
Total Cats: 1
Default

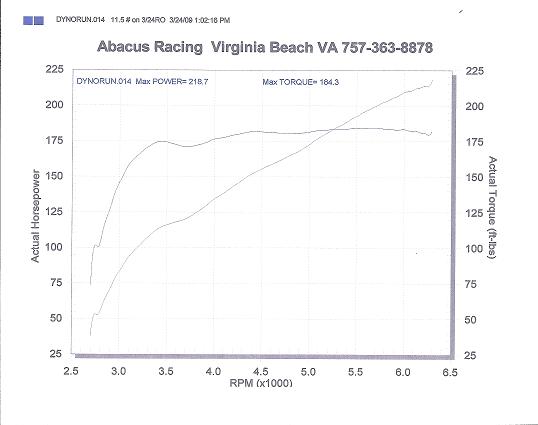

Yes it will hold 8 psi @ 6,500 , My old Saab .48 / .49 would hold 10psi to Red line (anything beyond that the air charge was real hot ) But it still made 218whp. ( mine was a Garrett TB2531)
Attached Thumbnails
Newb needs help on turbo ID-1999-dyno.jpg
elderc is offline   Reply With Quote
Old 01-09-2011, 09:15 PM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2010
Location: Rancho Cucamonga CA
Posts: 76
Total Cats: 0
Default

Okay, So maybe that one is a good possibility. Here are some pics of the other one, is it from a Mazda?? And how do the two compare performance wise?



JohnX is offline   Reply With Quote
Old 01-10-2011, 06:00 PM   #8
Newb

Join Date: Jan 2011
Posts: 4
Total Cats: 0
Default

The second is a .42/.48 t3 based turbo.
zoomzoom1995 is offline   Reply With Quote
Old 01-10-2011, 06:15 PM   #9
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

MSM IHI-




WRONG

Last edited by Braineack; 01-11-2011 at 09:37 AM.
chpmnsws6 is offline   Reply With Quote
Old 01-10-2011, 09:06 PM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2010
Location: Rancho Cucamonga CA
Posts: 76
Total Cats: 0
Default

So did I over pay?

$300 for the pair.


I need to sell one, maybe both, pocket is hurting a little right now.
JohnX is offline   Reply With Quote
Old 01-11-2011, 09:35 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

They are both t3s. They just have difference compressor housings and wastegates.

The first more than likely has a 45 trim compressor wheel, the second more than likely has a 50 trim or 60 trim. Both look to have a .48 A/R turbine housing. You'll need to pull off hte compressor housings and measure the wheels for us. Remove the tape on the turbine inlet to see what size the housing is.

With that said I'd use the 2nd turbo with the 1st turbo's wastegate outlet.


EDIT: 18psi's post suggests the first IS a 50 trim. Good turbo for 270BHP (250rwhp) max. I'd still wanna measure the 2nd, it's possibly a 60 trim or super 60.
Braineack is offline   Reply With Quote
Old 01-13-2011, 11:04 PM   #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2010
Location: Rancho Cucamonga CA
Posts: 76
Total Cats: 0
Default

Okay, On the second turbo, the largest diameter of the compressor wheel at the base is about 60-62mm, the Air inlet is about 44-45mm, the air outlet is about 34mm.

Are these sounding right?
JohnX is offline   Reply With Quote
Old 01-17-2011, 04:27 PM   #13
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2010
Location: Rancho Cucamonga CA
Posts: 76
Total Cats: 0
Default

Any more input on this, i'm not sure if i'm measuring things correctly or not??
JohnX is offline   Reply With Quote
Old 01-17-2011, 06:35 PM   #14
Junior Member

Join Date: Aug 2010
Location: south africa
Posts: 126
Total Cats: 1
Default

I'll definitely be interested in the saab turbo if youre willing to ship USPS to South Africa,will do paypal!Searching my *** of for a decent unit over here...
oldschool is offline   Reply With Quote
Old 01-18-2011, 01:45 PM   #15
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2010
Location: Rancho Cucamonga CA
Posts: 76
Total Cats: 0
Default

pm'd you.
