Default Nissan T25 Compressor Machining

I finally figured out how to use my Nissan T25 with my current IC and DP setup. The standard method is to use a 3bolt flange adapter and hook everything up that way. With my setup i would have had to modify my IC piping which is powdercoated and not something I wanted to destroy at the moment. So after pondering many ideas such as welding an elbow on the compressor or making a flange and welding an elbow. I realized that the compressor housing though it looks different is the same as a standard housing that allows the use of silicone couplers just with excess alum all around the outlet. So i figured what the heck, why not just machine all of that off, smooth it out and make it work. Well what i ended up with is something that looks almost exactly like the Saab(i think) housing I have. It works perfect and would save anyone the extra $30 or so that the adapter costs. That is of course if they have free machining available or do it themselves.

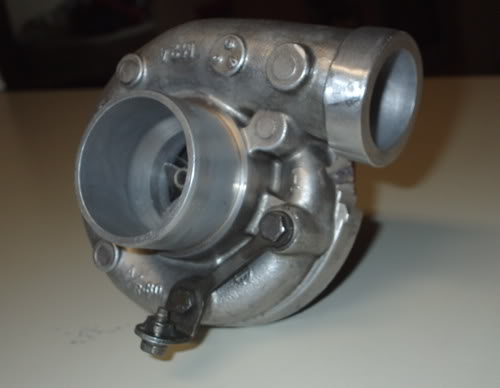

Name:  05200002.jpg
Views: 0
Size:  20.2 KB

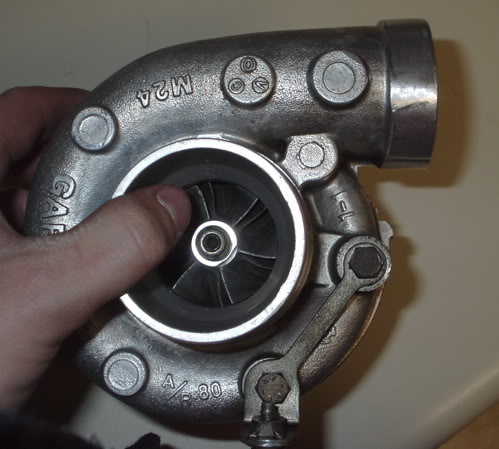

Name:  05200001.jpg
Views: 0
Size:  41.6 KB
Compared To This
cjernigan is offline   Reply With Quote
Old 02-07-2007, 09:37 PM   #2
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

Way to use your nogin (sp?). Using flanges on the IC/Intake pipes is just stupid. Glad I never had to mess with that. Looks good!
-Michael-
TheBandit is offline   Reply With Quote
Old 02-07-2007, 10:46 PM   #3
Senior Member

Join Date: Dec 2005
Posts: 865
Total Cats: 0
Default

nice,i wanted to do that.but all i have is a dremeL.
turbopezz is offline   Reply With Quote
Old 02-07-2007, 10:48 PM   #4
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

It woulda worked, just would have taken on hella long time and a good carbide bit. Probably would have wore out the dremel though.
cjernigan is offline   Reply With Quote
Old 02-07-2007, 11:16 PM   #5
Senior Member

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

hmmm U know , I was thinking about thAT but then again I have both adapters for the turbo, im going to have them welded on.
RicanmiataRacer is offline   Reply With Quote
Old 02-07-2007, 11:20 PM   #6
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

You have both adapters and you want them welded on... why not just bolt them up with the appropriate seals.
cjernigan is offline   Reply With Quote
Old 02-07-2007, 11:37 PM   #7
Senior Member

Join Date: Dec 2005
Posts: 865
Total Cats: 0
Default

yea, thats why i woouldnt use a dremel.and its not the right tool for the job.
turbopezz is offline   Reply With Quote
Old 02-07-2007, 11:43 PM   #8
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Could do it with a pneumatic die grinder though easy enough if you had access to a compressor. On that note i have a T25 outlet adapter to sell.
cjernigan is offline   Reply With Quote
Old 02-08-2007, 09:53 AM   #9
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by turbopezz View Post
yea, thats why i woouldnt use a dremel.and its not the right tool for the job.
with the right bits a dremel will go through AL like butter...
Arkmage is offline   Reply With Quote
Old 02-08-2007, 09:57 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,827
Total Cats: 1,783
Default

Quote:
Originally Posted by cjernigan View Post
You have both adapters and you want them welded on... why not just bolt them up with the appropriate seals.

cause Rican likes to do lots of thing, but not acutally build a kit.
Braineack is offline   Reply With Quote
Old 02-08-2007, 10:58 AM   #11
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Quote:
Originally Posted by Braineack View Post
cause Rican likes to do lots of thing, but not acutally build a kit.

Oh! Snap!
samnavy is offline   Reply With Quote
Old 02-08-2007, 03:08 PM   #12
Senior Member

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

money and time..... I do lil things at a time.
RicanmiataRacer is offline   Reply With Quote
Old 02-08-2007, 03:09 PM   #13
Senior Member

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

p.s

.......blow it out ur *** braineck j/k
:gay: always all up on my *** dude:gay: can't a guy have Ideas. oh and Im almost done , all I need are intercooler pipes,couplers,and a custom down And im gravy, Maybe if I get another job I can do it faster my king

time and money , hey If I hit the lotto I'll make my car in one week, but since that **** aint going to happen I do what i can with me crack money.:gay: j/p

Last edited by RicanmiataRacer; 02-08-2007 at 03:21 PM.
RicanmiataRacer is offline   Reply With Quote
Old 02-08-2007, 10:36 PM   #14
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by cjernigan View Post
Could do it with a pneumatic die grinder though easy enough if you had access to a compressor. On that note i have a T25 outlet adapter to sell.
I was going to make one at work (although we have a lathe (sp?) ) and a zillion metal working tools I'm way to busy to machine down the housing..

You have pm.
dc2696 is offline   Reply With Quote
Old 02-08-2007, 10:41 PM   #15
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

oops
dc2696 is offline   Reply With Quote
Old 01-31-2008, 05:06 AM   #16
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Has anyone tried this w/ the Dremel, as mentioned above? Possible/not worth it and bring it to a machine shop?
kenzo42 is offline   Reply With Quote
Old 01-31-2008, 11:22 AM   #17
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

You could do it, but it would take ALL DAY it seems. It's just aluminum so you can remove the material easily. You might be better off trying to saw the corner off then smoothing with the dremel.
cjernigan is offline   Reply With Quote
Old 01-31-2008, 11:24 AM   #18
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

I would use a saw too, then die grinder or even an angle grinder would work well
Loki047 is offline   Reply With Quote
Old 01-31-2008, 11:40 AM   #19
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

A Dremel with a carbide bit will go through aluminum like butter. But you're gonna have a couple hundred thousand microsized aluminum splinters EVERYWHERE!!! Get an extension cord and go down to the street... then do the work over a trashcan with a plastic liner. Throw away liner when done. Wear longsleeves and gloves. Throw away shirt when done.
samnavy is offline   Reply With Quote
Old 01-31-2008, 04:19 PM   #20
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

That's a great trick. I have a T25 in my junk bin, and may do the same, but no machine toole here, though my bench grinder, and cheap-*** Harborfreight angle grinder, will make short work of the bulk of it, and then finish up with the Dremel.

For some reason, everyone buys a Dremel and thinks it's the greatest thing since sliced bread. While it does have its' place, if you're playing with cars, get yourself an angle grinder and bench grinder. They're inexpensive, and you'll find lots of uses for them.
