Default oil cooler and oil-filter relocation - how do i do the lines?

I have a moss oil filter relocation kit and i just got in my 1.6 flyin miata oil cooler kit, the problem im having is figuring out how do i run both of these kits together?

Call me dumb but i can seem to figure out how the oil lines would work out?

I plan on using -8AN size hose for everything, im not worried out pressure loss while using size -8an hose since my oil pressure is always pinned at 90psi while cruising and 70psi during normal driving thanks to my BE oil pump, Anyways back to the question. Is it even possible to run both kits at the same time?

Thanks
railz is offline   Reply With Quote
Old 09-07-2010, 08:26 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I think you're going to need a -8an male/male connector. The feed line will go from the block to the oil cooler (or filter, depending on what you want to do). At this point, the return line from either usually goes back to the stock filter location on the block. Now however, you're going to need to go twice as far, either from the oil cooler to the firewall, or vise verse. This is where you'll need to put the -8 union. A better idea would be to scrap two of the lines and buy one complete one that's the correct length, which will allow you to route it how you like, and get rid of two potential failure points.
curly is offline   Reply With Quote
Old 09-07-2010, 10:31 PM   #3
I'm Miserable!
Thread Starter
iTrader: (33)

Join Date: Jan 2009
Location: San Jose, CA
Posts: 1,066
Total Cats: -3
Default

i don't plan on using the oil lines that come with the moss kit. i have stainless lines with my own fittings ready.

I think I get what your saying curly, i drew something out in paint from what your saying? is this right VV



Uploaded with ImageShack.us
railz is offline   Reply With Quote
Old 09-07-2010, 10:37 PM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Yes, however more knowledgeable people will hopefully be able to tell you whether it's a better idea to do that, or go to the filter first. Maybe email FM? I'm sure they've done it before. Also, who's plate are you using at the block, presumably you have 2.
curly is offline   Reply With Quote
Old 09-07-2010, 10:39 PM   #5
I'm Miserable!
Thread Starter
iTrader: (33)

Join Date: Jan 2009
Location: San Jose, CA
Posts: 1,066
Total Cats: -3
Default

yeah i just realized i still have the plate from the moss kit and then theres the sandwhich plate with the thermostat in it. that means i have a total of 4 ports sticking out from the block..

so there would be the sandwich plate THEN ontop of that would be the moss plate..what do i do about that?
railz is offline   Reply With Quote
Old 09-07-2010, 10:46 PM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Oh right, you'd have to use the moss plate, and only the moss plate. You don't need the sandwich plate that came with the FM kit.
curly is offline   Reply With Quote
Old 09-07-2010, 10:48 PM   #7
I'm Miserable!
Thread Starter
iTrader: (33)

Join Date: Jan 2009
Location: San Jose, CA
Posts: 1,066
Total Cats: -3
Default

LOL what do you mean!? that was the whole point of getting the oil sandwich plate from FM since it has a thermostat inside it.

i dont understand T_T
railz is offline   Reply With Quote
Old 09-07-2010, 11:01 PM   #8
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

you have two things: one is a sandwich plate that goes between the filter and block. Another is a cover, which replaces the filter. You don't need the sandwich plate, since the cover plate for the moss kit has an outlet and inlet for the lines. Look at your diagram, you only need 2 ports at the block. Using both plates would give you 4.

If you want, you can over complicate the system by putting the sandwich plate between the moss cover and block, and having four lines. One out to the filter and another back, and then one from the sandwich plate out to the oil cooler and back.
curly is offline   Reply With Quote
Old 09-07-2010, 11:05 PM   #9
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

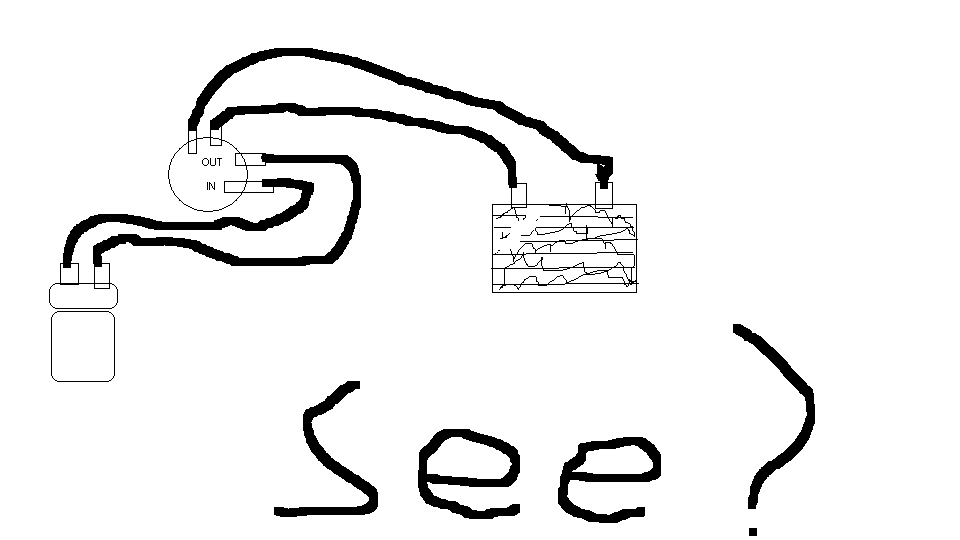

Name:  oillines.png
Views: 47
Size:  18.8 KB
curly is offline   Reply With Quote
Old 09-07-2010, 11:56 PM   #10
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

It should go-

Engine out-filter in
Filter out-cooler in
Cooler out- engine in

It doesn't make a huge difference, but I ran the filter before the cooler because hot oil can pass through the filter easier. I also made a cap on the cooler so I could siphon it dry and put new oil in.
chpmnsws6 is offline   Reply With Quote
Old 09-08-2010, 12:35 AM   #11
I'm Miserable!
Thread Starter
iTrader: (33)

Join Date: Jan 2009
Location: San Jose, CA
Posts: 1,066
Total Cats: -3
Default

Quote:
Originally Posted by chpmnsws6 View Post
It should go-

Engine out-filter in
Filter out-cooler in
Cooler out- engine in

It doesn't make a huge difference, but I ran the filter before the cooler because hot oil can pass through the filter easier. I also made a cap on the cooler so I could siphon it dry and put new oil in.
Quote:
Originally Posted by curly View Post

FACE PALM!

curly is saying i should use both sandwich plate that has a inlet and outlet AND the moss plate that also has a inlet and outlet

Curly the picture you posted, so your saying thats the way i should do my lines? im confused because you said this:

You don't need the sandwich plate, since the cover plate for the moss kit has an outlet and inlet for the lines. Look at your diagram, you only need 2 ports at the block. Using both plates would give you 4.

If you want, you can over complicate the system by putting the sandwich plate between the moss cover and block, and having four lines. One out to the filter and another back, and then one from the sandwich plate out to the oil cooler and back.

I HAVE TO USE my mocal sandwich because i want a oil thermostat!


railz is offline   Reply With Quote
Old 09-08-2010, 12:39 AM   #12
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

If you need a oil thermostat, run it like I showed in my awesome ms paint picture.

If you want a simpler, less leak prone system, set it up the way you drew in your awesome ms paint picture.

Mine has 10 possible leak points if you include the sandwich plate surfaces, and a thermostat. Yours only has 6 possible leak points but no thermostat.

You're saying the sandwich plate has the thermostat, right? Why is this so complicated, I'm merely giving you two options.
curly is offline   Reply With Quote
Old 09-08-2010, 12:43 AM   #13
I'm Miserable!
Thread Starter
iTrader: (33)

Join Date: Jan 2009
Location: San Jose, CA
Posts: 1,066
Total Cats: -3
Default

OKAY, so your saying. Use the mocal thermo plate AND the moss plate. and run it as you say in your drawing?

Sorry for being so retarded, remember this is why i made this thread..im just really confused
railz is offline   Reply With Quote
Old 09-08-2010, 12:51 AM   #14
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

If you want the thermostat, yes.
curly is offline   Reply With Quote
Old 09-08-2010, 08:52 PM   #15
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

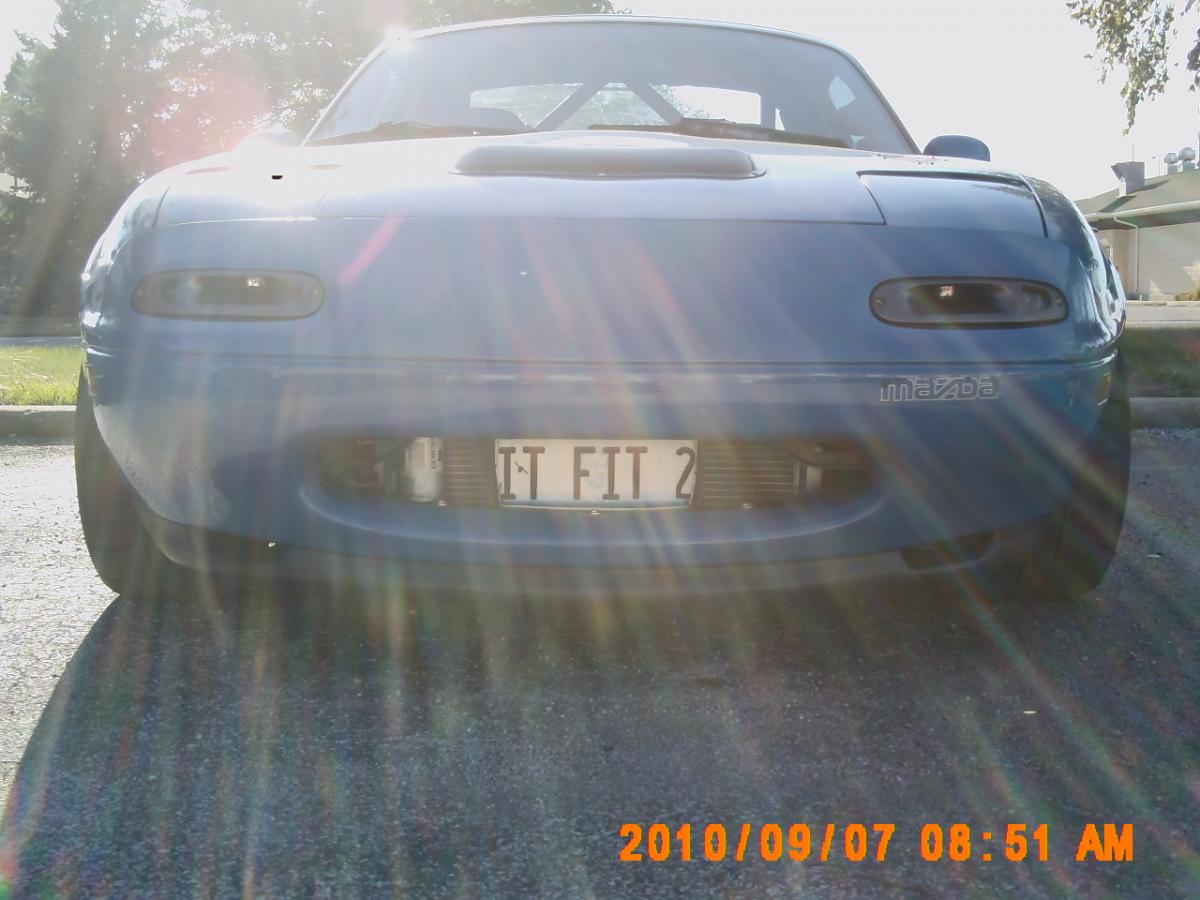

License plate = thermostat........

Oil temps went from 160 degrees at most, to 190 degrees without much work.
Attached Thumbnails
oil cooler and oil-filter relocation - how do i do the lines?-pict0008.jpg
chpmnsws6 is offline   Reply With Quote
Old 09-09-2010, 01:15 AM   #16
I'm Miserable!
Thread Starter
iTrader: (33)

Join Date: Jan 2009
Location: San Jose, CA
Posts: 1,066
Total Cats: -3
Default

haha smart but i dont want my AIT's going up too
railz is offline   Reply With Quote
Old 09-10-2010, 03:24 AM   #17
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

The only way to use the thermostat is to hook up both adapters. Sandwich plate goes on the block, adapter goes on top of that, both go in exactly the same way as if the other one didn't exist.

If you want to cut down the amount of stuff hanging off the oil filter mount, you can get an inline thermostat from Mocal. It's got 4 AN ports on it, and you'd mount it in one of the lines going either to or from the remote filter (with the switched lines going to the cooler). That's expensive though, and there's no good place to mount it.

--Ian
codrus is offline   Reply With Quote
Old 09-10-2010, 02:09 PM   #18
I'm Miserable!
Thread Starter
iTrader: (33)

Join Date: Jan 2009
Location: San Jose, CA
Posts: 1,066
Total Cats: -3
Default

Quote:
Originally Posted by codrus View Post
The only way to use the thermostat is to hook up both adapters. Sandwich plate goes on the block, adapter goes on top of that, both go in exactly the same way as if the other one didn't exist.

--Ian

Ok so what im thinking is will the thermostat in the sandwich plate block flow to the oil filter? or will it flow through normally?
railz is offline   Reply With Quote
Old 09-10-2010, 03:15 PM   #19
I'm Miserable!
Thread Starter
iTrader: (33)

Join Date: Jan 2009
Location: San Jose, CA
Posts: 1,066
Total Cats: -3
Default

omg, i get it now....thanks everyone
