Default oil drain location

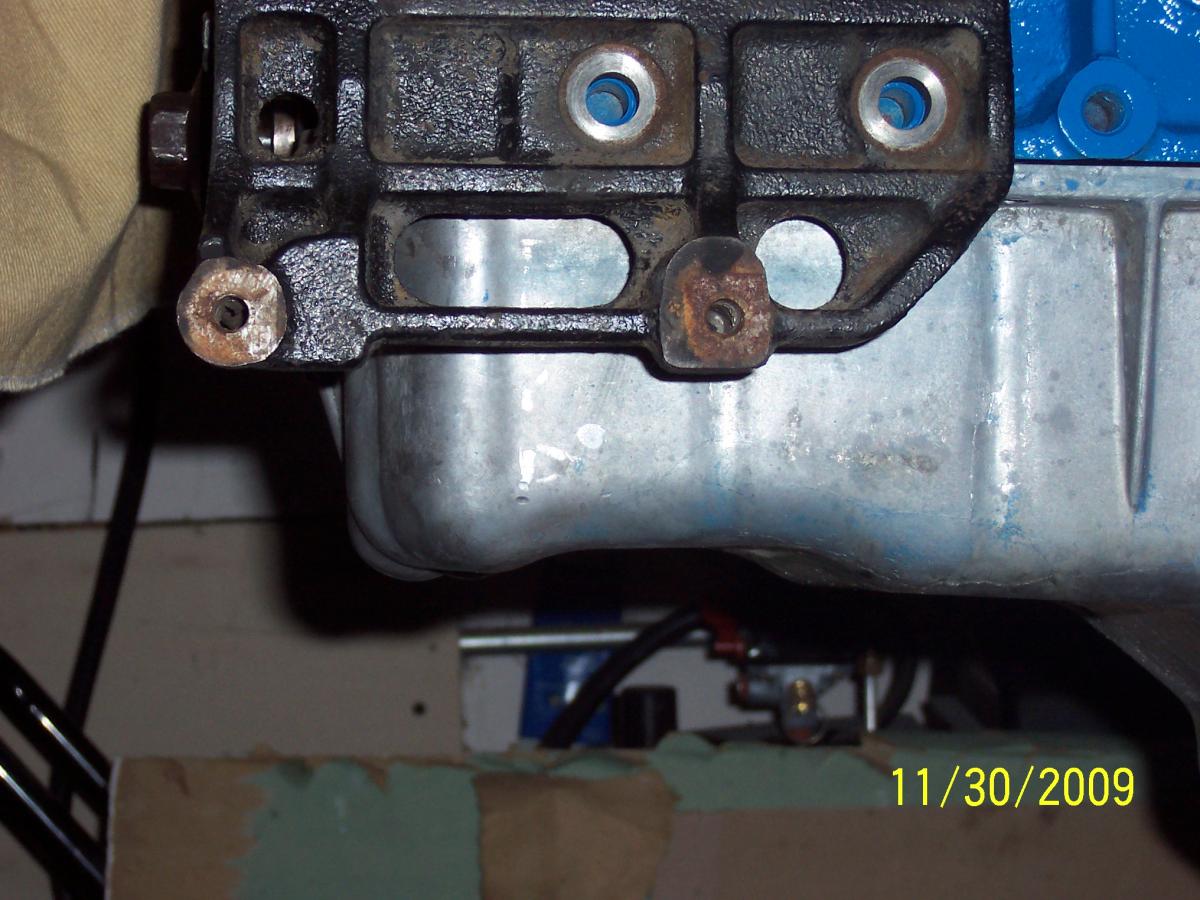

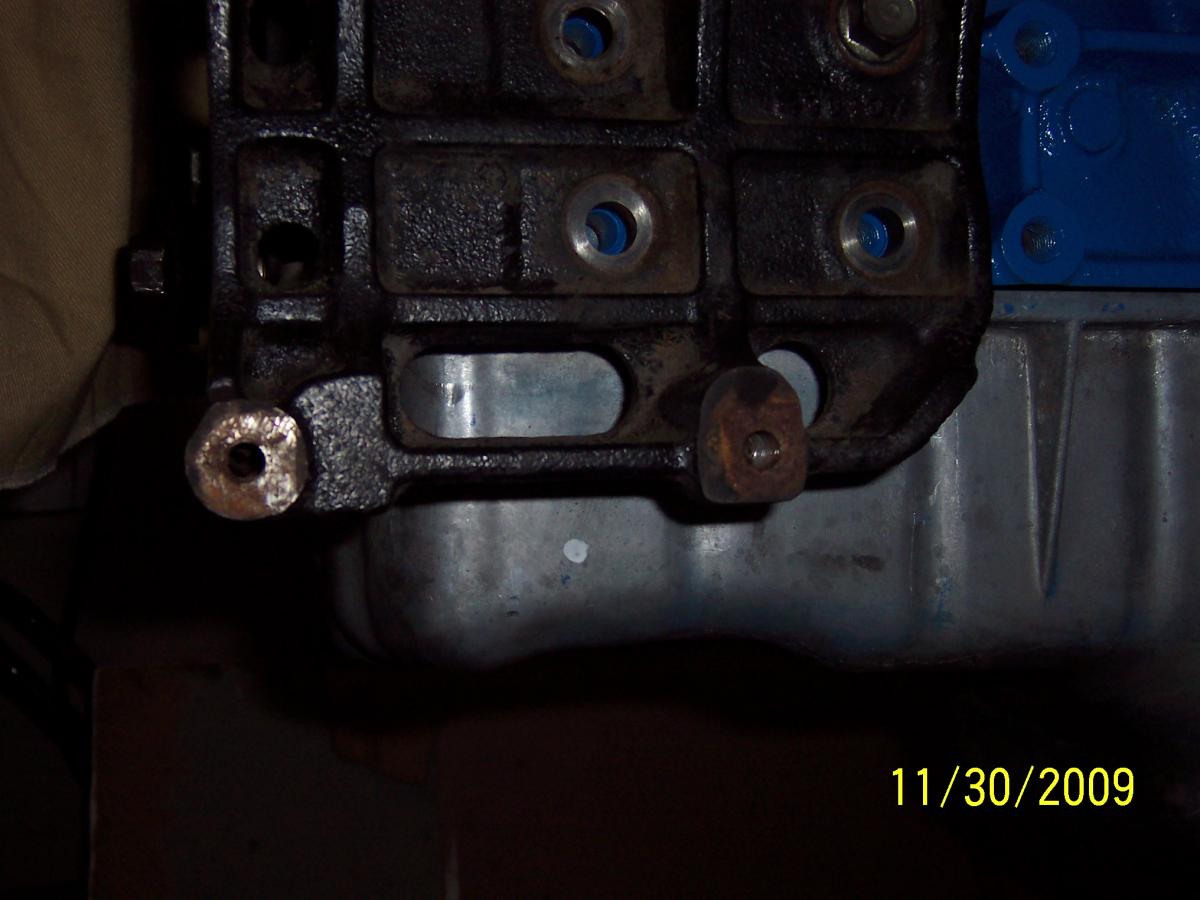

Ive searched and searched, and from what ive found i think this is the proper location for the oil drain if you have a/c and p/s. I just thought i should get a few opinions before i start drilling.
Attached Thumbnails
oil drain location-100_1644.jpg   oil drain location-100_1643.jpg
slickrick is offline   Reply With Quote
Old 11-30-2009, 07:17 PM   #2
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Looks right to me
rharris19 is offline   Reply With Quote
Old 11-30-2009, 07:33 PM   #3
Junior Member

Join Date: Sep 2006
Posts: 225
Total Cats: -4
Default

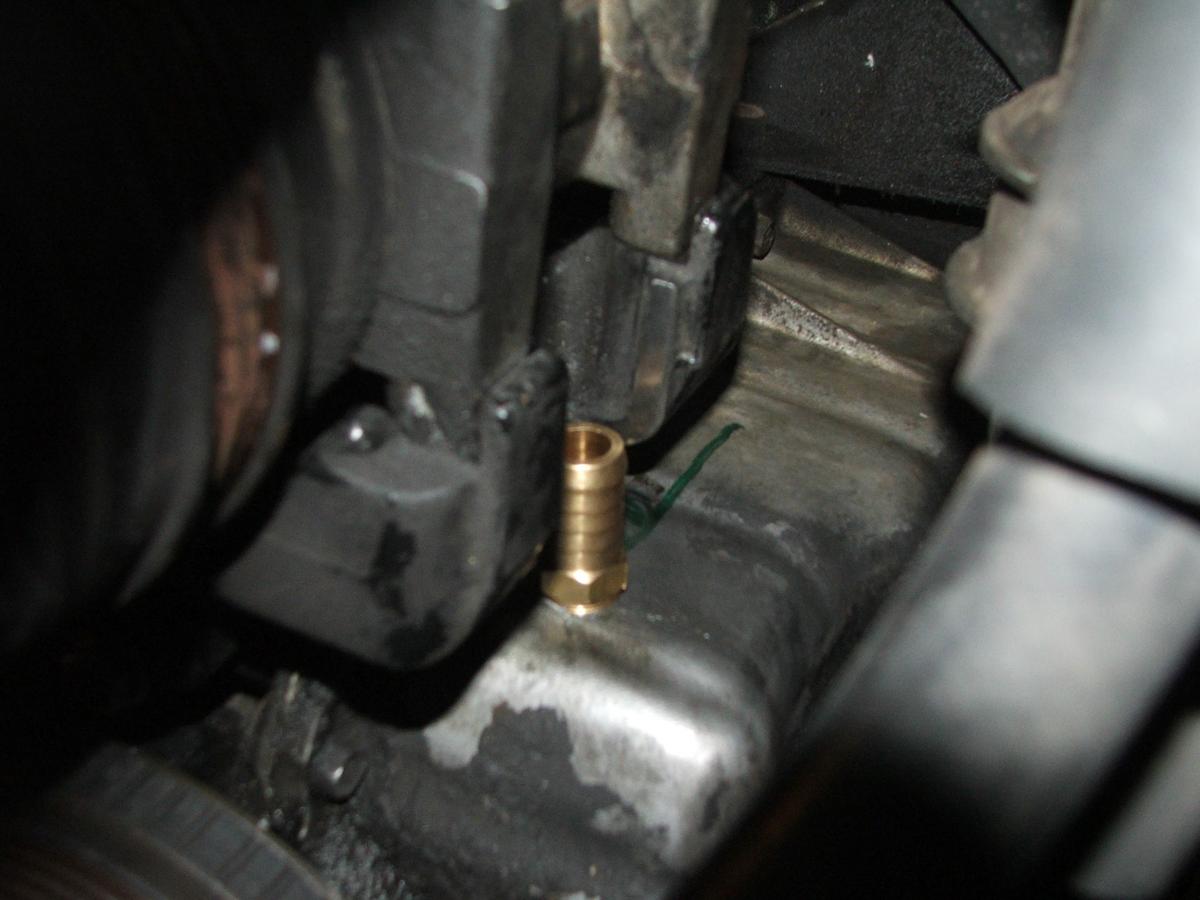

Angle grind out that front horizontal section in the AC brace (the long oval section) and the drain plug will screw in perfectly in the middle of that void in line with the section of metal you just removed.
Attached Thumbnails
oil drain location-dscf2010.jpg
Uncle Arthur is offline   Reply With Quote
Old 12-01-2009, 09:18 AM   #4
Junior Member
iTrader: (1)

Join Date: Jan 2008
Posts: 161
Total Cats: 0
Default

How did you make the thread for the fitting?

Did you have to remove the oil pan?
psiturbo is offline   Reply With Quote
Old 12-01-2009, 09:44 AM   #5
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by psiturbo View Post
How did you make the thread for the fitting?

Did you have to remove the oil pan?
You tap the pan to make the threads.

You don't have to remove the pan to tap it.

Lots of info on this subject already. Search for drilling oil pan, tap, oil drain fitting, etc.
