Default Oil drain tube sizes..what r u using?

Just wondering what size lines you guys are using for your oil drain lines. I assume nothing is too big, just overkill, but what size is too small? My oil feed line to my SR20 turbo is -4 and I am using a 1/8" I think pop rivet for my restrictor, so what size I.D. drain hose should I be using?
thirdgen is offline   Reply With Quote
Old 10-16-2008, 10:47 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

5/8" should be sufficient.
Braineack is online now   Reply With Quote
Old 10-16-2008, 11:02 AM   #3
Junior Member
iTrader: (7)

Join Date: Apr 2007
Location: South of Houston, Texas
Posts: 329
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
5/8" should be sufficient.
Agree, I'd run -10 or -12
mikef85 is offline   Reply With Quote
Old 10-16-2008, 11:15 AM   #4
Newb

Join Date: Sep 2007
Posts: 32
Total Cats: 0
Default

I'm using a -4 feed line with no restrictor and a -10 drain line. Now I less than 10 miles on my new set up so I'll let you know how it turns out, but with the -4 feel line and no restrictor the turbo see a max of 30psi of oil.
photoeye0 is offline   Reply With Quote
Old 10-16-2008, 12:14 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by photoeye0 View Post
but with the -4 feel line and no restrictor the turbo see a max of 30psi of oil.
Is this at idle?


With no restrictor and a -4an line I don't see how it wouldn't see over +90psi of oil pressure when you near 7000RPM.

I personally have to run a .040" restrictor with my -4an line; even a .065" orifice is too large.
Braineack is online now   Reply With Quote
Old 10-16-2008, 12:28 PM   #6
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

-4 feed. 5/8 drain, no restrictor.
Saml01 is offline   Reply With Quote
Old 10-16-2008, 12:44 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by Saml01 View Post
-4 feed. 5/8 drain, no restrictor.

T25G? that a Ball Bearing turbo? Those tend to have a built in .035" restrictor.
Braineack is online now   Reply With Quote
Old 10-16-2008, 12:58 PM   #8
Junior Member
iTrader: (1)

Join Date: Jun 2007
Location: Plano
Posts: 83
Total Cats: 0
Default

-3AN feed, -10AN drain hose
tilt is offline   Reply With Quote
Old 10-16-2008, 01:10 PM   #9
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
T25G? that a Ball Bearing turbo? Those tend to have a built in .035" restrictor.
Journal bearing off an SR20.
Saml01 is offline   Reply With Quote
Old 10-16-2008, 02:14 PM   #10
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

I'm using some of that water pump tubing that runs to the heater core (5/8" I think). Here's some oil flow using a -3 feed line (no restrictor) t3 center and a shimmed oil pump at ~1000 rpm idle. I've run about 500 miles since the install and haven't had any issues w/o a restrictor. YMMV

m2cupcar is offline   Reply With Quote
Old 10-16-2008, 02:15 PM   #11
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

On a T25 turbo a -8, -10, or 5/8" is sufficient.
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 10-16-2008, 05:20 PM   #12
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Quote:
Originally Posted by m2cupcar View Post
I'm using some of that water pump tubing that runs to the heater core (5/8" I think). Here's some oil flow using a -3 feed line (no restrictor) t3 center and a shimmed oil pump at ~1000 rpm idle. I've run about 500 miles since the install and haven't had any issues w/o a restrictor. YMMV


I've been looking for this video forever.

Anyway, -8 = 3/8", right?
kenzo42 is offline   Reply With Quote
Old 10-16-2008, 05:42 PM   #13
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Indianapolis, IN
Posts: 758
Total Cats: 5
Default

-8 ~ 1/2"
boileralum is offline   Reply With Quote
Old 10-16-2008, 06:30 PM   #14
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

just a minute....
patsmx5 is offline   Reply With Quote
Old 10-16-2008, 06:58 PM   #15
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Nominally, the AN sizes go in increments of 1/16". So -8AN should, in theory, be 1/2" ID.

That said, these is tremendous variance in actual sizing from one hose to the next, which is one reason why, when assembling AN lines, you have to be sure that the hose ends you have selected are rated as being compatible with the particular hose you are using. (variances in OD, even for a common ID, are another)

As an example, Earl's Auto-Flex has an actual ID of .438, whereas Earl's SuperStock had an ID of .5, and Earl's Speed-Flex has an ID of .563.


That said, +1 on -10. (that's looks weird to write)
Joe Perez is offline   Reply With Quote
Old 10-16-2008, 07:31 PM   #16
Junior Member

Join Date: Dec 2007
Posts: 159
Total Cats: 0
Default

-4 supply no restrictor, -12 drain . that's on a big 16g. went for the way overkill setup. no issues and it looks bitchen'.
dynokiller90 is offline   Reply With Quote
Old 10-16-2008, 08:30 PM   #17
Newb

Join Date: Sep 2007
Posts: 32
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
Is this at idle?


With no restrictor and a -4an line I don't see how it wouldn't see over +90psi of oil pressure when you near 7000RPM.

I personally have to run a .040" restrictor with my -4an line; even a .065" orifice is too large.
Hot idle is right around 7psi if I recall correctly I'll take an other look at it. I'm using a GM brake banjo bolt (found in the "help" section of most parts stores), with a banjo to -4 adapter, and -4 into the turbo and oil psi gauge.
photoeye0 is offline   Reply With Quote
Old 10-16-2008, 08:35 PM   #18
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

So my feed line is a -4 and I am running a 1/8" pop rivet for restrictor. My drain line is 3/8". My question is, will this drain line in time be insufficient and cause my seals in the turbo to blow and leak oil?
thirdgen is offline   Reply With Quote
Old 10-16-2008, 11:17 PM   #19
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

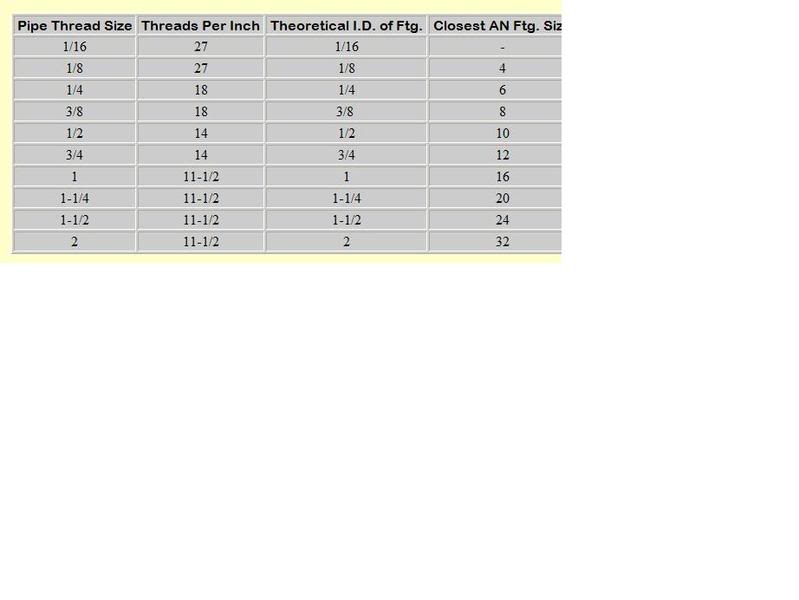

So if 3/8 -8, am I looking at this chart wrong?

Name:  earls.jpg
Views: 6
Size:  24.5 KB
http://www.anplumbing.com/thread_npt.html

NPT 3/8 closest AN Ftg. Size is 8?
kenzo42 is offline   Reply With Quote
Old 10-16-2008, 11:44 PM   #20
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Indianapolis, IN
Posts: 758
Total Cats: 5
Default

http://en.wikipedia.org/wiki/AN_thread

The AN size is based on OD, apparently.
boileralum is offline   Reply With Quote
