Default Oil Feed port help ASAP

Ok due to part of my block breaking

I am unable to use the standard oil pressure oil feed on my 99 short block. I am not going to be able to get my hands on a sandwhich plate until tuesday or wednesday.

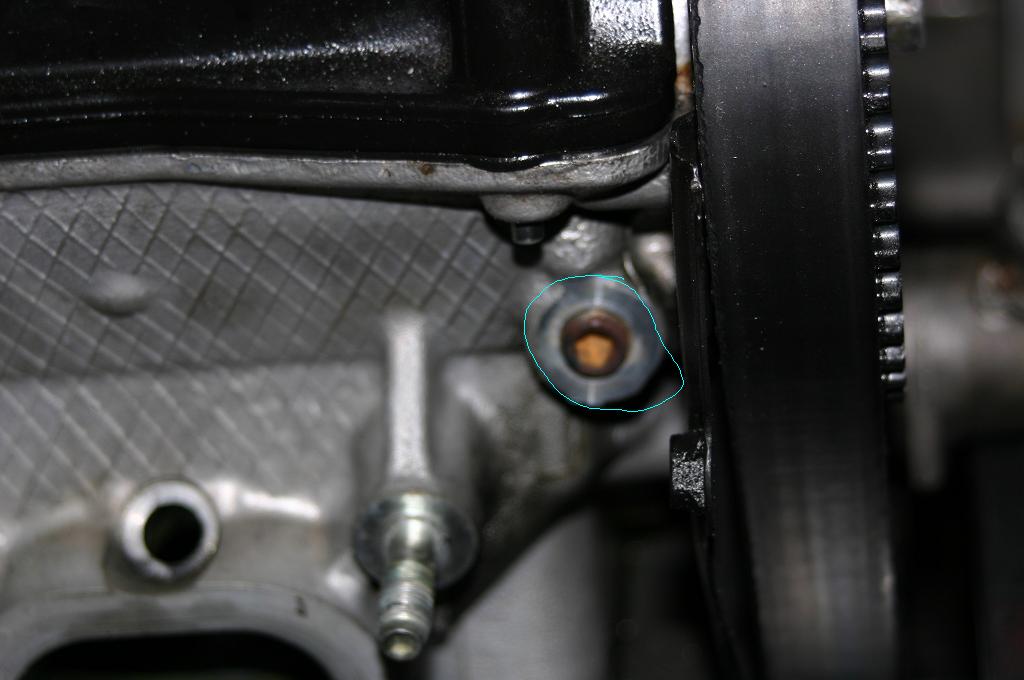

After looking at my 95 head, I notice two ports. Anyone know if these are oil ports. I know back in the DSM days there was a port off the head that could be tapped for turbos.
Attached Thumbnails
Oil Feed port help ASAP-oil_port.jpg
wildfire0310 is offline   Reply With Quote
Old 03-08-2009, 03:40 PM   #2
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 291
Total Cats: 7
Default

No, the pressure there is much lower since it's after the cams.

--Ferdi

PS, I don't remember exactly who you were at the dyno day, but I think I have a Greddy sandwich plate that I never used. PM me if you are interested in it since I can't, lol (my post count is too low...)
ftjandra is offline   Reply With Quote
Old 03-08-2009, 04:11 PM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2006
Location: Outside of the Loop-ATL
Posts: 754
Total Cats: 0
Default

Quote:
Originally Posted by ftjandra View Post
No, the pressure there is much lower since it's after the cams.

--Ferdi

PS, I don't remember exactly who you were at the dyno day, but I think I have a Greddy sandwich plate that I never used. PM me if you are interested in it since I can't, lol (my post count is too low...)
PM sent.
wildfire0310 is offline   Reply With Quote
Old 03-08-2009, 04:31 PM   #4
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 291
Total Cats: 7
Default

Quote:
Originally Posted by wildfire0310 View Post
PM sent.
PM'ed back on mx5atlanta.

--Ferdi
ftjandra is offline   Reply With Quote
Old 03-08-2009, 05:26 PM   #5
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Based on how quickly that port emptied my oil pan all over my driveway i'd say it has plenty of pressure.
wayne_curr is offline   Reply With Quote
Old 03-08-2009, 05:42 PM   #6
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

^ lol.
miatamania is offline   Reply With Quote
Old 03-08-2009, 06:53 PM   #7
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 291
Total Cats: 7
Default

Quote:
Originally Posted by wayne_curr View Post
Based on how quickly that port emptied my oil pan all over my driveway i'd say it has plenty of pressure.
Well, the pressure there is definately less than in the block. I know of a few guys who have installed aftermarket oil pressure gauge sensors there and they read less than what the factory specs. One guy went as far as to replace his oil pump, thinking it was worn, but the readings stayed the same. Then he moved the pressure sensor to the block and the readings were correct.

Plus, I haven't seen anybody use a port on the head to feed their turbo.

--Ferdi
ftjandra is offline   Reply With Quote
