Default Oil return leaks FTL!

This is the last part of my build that i need to finish. My car leaks oil from the return line at the pan. Also it is under pressure because my radiator hose between the pan and the turbo has residue on the bottom side. I have -10 hose with a straight fitting at the turbo and a 45* at the pan. When i drilled my pan it was kind of at a slight downward angle. Could this cause it to leak like a mother? Ill get pics soon as i get home...
SKMetalworks is offline   Reply With Quote
Old 06-18-2009, 11:36 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

might need to pull the fitting off, clean it up and redo it with moar sealant.
Braineack is offline   Reply With Quote
Old 06-18-2009, 11:39 PM   #3
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Ok, if you drilled your pan at a slight angle, it doesn't matter. However, if you tapped it at that angle you've made a mistake...but I dont think its a horribly bad one.

Here is what I did for my drain line. I have a straight barbed fitting at the oil pan. I didn't use any JB weld. After I had the pan tapped, I put black RTV (like for your oil pan gasket) around the threads and threaded it in. Then I used the same stuff on the barb before I slipped the hose on. Then I used a hose clamp tight on that ****. No leaks and I figure i'm more likely to have leaks with a hose barb setup than you are with AN fittings (assuming you have AN fittings, right?)

I have a love-hate relationship with RTV. It is always my last resort which is a good/bad thing. Its bad I had to resort to RTV, but then again it holds up for practically forever.
wayne_curr is offline   Reply With Quote
Old 06-25-2009, 01:25 AM   #4
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

So i redid my fittings. cleaned them off and used copper RTV rated to 750*. Did few quick pulls @ 7 psi (somehow it bumped up 2 pounds and all i did was change the ebay air filter to a KN&N). The thing is it smokes pretty bad on startup. It doesnt smell like fuel but unsure of what exactly it is. After about 15 seconds of driving it goes away untill i reburn the ECU it smokes again for 15 seconds then fine.

My PCV valve is VTA is this correct?

My breather tubes go to my catch can. There is oil pre turbo on the coupling and pipe. Not much but probably 4 drops chillin with residual inside the pipe. Im thinking my turbo is effed because theres axial play (very slight and does not bind when pushed all the way). Builds boost fine. Clutch slips @ 7PSI.

Some pics

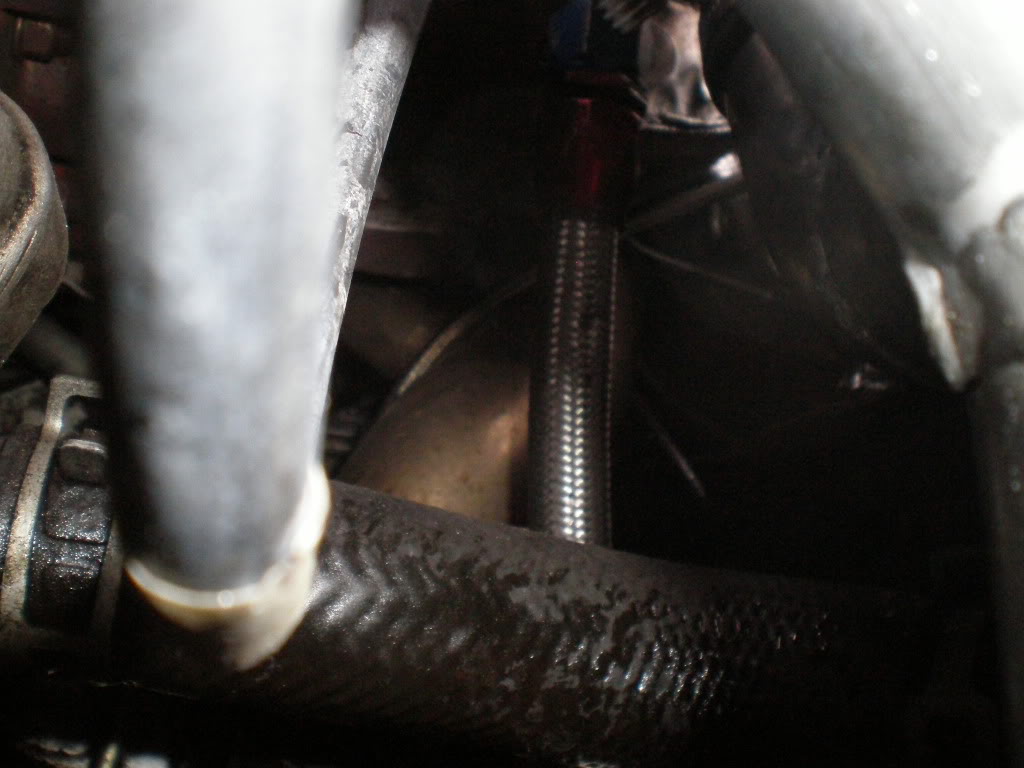

Oil on the bottom of the coolant hose but not on the top

Name:  P6140070.jpg
Views: 30
Size:  95.9 KB

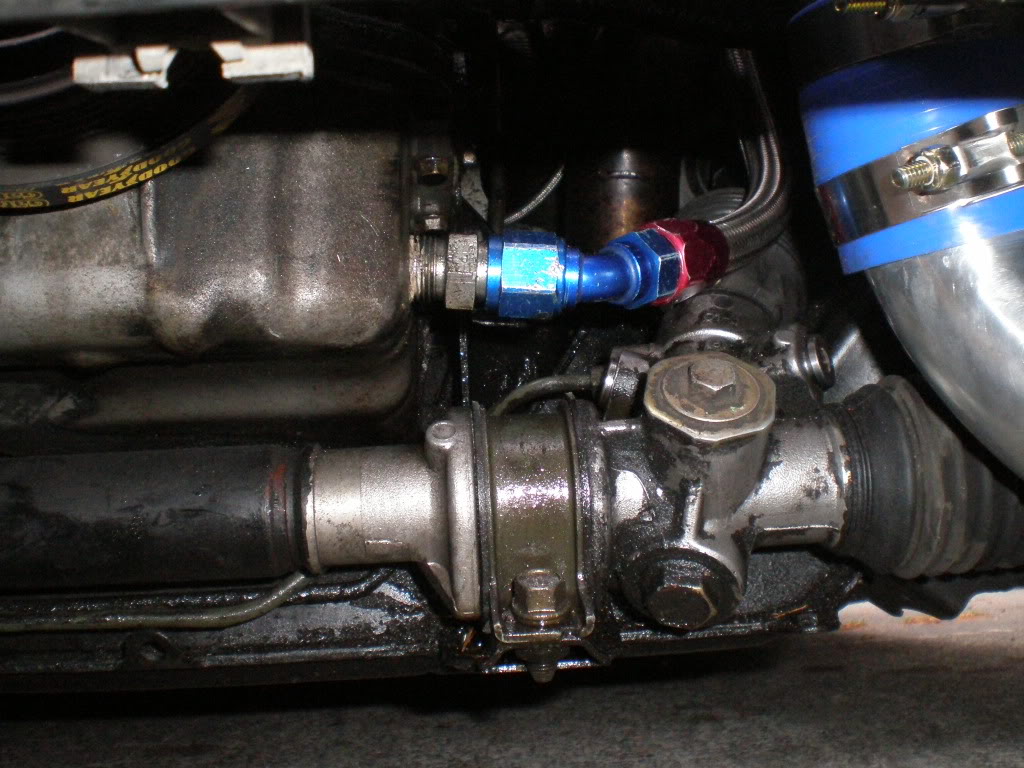

How my fitting sits

Name:  P6140073.jpg
Views: 34
Size:  157.0 KB

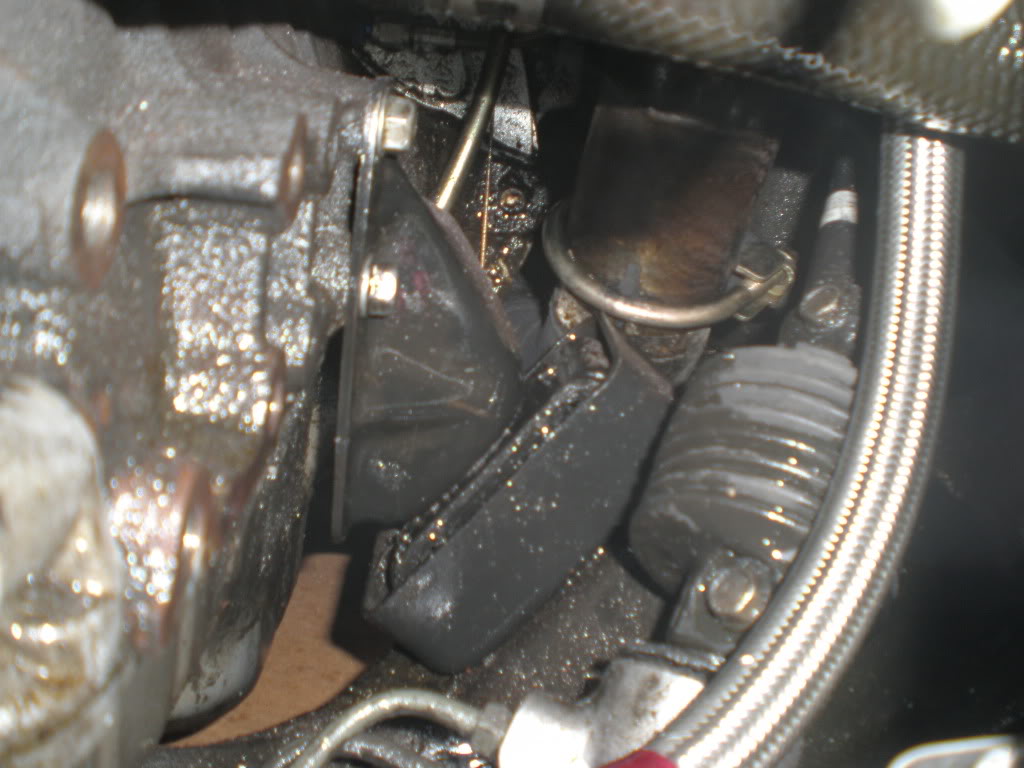

wet



Name:  P6220076.jpg
Views: 31
Size:  116.7 KB

Does the oil return line have pressure in it? Because if it doesnt then the leak has to be coming from something else right?

Name:  P6220077.jpg
Views: 31
Size:  103.3 KB

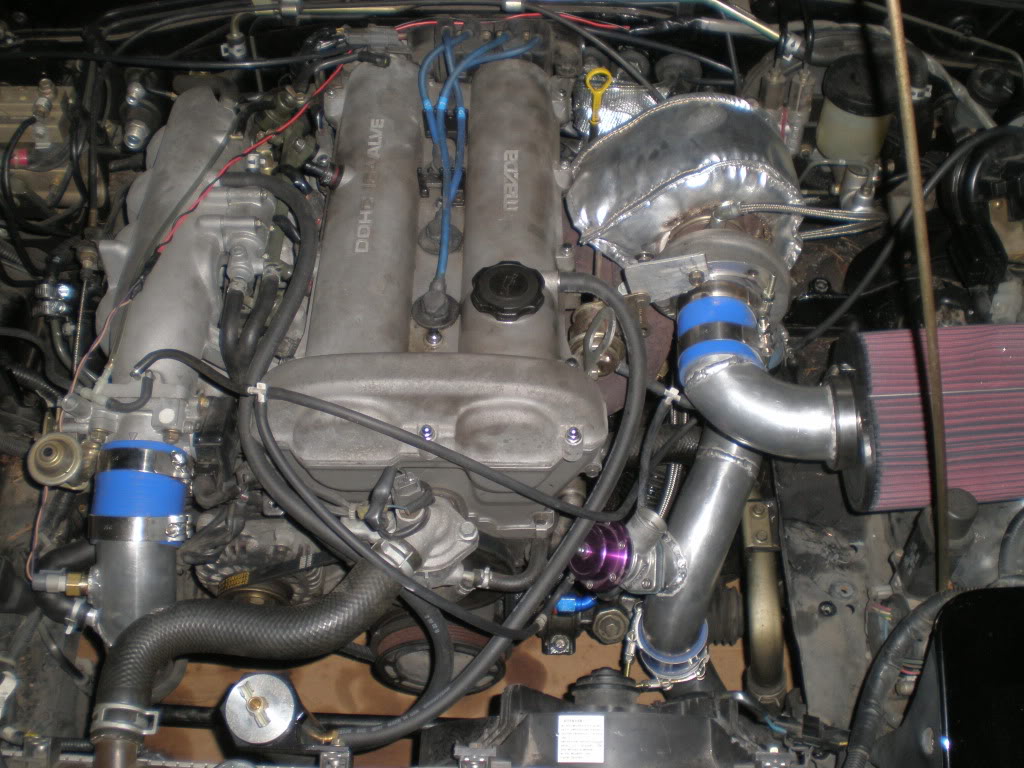

How my engine bay looks currently

Name:  P6220078.jpg
Views: 31
Size:  165.0 KB

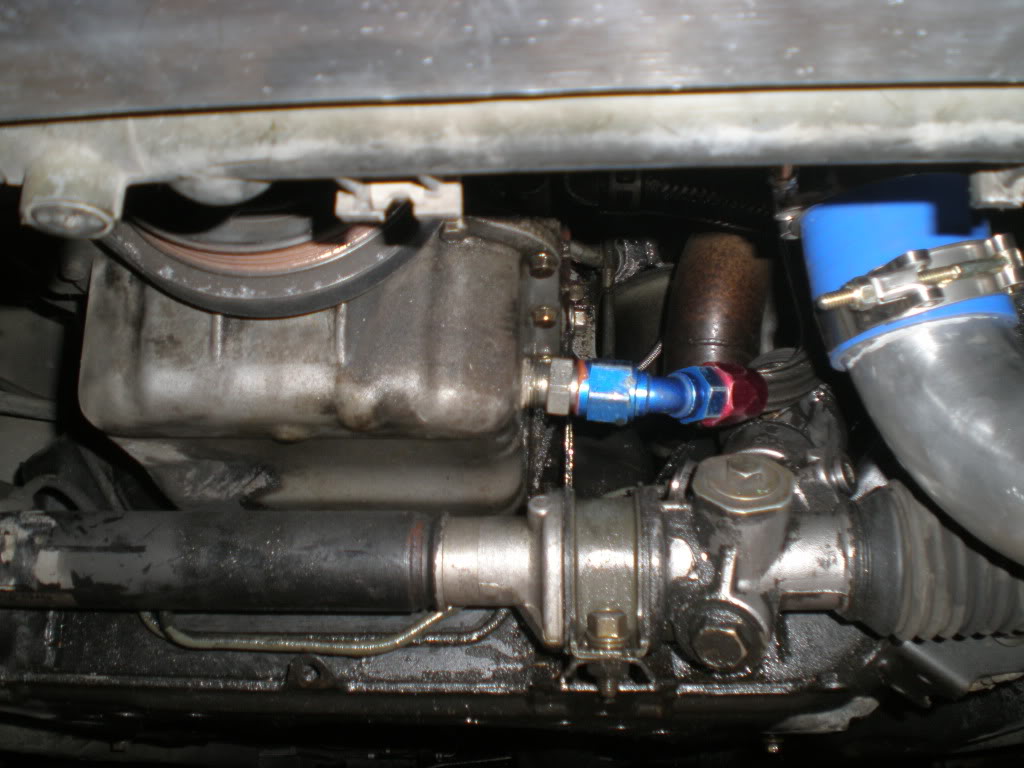

Pic from underneith

Name:  P6220079.jpg
Views: 31
Size:  117.9 KB


Helpful sugjestions poleez?
SKMetalworks is offline   Reply With Quote
Old 06-25-2009, 01:41 AM   #5
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Quote:
Originally Posted by sbkcocker499 View Post
Im thinking my turbo is effed because theres axial play (very slight and does not bind when pushed all the way). Builds boost fine. Clutch slips @ 7PSI.
Do you mean radial play? A little radial play for journal bearing turbos, as I understand, is ok. There should be no axial play.
kenzo42 is offline   Reply With Quote
Old 06-25-2009, 01:48 AM   #6
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Theres no in/out play but up down left right it moves very slightly
SKMetalworks is offline   Reply With Quote
Old 06-25-2009, 01:53 AM   #7
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Yes it has radial play. not axial. Any sugjestions about the leak or smoke out of the exhaust?
SKMetalworks is offline   Reply With Quote
Old 06-25-2009, 01:54 AM   #8
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

See how its up high on the block? It's most likely your oil pump, oil pan, or front crank seal. Mine leaks too, unfortunately unless it's just the seal it requires pulling the engine.

That breather port off the intake manifold needs to be connected to the pcv valve, or at least it should. If that breather line which appears to be going to the catch can is at all exposed to atmosphere, that's just a huge intake leak. Wow there's a lot of things I'd do differently with your routing of wires/tubes/hoses.
curly is offline   Reply With Quote
Old 06-25-2009, 02:08 AM   #9
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

I know... my routing is horrible. I want to get it running and tuned then start cleaning it up a bit. Any way to know for sure if its the oil pan?
SKMetalworks is offline   Reply With Quote
Old 06-25-2009, 04:24 AM   #10
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

Is it wet back by the feed in the block? It could be spraying from that fitting.
TurboRoach is offline   Reply With Quote
Old 06-25-2009, 04:34 AM   #11
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Did you notice that bolt missing on the end of the oil pump housing? It looks like its coming from there anyway, then add the fact that a bolt is missing... thats my guess.
NA6C-Guy is offline   Reply With Quote
Old 06-25-2009, 09:54 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

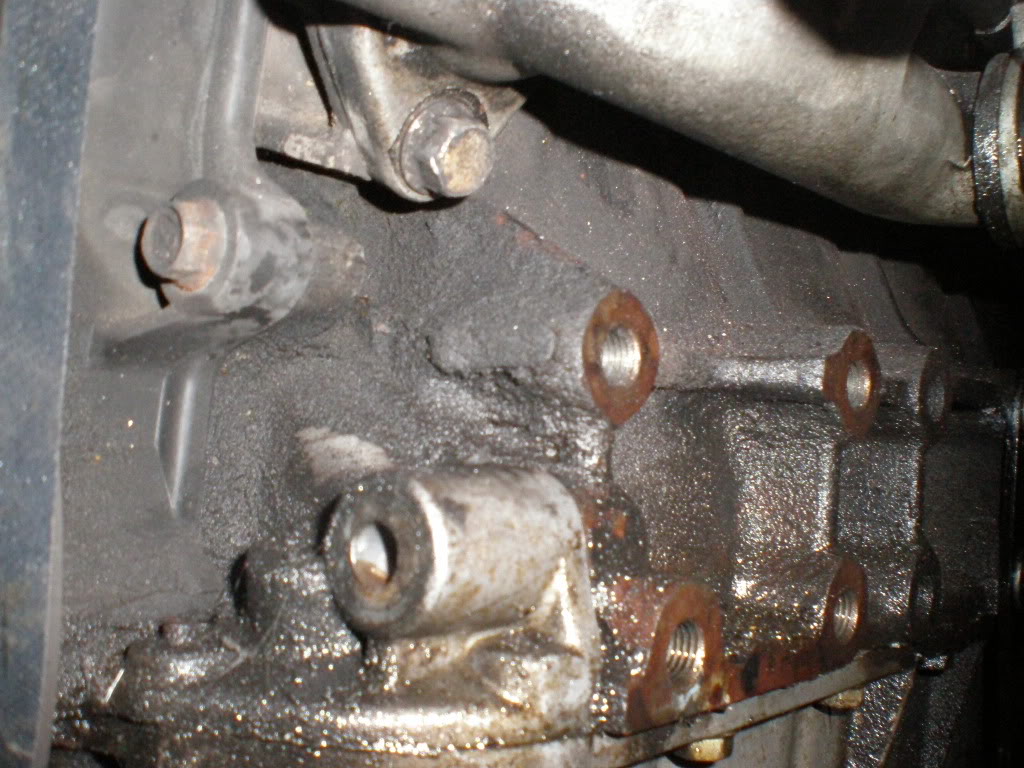

Name:  P6140074.jpg
Views: 34
Size:  164.9 KB

That forward facing hole for the A/C bracket should be plugged....


also your drain has some upward travel to get back into the pan....
Braineack is offline   Reply With Quote
Old 06-25-2009, 10:39 AM   #13
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

So what one needs to be plugged?
SKMetalworks is offline   Reply With Quote
Old 06-25-2009, 10:51 AM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

That forward facing hole, like i described....the one in the picture facing forward without a plug. NOT the ones facing to the side of the motor.
Braineack is offline   Reply With Quote
Old 06-25-2009, 11:08 AM   #15
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by sbkcocker499 View Post
So what one needs to be plugged?
https://www.miataturbo.net/forum/t34796/
gospeed81 is offline   Reply With Quote
Old 06-25-2009, 11:16 AM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

that's the video i was looking for, i thought levnubhin posted it, not kotomile...

Braineack is offline   Reply With Quote
Old 06-25-2009, 01:26 PM   #17
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Hey, I just noticed you have some sort of sealant on the -10AN fitting... you are not supposed to use anything on AN fittings, and putting crap in them can cause them to not seal properly.
dustinb is offline   Reply With Quote
Old 06-25-2009, 02:02 PM   #18
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

As brain pointed out, looks like you pulled A/C and didn't put a bolt back in your oil pump that used to hold on the compressor bracket.

Read m2cupcar's girly catch can thread. Read it all and you'll know how to better route your ****. its very wrong right now.
wayne_curr is offline   Reply With Quote
Old 06-25-2009, 02:46 PM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

oh yeah, you're straight up pressuring the crankcase!!!!!

here's my catch can setup:

Braineack is offline   Reply With Quote
Old 06-25-2009, 04:09 PM   #20
Senior Member
iTrader: (6)

tyson87's Avatar

Join Date: Aug 2008
Location: West Palm Beach, FL
Posts: 1,023
Total Cats: 1
Default

incase ur wondering. its a
m8 x 1.25
45/50mm long will do it.
