Default Old Begi IC and piping confusion HELP!?!?!?!?

Ok so I am trying to figure out what I need for hoses and clamps and stuff so that I am as prepared as possible so that when we begin installing everything I don't have to stop to order any missing pieces.

I know this IC and the piping were not made for the T3 turbo I am using but I am using and old Begi manifold with an adapter plate and I am going to position the turbo in the same way I have seen pics of the old setups so that it comes as close as possible. I know I will have to fiddle faddle around to make it all fit. But I figure the hard pipes will get me close enough to use some silicon pipes if necessay to get it to all fit together.

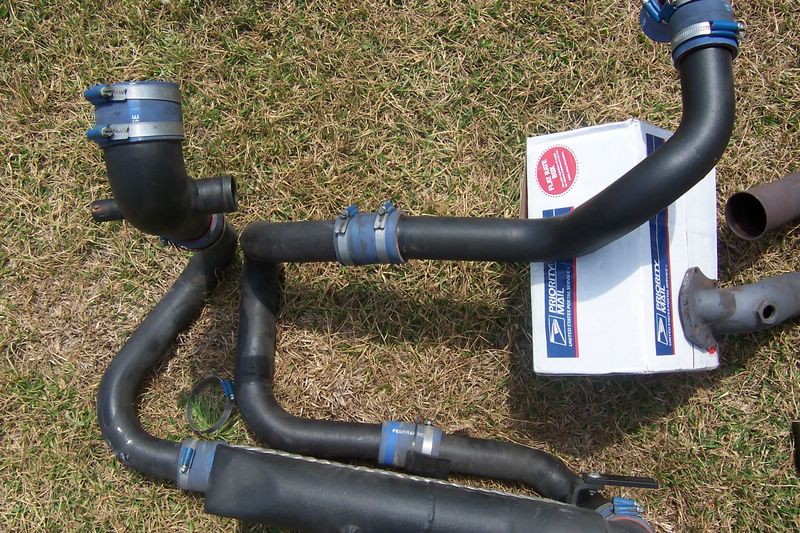

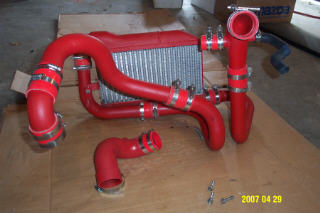

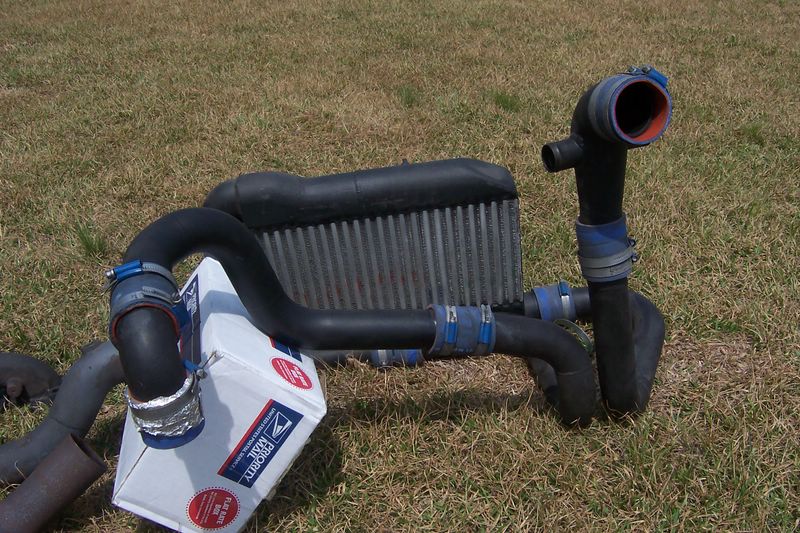

By looking at these pics I think I have figured out how it's supposed to go. However neither of these Begi/FM setups are exactly like mine:
Attached Thumbnails
Old Begi IC and piping confusion HELP!?!?!?!?-4-14-07%2520008%2520%255b800x600%255d.jpg   Old Begi IC and piping confusion HELP!?!?!?!?-4-14-07%2520009%2520%255b800x600%255d.jpg   Old Begi IC and piping confusion HELP!?!?!?!?-65315.jpg
akthor is offline   Reply With Quote
Old 05-27-2007, 02:47 PM   #2
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

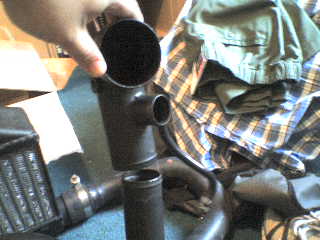

This is how I think mine is supposed to go together:
Attached Thumbnails
Old Begi IC and piping confusion HELP!?!?!?!?-dsc00043.jpg   Old Begi IC and piping confusion HELP!?!?!?!?-dsc00045.jpg

Last edited by akthor; 05-27-2007 at 03:03 PM.
akthor is offline   Reply With Quote
Old 05-27-2007, 02:49 PM   #3
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

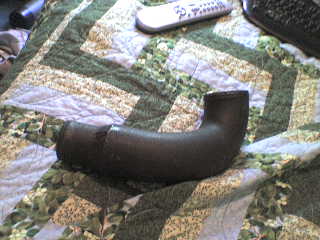

I am confused about a few things. What is this pipe? And does it go where I think it does?
Attached Thumbnails
Old Begi IC and piping confusion HELP!?!?!?!?-dsc00049.jpg   Old Begi IC and piping confusion HELP!?!?!?!?-dsc00050.jpg
akthor is offline   Reply With Quote
Old 05-27-2007, 02:51 PM   #4
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

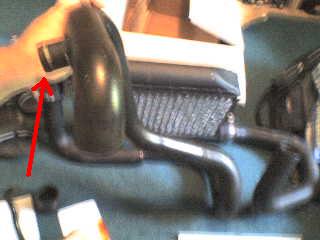

Next what is this for??? I believe this attaches to the turbo but what is that little pipe sticking out supposed to go to?
Attached Thumbnails
Old Begi IC and piping confusion HELP!?!?!?!?-.jpg
akthor is offline   Reply With Quote
Old 05-27-2007, 02:58 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

bov
Braineack is offline   Reply With Quote
Old 05-27-2007, 02:58 PM   #6
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

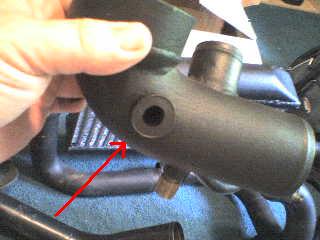

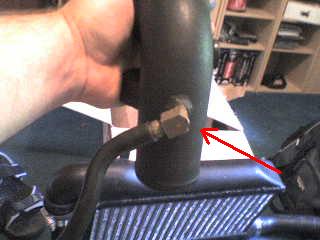

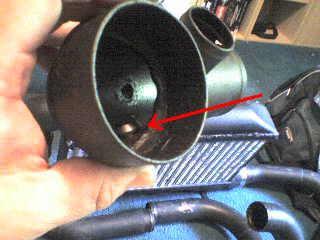

Then this part attaches to the throttle body right? But there seems to be two extra outlets/inlets on this piece which I don't know what for? The first and 2nd pic are of a rubber gasket type thing like something is supposed to be pushed in there. The third pic shows the other thing which has a rubber hose attached with clamps on the end not shown in the pic like it attaches somewhere?? Neither of the other setups I have pics of has these on the throttle body part like this.
Attached Thumbnails
Old Begi IC and piping confusion HELP!?!?!?!?-2.jpg   Old Begi IC and piping confusion HELP!?!?!?!?-3.jpg   Old Begi IC and piping confusion HELP!?!?!?!?-4.jpg
akthor is offline   Reply With Quote
Old 05-27-2007, 07:42 PM   #7
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

Anyone?
akthor is offline   Reply With Quote
Old 05-28-2007, 12:22 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by akthor View Post
I am confused about a few things. What is this pipe? And does it go where I think it does?
did you buy this from someone with a 98-01 ???

looks like the NB throttle body connector

Quote:
Originally Posted by akthor View Post
Anyone?

intake pipe, line is for boost source...small port is for the breather line, and large port is for the Recirc. BOV....



this is not the same verison kit, but see page 12: http://www.rev2red.com/images/cars/begi4install.pdf
Braineack is offline   Reply With Quote
Old 05-28-2007, 10:51 AM   #9
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
did you buy this from someone with a 98-01 ???

looks like the NB throttle body connector




intake pipe, line is for boost source...small port is for the breather line, and large port is for the Recirc. BOV....



this is not the same verison kit, but see page 12: http://www.rev2red.com/images/cars/begi4install.pdf
Still a little confused. So the larger one is for a bov even though it's on the opposite side of the other ones I have seen. So the fitting and with the hose goes to a boost source? Where? that leaves the hole with the rubber gasket for the breather line? What and how do I use to attach that? That seems completely different.

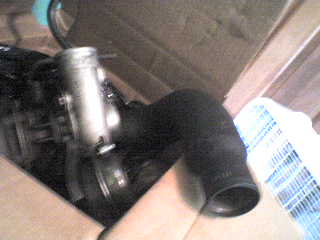

Also could I use this part like in the picture even if it's for a 1.8?
Attached Thumbnails
Old Begi IC and piping confusion HELP!?!?!?!?-dsc00050.jpg
akthor is offline   Reply With Quote
Old 05-28-2007, 02:34 PM   #10
Senior Member
iTrader: (1)

Join Date: Dec 2005
Location: irvine, ca
Posts: 729
Total Cats: 0
Default

your pictures are difficult to understand.

brain is right, that looks like it's for an NB. if you have an na, you may need the correct throttlebody pipe.
kung fu jesus is offline   Reply With Quote
Old 05-28-2007, 03:08 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

most likley not, ask corky to send a piece for a 90-97
