Old 11-12-2008, 10:11 PM   #41
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

OK here is the link to the hose I mentioned. I just posted this
https://www.miataturbo.net/forum/t28071/
ZX-Tex is offline   Reply With Quote
Old 11-13-2008, 05:00 AM   #42
I'm Miserable!
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

Great ideas for NB's!
zoom2zoom is offline   Reply With Quote
Old 11-17-2008, 10:29 PM   #43
Junior Member

Join Date: Dec 2007
Location: Wisconsin
Posts: 49
Total Cats: 0
Default

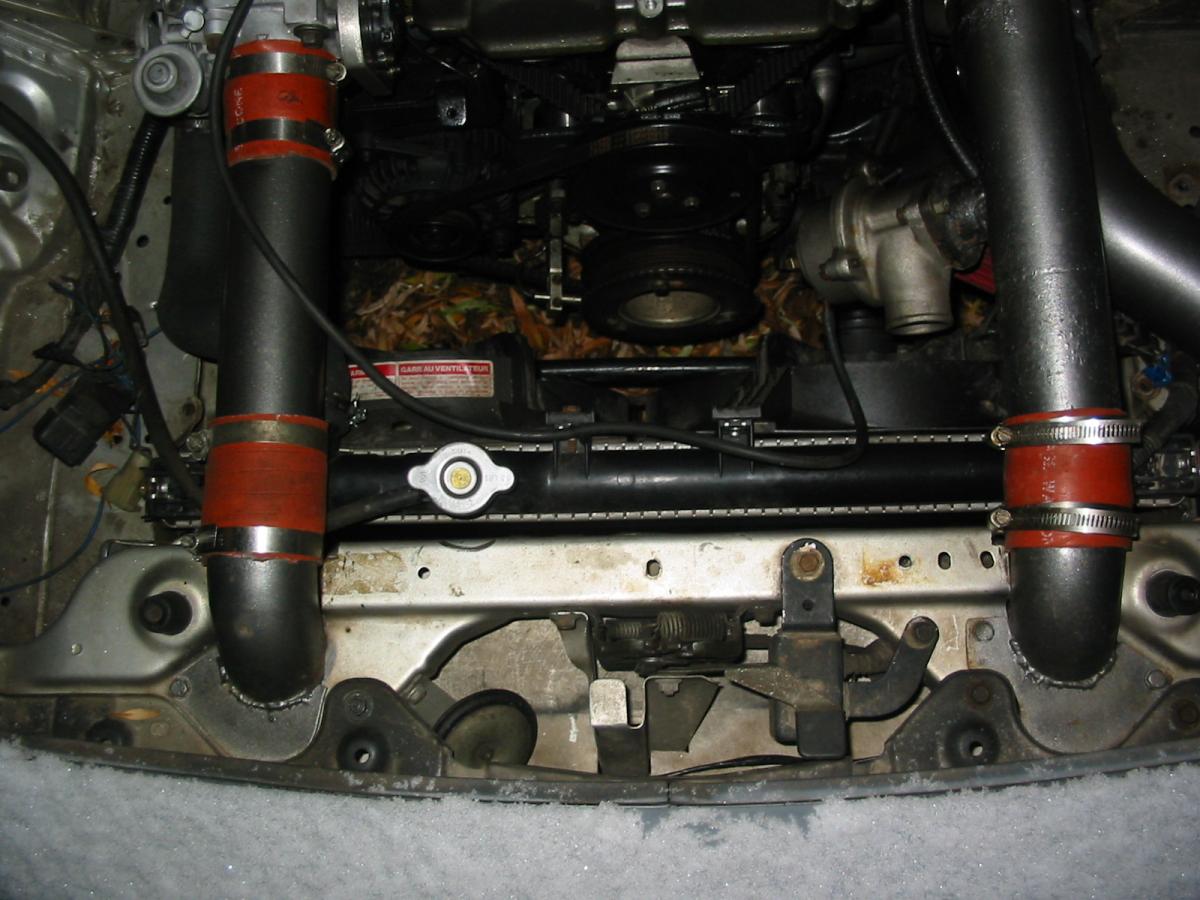

Pics! 2.5" IC tubing, Rad dropped but not tilted. IC has angled side tanks with inlet/outlet facing up.

Had to cut support but used mounting plates welded on the 90's to add strength.
Attached Thumbnails
over the radiator intercooler pipes on a NA ?-ic-route-002.jpg
iluvspd is offline   Reply With Quote
Old 11-17-2008, 10:36 PM   #44
Junior Member
iTrader: (2)

Join Date: Dec 2007
Location: Québec, Canada
Posts: 407
Total Cats: -1
Default

what about your hood? Any cutting? is that NB or NA? Where did you pick your intercooler?
Dark Wanderer is offline   Reply With Quote
Old 11-17-2008, 10:39 PM   #45
Junior Member

Join Date: Dec 2007
Location: Wisconsin
Posts: 49
Total Cats: 0
Default

no hood modifications, NA, Custom IC.
iluvspd is offline   Reply With Quote
Old 11-20-2008, 02:37 PM   #46
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

looks great man. im glad you went through with it.
leatherface24 is offline   Reply With Quote
Old 11-22-2008, 12:53 PM   #47
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

An easy way to check clearances is to get modeling clay (I had to go to Michael's, I think, but now I have a four-lifetime supply for $3) and build a little tower of it wherever you're concerned about fitting. Close the hood or whatever, open it back up and measure the clay.
SolarYellow510 is offline   Reply With Quote
