Old 11-12-2008, 11:10 AM   #21
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Haha. I'm going around the radiator like you folks have never seen before. Well, one guy with a NA did it, but he had to remove his headlights for it to work. Not on my NB.
patsmx5 is offline   Reply With Quote
Old 11-12-2008, 11:13 AM   #22
Newb

Join Date: Oct 2008
Location: Charlotte nc
Posts: 18
Total Cats: 0
Default

Quote:
Originally Posted by Turbo_4 View Post
That's how I plan on doing mine...through the holes in front of the radiator.

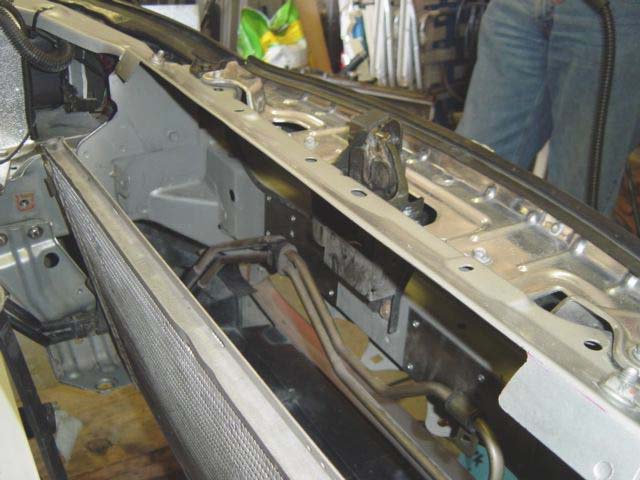

If you look close eider of douse setups require to move the radiator back Track Dog IC setup require to move even the A/C radiator back and only a lintel bit of cutting
Attached Thumbnails
over the radiator intercooler pipes on a NA ?-cutout_done.jpg
Frunza is offline   Reply With Quote
Old 11-12-2008, 11:30 AM   #23
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Though it is not exactly the same as an NA, on my NB i dropped the radiator about 1.5" and tilted the top about 6"-7" towards the engine; this is with a 2" thick core oversized radiator and the stock A/C condenser. I have an over the top intercooler setup with 2.5" tubing, , and it clears the hood with no cutting.

Seems like you could do the same on an NA though you will have to fab some lower radiator bracket extenders. But that is no big deal IMO. You will also need slim fans.
ZX-Tex is offline   Reply With Quote
Old 11-12-2008, 12:53 PM   #24
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

I removed my hood latch assembly and will be feeding the ic pipes through the center part. I had to cut the underside of my hood but then again, im not using a stock hood
leatherface24 is offline   Reply With Quote
Old 11-12-2008, 01:05 PM   #25
Senior Member

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

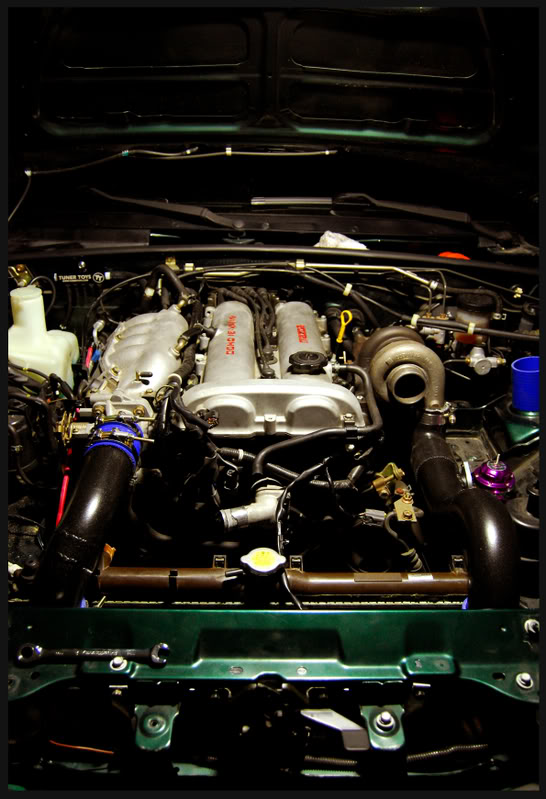

Again, I have a NB, but the idea is the same. Really, just move the radiator back. It is easy, and that is how TDR does it.

Name:  DSC_0064_mod.jpg
Views: 71
Size:  87.7 KB
coastertrav is offline   Reply With Quote
Old 11-12-2008, 04:42 PM   #26
Newb

Join Date: Oct 2006
Location: Boston, MA
Posts: 36
Total Cats: 0
Default

Just cut your hood. It takes 5 minutes and if you're careful you'll be fine.



I didn't have to move my giant radiator either.
Cowpoke is offline   Reply With Quote
Old 11-12-2008, 04:46 PM   #27
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

please, get that filter away from there. thats some counter productive thinking right there ^^
leatherface24 is offline   Reply With Quote
Old 11-12-2008, 05:17 PM   #28
Junior Member
iTrader: (2)

Join Date: Dec 2007
Location: Québec, Canada
Posts: 407
Total Cats: -1
Default

Cowpoke what intercooler are you using?
Dark Wanderer is offline   Reply With Quote
Old 11-12-2008, 06:04 PM   #29
I EAT CUM
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

Quote:
Originally Posted by Cowpoke View Post
Just cut your hood. It takes 5 minutes and if you're careful you'll be fine.



I didn't have to move my giant radiator either.

This is what I'm talking about...not moving the radiator.
Turbo_4 is offline   Reply With Quote
Old 11-12-2008, 06:36 PM   #30
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

between the iat sensor and filter, temps must be high no?
TonyV is offline   Reply With Quote
Old 11-12-2008, 06:42 PM   #31
Junior Member
iTrader: (2)

Join Date: Dec 2007
Location: Québec, Canada
Posts: 407
Total Cats: -1
Default

Quote:
Originally Posted by tvalenziano View Post
between the iat sensor and filter, temps must be high no?
Not sure if I understand well but... correct me if I'm wrong but, the there is no link between the 2. The IAT must be as close as the manifold as possible to be sure that it reads the temperature of the air that enter the combustion chambers no?
Dark Wanderer is offline   Reply With Quote
Old 11-12-2008, 07:25 PM   #32
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I think he means to move the filter so that it is not right behind the radiator, in the hot air exiting the radiator.
ZX-Tex is offline   Reply With Quote
Old 11-12-2008, 07:44 PM   #33
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

that little kink on the TD setup that goes around the radiator hose is really key, I'm using straight pipe and one of those hump connectors, so it'll bend a little bit. its pressed right up against that radiator hose though. I don't know how you guys move your radiator, seems like if you did that S coolant hose would kink trying to go slightly backwards to connect to the head.
curly is offline   Reply With Quote
Old 11-12-2008, 08:03 PM   #34
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

If I understand you correctly I have a solution for that; I found the perfect radiator hose at Auto Zone. I'll post up with more info later.
ZX-Tex is offline   Reply With Quote
Old 11-12-2008, 08:31 PM   #35
I'm Miserable!
iTrader: (5)

bryantaylor's Avatar

Join Date: Dec 2006
Location: jacksonville, fl
Posts: 1,720
Total Cats: 0
Default

Quote:
Originally Posted by tvalenziano View Post
between the iat sensor and filter, temps must be high no?
i have a filter right on my turbo and i only see about 130 deg IATs with a straion intercooler @12psi
bryantaylor is offline   Reply With Quote
Old 11-12-2008, 08:35 PM   #36
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

The point is moving the air filter somewhere else where it can get cooler air will improve performance and system efficiencies. You wouldn't hook a hose in your cooling system bypassing the radiator would you? So why would you put the air filter where it can pick up heat dumped by the various heat exchangers and then send it back to be dumped again? The denser the air going in the turbo, the better. Granted, hot air intakes on turbo setups is common. But that doesn't mean it's ideal.
patsmx5 is offline   Reply With Quote
Old 11-12-2008, 08:44 PM   #37
Junior Member
iTrader: (2)

Join Date: Dec 2007
Location: Québec, Canada
Posts: 407
Total Cats: -1
Default

Quote:
Originally Posted by patsmx5 View Post
The point is moving the air filter somewhere else where it can get cooler air will improve performance and system efficiencies. You wouldn't hook a hose in your cooling system bypassing the radiator would you? So why would you put the air filter where it can pick up heat dumped by the various heat exchangers and then send it back to be dumped again? The denser the air going in the turbo, the better. Granted, hot air intakes on turbo setups is common. But that doesn't mean it's ideal.
Yeah that's good. I'd be curious to know intake temp difference between the "filter behind rad" vs "filter at a more commun place" tough! Just to see if there is a big difference.

But in that low filter setup, I'd be woried more about water getting into it than the hot air it sucks.
Dark Wanderer is offline   Reply With Quote
Old 11-12-2008, 08:57 PM   #38
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by patsmx5 View Post
Haha. I'm going around the radiator like you folks have never seen before. Well, one guy with a NA did it, but he had to remove his headlights for it to work. Not on my NB.

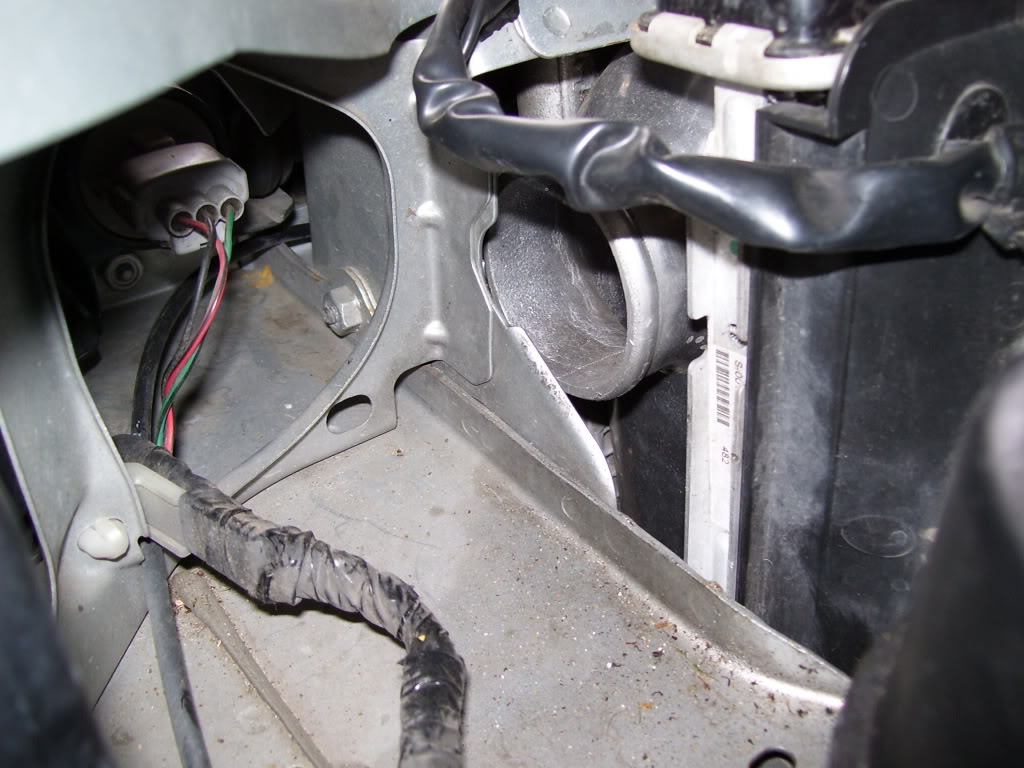

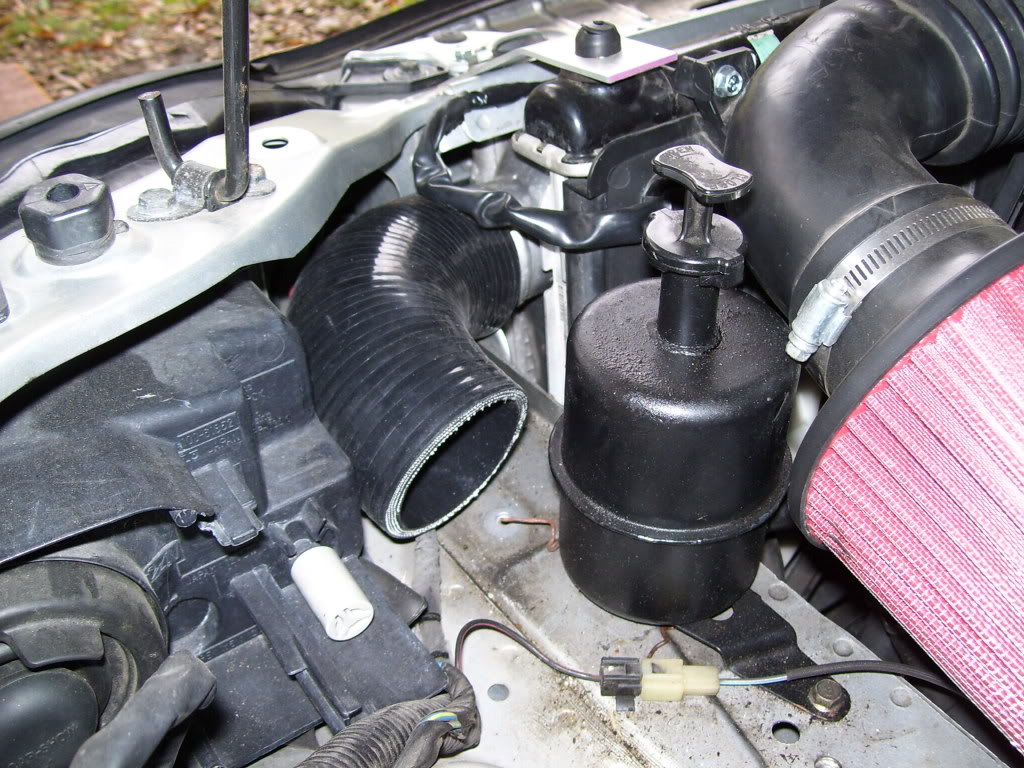

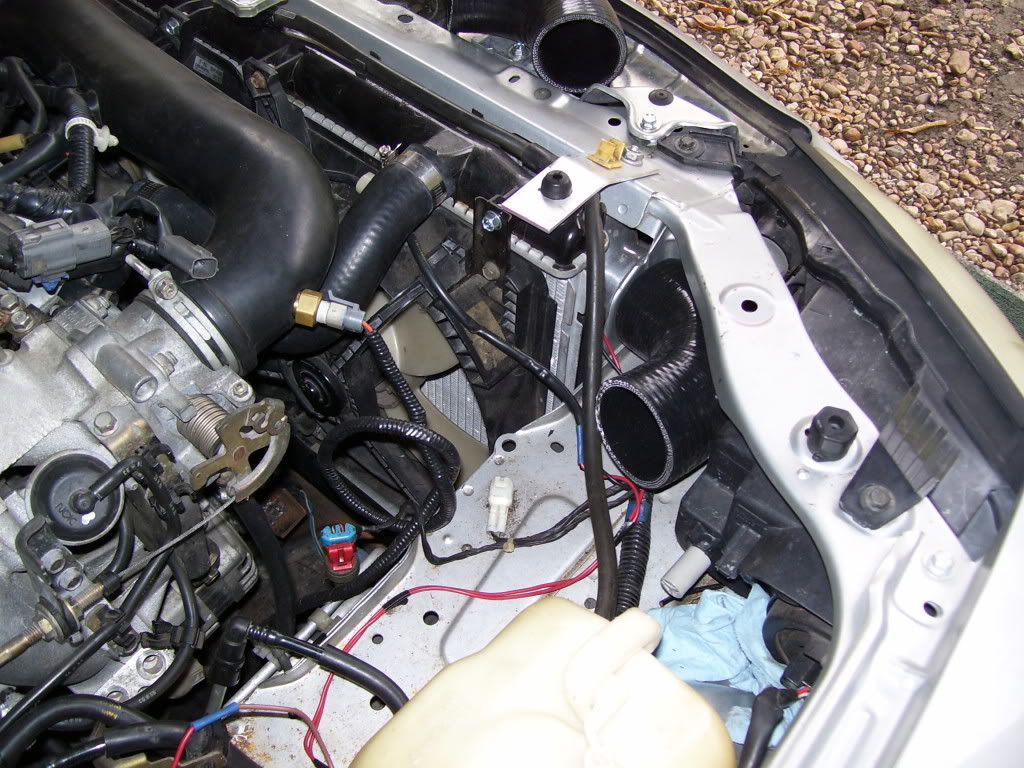

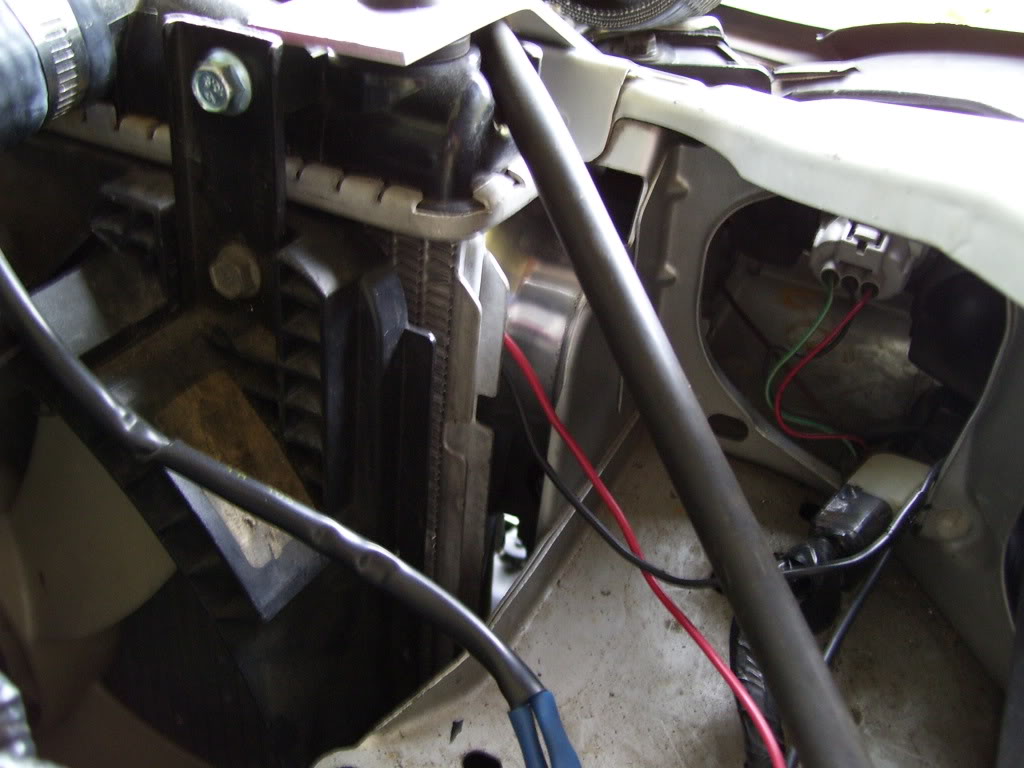

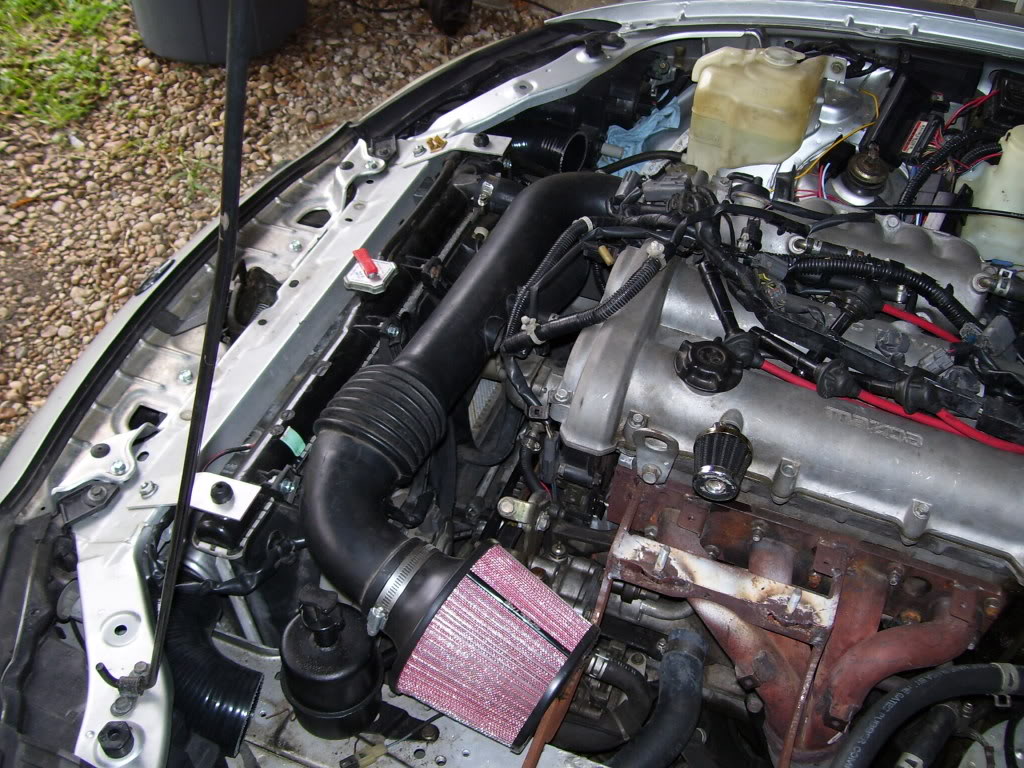

Like this. Only I haven't cut the sheet metal out of the way to slide the couplers on. But you'll get the idea anyways. Invisible FMIC FTW.

Name:  100_1661.jpg
Views: 71
Size:  125.8 KB

Name:  100_1667.jpg
Views: 73
Size:  179.5 KB

Name:  100_1654.jpg
Views: 70
Size:  98.4 KB

Name:  100_1659.jpg
Views: 69
Size:  187.6 KB

Name:  100_1668.jpg
Views: 71
Size:  190.5 KB

Will do a writeup whenever I finally finish this and get turbo'd. But this IC mounting method has it's advantages for NB's.
patsmx5 is offline   Reply With Quote
Old 11-12-2008, 09:43 PM   #39
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

^^ Hey I seeeerioulsy considered something like that. Very cool to see someone trying it. If (when) it works I think that is a good option.
ZX-Tex is offline   Reply With Quote
Old 11-12-2008, 09:47 PM   #40
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Haha, Nice pat!
elesjuan is offline   Reply With Quote
