Default Over The Radiator Intercooler Size?

I've searched, but haven't really found what I was after. I'm looking to do a over the radiator intercooler setup on my M45 car. I've been looking into the 18x12x3 and the 16.5x11x3, but they both seem too small. What size intercoolers are you guys using?
RustBoxBrad is offline   Reply With Quote
Old 11-25-2011, 01:27 AM   #2
Junior Member
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

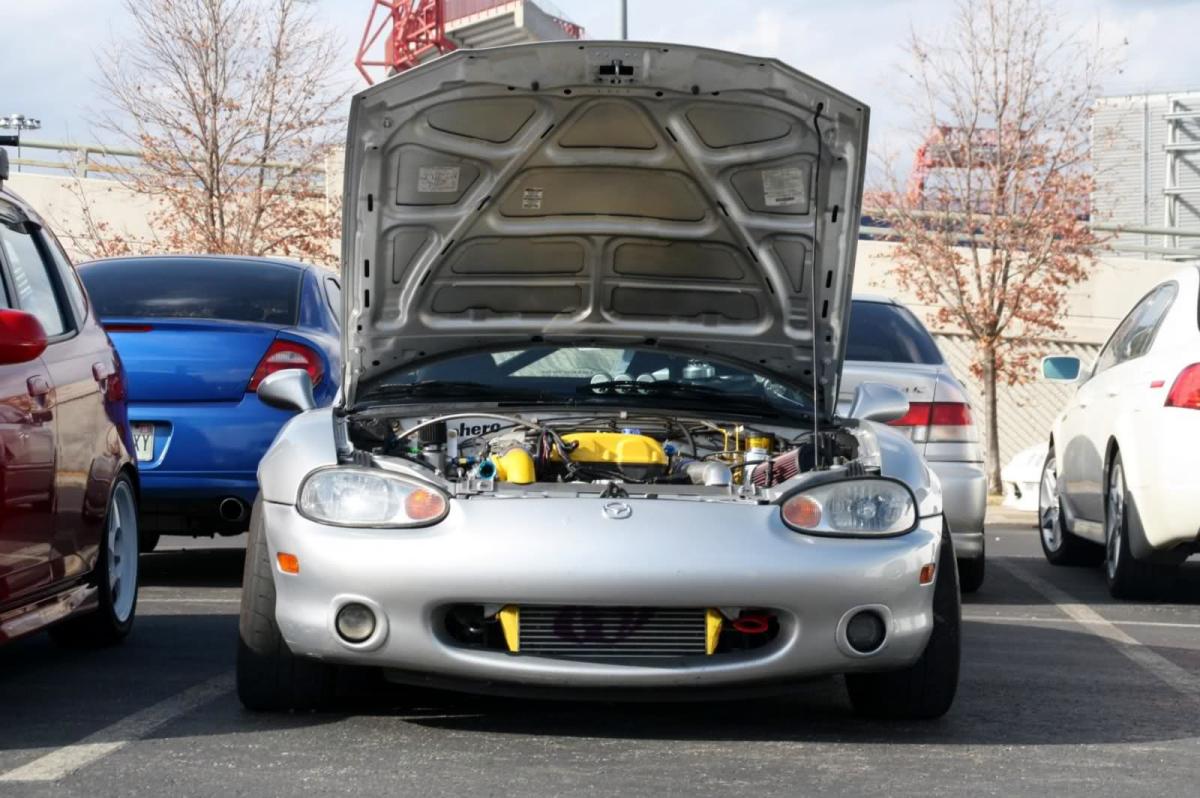

I used a OEM starion one with modified end tanks:



measure the size in between the top radiator supports, as long as its smaller than that your good.
Attached Thumbnails
Over The Radiator Intercooler Size?-25aj402.jpg
imput1234 is offline   Reply With Quote
Old 11-25-2011, 09:30 AM   #3
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

21x8x3. 21 is overall width...core is like 16" wide
aaronc7 is offline   Reply With Quote
Old 11-25-2011, 12:00 PM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Whoa there NB folk, step aside.

You're fairly limited with the intercooler size on an NA. The radiator doesn't tilt back as easily as an NB, and the head lights can get in the way. Widest the pipes can be is approximately 20", so if you're doing 90* off the inlet and outlet, you're looking at around a 10" core, with 5" on either side for an endtank and upturn. That'll place them through the OEM holes.
curly is offline   Reply With Quote
Old 11-25-2011, 01:42 PM   #5
Junior Member
iTrader: (1)

Join Date: Mar 2008
Posts: 55
Total Cats: 0
Default

I'm going to attempt a 24x11x3 this winter, core size is 18x11. It Will definitely be shoe horned in. I'm pretty confident I can get it to fit nicely. I've got my front bumper off at the moment so you anyone would like a measurement or picture request let me know.
fc3s690 is offline   Reply With Quote
Old 11-25-2011, 09:39 PM   #6
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Not an na but i'm running the track dog ic.

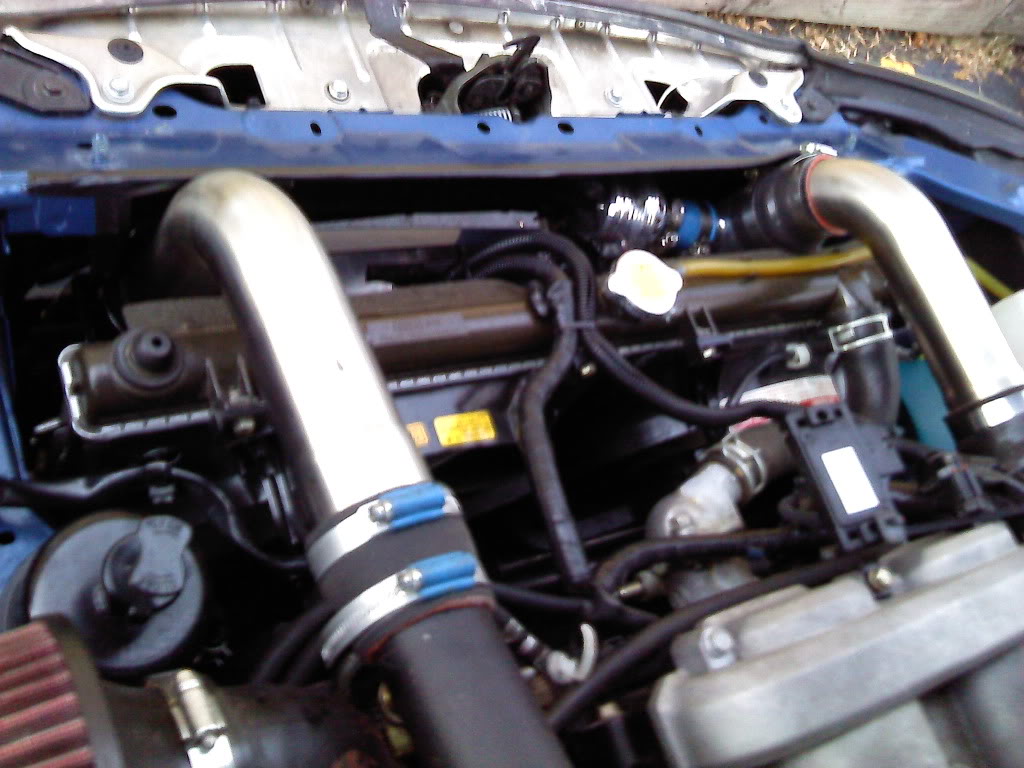

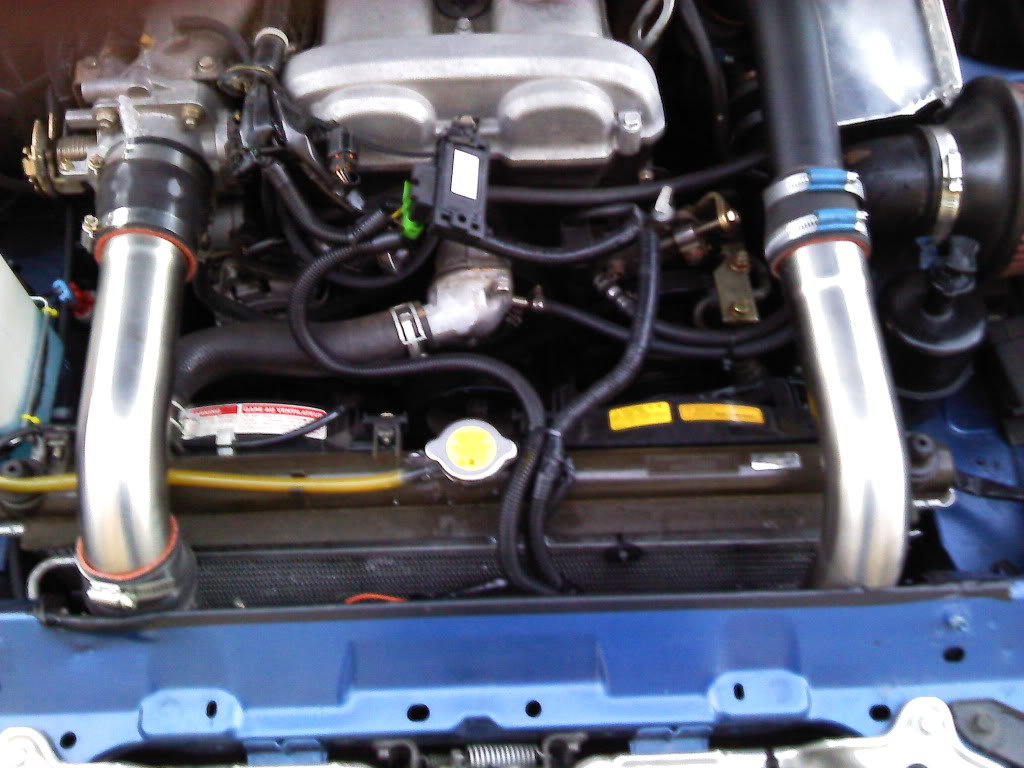

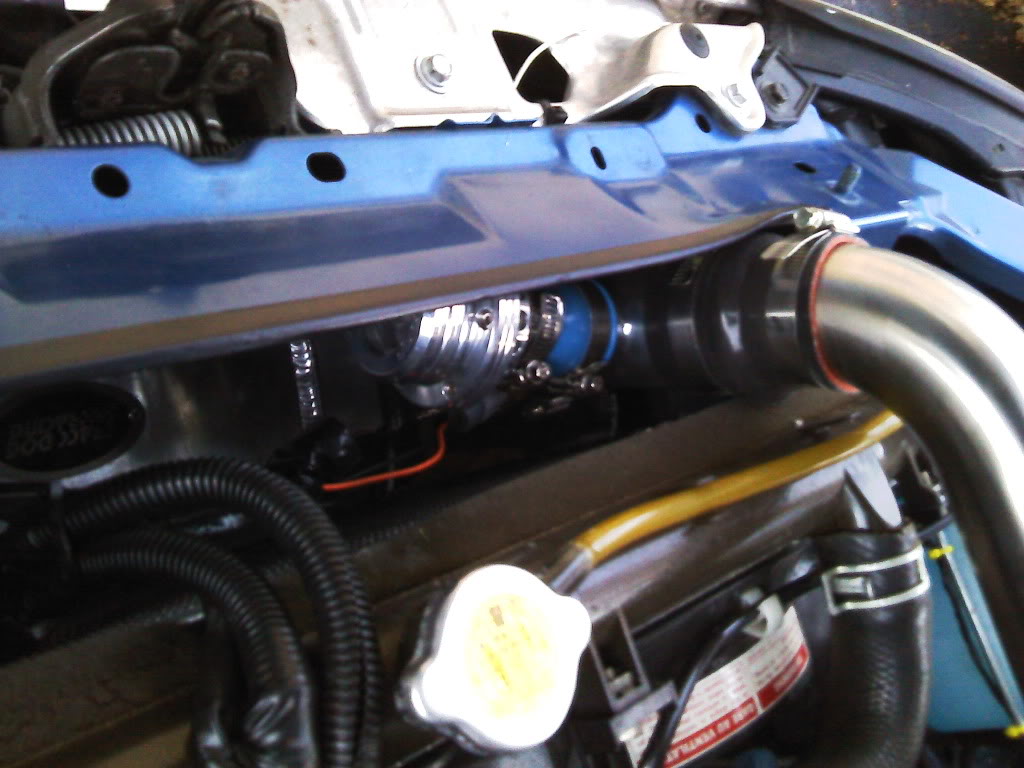

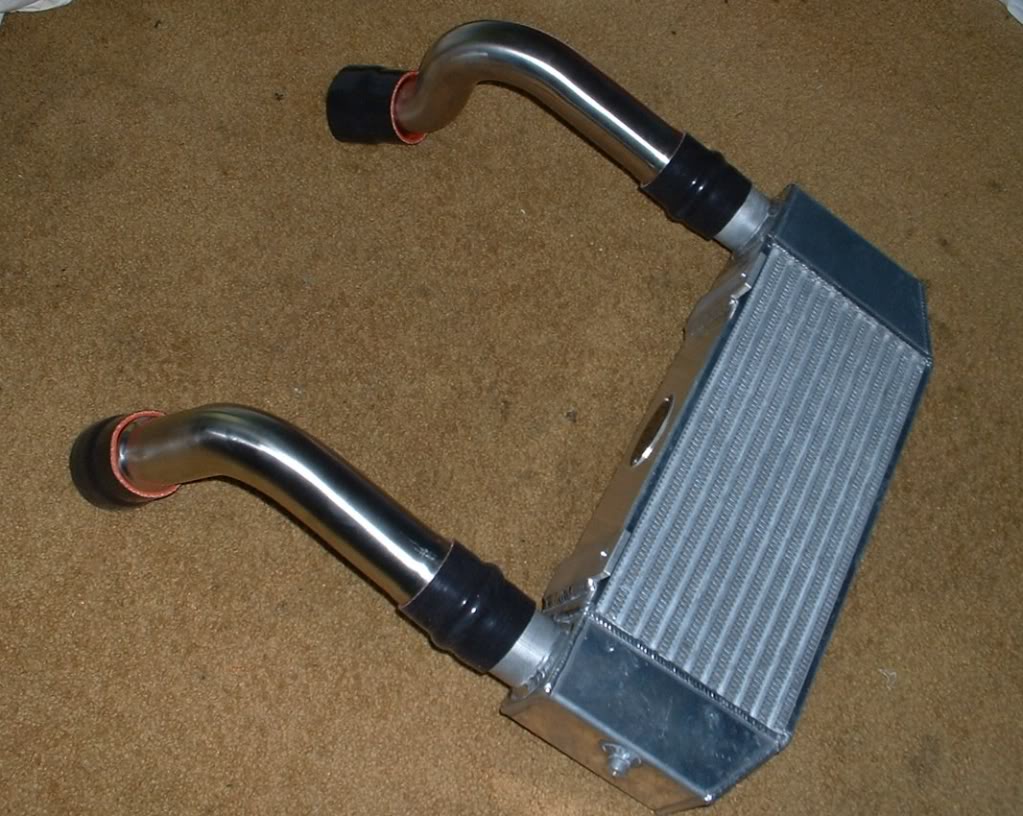

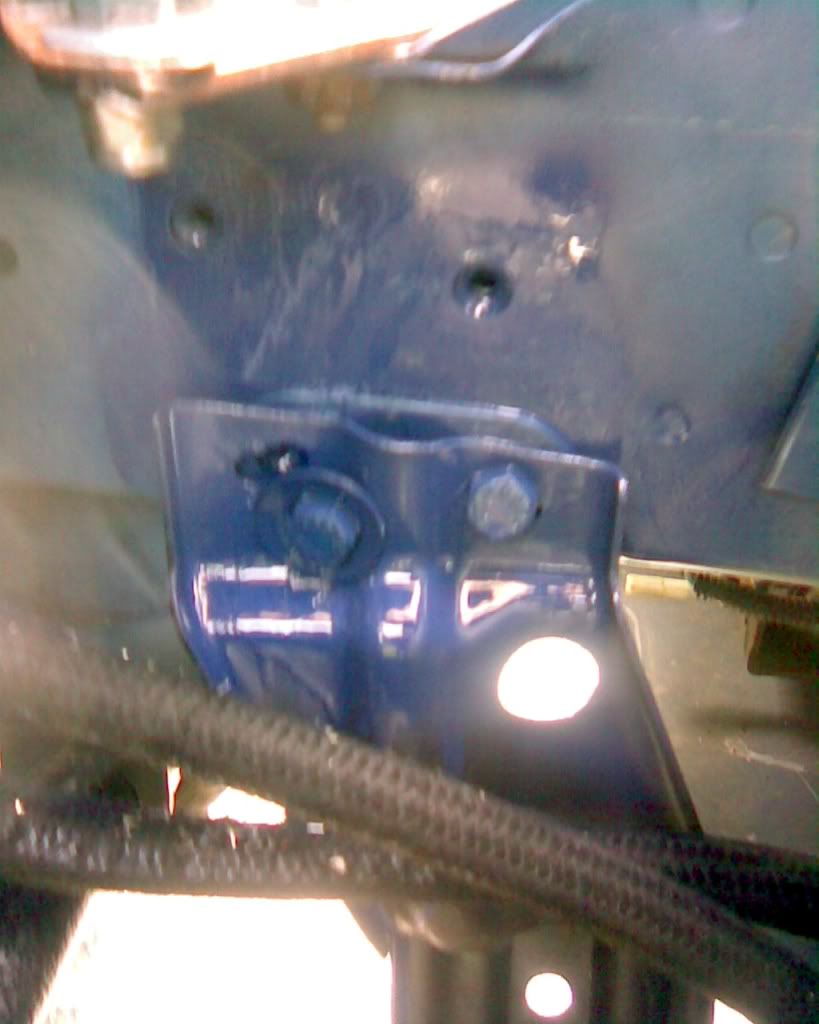

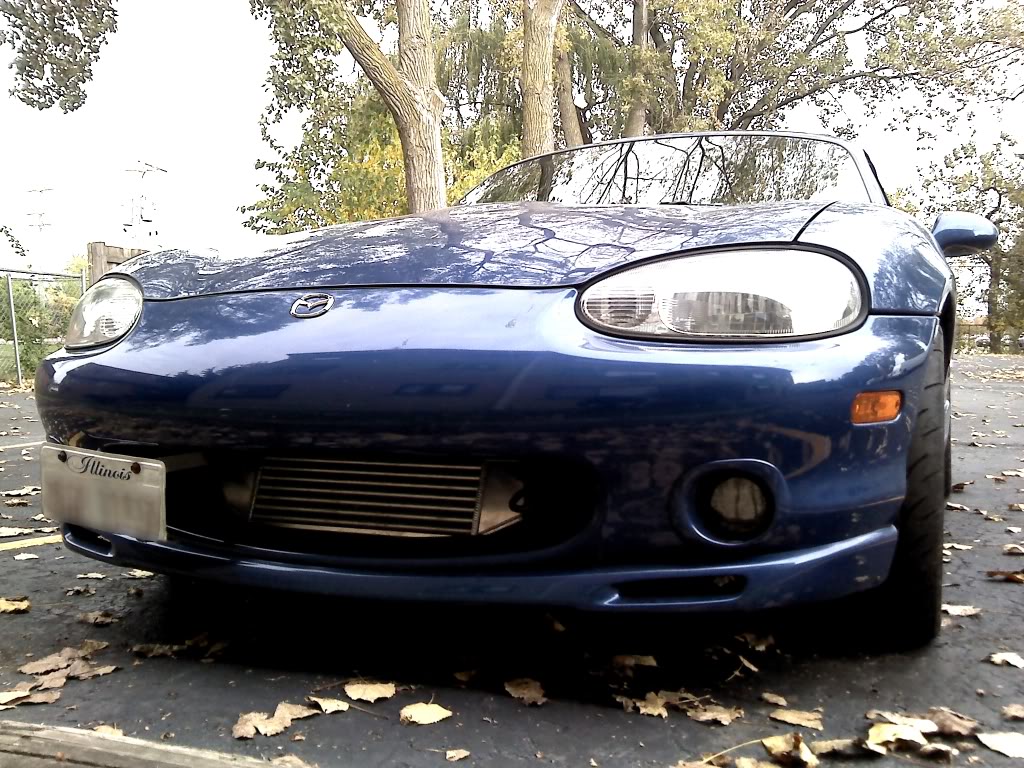

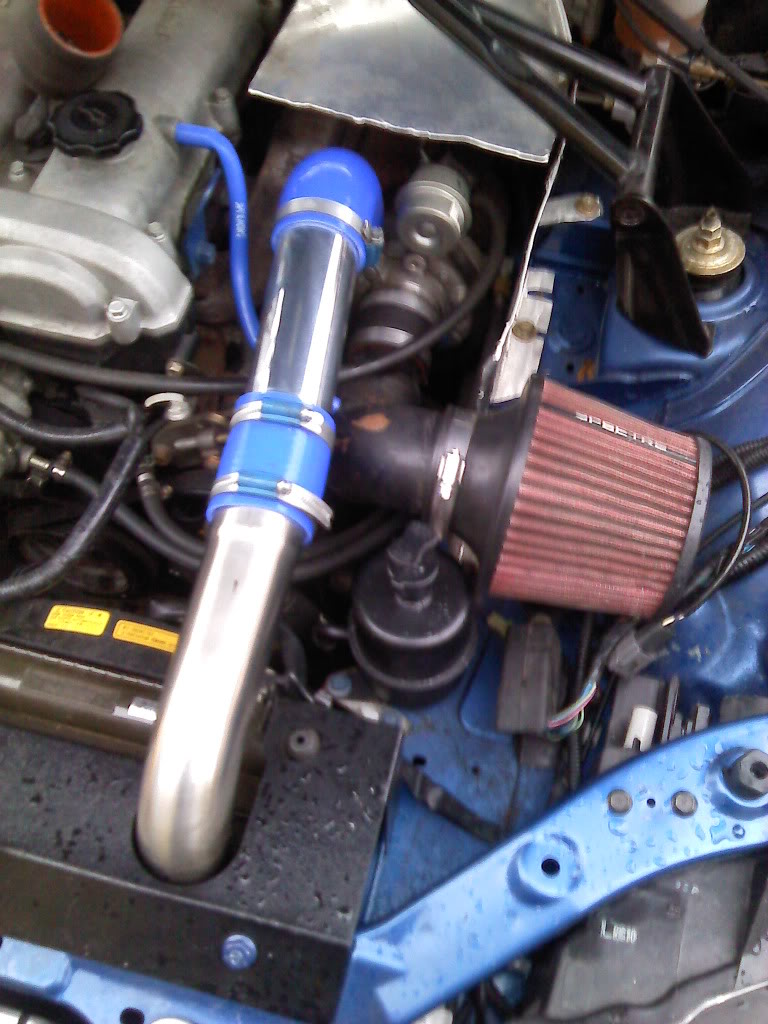

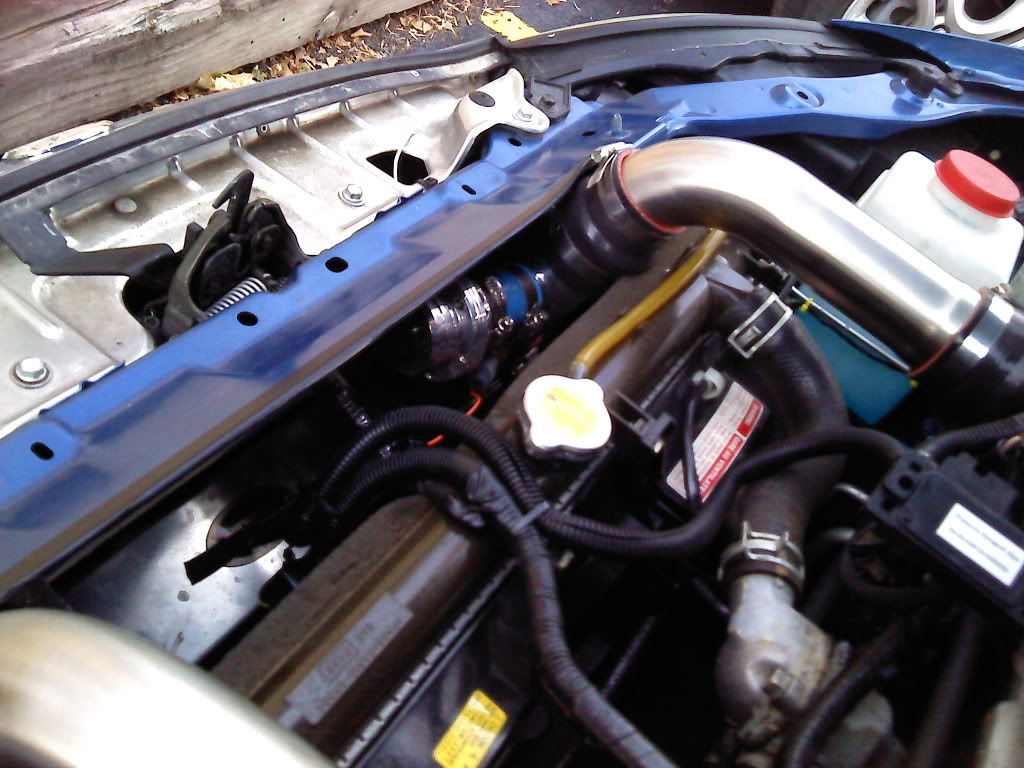

I did break 1 of the screws so i had to redo it but this is the only pic i have of the mount. I dont understand why they didnt just redrill the 1 hole and call it done but ok... You take off the mount and toss it on the 2 screws on the antisway bar mount. That will drop your rad enough to give you clearance.


This is without the cover on top of the rad









IC is angled.



Attached Thumbnails
Over The Radiator Intercooler Size?-p160411_1726.jpg   Over The Radiator Intercooler Size?-image004.jpg   Over The Radiator Intercooler Size?-p081110_1626_02.jpg   Over The Radiator Intercooler Size?-p081110_1626_01.jpg   Over The Radiator Intercooler Size?-p081110_1626_03.jpg

Over The Radiator Intercooler Size?-p081110_1626.jpg   Over The Radiator Intercooler Size?-jric.jpg   Over The Radiator Intercooler Size?-p141010_1429_01.jpg
triple88a is offline   Reply With Quote
Old 11-25-2011, 10:42 PM   #7
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by fc3s690 View Post
I'm going to attempt a 24x11x3 this winter, core size is 18x11. It Will definitely be shoe horned in. I'm pretty confident I can get it to fit nicely. I've got my front bumper off at the moment so you anyone would like a measurement or picture request let me know.
Hope your outlets point up, no way that's fitting with side exits and an over the top setup.
curly is offline   Reply With Quote
Old 11-29-2011, 12:22 PM   #8
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Murfreesboro, TN
Posts: 58
Total Cats: 0
Default

I like the Track Dog setup, I just can't justify putting a $1k IC in a $3k car. I think I'm going to attempt the 16.5x11x3 and tilt the radiator back.
RustBoxBrad is offline   Reply With Quote
Old 11-29-2011, 01:42 PM   #9
Junior Member
iTrader: (1)

Join Date: Mar 2008
Posts: 55
Total Cats: 0
Default

I've got my 24x11x3 ordered, it's back ordered so it won't be in for another 2 weeks.
fc3s690 is offline   Reply With Quote
Old 11-29-2011, 05:11 PM   #10
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

China sweatshops run out of little kids to make ICs?
triple88a is offline   Reply With Quote
Old 12-07-2011, 01:36 PM   #11
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Murfreesboro, TN
Posts: 58
Total Cats: 0
Default

Just a little update. I bought a intercooler last night. I was having a problem with finding an adequately sized one with the proper inlet/outlet for a decent price. It's an eBay special, but it's 23.5x11x2.75 overall with a 18x11x2.75 core and 2.5" inlet/outlets coming out the top. It should be around the same size as the TDR one, but I only paid $112 shipped
I'll be installing it over the holiday break along with relocating the TB back to the intake and fitting a TurboXS H-RFL blow-off valve.
RustBoxBrad is offline   Reply With Quote
Old 12-08-2011, 10:03 PM   #12
Junior Member

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Quote:
Originally Posted by imput1234 View Post
I used a OEM starion one with modified end tanks:



measure the size in between the top radiator supports, as long as its smaller than that your good.
Do you like the starion setup? I went to a local junkyard and they wanted $50 for one that I pulled out. Didn't know if the ~23 year old intercooler would be sufficient and worth the modding when I could just buy a brand new one on ebay for about $100.

And link to the intercooler you bought rust?

Last edited by Oochi; 12-08-2011 at 10:03 PM. Reason: detail
Oochi is offline   Reply With Quote
Old 12-08-2011, 10:14 PM   #13
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Starion is a great intercooler. It is a tiny bit small, but it is absolutely perfectly sized for an over the radiator setup on an NA. It fits exactly in the factory holes in front of the radiator. Yes ebay intercoolers are $100, but for one to fit that perfectly it's $200+
curly is offline   Reply With Quote
Old 12-08-2011, 10:23 PM   #14
Junior Member

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

so would it be a good investment to get one for the $50? The fins look a bit brittle, and a few are slightly smashed, but it looks alright overall. And what kind of modifying would be needed, other than cutting the piping that crosses over the top of it?

(not trying to hijack your thread here, sorry)
Oochi is offline   Reply With Quote
Old 12-08-2011, 10:55 PM   #15
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

That's it really, cut the pipes. If you have access to a welder, welding something on there longer and with a bead/flare is the only thing that would make it "perfect". The mounts are a little weird, but a piece of bent metal is all you need to make it work.
curly is offline   Reply With Quote
Old 12-08-2011, 11:21 PM   #16
Junior Member

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

You may have just re-changed my mind on the starion IC, and talked me into picking one up. Any good write up that you could share on them would be awesome (I couldn't find much info on them myself). But I am also curious on which IC Rustboxbrad went with.
Oochi is offline   Reply With Quote
Old 12-09-2011, 11:17 PM   #17
Junior Member

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

i made 225whp/209wtq with a starion i/c BP+t with bandaids worked pretty well around town but freeway pulls when its more than 70* outside got my iats a bit hot for my liking(125*F-140*F by mid 5th gear) i was running 14psi through a mitsu big 16g and all 1 7/8" charge pipe. not sure if any of that matters. now im running an ebay 19x7.5x3.5 core and 3" charge pipe same turbo and i was seeing 95-105 iats under the same conditions. all numbers were taken off my ms1v3.0 data logs
fastivab6tg25mr is offline   Reply With Quote
Old 12-14-2011, 02:54 PM   #18
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Murfreesboro, TN
Posts: 58
Total Cats: 0
Default

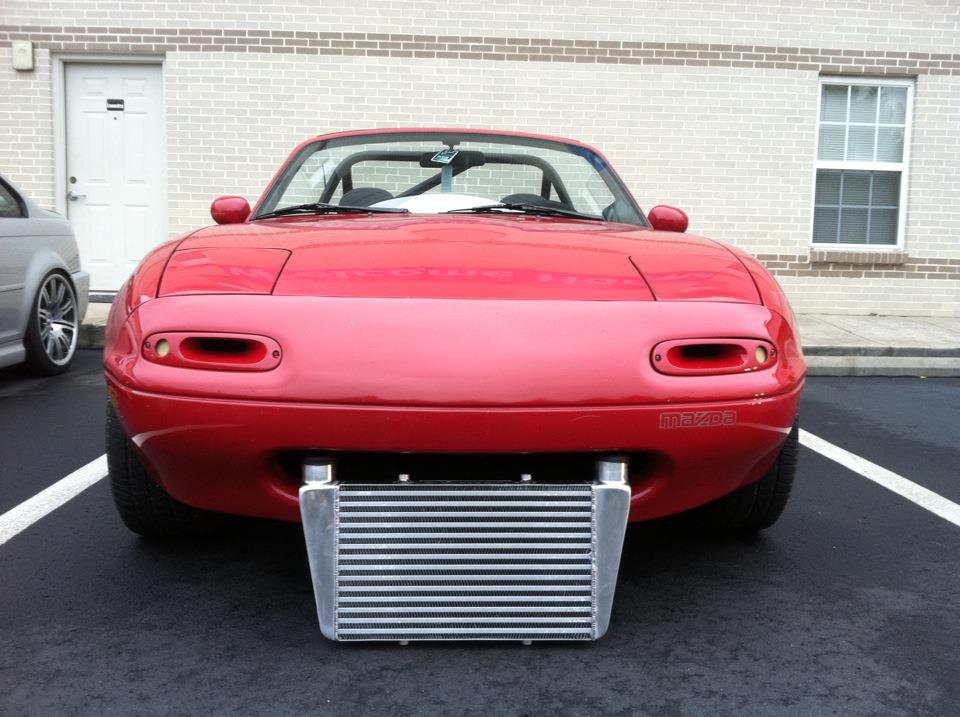

Got my intercooler in yesterday. It looks like it should work out nicely.
Attached Thumbnails
Over The Radiator Intercooler Size?-miata_fmic.jpg
RustBoxBrad is offline   Reply With Quote
Old 12-14-2011, 03:40 PM   #19
Junior Member

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Quote:
Originally Posted by RustBoxBrad View Post
Got my intercooler in yesterday. It looks like it should work out nicely.
When are you throwing it on? Is it just me or is it really tall looking? Interested in the outcome!
Oochi is offline   Reply With Quote
Old 12-15-2011, 01:20 AM   #20
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

^.. Probably as tall as the radiator.
triple88a is offline   Reply With Quote
