Old 12-15-2011, 10:08 AM   #21
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Murfreesboro, TN
Posts: 58
Total Cats: 0
Default

Quote:
Originally Posted by Oochi View Post
When are you throwing it on? Is it just me or is it really tall looking? Interested in the outcome!
I'm putting it in after Christmas. It may just be the angle of the pic, the intercooler is only 11" tall
RustBoxBrad is offline   Reply With Quote
Old 02-24-2012, 06:41 PM   #22
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: South Bay, CA
Posts: 354
Total Cats: -2
Default

Think this will be fine for up to 200hp? Looking into building my out setup.

http://www.ebay.com/itm/CXRacing-Bar...f85088&vxp=mtr
comradefks is offline   Reply With Quote
Old 02-24-2012, 10:08 PM   #23
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

That should be a very close fit, IIRC the stock holes are roughly 13.xx" apart. Measure for yourself. There is some trimming you can do too.
curly is offline   Reply With Quote
Old 02-25-2012, 04:58 AM   #24
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

the pic above...that one will fit fine without ac...with and the ac drier canister very well may get in the way. Now that 16 inch one is tiny no issues at all. I ran it before. All my experiemces based off nb1
aaronc7 is offline   Reply With Quote
Old 02-28-2012, 12:30 AM   #25
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: South Bay, CA
Posts: 354
Total Cats: -2
Default

Quote:
Originally Posted by aaronc7 View Post
the pic above...that one will fit fine without ac...with and the ac drier canister very well may get in the way. Now that 16 inch one is tiny no issues at all. I ran it before. All my experiemces based off nb1
Great. Thanks for the input.

Also, just as a ballpark, are there any power gains by adding an intercooler to a M45 setup without tuning? I know there are going to be advantages to keeping the motor from detonating but I wanted to know if there are power gains to be had as well. Thanks.
comradefks is offline   Reply With Quote
Old 02-28-2012, 09:41 AM   #26
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

yeah. I've seen M45 compressor plots...its not all that efficient. the cooler air alone should help, and you could tune it a bit more aggressive if you really wanted to get more out of it. cool/near ambient intake temps is ALWAYS a good thing
aaronc7 is offline   Reply With Quote
Old 02-28-2012, 11:33 AM   #27
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: South Bay, CA
Posts: 354
Total Cats: -2
Default

How much worse will the throttle response be if I do a clean installation of the piping? Currently it's not immediate but not terrible.
comradefks is offline   Reply With Quote
Old 03-04-2012, 12:59 AM   #28
Junior Member

Join Date: Sep 2008
Location: Houston, TX
Posts: 102
Total Cats: 0
Default

^^^ the IC you linked to is either the same or similar to the one I considered. There is one that CX does for an RX7 that the pipes were almost a perfect line up for the 2 big holes there...

You'll probably want to remove the hood latch and go hood pins to get the room to mount it right.
miata_racer is offline   Reply With Quote
Old 03-04-2012, 10:31 AM   #29
Senior Member
iTrader: (2)

Join Date: Jun 2007
Location: Shalimar, FL
Posts: 965
Total Cats: 7
Default

Everyone here is talking about running the pipes through the two holes. It's actually not that hard at all the tilt the rad and a/c back. I'd argue it's no more work than on a NB (and I've done both). The issue with IC size is limited by A/C. I'm going to temporarily run that 16.5x11x3 intercooler until I decide to pony up for a custom width one.

See here for NA instructions by TDR: http://www.trackdogracing.com/inst/9...R_intercooler/

Last edited by messiahx; 03-04-2012 at 02:05 PM.
messiahx is offline   Reply With Quote
Old 03-04-2012, 01:41 PM   #30
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: South Bay, CA
Posts: 354
Total Cats: -2
Default

Quote:
Originally Posted by miata_racer View Post
^^^ the IC you linked to is either the same or similar to the one I considered. There is one that CX does for an RX7 that the pipes were almost a perfect line up for the 2 big holes there...

You'll probably want to remove the hood latch and go hood pins to get the room to mount it right.
Probably going to gut the hood while I'm at it yes.

Do you have a link for the RX-7 intercooler you speak of?
comradefks is offline   Reply With Quote
Old 03-05-2012, 05:18 PM   #31
Junior Member

Join Date: Sep 2008
Location: Houston, TX
Posts: 102
Total Cats: 0
Default

it was something like this...I'd have to measure again...

http://www.ebay.com/itm/CXRacing-INT...ab091f&vxp=mtr
miata_racer is offline   Reply With Quote
Old 03-05-2012, 09:40 PM   #32
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

The track dog setup is nice...definitely much cleaner than cutting up the hood. On a no ac/ps car, it would be a piece of cake. Now its not hard to do on a loaded model but the ac core and the PS lines do get in the way here and there. Would i do it again? Yes, in a heart beat.
triple88a is offline   Reply With Quote
Old 03-07-2012, 12:12 AM   #33
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: South Bay, CA
Posts: 354
Total Cats: -2
Default

Quote:
Originally Posted by miata_racer View Post
it was something like this...I'd have to measure again...

http://www.ebay.com/itm/CXRacing-INT...ab091f&vxp=mtr
Great, thanks for the link.

I have a couple thoughts on the 2 intercoolers. Optimally I would want as small of an intercooler as I need for my HP goals to block as little of the radiator as possible and have the smallest throttled volume possible. If I gut the hood when putting in the intercooler, I shouldn't have to put that much more piping/elbows in to make a smaller one work.

Or I could have 1 inlet on the top and 1 outlet on the side. This way I line up the inlet as a straight shot and have the outlet with 1 90 degree bend before heading up to the intake manifold. Now just need to search Ebay til I find one!
comradefks is offline   Reply With Quote
Old 07-10-2012, 03:29 PM   #34
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: South Bay, CA
Posts: 354
Total Cats: -2
Default

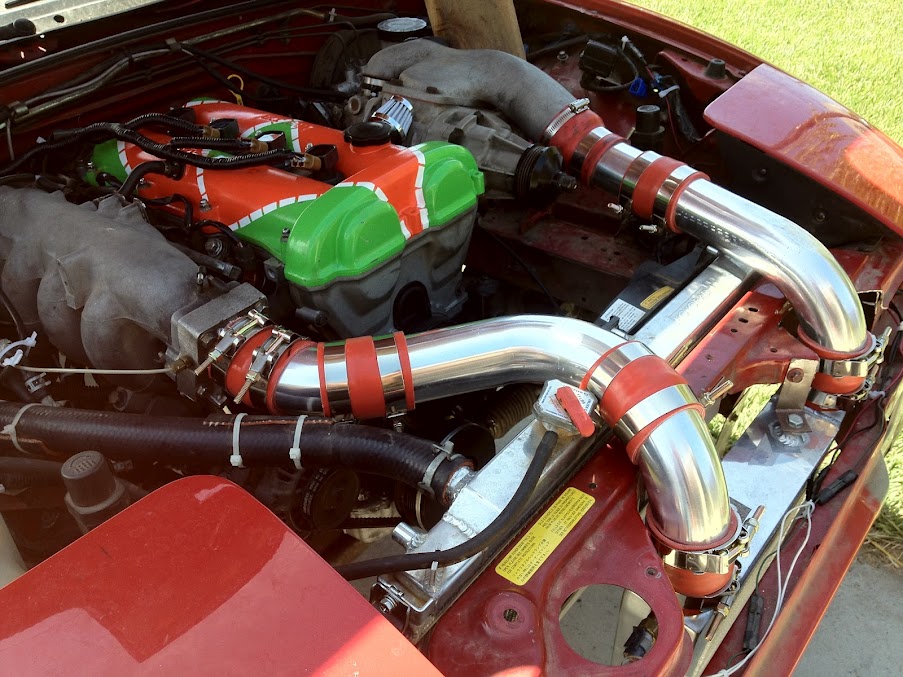

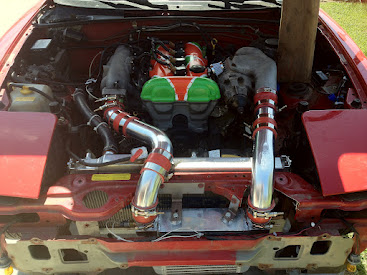

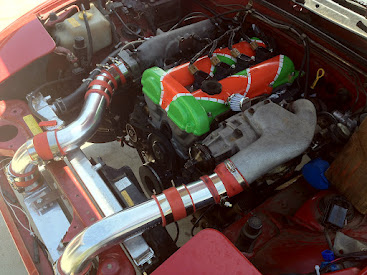

Finally got my intercooler piping installed. Ended up with the 16.5x11x3 Ebay intercooler with 2.5" piping. Had to smash the piping down a bit to clear the hood even with the hood bracing cut out. Also had to go to hood pins, no room for latch mechanism. Happy with the results to this point. Will see how it holds up once on track.





Attached Thumbnails
Over The Radiator Intercooler Size?-photo%25281%2529.jpg   Over The Radiator Intercooler Size?-photo%25282%2529.jpg   Over The Radiator Intercooler Size?-photo.jpg
comradefks is offline   Reply With Quote
Old 07-10-2012, 09:28 PM   #35
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Looks like a nice setup, I'm impressed you got the 2.5" to work, I had issues with bashed 2" pipes.

Mine held up great at the track, although it made sealing the top of the radiator difficult to say the least. I used a hacked up panel and lots of foil tape.

The biggest down side is when you decide to switch to around the radiator you've hacked up your front support.
curly is offline   Reply With Quote
Old 07-10-2012, 10:25 PM   #36
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

So there is a hole on the drivers side, I wonder what the diameter is... I was envisioning a setup with the turbo side of the charge piping coming from the bottom and the tb side coming over the radiator. Where I want to put my turbo this would give me the shortest routing without running a half width radiator. Or at least that I can think of.
Leafy is offline   Reply With Quote
Old 07-11-2012, 12:18 AM   #37
Junior Member
iTrader: (3)

Join Date: Jun 2011
Location: Charlotte, NC
Posts: 277
Total Cats: 24
Default

Nice 787b valve cover

RussellT94 is offline   Reply With Quote
Old 07-11-2012, 07:25 AM   #38
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Indeed +1 on creativity.
triple88a is offline   Reply With Quote
Old 07-11-2012, 12:56 PM   #39
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: South Bay, CA
Posts: 354
Total Cats: -2
Default

Quote:
Originally Posted by curly View Post
Looks like a nice setup, I'm impressed you got the 2.5" to work, I had issues with bashed 2" pipes.

Mine held up great at the track, although it made sealing the top of the radiator difficult to say the least. I used a hacked up panel and lots of foil tape.

The biggest down side is when you decide to switch to around the radiator you've hacked up your front support.
Will have to get a picture of what is left of the hood after cutting, basically just the outer skin and even that is dinged up.

Definitely looked at the top panel I need to make and you're right, not easy. Probably will make a couple smaller pieces and tape together as you mentioned.

Also, not looking to change the pipe routing any time soon. Setup is maxed out for now so if I'm changing it, the car is getting ripped apart.

Quote:
Originally Posted by RussellT94 View Post
Nice 787b valve cover

Thanks! Good friend paints RC cars for Tamiya so he hooked it up!
comradefks is offline   Reply With Quote
Old 07-11-2012, 06:54 PM   #40
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,277
Total Cats: 53
Default

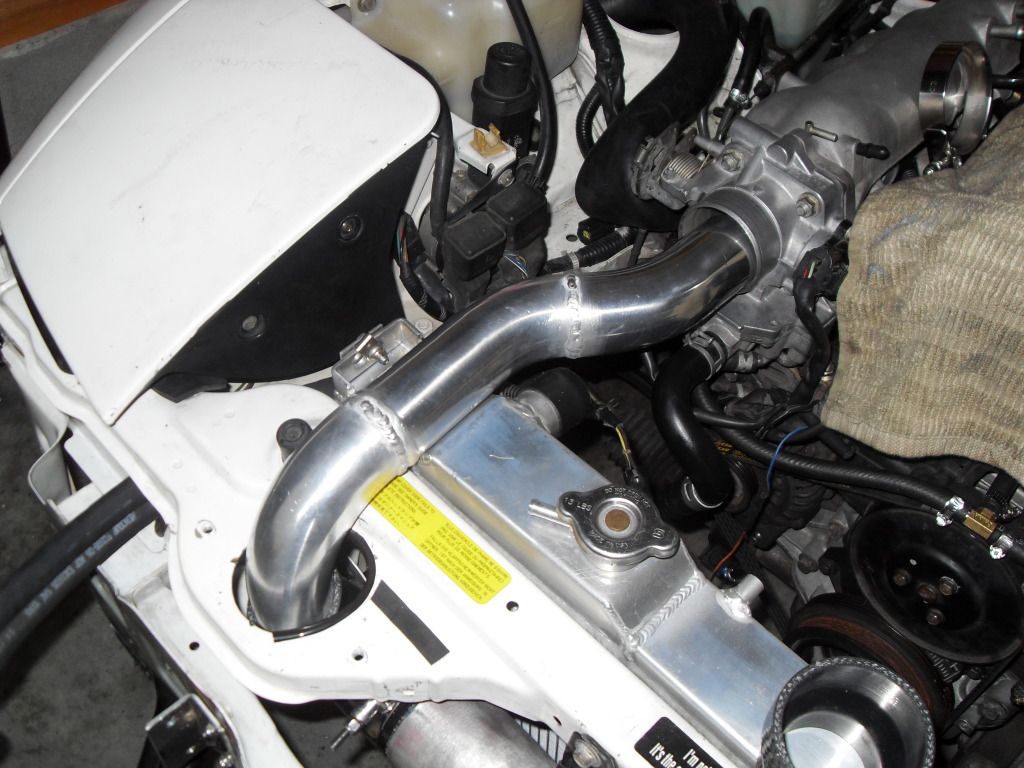

My inlet side w/ 2" piping:


I haven't cut the hood yet, but I've got about 1/8" - 1/4" clearance between a straight edge laid across the head lights and the bend in the pipe. I had to trim out the cutout on the support some to give me a little extra room.
Attached Thumbnails
Over The Radiator Intercooler Size?-miata_061412015.jpg
Midtenn is offline   Reply With Quote
