Over the top IC setup questions about Rad - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 03-17-2007, 06:04 PM   #1
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default Over the top IC setup questions about Rad

Well I'm going with a setup identical to the pics below. My only question is what will I need to do with the radiator exactly? I understand some of you guys went with aftermarket radiators.. where and how did you mount it on. And what type of bracket design did you come up with for the IC? I appreciate it fellas thanks


Name:  M_M1_M62_FRT3.jpg
Views: 1
Size:  65.7 KB
Name:  IMG_02632028Large29.jpg
Views: 1
Size:  68.1 KB

Name:  2576076_5_full.jpg
Views: 1
Size:  89.4 KB
PaKMaN is offline   Reply With Quote
Old 03-17-2007, 07:45 PM   #2
Junior Member
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

seems like they lowered the radiator. Take it to a welder (aluminium) or make custom brackets.
greddymx5 is offline   Reply With Quote
Old 03-17-2007, 08:22 PM   #3
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

For the NBs they just drill new holes in the stock bottom brakets to position the radiator down and back more towards the motor.
cjernigan is offline   Reply With Quote
Old 03-17-2007, 08:37 PM   #4
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
For the NBs they just drill new holes in the stock bottom brakets to position the radiator down and back more towards the motor.
hmmm anybody want to elaborate on the NA's? Btw did you find the CAS sizes
PaKMaN is offline   Reply With Quote
Old 03-17-2007, 08:48 PM   #5
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by PaKMaN View Post
hmmm anybody want to elaborate on the NA's? Btw did you find the CAS sizes
Sorry i can't elaborate more, this was discussed in more length is a larger thread about 2 days ago though. I'll see if i can find that.

I didn't get the size of o-ring but i did get the correct one. Meant to write it down, didn't happen. Got the orings changed and the CAS installed.
cjernigan is offline   Reply With Quote
Old 03-17-2007, 08:51 PM   #6
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Guy asked the same question you did.
https://www.miataturbo.net/forums/showthread.php?t=8129
cjernigan is offline   Reply With Quote
Old 03-17-2007, 09:11 PM   #7
Junior Member

Join Date: Jul 2005
Location: Alexandria, VA
Posts: 125
Total Cats: 0
Default

that last guy looks like he did what i did: hack off the upper 'cross member' and then made custom brackets.
MiaTurbo is offline   Reply With Quote
Old 03-17-2007, 09:56 PM   #8
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

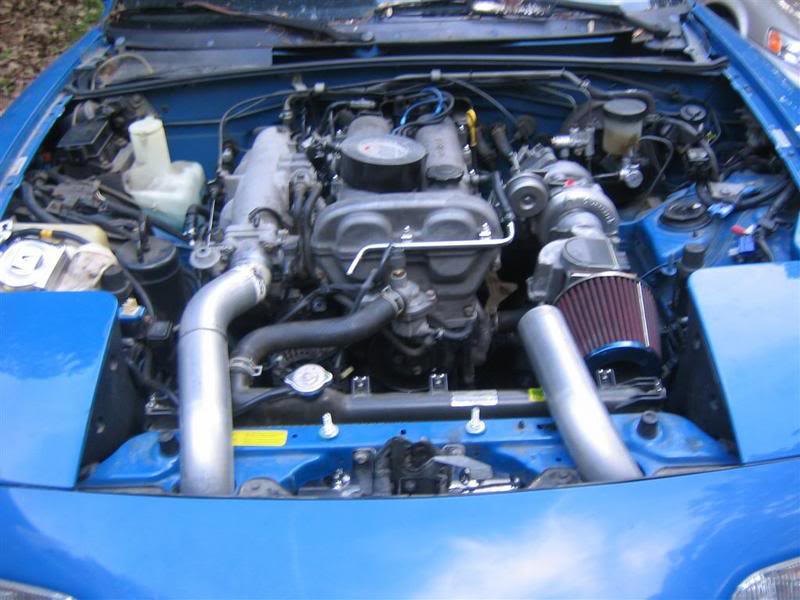

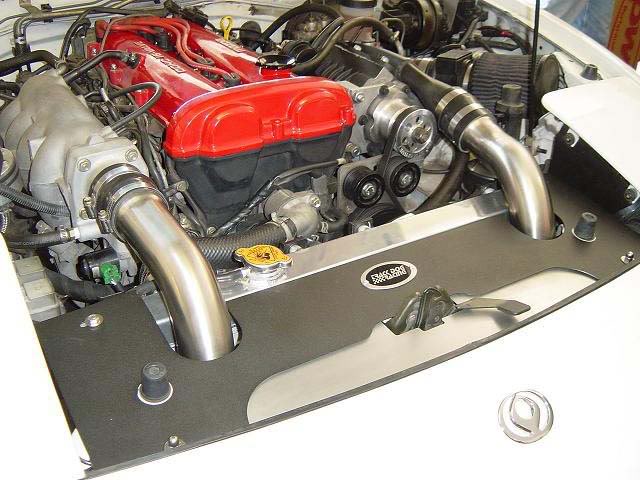

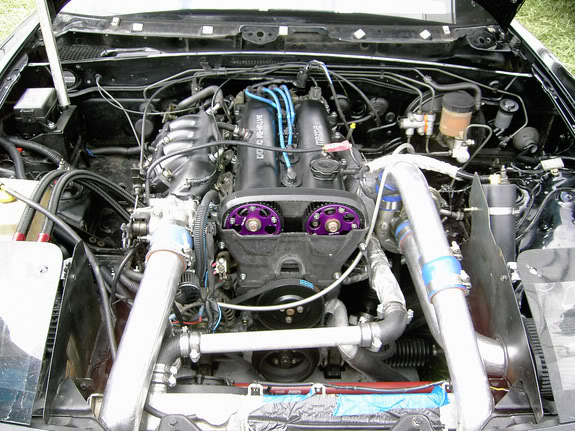

I havent read anyone elses response to this post, but keep this in mind. My setup isnt like trackdogs (name?, first foto) He makes brackets that move the radiator back behind the pipes and lowers them also.

Mine just moves the stock radiator lower. (second pic)

The first and third are track dogs, The last guy just removed all the front crap. To run his pipes.

I would have to guess mine is the easiest for radiator bracket fabbinh (assuming you can weld). Running IC piping wuld be the same for all assuming a 2 inch pipe and IC that had inlets coming from the same side.
Loki047 is offline   Reply With Quote
Old 03-18-2007, 07:50 PM   #9
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Quote:
Originally Posted by Loki047 View Post
I havent read anyone elses response to this post, but keep this in mind. My setup isnt like trackdogs (name?, first foto) He makes brackets that move the radiator back behind the pipes and lowers them also.

Mine just moves the stock radiator lower. (second pic)

The first and third are track dogs, The last guy just removed all the front crap. To run his pipes.

I would have to guess mine is the easiest for radiator bracket fabbinh (assuming you can weld). Running IC piping wuld be the same for all assuming a 2 inch pipe and IC that had inlets coming from the same side.
Thanks again buddy. Do you have any pics of the brackets you made? I just want to get an idea of what style of bracket you've came up with.
PaKMaN is offline   Reply With Quote
Old 03-18-2007, 09:42 PM   #10
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

No I dont, but PM on Saturday to remind me to take pictures when I am home, and I can clear this up for you. My set up is the most ghetto possible. I cut the stock tabs and with the radiator still connected pushed it down as far as possible. Then welded the stock tabs back onto the car.
Loki047 is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Project Gemini - Turbo Civic on the Cheap Full_Tilt_Boogie Build Threads 57 07-19-2017 05:11 PM
OTS Bilstein to motorsports ASN conversion stoves Suspension, Brakes, Drivetrain 5 04-21-2016 04:00 PM
WTB MP62 (Hotside) (NB2) Rick02R WTB 3 01-03-2016 08:18 PM
Leaky Wilwoods mx592 Suspension, Brakes, Drivetrain 1 10-01-2015 01:45 AM
Low oil pressure after 1.8 swap and new turbo setup JesseTheNoob DIY Turbo Discussion 15 09-30-2015 03:44 PM


Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 05:25 PM.
