Old 12-16-2013, 04:03 PM   #21
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 188
Default

I'm pretty sure the problem is limited to the turbine housing used on the GT2560r, I don't ever recall this same "unmanageable" problem on any other turbo. Differently specced turbos are going to have differently specced castings, it just seems like many Miatas running the GT2560r are seeing turbine/compressor efficiencies that exceed what Garrett's engineers thought were possible, so much so that we're having to improve the efficiency of the wastegate to correct the nearsightedness of those engineers. After telling the engineers they screwed up, we continue to have to port wastegates in new turbochargers to correct the thickheadeness of those engineers.
fooger03 is offline   Reply With Quote
Old 12-16-2013, 05:28 PM   #22
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by ScottyP3821 View Post
I got an email reply from Stephanie and is 75 bucks not including shipping. Im going to get it done next time I order parts cause Im only 50 min away so I might as well drop it off. idk really depends on shipping. I have never shipped a turbo let alone such a short distance.
Nice, thanks for the update.

I don't have my 2560 installed yet, but this is one of those "well, I can do it now and be more sure of what to expect, or rip **** apart later and deal with it again **** I have this issue." How prevalent is this issue in all reality? Obviously we can site a bunch of examples here in this thread, but would this be considered systemic?

Edit: Let me put it this way... if you had to build a Miata w/2560 today, would you port as a preventative measure or not?
EO2K is offline   Reply With Quote
Old 12-16-2013, 05:44 PM   #23
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

built? as in built engine?

heck no.

otherwise yes, definitely. esp in CA where temperatures swing 20-30* from day to night sometimes.
18psi is offline   Reply With Quote
Old 12-16-2013, 08:02 PM   #24
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Built as in "started over and built a whole another Miata"

But yeah, your reasoning is exactly along the lines of what I've been thinking about. Plus I've got all this awesome chilly coastal air to pack away
EO2K is offline   Reply With Quote
Old 12-16-2013, 08:18 PM   #25
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

Bouncing off the boost cut on a cold night in a higher gear blows.
And disabling or raising boost cut means venting the block.

So you either build the engine and enjoy the boost creep, or you eliminate the boost creep
18psi is offline   Reply With Quote
Old 12-17-2013, 09:16 AM   #26
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 188
Default

If your exhaust is going to be any more "free flowing" than a 2.5" full length with stock cat, then port the wastegate. BEGi does every single 2560 they sell as a matter of doing business because they know the problem isn't just limited to "special circumstances". Half or more of the active 2560s on this board are probably ported. The other half are either running small exhausts or they manage to keep their cars out of "boost cut" with throttle modulation.
fooger03 is offline   Reply With Quote
Old 12-18-2013, 10:19 AM   #27
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by fooger03 View Post
If your exhaust is going to be any more "free flowing" than a 2.5" full length with stock cat, then port the wastegate. BEGi does every single 2560 they sell as a matter of doing business because they know the problem isn't just limited to "special circumstances". Half or more of the active 2560s on this board are probably ported. The other half are either running small exhausts or they manage to keep their cars out of "boost cut" with throttle modulation.

The 2560r I have came from an older FM2 so Im assuming its not ported and to confirm I never noticed boost creep with a stock exhaust and test pipe. Looks like it only started when I went 2.5 all the way back from the turbo. I'd rather port it at this point the response I get with the 2.5 inch straight is much better.
ScottyP3821 is offline   Reply With Quote
Old 12-18-2013, 11:45 AM   #28
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,199
Total Cats: 260
Default

Also, let it be known that FM's "fix" for this is to put a restrictor plate in the exhaust, or run a cat. Which is why i'm guessing they don't sell a test pipe.
Erat is offline   Reply With Quote
Old 12-18-2013, 12:47 PM   #29
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I noticed that. Looks like I'm calling BEGI for some portage.

Thanks gays for the discussion, I love how productive this community can be when motivated.
EO2K is offline   Reply With Quote
Old 12-18-2013, 01:15 PM   #30
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,199
Total Cats: 260
Default

I'm kinda shocked you didn't get blasted to "search noob", because this topic is brought up somewhat Often.

Though.
I do think i made a thread exactly like this maybe 2 years ago and didn't get blasted.
Erat is offline   Reply With Quote
Old 12-18-2013, 02:07 PM   #31
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Meh, not my thread. Believe it or not I have searched previously, but all I really found was a series of isolated reports rather than a thread like this one with actual feedback from multiple people who had done the deed. So...
EO2K is offline   Reply With Quote
Old 12-18-2013, 03:51 PM   #32
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by EO2K View Post
Meh, not my thread. Believe it or not I have searched previously, but all I really found was a series of isolated reports rather than a thread like this one with actual feedback from multiple people who had done the deed. So...
THIS ^ THIS ^ and THIS ^ I originally searched my *** off and it kept coming back to

1)Vacuum Leak
2)Bad Wastegate Actuator
3)Vacuum Leak
4)Bro is your turbo bad
5)Too much preload
6)Its a vacuum leak jackass are you a troll

None of which till now could I find about the turbo porting. Thanks for the help from everyone and pics.
ScottyP3821 is offline   Reply With Quote
Old 12-18-2013, 03:57 PM   #33
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

You searched "boost creep" and got those answers? I find that hard to believe
18psi is offline   Reply With Quote
Old 12-18-2013, 04:05 PM   #34
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by 18psi View Post
You searched "boost creep" and got those answers? I find that hard to believe
I feel like "Boost Creep" should be someones title, like Concealer

Scotty: Want to sell me that FM WGA if you decide to stick with the Kinugawa?
EO2K is offline   Reply With Quote
Old 12-18-2013, 04:20 PM   #35
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by EO2K View Post
I feel like "Boost Creep" should be someones title, like Concealer

Scotty: Want to sell me that FM WGA if you decide to stick with the Kinugawa?

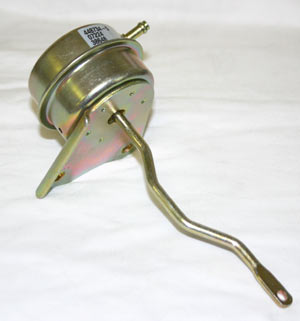

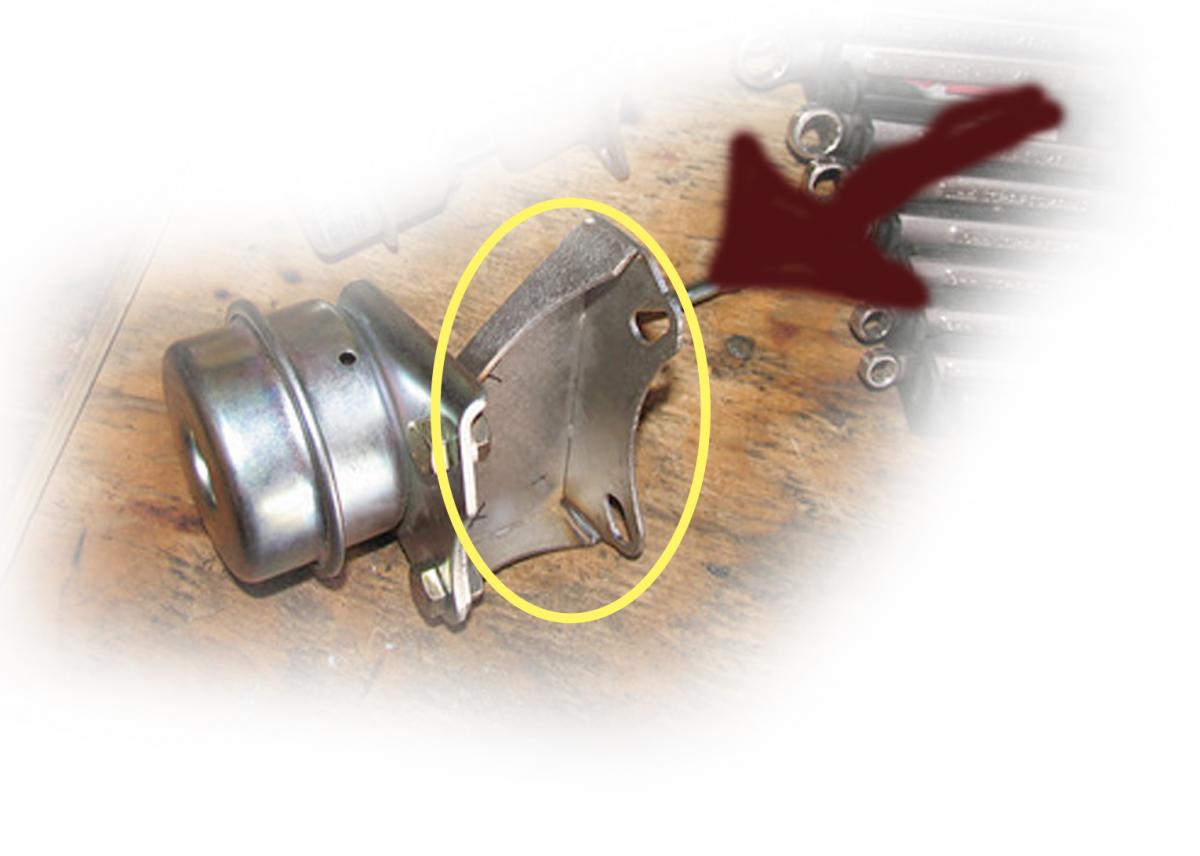

Yeah Ill sell it to you now. Do you have the FM Bracket already? I have this




But not this



PM me if your interested with a zip and an offer
Attached Thumbnails
Overboost Issue-mount.jpg   Overboost Issue-02-70576.jpg
ScottyP3821 is offline   Reply With Quote
Old 12-18-2013, 04:21 PM   #36
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by 18psi View Post
You searched "boost creep" and got those answers? I find that hard to believe
No I searched "overboost"
ScottyP3821 is offline   Reply With Quote
Old 12-18-2013, 04:27 PM   #37
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

BTW off topic the Kinugawa piece is very nice for 100 bucks shipped.
ScottyP3821 is offline   Reply With Quote
Old 12-18-2013, 05:03 PM   #38
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Yup, I haz that brackety thing.

I actually looked at the Kinugawa and the one from Turbosmart because I want an adjustable. I didn't notice anyone running either one so I kinda went "meh." Lots of posts asking about the turbos, but nothing about the adjustable WGA. There is a huge dent in my 2560 can so I don't exactly trust it, but do I trust Kinugawa more?
EO2K is offline   Reply With Quote
Old 12-18-2013, 05:05 PM   #39
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

Kinugawa, while a knockoff ching-ching ebay distributor, actually tends to put out decent products. I've not been disappointed yet and I've used at least a handful of parts from them.
18psi is offline   Reply With Quote
Old 12-18-2013, 05:12 PM   #40
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by 18psi View Post
Kinugawa, while a knockoff ching-ching ebay distributor, actually tends to put out decent products. I've not been disappointed yet and I've used at least a handful of parts from them.
Like a WGA?
EO2K is offline   Reply With Quote
